How to solve the problem that win10 does not support the disk layout of Uefi firmware

Solution: 1. Create an MSR partition; 2. Follow the displayed information to proceed to the next step.

Solution

1. Create an MSR partition:

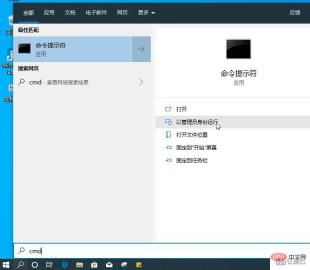

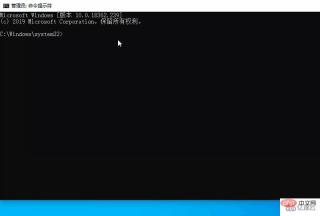

1. Search in Windows 10 Enter CMD in the field, right-click after finding it and run it in administrator mode (you can also use WIN ##3. Enter the List disk command and press Enter

2. Press the displayed information to proceed to the next step

There is only one hard disk:1 , enter the List volume command and press Enter

2. Select the drive letter with the boot partition (usually the C drive), remember the volume number

3, run the command

Select volume Whether the MSR partition is created successfully, just exit after creation.

If you have more than two hard drives, you must first confirm the partition status of Disk 0 (simply understood as the first hard drive, counting starts from 0).

1. Enter the following command:

Select disk 0

List partition

Select partition 1

Detail partition

2. Based on the obtained partition details, determine whether it is For the C drive (boot partition) and NTFS partition.

If yes, follow step 3; if not, enter the following command to check the next partition:

Select partition 2

Detail partition

And so on until you determine that the partition is a boot partition and/or in NTFS format.

3. Enter the following command:

Shrink desired=50 minimum=40

Create partition msr

4. Enter the following command to confirm whether the MSR partition is Successfully created:

List partition

Just exit the command prompt after success.
