Simple steps to insert center marks in Solidworks drawings

php editor Xinyi has published a simple step-by-step article, detailing the method of inserting center marks in Solidworks engineering drawings. Through this article, readers can easily understand how to insert center marks in Solidworks to help them improve the efficiency and accuracy of engineering drawings.

1. As shown in the figure, open Solidworks and create a new engineering drawing file. See the red box in the figure below for specific operations.

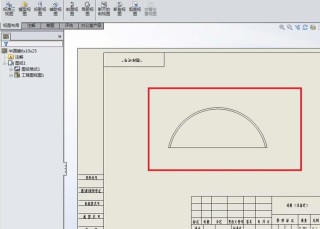

2. As shown in the figure, the arc in the newly created engineering drawing has no center line, let alone a center mark line, and we need to manually add a center mark line to it.

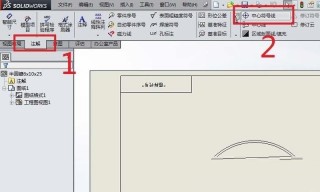

3. As shown in the figure, there is a red box selection and red numbers.

1) Click [Annotation] to come to the annotation toolbar

2) Find the [Center Mark Line] icon and click it.

4. As shown in the figure, the [Center Mark Line] dialog box pops up. If there are no special requirements, the default parameter settings in the dialog box can be used.

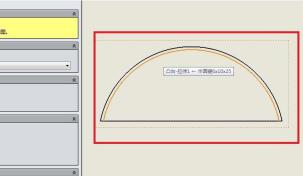

5. Select an arc. As shown in the red box selection in the figure, the arc segment that turns orange is the arc selected by the author.

6. Just after selecting the arc in the previous step, in this step, as shown in the picture, the center mark line immediately appeared.

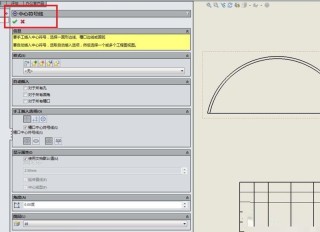

7. As shown in the figure, click √ in the upper left corner of the [Center Mark Line] dialog box to complete the adding operation of the center mark line.

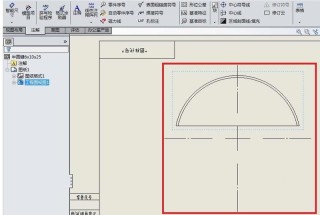

8. As shown in the figure, a center mark line has been successfully added to the arc we just selected.
