Javascript PJAX principles and usage

pjax is pushState ajax, which is encapsulated into a jQuery extension for easy use. pjax is mainly used to solve the problem that the HTML page partially refreshes the URL and does not update and does not support back and forward, so as to improve the user experience.

pjax principle

The implementation of pjax is achieved by combining the new features of HTML5's pushState() and replaceState() with ajax. pushState() and replaceState() are used to operate the State object, which can add and modify historical records, thereby updating the url and providing forward and backward operations. Ajax implements asynchronous loading of data and partial refresh.

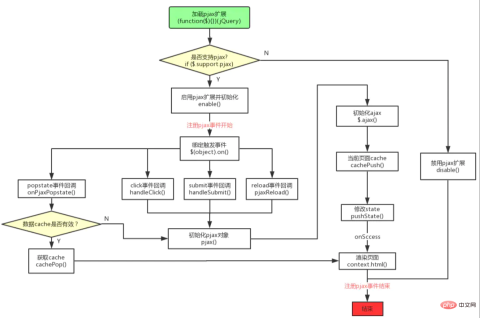

Work flow chart

Source code analysis

• pjax supports judgment

(function($){
    $.support.pjax =
       window.history && window.history.pushState && window.history.replaceState &&
       // pushState isn't reliable on iOS until 5.
       !navigator.userAgent.match(/((iPod|iPhone|iPad).+\bOS\s+[1-4]\D|WebApps\/.+CFNetwork)/)
    if ($.support.pjax){
       enable()   //启用
    } else {
       disable()  //禁用
    }
})(jQuery)

• enable()

function enable() {
    $.fn.pjax = fnPjax             //注册jQuery的pjax方法
    $.pjax = pjax                  //注册pjax对象
    $.pjax.enable = $.noop
    $.pjax.disable = disable
    $.pjax.click = handleClick     //注册click回调
    $.pjax.submit = handleSubmit   //注册submit回调
    $.pjax.reload = pjaxReload     //注册reload回调
    $.pjax.defaults = {}           //设置默认值
    $(window).on('popstate.pjax', onPjaxPopstate)  //绑定popstate事件回调
}

$.noop is an empty method that does nothing, that is, function(){}. popstate.pjax is the namespace writing method of JS event, popstate is the event type, whenever the activated history changes (the browser operates the forward and back buttons, calls back() or go() method), the popstate event will be triggered, but calling pushState() or replaceState() will not trigger the popstate event. .pjax is the namespace of the event, which makes it easy to unbind the event response of the specified namespace. It is often used when binding anonymous functions, for example: this.on('click.pjax', selector , function(event){}).

• fnPjax()

This method returns a jQuery object, equivalent to $.fn.pjax.

return this.on('click.pjax', selector, function(event) {
    //获取pjax配置信息
    options = optionsFor(container, options)
    //自动绑定click事件响应
    return this.on('click.pjax', selector, function(event) {
       var opts = options
       if (!opts.container) {
           opts = $.extend({}, options)
           //如果不配置container，则默认获取data-pjax属性值对应的
           opts.container = $(this).attr('data-pjax')
       }
       handleClick(event, opts)     //调用click回调
    })
}

• pjax()

// Use it just like $.ajax:
//
//   var xhr = $.pjax({ url: this.href, container: '#main' })
//   console.log( xhr.readyState )
//
// Returns whatever $.ajax returns.
function pjax(options) {
    //获取设置
    options = $.extend(true, {}, $.ajaxSettings, pjax.defaults, options)
    //判断检测
    if (containerType !== 'string')

    /**
     * ajax响应回调注册
     */
    //beforeSend
    options.beforeSend = function(xhr, settings) {
        //设置pjax头信息，供后端做兼容处理
        xhr.setRequestHeader('X-PJAX', 'true')
        xhr.setRequestHeader('X-PJAX-Container', options.container)
        //设置超时
    }
    //complete
    options.complete = function(xhr, textStatus) {
       //绑定pjax:complete事件
       fire('pjax:complete', [xhr, textStatus, options])
       //绑定pjax:end事件
       fire('pjax:end', [xhr, options])
    }
    //error
    options.error = function(xhr, textStatus, errorThrown) {
       //绑定pjax:error事件
       fire('pjax:error', [xhr, textStatus, errorThrown, options])
    }
    //success，重点
    options.success = function(data, status, xhr) {
       //判断检测
       if (currentVersion && latestVersion && currentVersion !== latestVersion)
       ... ...
       window.history.replaceState(pjax.state, container.title, container.url)
       //绑定pjax:beforeReplace事件
       fire('pjax:beforeReplace', [container.contents, options], {
           state: pjax.state,
           previousState: previousState
       })
       //渲染页面
       context.html(container.contents)
       //绑定pjax:success事件
       fire('pjax:success', [data, status, xhr, options])
    }
    //初始化ajax
    var xhr = pjax.xhr = $.ajax(options)
    if (xhr.readyState > 0) {
       //缓存页面cache
       cachePush(pjax.state.id, [options.container, cloneContents(context)])
       //pushState
       window.history.pushState(null, "", options.requestUrl)
       //绑定pjax:start事件
       fire('pjax:start', [xhr, options])
       //绑定pjax:send事件
       fire('pjax:send', [xhr, options])
    }
    //返回jQuery对象
    return pjax.xhr
}

• Callback function

1) handleClick()

// Examples
//
//   $(document).on('click', 'a', $.pjax.click)
//   // is the same as
//   $(document).pjax('a')
//
// Returns nothing.
function handleClick(event, container, options) {
    options = optionsFor(container, options)
    //环境检测
    if (link.tagName.toUpperCase() !== 'A')
    ... ...
    //绑定pjax:click事件
    var clickEvent = $.Event('pjax:click')
    $link.trigger(clickEvent, [opts])
    //执行pjax
    pjax(opts)
    //成功则阻止默认行为
    event.preventDefault()
    //绑定pjax:clicked事件
    $link.trigger('pjax:clicked', [opts])
}

2 ) handleSubmit()

// Examples
//
//  $(document).on('submit', 'form', function(event) {
//    $.pjax.submit(event, '[data-pjax-container]')
//  })
//
// Returns nothing.
function handleSubmit(event, container, options) {
    options = optionsFor(container, options)
    //环境检测
    if (form.tagName.toUpperCase() !== 'FORM')
    ... ...
    //默认配置
    var defaults = {
        type: ($form.attr('method') || 'GET').toUpperCase(),
        url: $form.attr('action'),
        container: $form.attr('data-pjax'),
        target: form
    }
    if (defaults.type !== 'GET' && window.FormData !== undefined) {
        //POST时data域
        defaults.data = new FormData(form)
    }
    //执行pjax
    pjax($.extend({}, defaults, options))
    //成功则阻止默认行为
    event.preventDefault()
}

3) pjaxReload()

// Reload current page with pjax.
function pjaxReload(container, options) {
    var defaults = {
        //当前url
        url: window.location.href,
        push: false,
        replace: true,
        scrollTo: false
    }
    //执行pjax
    return pjax($.extend(defaults, optionsFor(container, options)))
}

4) onPjaxPopstate()

// popstate handler takes care of the back and forward buttons
function onPjaxPopstate(event) {
     //环境监测
     if (state && state.container)
     ... ...
     //获取页面cache
     var cache = cacheMapping[state.id] || []
     //绑定pjax:popstate事件
     var popstateEvent = $.Event('pjax:popstate', {
         state: state,
         direction: direction
     })
     container.trigger(popstateEvent)
     if (contents) {
         //有页面cache，直接渲染页面
         //绑定pjax:start事件
     container.trigger('pjax:start', [null, options])
     //绑定pjax:beforeReplace事件
     var beforeReplaceEvent = $.Event('pjax:beforeReplace', {
              state: state,
              previousState: previousState
         })
         container.trigger(beforeReplaceEvent, [contents, options])
         //渲染页面
         container.html(contents)
         //绑定pjax:end事件
         container.trigger('pjax:end', [null, options])
     } else {
         //无页面cache，执行pjax
         pjax(options)
     }
}

pjax use

After the above analysis, you can easily It's easy to use pjax now.

Client

pjax supports options configuration and event mechanism.

• options configuration

Parameter name	Default value	Description
timeout	650	ajax timeout (unit ms), the default page jump will be executed after timeout, so the timeout does not Should be too short, but generally there is no need to set
push	true	Use window.history.pushState to change the address bar url (new ones will be added History)
replace	false	Use window.history.replaceState to change the address bar url (history will not be added)
maxCacheLength	20	The number of cached historical pages (pjax will cache the content of the original page before loading the new page, and the script will be cached after loading. Execute again)
version		is a function that returns the pjax-version of the current page, that is, the tag content in the page. Use response.setHeader("X-PJAX-Version", "") to set a version number different from the current page, which can force the page to jump instead of partially refreshing
scrollTo	0	Vertical scrolling distance after the page is loaded (keeping it consistent with the original page can make the transition effect smoother)
type	"GET"	parameters of ajax, http request method
dataType	"html"	ajax Parameter, Content-Type of the response content
container		CSS selector used to find the container , when the [container] parameter is not specified, use
url	link.href	The connection to be jumped, default The href attribute of a tag
fragment		uses the specified part of the response content (css selector) to populate the page. The server does not This parameter needs to be used when processing a full page request. Simply put, it means intercepting the requested page

• pjax事件

为了方便扩展，pjax 支持一些预定义的事件。

事件名	支持取消	参数	说明
pjax:click	✔	options	点击按钮时触发。可调用 e.preventDefault() 取消 pjaxa
pjax:beforeSend	✔	xhr, options	ajax 执行 beforeSend 函数时触发，可在回调函数中设置额外的请求头参数。可调用 e.preventDefault() 取消 pjax
pjax:start		xhr, options	pjax 开始（与服务器连接建立后触发）
pjax:send		xhr, options	pjax:start之后触发
pjax:clicked		options	ajax 请求开始后触发
pjax:beforeReplace		contents, options	ajax请求成功，内容替换渲染前触发
pjax:success		data, status, xhr, options	内容替换成功后触发
pjax:timeout	✔	xhr, options	ajax 请求超时后触发。可调用 e.preventDefault() 继续等待 ajax 请求结束
pjax:error	✔	xhr, textStatus, error, options	ajax 请求失败后触发。默认失败后会跳转 url，如要阻止跳转可调用 e.preventDefault()
pjax:complete		xhr, textStatus, options	ajax请求结束后触发，不管成功还是失败
pjax:end		xhr, options	pjax所有事件结束后触发
pjax:popstate			forward / back（前进/后退）
pjax:start		null, options	pjax开始
pjax:beforeReplace		contents, options	内容替换渲染前触发，如果缓存了要导航页面的内容则使用缓存，否则使用pjax加载
pjax:end		null, options	pjax结束

客户端通过以下 2 个步骤就可以使用 pjax ：

1. 引入jquery 和 jquery.pjax.js
2. 注册事件

JS

<script></script>

/**
 * 方式1 监听按钮父节点事件
 */
$(document).pjax(selector, [container], options);
/**
 * 方式2 直接监听按钮，可以不用指定容器，默认使用按钮的data-pjax属性值查找容器
 */
$("a[data-pjax]").pjax();
/**
 * 方式3 主动绑定点击事件监听
 */
$(document).on('click', 'a', $.pjax.click);
$(document).on('click', 'a', function(event) {
    //获取container
    var container = $(this).closest('[data-pjax-container]');
    //click回调
    $.pjax.click(event, container);
});
/**
 * 方式4 主动绑定表单提交事件监听
 */
$(document).on('submit', 'form', function(event) {
    //获取container
    var container = $(this).closest('[data-pjax-container]');
    //submit回调
    $.pjax.submit(event, container);
});
/**
 * 方式5 加载内容到指定容器
 */
$.pjax({url: this.href, container: '#main'});
/**
 * 方式6 重新加载当前页面容器的内容
 */
$.pjax.reload('#container');

YII

在 Yii 中，已经将 pjax 封装成了 widgets，故在渲染时如下使用即可：

//view
<?php  Pjax::begin(); ?>
... ...
<?php  Pjax::end(); ?>

pjax 封装成的 widgets 源码文件widgets/Pjax.php ，事件注册部分如下：

public function registerClientScript()
{
    //a标签的click
    if ($this->linkSelector !== false) {
        $linkSelector = Json::htmlEncode($this->linkSelector !== null ? $this->linkSelector : '#' . $id . ' a');
        $js .= "jQuery(document).pjax($linkSelector, \"#$id\", $options);";
    }
    //form表单的submit
    if ($this->formSelector !== false) {
        $formSelector = Json::htmlEncode($this->formSelector !== null ? $this->formSelector : '#' . $id . ' form[data-pjax]');
        $submitEvent = Json::htmlEncode($this->submitEvent);
        $js .= "\njQuery(document).on($submitEvent, $formSelector, function (event) {jQuery.pjax.submit(event, '#$id', $options);});";
    }
    $view->registerJs($js);
}

服务端

由于只是 HTML5 支持 pjax，所以后端需要做兼容处理。通过 X-PJAX 头信息可得知客户端是否支持 pjax，如果支持，则只返回局部页面，否则 a 链接默认跳转，返回整个页面。

/**
 * IndexController示例
 */
public function actionIndex() {
    $dataProvider = new CActiveDataProvider('Article', array(
        'criteria' => array('order' => 'create_time DESC')
    ));
    //存在X-Pjax头，支持pjax
    if (Yii::$app->getRequest()->getHeaders()->get('X-Pjax')) {
        //返回局部页面
        $this->renderPartial('index', array(
            'dataProvider' => $dataProvider,
        ));
    } else {
        //返回整个页面
        $this->render('index', array(
            'dataProvider' => $dataProvider,
        ));
    }
}

pjax失效情况

在以下 9 种情况时候 pjax 会失效，源码部分如下：

//click回调
function handleClick(event, container, options) {
    ...
    // 1. 点击的事件源不是a标签。a标签可以对旧版本浏览器的兼容,因此不建议使用其他标签注册事件
    if (link.tagName.toUpperCase() !== 'A')
        throw "$.fn.pjax or $.pjax.click requires an anchor element"
    // 2. 使用鼠标滚轮点击、点击超链接的同时按下Shift、Ctrl、Alt和Meta
    if (event.which > 1 || event.metaKey || event.ctrlKey || event.shiftKey || event.altKey)
        return
    // 3. 跨域
    if (location.protocol !== link.protocol || location.hostname !== link.hostname)
        return
    // 4. 当前页面的锚点定位
    if (link.href.indexOf('#') > -1 && stripHash(link) == stripHash(location))
        return
    // 5. 已经阻止元素发生默认的行为
    if (event.isDefaultPrevented())
        return
    ...
    var clickEvent = $.Event('pjax:click')
    $(link).trigger(clickEvent, [opts])
    // 6. pjax:click事件回调中已经阻止元素发生默认的行为
    if (!clickEvent.isDefaultPrevented()) {
        pjax(opts)
    }
}
//pjax
function pjax(options) {
    options.beforeSend = function(xhr, settings) {
        //7. ajx超时
       timeoutTimer = setTimeout(function() {
       if (fire('pjax:timeout', [xhr, options]))
           xhr.abort('timeout')
       }, settings.timeout)
    }
    options.success = function(data, status, xhr) {
    //8. 当前页面和请求的新页面版本不一致
    if (currentVersion && latestVersion && currentVersion !== latestVersion) {
       return
    }
    //9. ajax失败
    context.html(container.contents)
}

其他方案

除了使用 pjax 解决局部刷新并支持前进和后退问题外，也可以使用 browserstate/history.js + ajax 方案来实现
