Introduction to common form layout in layui framework

There are two common form layout methods that we often use. The vertical layout method has been provided in the layui document. We will also use the horizontal layout method when we do the backend. , used when searching at the top of the page. Recommended: layui tutorial

Let’s take a look at the implementation of horizontal and vertical form lists:

1. Horizontal typesetting

html:

<div class="mainTop layui-clear">
        <div class="fl">
            <button type="button" class="layui-btn layui-btn-blue">新增商品</button>
        </div>
        <div class="fr">
            <form class="layui-form" action="">
                <div class="layui-form-item">
                    <div class="layui-inline">
                        <label class="layui-form-label">状态：</label>
                        <div class="layui-input-inline">
                            <select name="city" lay-verify="required" class="select_wd120">
                                <option value=""></option>
                                <option value="0">启用</option>
                                <option value="1">禁用</option>
                                <option value="2">暂时</option>
                            </select>
                        </div>
                    </div>
                    <div class="layui-inline">
                        <label class="layui-form-label">创建时间：</label>
                        <div class="layui-input-inline">
                            <input type="text" class="layui-input dateIcon" id="dateTime" placeholder="请选择时间范围"
                                   style="width: 240px;">
                        </div>
                    </div>
                    <div class="layui-inline">
                        <div class="layui-input-inline">
                            <input type="text" placeholder="请输入标题" class="layui-input" style="width: 240px;">
                        </div>
                        <div class="layui-input-inline">
                            <button type="button" class="layui-btn layui-btn-blue">搜索</button>
                        </div>
                    </div>
                </div>

            </form>
        </div>
    </div>

Public css: (including theme color modification)

.fl { float: left; }
.fr { float: right; }
.mb10{ margin-bottom:10px;}
.sideBlock { padding: 24px; }
.layui-form-item .layui-input-inline { width: auto; }
.layui-input, .layui-select, .layui-textarea{ height:36px;}
.layui-form-label {
    padding: 8px 15px;
}
.layui-form-switch {
    height: 34px;
    line-height: 34px;
    margin-top: 0;
    min-width: 54px;
}
.layui-form-switch i {
    width: 24px;
    height: 24px;top: 5px;
}
.layui-form-onswitch i {
    margin-left: -28px;
    top: 5px;
}
.layui-form-switch em{margin-left: 27px;}
.layui-form-onswitch em {
    margin-left: 5px;
}
.layui-btn{ height:36px;}
/*修改颜色风格-蓝色 */
.layui-form-select dl dd.layui-this {
    background-color: #02a7f0;
}
.layui-btn-blue { background-color: #02a7f0; }
.layui-form-onswitch {
    border-color: #02a7f0;
    background-color: #02a7f0;
}
.layui-form-radio>i:hover, .layui-form-radioed>i {
    color: #02a7f0;
}
.layui-form-checked[lay-skin=primary] i {
    border-color: #02a7f0;
    background-color: #02a7f0;
}
.layui-form-checkbox[lay-skin=primary]:hover i {
    border-color: #02a7f0;
}

Horizontal css:

.mainTop .layui-form-label { width: auto; padding-right: 5px; }
.dateIcon { display: inline-block; background: url(images/dateIcon.png) no-repeat 210px center; }

Effect display:

2. Vertical typesetting

html:

<div class="formList">
    <form class="layui-form" action="">
        <div class="layui-form-item">
            <label class="layui-form-label">昵称<em class="dotRed">*</em>：</label>
            <div class="layui-input-block">
                <input type="text" placeholder="请输入昵称" class="layui-input" style="width: 320px;">
            </div>
        </div>
        <div class="layui-form-item">
            <label class="layui-form-label">邮箱<em class="dotRed">*</em>：</label>
            <div class="layui-input-block">
                <input type="email" placeholder="请输入邮箱" class="layui-input" style="width: 320px;">
            </div>
        </div>
        <div class="layui-form-item">
            <label class="layui-form-label">性别：</label>
            <div class="layui-input-block">
                <input type="radio" name="sex" value="保密" title="保密" checked>
                <input type="radio" name="sex" value="男" title="男">
                <input type="radio" name="sex" value="女" title="女">
            </div>
        </div>
        <div class="layui-form-item">
            <label class="layui-form-label">兴趣：</label>
            <div class="layui-input-block">
                <input type="checkbox" name="" title="写作" lay-skin="primary" checked>
                <input type="checkbox" name="" title="发呆" lay-skin="primary">
                <input type="checkbox" name="" title="唱歌" lay-skin="primary">
                <input type="checkbox" name="" title="跳舞" lay-skin="primary" checked>
                <input type="checkbox" name="" title="睡觉" lay-skin="primary">
                <input type="checkbox" name="" title="画画" lay-skin="primary">
            </div>
        </div>
        <div class="layui-form-item">
            <label class="layui-form-label">城市<em class="dotRed">*</em>：</label>
            <div class="layui-input-block">
                <select name="city" lay-verify="required" class="select_wd320">
                    <option value=""></option>
                    <option value="0">北京</option>
                    <option value="1">上海</option>
                    <option value="2">广州</option>
                    <option value="3">深圳</option>
                    <option value="4">杭州</option>
                </select>
            </div>
        </div>
        <div class="layui-form-item">
            <label class="layui-form-label">状态：</label>
            <div class="layui-input-block">
                <input type="checkbox" name="yyy" lay-skin="switch" lay-text="ON|OFF" checked>
            </div>
        </div>
        <div class="layui-form-item layui-form-text">
            <label class="layui-form-label">个人签名：</label>
            <div class="layui-input-block">
                <textarea name="desc" placeholder="请输入活动备注内容" class="layui-textarea"></textarea>
            </div>
        </div>
    </form>
</div>

css:

.dotRed {
    color: #ff3100;
}
.mt32{ margin-top:32px;}
.formList .layui-form-label { padding-right: 0; }
.formList .layui-input-block{ margin-left:100px;}

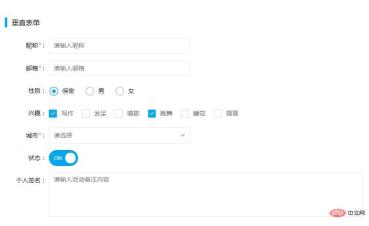

Effect display:

3. Vertical typesetting---when there is a lot of text

I have encountered when there is a lot of text on the left side when making vertical forms. The line wrapping will appear unsightly, so what should I do? Here is the solution:

html:

<div class="formList">
    <form class="layui-form layui-form-wd120" action="">
        <div class="layui-form-item">
            <label class="layui-form-label">浏览器名称<em class="dotRed">*</em>：</label>
            <div class="layui-input-block">
                <input type="text" placeholder="请输入浏览器名称" class="layui-input" style="width: 480px;">
            </div>
        </div>
        <div class="layui-form-item">
            <label class="layui-form-label">商店详细地址<em class="dotRed">*</em>：</label>
            <div class="layui-input-block">
                <select name="city" lay-verify="required" class="select_wd320">
                    <option value=""></option>
                    <option value="0">北京</option>
                    <option value="1">上海</option>
                    <option value="2">广州</option>
                    <option value="3">深圳</option>
                    <option value="4">杭州</option>
                </select>
            </div>
        </div>
    </form>
</div>

css:

.layui-form-wd120 .layui-form-label{ width:120px;}
.layui-form-wd120 .layui-input-block{ margin-left:140px;}

Effect display:

If you think there are still more words, continue the same method:

html:

<div class="formList">
    <form class="layui-form layui-form-wd210" action="">
        <div class="layui-form-item">
            <label class="layui-form-label">启用上传商品自动生成相册图<em class="dotRed">*</em>：</label>
            <div class="layui-input-block">
                <input type="checkbox" name="yyy" lay-skin="switch" lay-text="ON|OFF" checked>
                <span class="error-tips">启用后以商品原图无压缩上传，原图文件较大，会影响网页图片打开速度。</span>
            </div>
        </div>
        <div class="layui-form-item">
            <label class="layui-form-label">启用上传商品保留原图<em class="dotRed">*</em>：</label>
            <div class="layui-input-block">
                <input type="checkbox" name="yyy" lay-skin="switch" lay-text="ON|OFF" checked>
            </div>
        </div>
    </form>
</div>

css:

.layui-form-wd210 .layui-form-label{ width:210px;}
.layui-form-wd210 .layui-input-block{ margin-left:230px;}

.error-tips{ color: #ff3100; font-size:13px; padding-left:10px;}

Effect display:

Final demonstration effect display: http://www.jianbaizhan.com/upload/file/20181204/5c06280599c0d/form.html

The above is the detailed content of Introduction to common form layout in layui framework. For more information, please follow other related articles on the PHP Chinese website!
