Old rules, first ask a few questions:

  • Why dynamic linking?
  • How to do dynamic linking?
  • What is address-independent code technology?
  • What is delayed binding technology?
  • How to do explicit linking while the program is running?

Why dynamic linking?

The emergence of dynamic linking is to solve some shortcomings of static linking:

  1. Save memory and disk space: As shown in the figure below,
Linux 动态链接与静态链接原来是这么回事?

Program1 and Program2 contain two modules, Program1.o and Program2.o respectively, and they both require the Lib.o module. In the case of static linking, both target files use the Lib.o module, so they have copies in the executable files Program1 and program2 output by the link at the same time. When running at the same time, Lib.o has two copies on the disk and in the memory. Copies, when there are a large number of multiple programs similar to Lib.o sharing target files in the system, a lot of space will be wasted.

  1. Static linking is very unfriendly to program update deployment and release

If a module depends on 20 modules, when one of the 20 modules needs to be updated, all modules need to be found and recompiled into an executable program before the update can be successful. Each time any module is updated, For a module, the user needs to re-obtain a very large program. If the program uses static linking, it will be very inconvenient to update the program through the network. Once there is a small change anywhere in the program, the entire program will be re-downloaded.

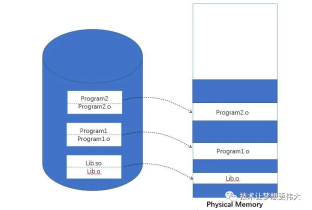

In order to solve the shortcomings of static linking, dynamic linking is introduced. The memory distribution of dynamic linking is as shown in the figure,

Linux 动态链接与静态链接原来是这么回事?

Multiple programs rely on the same shared object file. There is only one copy of this shared object file on the disk and memory, and no copies will be generated. Simply put, it is not like static linking for those object files that make up the program. Perform linking, wait until the program is about to run, and postpone the linking process until it is run. The dynamic link method makes each module more independent and less coupled during the development process, making it easier for different developers and development organizations to develop and test independently.

How to perform dynamic linking?

Look at the following code:

// lib.c
#include

void func(int i) {
   printf("func %d \n", i);
}
// Program.c
void func(int i);

int main() {
   func(1);
   return 0;
}

The compilation and running process is as follows:

$ gcc -fPIC -shared -o lib.so lib.c
$ gcc -o test Program.c ./lib.so
$ ./test
$ func 1

You can generate a dynamic link library through -fPIC and -shared, and then link it to the executable program to run normally.

You can view the segment information of the dynamic link library through the readelf command:

~/test$ readelf -l lib.so

Elf file type is DYN (Shared object file)
Entry point 0x530
There are 7 program headers, starting at offset 64

Program Headers:
 Type           Offset             VirtAddr           PhysAddr
                FileSiz            MemSiz              Flags  Align
 LOAD           0x0000000000000000 0x0000000000000000 0x0000000000000000
                0x00000000000006e4 0x00000000000006e4  R E    0x200000
 LOAD           0x0000000000000e10 0x0000000000200e10 0x0000000000200e10
                0x0000000000000218 0x0000000000000220  RW     0x200000
 DYNAMIC        0x0000000000000e20 0x0000000000200e20 0x0000000000200e20
                0x00000000000001c0 0x00000000000001c0  RW     0x8
 NOTE           0x00000000000001c8 0x00000000000001c8 0x00000000000001c8
                0x0000000000000024 0x0000000000000024  R      0x4
 GNU_EH_FRAME   0x0000000000000644 0x0000000000000644 0x0000000000000644
                0x0000000000000024 0x0000000000000024  R      0x4
 GNU_STACK      0x0000000000000000 0x0000000000000000 0x0000000000000000
                0x0000000000000000 0x0000000000000000  RW     0x10
 GNU_RELRO      0x0000000000000e10 0x0000000000200e10 0x0000000000200e10
                0x00000000000001f0 0x00000000000001f0  R      0x1

Section to Segment mapping:
 Segment Sections...
  00     .note.gnu.build-id .gnu.hash .dynsym .dynstr .gnu.version .gnu.version_r .rela.dyn .rela.plt .init .plt .plt.got .text .fini .rodata .eh_frame_hdr .eh_frame
  01     .init_array .fini_array .dynamic .got .got.plt .data .bss
  02     .dynamic
  03     .note.gnu.build-id
  04     .eh_frame_hdr
  05
  06     .init_array .fini_array .dynamic .got

You can see that the loading address of the dynamic link module starts from 0. 0 is an invalid address. Its loading address will be determined when the program is running and is uncertain at compile time.

Change the program:

// Program.c
#include
void func(int i);

int main() {
   func(1);
   sleep(-1);
   return 0;
}

Run to read maps information:

~/test$ ./test &
[1] 126
~/test$ func 1
cat /proc/126/maps
7ff2c59f0000-7ff2c5bd7000 r-xp 00000000 00:00 516391             /lib/x86_64-linux-gnu/libc-2.27.so
7ff2c5bd7000-7ff2c5be0000 ---p 001e7000 00:00 516391             /lib/x86_64-linux-gnu/libc-2.27.so
7ff2c5be0000-7ff2c5dd7000 ---p 000001f0 00:00 516391             /lib/x86_64-linux-gnu/libc-2.27.so
7ff2c5dd7000-7ff2c5ddb000 r--p 001e7000 00:00 516391             /lib/x86_64-linux-gnu/libc-2.27.so
7ff2c5ddb000-7ff2c5ddd000 rw-p 001eb000 00:00 516391             /lib/x86_64-linux-gnu/libc-2.27.so
7ff2c5ddd000-7ff2c5de1000 rw-p 00000000 00:00 0
7ff2c5df0000-7ff2c5df1000 r-xp 00000000 00:00 189022             /mnt/d/wzq/wzq/util/test/lib.so
7ff2c5df1000-7ff2c5df2000 ---p 00001000 00:00 189022             /mnt/d/wzq/wzq/util/test/lib.so
7ff2c5df2000-7ff2c5ff0000 ---p 00000002 00:00 189022             /mnt/d/wzq/wzq/util/test/lib.so
7ff2c5ff0000-7ff2c5ff1000 r--p 00000000 00:00 189022             /mnt/d/wzq/wzq/util/test/lib.so
7ff2c5ff1000-7ff2c5ff2000 rw-p 00001000 00:00 189022             /mnt/d/wzq/wzq/util/test/lib.so
7ff2c6000000-7ff2c6026000 r-xp 00000000 00:00 516353             /lib/x86_64-linux-gnu/ld-2.27.so
7ff2c6026000-7ff2c6027000 r-xp 00026000 00:00 516353             /lib/x86_64-linux-gnu/ld-2.27.so
7ff2c6227000-7ff2c6228000 r--p 00027000 00:00 516353             /lib/x86_64-linux-gnu/ld-2.27.so
7ff2c6228000-7ff2c6229000 rw-p 00028000 00:00 516353             /lib/x86_64-linux-gnu/ld-2.27.so
7ff2c6229000-7ff2c622a000 rw-p 00000000 00:00 0
7ff2c62e0000-7ff2c62e3000 rw-p 00000000 00:00 0
7ff2c62f0000-7ff2c62f2000 rw-p 00000000 00:00 0
7ff2c6400000-7ff2c6401000 r-xp 00000000 00:00 189023             /mnt/d/wzq/wzq/util/test/test
7ff2c6600000-7ff2c6601000 r--p 00000000 00:00 189023             /mnt/d/wzq/wzq/util/test/test
7ff2c6601000-7ff2c6602000 rw-p 00001000 00:00 189023             /mnt/d/wzq/wzq/util/test/test
7fffee96f000-7fffee990000 rw-p 00000000 00:00 0                 [heap]
7ffff6417000-7ffff6c17000 rw-p 00000000 00:00 0                 [stack]
7ffff729d000-7ffff729e000 r-xp 00000000 00:00 0                 [vdso]

可以看到,整个进程虚拟地址空间中,多出了几个文件的映射,lib.so和test一样,它们都是被操作系统用同样的方法映射到进程的虚拟地址空间,只是它们占据的虚拟地址和长度不同.

从maps里可以看见里面还有libc-2.27.so,这是C语言运行库,还有一个ld-2.27.so,这是Linux下的动态链接器,动态链接器和普通共享对象一样被映射到进程的地址空间,在系统开始运行test前,会先把控制权交给动态链接器,动态链接器完成所有的动态链接工作后会把控制权交给test,然后执行test程序。

当链接器将Program.o链接成可执行文件时,这时候链接器必须确定目标文件中所引用的func函数的性质,如果是一个定义于其它静态目标文件中的函数,那么链接器将会按照静态链接的规则,将Program.o的func函数地址进行重定位,如果func是一个定义在某个动态链接共享对象中的函数,那么链接器将会将这个符号的引用标记为一个动态链接的符号,不对它进行地址重定位,将这个过程留在装载时再进行。

动态链接的方式

动态链接有两种方式:装载时重定位和地址无关代码技术。

装载时重定位:

在链接时对所有绝对地址的引用不作重定位,而把这一步推迟到装载时完成,也叫基址重置,每个指令和数据相当于模块装载地址是固定的,系统会分配足够大的空间给装载模块,当装载地址确定后,那指令和数据地址自然也就确定了。

然而动态链接模块被装载映射到虚拟空间,指令被重定位后对于每个进程来讲是不同的,没有办法做到同一份指令被多个进程共享,所以指令对不同的进程来说有不同的副本,还是空间浪费,怎么解决这个问题?使用fPIC方法。

地址无关代码:

指令部分无法在多个进程之间共享,不能节省内存,所以引入了地址无关代码的技术。我们平时编程过程中可能都见过-fPIC的编译选项,这个就代表使用了地址无关代码技术来实现真正的动态链接。

基本思想就是使用GOT(全局偏移表),这是一个指向变量或函数地址的指针数组,当指令要访问变量或者调用函数时,会去GOT中找到相应的地址进行间接跳转访问,每个变量或函数都对应一个地址,链接器在装载模块的时候会查找每个变量和函数的地址,然后填充GOT中的各个项,确保每个指针指向的地址正确。GOT放在数据段,所以它可以在模块装载时被修改,并且每个进程都可以有独立的副本,相互不受影响。

tips



-fpic和-fPIC的区别:它们都是地址无关代码技术,-fpic产生的代码相对较小较快,但是在某些平台会有些限制,所以大多数情况下都是用-fPIC来产生地址无关代码。



-fPIC和-fPIE的区别:一个作用于共享对象,一个作用于可执行文件,一个以地址无关方式编译的可执行文件被称作地址无关可执行文件。



-fpie和-fPIE的区别:类似于-fpic和-fPIC的区别

延迟绑定技术

在程序刚启动时动态链接器会寻找并装载所需要的共享对象,然后进行符号地址寻址重定位等工作,这些工作会减慢程序的启动速度,如果解决?

使用PLT延迟绑定技术,这里会单独有一个叫.PLT的段,ELF将 GOT拆分成两个表.GOT和.GOT.PLT,其中.GOT用来保存全局变量的引用地址,.GOT.PLT用来保存外部函数的地址,每个外部函数在PLT中都有一个对应项,在初始化时不会绑定,而是在函数第一次被用到时才进行绑定,将函数真实地址与对应表项进行绑定,之后就可以进行间接跳转。

显式运行时链接

支持动态链接的系统往往都支持显式运行时链接,也叫运行时加载,让程序自己在运行时控制加载的模块,在需要时加载需要的模块,在不需要时将其卸载。这种运行时加载方式使得程序的模块组织变得很灵活,可以用来实现一些诸如插件、驱动等功能。

通过这四个API可以进行显式运行时链接:

dlopen():打开动态链接库
dlsym():查找符号
dlerror():错误处理
dlclose():关闭动态链接库

参考这段使用代码:

#include
#include

int main() {

   void *handle;
   void (*f)(int);
   char *error;

   handle = dlopen("./lib.so", RTLD_NOW);
   if (handle == NULL) {
       printf("handle null \n");
       return -1;
  }
   f = dlsym(handle, "func");
   do {
       if ((error = dlerror()) != NULL) {
           printf("error\n");
           break;
      }
       f(100);
  } while (0);
   dlclose(handle);

   return 0;
}

编译运行:

$ gcc -o test program.c -ldl
$ ./test
func 100

总结

为什么要进行动态链接?为了解决静态链接浪费空间和更新困难的缺点。

How to dynamically link? Load-time relocation and address-independent code technology.

Principles of address-independent code technology? Realize indirect jump through GOT segment.

Principles of lazy loading technology? Implement delayed binding and indirect jumps through the PLT segment for external function symbols.

How to do explicit runtime linking? Through the four functions in the header file, the code is as above.
