Written before & the author’s personal understanding

Domain changes at the sensor level of autonomous vehicles are a very common phenomenon. For example, autonomous vehicles in different scenarios and locations are in Self-driving vehicles under different lighting and weather conditions, and self-driving vehicles equipped with different sensor equipment, all of the above can be considered as classic differences in the autonomous driving domain. This domain difference creates challenges for autonomous driving, mainly because autonomous driving models that rely on old domain knowledge are difficult to directly deploy to a new domain that has never been seen before without additional cost. Therefore, in this paper, we propose a reconstruction-simulation-awareness (ReSimAD) scheme to provide a new perspective and method for domain migration. Specifically, we use implicit reconstruction technology to obtain old domain knowledge in the driving scene. The purpose of the reconstruction process is to study how to convert domain-related knowledge in the old domain into domain-invariant representations (Domain-invariant Representations). For example, we believe that 3D scene-level mesh representations (3D Mesh Representations) are a domain-invariant representation. Based on the reconstructed results, we further use the simulator to generate a more realistic simulation point cloud of the target domain. This step relies on the reconstructed background information and the sensor solution of the target domain, thus reducing the collection and labeling time in the subsequent sensing process. Cost of new domain data.

We considered different cross-domain settings in the experimental verification part, including Waymo-to-KITTI, Waymo-to-nuScenes, Waymo-to-ONCE, etc. All cross-domain settings adopt zero-shot experimental settings, relying only on the background mesh and simulated sensors of the source domain to simulate target domain samples to improve model generalization capabilities. The results show that ReSimAD can greatly improve the generalization ability of the perception model to the target domain scene, even better than some unsupervised domain adaptation methods.

Paper information

ReSimAD: How to improve the generalization performance of perceptual models through virtual data

  • Paper title: ReSimAD: Zero-Shot 3D Domain Transfer for Autonomous Driving with Source Reconstruction and Target Simulation
  • ICLR-2024 accepts
  • Papers published by: Shanghai Artificial Intelligence Laboratory, Shanghai Jiao Tong University, Fudan University, Beihang University
  • Paper address: https: //arxiv.org/abs/2309.05527
  • Code address: simulation data set and perception part, https://github.com/PJLab-ADG/3DTrans#resimad; source domain reconstruction part, https:// github.com/pjlab-ADG/neuralsim; Target domain simulation part, https://github.com/PJLab-ADG/PCSim

Research motivation

Challenge: Although 3D models can help autonomous vehicles recognize their surroundings, existing baseline models are difficult to generalize to new domains (such as different sensor settings or unseen city ​​of). The long-term vision in the field of autonomous driving is to enable models to achieve domain migration at a lower cost, that is, to successfully adapt a model fully trained on the source domain to the target domain scenario, where the source domain and target domain exist respectively. There are two domains with obvious data distribution differences. For example, the source domain is sunny and the target domain is rainy; the source domain is a 64-beam sensor and the target domain is a 32-beam sensor.

Commonly used solution ideas: Faced with the above domain differences, the most common solution is to obtain and annotate data for the target domain scenario. This method can avoid domain differences to a certain extent. The problem of model performance degradation caused by the difference, but there is a huge 1) data collection cost and 2) data labeling cost. Therefore, as shown in the figure below (see the two baseline methods (a) and (b)), in order to alleviate the cost of data collection and data annotation for a new domain, the simulation engine can be used to render some simulated point cloud samples. This is common Solution ideas for sim-to-real research work. Another idea is unsupervised domain adaptation (UDA for 3D). The purpose of this type of work is to study how to achieve approximately fully supervised fine-tuning under the condition of only being exposed to unlabeled target domain data (note that it is real data) If this can be achieved, it will indeed save the cost of labeling the target domain. However, the UDA method still needs to collect a large amount of real target domain data to characterize the data distribution of the target domain.

ReSimAD: How to improve the generalization performance of perceptual models through virtual dataFigure 1: Comparison of different training paradigms

Our ideas: Different from the above two categories of research ideas, as shown in the figure below (please see (c) baseline process), we are committed to the data simulation-perception integration route that combines virtual and real , where reality in the combination of virtual and real refers to constructing a domain-invariant representation based on massive labeled source domain data. This assumption has practical significance for many scenarios, because after long-term historical data accumulation, We can always think that this kind of labeled source domain data exists; on the other hand, simulation in the combination of virtual and real means: when we build a domain-invariant representation based on the source domain data, This representation can be imported into an existing rendering pipeline to perform simulation of target domain data. Compared with current sim-to-real research work, our method is supported by real scene-level data, including real information such as road structure, uphill and downhill slopes, etc. This information is difficult to obtain solely by relying on the simulation engine itself. After obtaining data in the target domain, we integrate the data into the best current perception model, such as PV-RCNN, for training, and then verify the accuracy of the model in the target domain. Please see the figure below for the overall detailed workflow:

ReSimAD: How to improve the generalization performance of perceptual models through virtual dataFigure 2 ReSimAD flow chart

The flow chart of ReSimAD is shown in Figure 2, which mainly includesa) Point-to -Mesh implicit reconstruction process, b) Mesh-to-point simulation engine rendering process, c) Zero-sample sensing process.

ReSimAD: Simulation reconstruction-aware paradigm

a) Point-to-mesh implicit reconstruction process: affected by StreetSurf Inspired by , we only use lidar reconstruction to reconstruct real and diverse street scene backgrounds and dynamic traffic flow information. We first designed a pure point cloud SDF reconstruction module (LiDAR-only Implicit Neural Reconstruction, LINR). Its advantage is that it is not affected by some domain differences caused by camera sensing, such as: changes in illumination, changes in weather conditions, etc. . The pure point cloud SDF reconstruction module takes LiDAR rays as input, then predicts depth information, and finally builds a 3D meshes representation of the scene.

Specifically, for the ray ReSimAD: How to improve the generalization performance of perceptual models through virtual data emitted from the origin ReSimAD: How to improve the generalization performance of perceptual models through virtual data with direction ReSimAD: How to improve the generalization performance of perceptual models through virtual data, we apply volume rendering to the lidar to train the Signed Distance Field (SDF) network, and the rendering depth D can be formulated is:

ReSimAD: How to improve the generalization performance of perceptual models through virtual data

where is the sampling depth of the sample point ReSimAD: How to improve the generalization performance of perceptual models through virtual data, is the accumulated transmittance (the accumulated transmittance), which is obtained by using the close range model in NeuS of.

Taking inspiration from StreetSurf, the model input for the reconstruction process proposed in this article comes from lidar rays, and the output is the predicted depth. On each sampled lidar beam ReSimAD: How to improve the generalization performance of perceptual models through virtual data, we apply a logarithmic L1 loss on ReSimAD: How to improve the generalization performance of perceptual models through virtual data, which is the combined rendering depth of the near and distant models:

ReSimAD: How to improve the generalization performance of perceptual models through virtual data

However, LINR methods still face some challenges. Due to the inherent sparsity of data acquired by lidar, a single lidar point cloud frame can only capture a portion of the information contained in a standard RGB image. This difference highlights the potential shortcomings of depth rendering in providing the necessary geometric detail for effective training. Therefore, this can lead to a large number of artifacts within the resulting reconstructed mesh. To address this challenge, we propose to splice all frames in a Waymo sequence to increase the density of the point cloud.

Due to the limitation of the vertical field of view of the Top LiDAR in the Waymo dataset, only obtaining point clouds between -17.6° and 2.4° has obvious limitations on the reconstruction of surrounding high-rise buildings. To address this challenge, we introduce a solution that incorporates point clouds from Side LiDAR into sampling sequences for reconstruction. Four blind-filling radars are installed on the front, rear and two sides of the autonomous vehicle, with a vertical field of view reaching [-90°, 30°], which effectively compensates for the shortcomings of the insufficient field of view range of the top lidar. Due to the difference in point cloud density between side lidar and top lidar, we choose to assign a higher sampling weight to side lidar to improve the reconstruction quality of high-rise building scenes.

Reconstruction quality evaluation: Due to the occlusion caused by dynamic objects and the impact of lidar noise, there may be a certain amount of noise in the implicit representation for reconstruction. Therefore, we evaluated the reconstruction accuracy. Because we can obtain massive annotated point cloud data from the old domain, we can obtain the simulated point cloud data of the old domain by re-rendering on the old domain to evaluate the accuracy of the reconstructed mesh. We measure the simulated point cloud and the original real point cloud using root mean square error (RMSE) and chamfer distance (CD):

ReSimAD: How to improve the generalization performance of perceptual models through virtual data

where for each For a description of the sequence reconstruction scores and some detailed processes, please refer to the original appendix.

b) Mesh-to-point simulation engine rendering process: After obtaining the static background mesh through the above LINR method, we use the Blender Python API to convert the mesh into The data is converted from .ply format to 3D model files in .fbx format, and the background mesh is finally loaded as an asset library into the open source simulator CARLA.

We first obtain Waymo's annotation file to obtain the bounding box category and three-dimensional object size of each traffic participant, and based on this information, we search for traffic participants of the same category in CARLA's digital asset library The closest digital asset in size is imported and used as a traffic participant model. Based on the scene authenticity information available in the CARLA simulator, we developed a detection box extraction tool for each detectable object in the traffic scene. For details, please refer to PCSim Development Tools.

ReSimAD: How to improve the generalization performance of perceptual models through virtual dataFigure 3 Distribution of object sizes (length, width, height) of traffic participants in different data sets. As can be seen from Figure 3, the distribution diversity of object sizes simulated using this method is very wide, exceeding currently published data sets such as KITTI, nuScenes, Waymo, ONCE, etc.

ReSimAD reconstruction-simulation data set

We use Waymo as the source domain data and reconstruct it on Waymo to obtain a more realistic 3D mesh. At the same time, we use KITTI, nuScenes, and ONCE as target domain scenarios, and verify the zero-shot performance achieved by our method in these target domain scenarios.

We generate 3D scene-level mesh data based on the Waymo data set according to the introduction in the above chapter, and use the above evaluation criteria to determine which 3D meshes are of high quality under the Waymo domain, and select the highest 146 based on the score. meshes to carry out the subsequent target domain simulation process.

Evaluation results

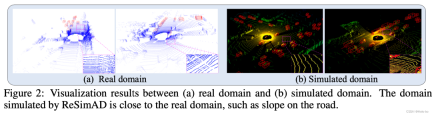

ReSimAD: How to improve the generalization performance of perceptual models through virtual dataSome visualization examples in the ResimAD data set are shown below:

Evaluation results

ReSimAD: How to improve the generalization performance of perceptual models through virtual data

Experimental Chapter

Experimental Settings

Baseline Selection: We compare the proposed ReSimAD with three typical cross-domain baselines: a) Baseline for data simulation using the simulation engine directly; b) Baseline for data simulation by changing sensor parameter settings in the simulation engine; c) Domain Adaptation (UDA) baseline.
  • Metric: We Align The current evaluation standards for 3D cross-domain object detection use BEV-based and 3D-based AP as evaluation metrics respectively.
  • Parameter settings: For details, please refer to the paper.
Experimental results

Only the main experimental results are shown here, please refer to us for more results thesis.

Adaptation performance of PV-RCNN/PV-RCNN two models under three cross-domain settings

We can observe from the above table: The main difference between UDA and ReSimAD using unsupervised domain adaptation (UDA) technology is that the former uses samples of the target domain real scenes for model domain migration , and the experimental setting of ReSimAD requires that it cannot access any real point cloud data in the target domain. As can be seen from the above table, the cross-domain results obtained by our ReSimAD are comparable to those obtained by the UDA method. This result shows that when the lidar sensor needs to be upgraded for commercial purposes, our method can greatly reduce the cost of data collection and further shorten the retraining and redevelopment cycle of the model due to domain differences.

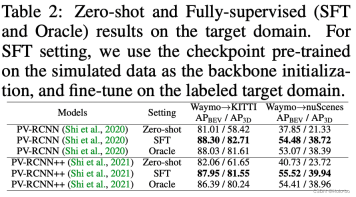

ReSimAD data is used as the cold start data of the target domain, and the effect that can be achieved on the target domain

ReSimAD: How to improve the generalization performance of perceptual models through virtual data

Data generated using ReSimAD Another benefit is that high-performance target domain accuracy can be obtained without accessing any real data distribution of the target domain. This process is actually similar to the "cold start" process of the autonomous driving model in new scenarios.

The above table reports the experimental results under the fully supervised target domain. Oracle represents the result of the model being trained on the full amount of labeled target domain data, while SFT represents that the network initialization parameters of the baseline model are provided by the weights trained on the ReSimAD simulation data. The above experimental table shows that the point cloud simulated using our ReSimAD method can obtain higher initialization weight parameters, and its performance exceeds the Oracle experimental setting.

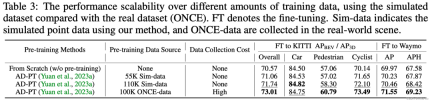

ReSimAD data is used as a general data set, using the performance of AD-PT pre-training method on different downstream tasks

ReSimAD: How to improve the generalization performance of perceptual models through virtual data

For verification Whether ReSimAD can generate more point cloud data to help 3D pre-training, we designed the following experiments: use AD-PT (a recently proposed method for pre-training backbone networks in autonomous driving scenarios) to pre-train on simulated point clouds Train the 3D backbone and then use downstream real scene data for full parameter fine-tuning.

  • We leverage ReSimAD to generate data with a wider distribution of point clouds. In order to make a fair comparison with the pre-training results in AD-PT, the target amount of simulated point cloud data generated by ReSimAD is approximately . In the above table, our baseline detectors are 3D pre-trained on real pre-training data (ONCE dataset) and simulated pre-training data (provided by ReSimAD), using the AD-PT method, and on the KITTI and Waymo datasets Perform downstream fine-tuning. The results in the above table show that using simulation pre-training data of different sizes can continuously improve the performance of the model in the downstream. In addition, it can be seen that the data acquisition cost of pre-training data obtained by ReSimAD is very low, compared with using ONCE for model pre-training, and the pre-training performance obtained by ReSimAD is comparable to the pre-training performance on the ONCE data set. Comparison of.

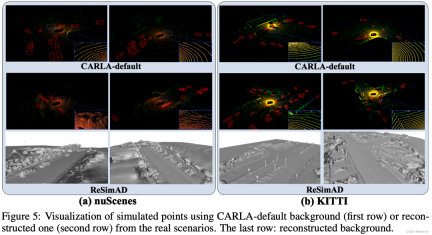

Visual comparison using ReSimAD to reconstruct simulation vs. using CARLA default simulation

ReSimAD: How to improve the generalization performance of perceptual models through virtual data

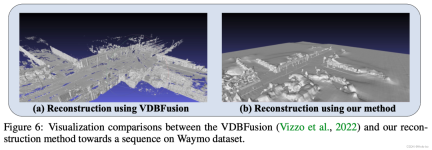

We are based on the Waymo data set Visual comparison of reconstructed mesh vs. reconstruction using VDBFusion

ReSimAD: How to improve the generalization performance of perceptual models through virtual data

Summary

In this work, we are committed to Study how to experiment with the zero-sample target domain model transfer task. This task requires the model to successfully migrate the pre-trained model in the source domain to the target domain scene without being exposed to any sample data information from the target domain. Different from previous work, we explored for the first time a 3D data generation technology based on implicit reconstruction of the source domain and diversity simulation of the target domain, and verified that this technology can achieve a better model without being exposed to the data distribution of the target domain. The migration performance is even better than some unsupervised domain adaptation (UDA) methods.

ReSimAD: How to improve the generalization performance of perceptual models through virtual data

Original link: https://mp.weixin.qq.com/s/pmHFDvS7nXy-6AQBhvVzSw
