With the advent of the Industry 4.0 era, the production environment has become more efficient with the introduction of digitization and automation. At the same time, people are beginning to pay attention to the potential value of the massive data brought by smart devices, but how to efficiently store the data generated by smart devices and how to better analyze the massive data has become a problem. Traditional database models and storage methods can no longer meet these needs. Therefore, the time series database emerged as the times require, aiming to achieve efficient data storage and query, and help better explore the potential value of data

Faced with such a situation, Tsinghua University in 2015 Started the development of IoTDB. On September 23, 2020, Apache IoTDB graduated and became an Apache Top-Level Project. It is currently the only Apache Foundation top-level project initiated by Chinese universities and is also the only open source project in the field of IoT data management under the Apache Foundation. In October 2021, the Apache IoTDB core team founded Tianmou Technology and continues to operate IoTDB to help industrial users solve the problems of data "storage, search, and use".

Regarding the core technology developed by Apache IoTDB, several participants collaborated to publish a review paper, which elaborated on the design of IoTDB in detail and completely. The article takes an industrial company that needs to manage tens of thousands of excavators as an example and describes the requirements: "The data is first packaged into the device, and then sent to the server through the 5G mobile network. In the server, the data is written into the time series database, For OLTP queries. Finally, data scientists can load data from the database into the big data platform for complex analysis and prediction, that is, OLAP tasks."

Apache IoTDB:解决工业物联网场景下的存储、查询和使用难题的创新数据库

  • Paper address: https://dl.acm.org/doi/abs/10.1145/3589775
  • ##Project address: https://github.com/ apache/iotdb

The key points of the paper include the following parts:

1. Design of data model: Organization of time series at the logical level and storage in physical schema;

2. TsFile file Format: Self-developed columnar storage file format, which also meets the efficiency of writing, querying, etc.;

3. IoTDB engine : Mainly includes storage engines, query engines, etc.;

Distributed solutions refer to decomposing a task or problem into multiple subtasks , and allocate these subtasks to multiple computers or nodes for processing. This solution improves system reliability, scalability and performance. By distributing tasks to multiple computers, the load on a single computer can be reduced and the concurrent processing capabilities of the system can be improved. At the same time, distributed solutions can also enhance the fault tolerance of the system through redundant backup and failover. Even if a node fails, the system can still continue to run. In today's big data and cloud computing environment, distributed solutions have become a common architectural pattern and are widely used in various fields, such as distributed databases, distributed storage systems, distributed computing platforms, etc.

For the following content, we will explain these key parts in more detail

Detailed interpretation

Requires data model design

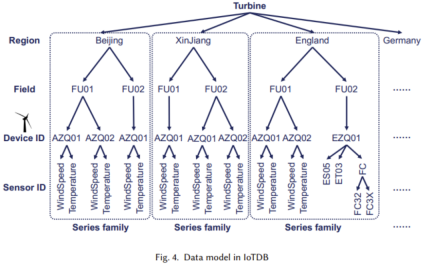

As shown in the figure below, we use The tree structure is used to meet high-intensity write operations, and can effectively handle the common delayed data arrival problem in IoT scenarios

In the tree structure, each leaf node represents A sensor, each sensor has a corresponding device. As shown in the bottom two levels in the figure, the same applies to the upward levels

Apache IoTDB:解决工业物联网场景下的存储、查询和使用难题的创新数据库

(2) The logical structure has been explained in the previous article, Now we will look at the implementation of the physical structure, which mainly includes two parts: time series (Time series) and sequence family (Series family). The figure below shows that each time series consists of two attributes: time and value. The time series is located through the complete path from the root node to the leaf node. The above figure shows the concept of sequence cluster. A sequence cluster may contain multiple devices, and their data will be stored together in TsFile (a file structure, which will be explained later)

Apache IoTDB:解决工业物联网场景下的存储、查询和使用难题的创新数据库

What needs to be rewritten is: 2. TsFile file format design

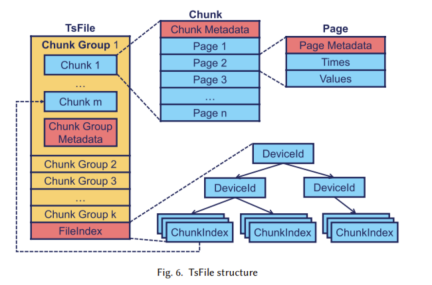

TsFile is Apache IoTDB's self-developed columnar storage file format. Its structure is shown in the figure below:

Apache IoTDB:解决工业物联网场景下的存储、查询和使用难题的创新数据库

When designing TsFile, the research team mainly focused on solving the following problems:

  • Save space and compress data as much as possible
  • Reduce the number of files
  • Will query the time series together in the physical location Close to
  • Reduce disk fragmentation
  • Efficient access

Mainly provided The solution is:

  • Column storage: eliminates null values, saves disk usage; data access locality
  • time Sequence encoding: Taking advantage of the unique characteristics of time series in IoT scenarios
  • Frequency domain encoding: Frequency domain analysis of time series is widely performed in signal processing
  • Specific structure analysis: Page (Page) is the basic storage unit. Chunk contains multiple Pages. The pages in a chunk belong to the same time series and are variable in size; Chunk Group contains multiple Chunks, multiple pages in a group. Chunk belongs to one or more series of devices written within the same period of time. They are placed in continuous disk space because they are often queried together; Block is in memory, and the written block group is first in memory. Buffering is performed in TsFile, and when the memory reaches the threshold, all block groups are flushed to TsFile; the index (FileIndex) records information at the end of the file for data access.

The content that needs to be rewritten is: 3. IoTDB engine

In this part, researchers mainly focus on delayed arrival, efficient query processing and the design of SQL-like queries in IoT scenarios. The structure of the IoTDB engine is shown in the following figure:

Apache IoTDB:解决工业物联网场景下的存储、查询和使用难题的创新数据库

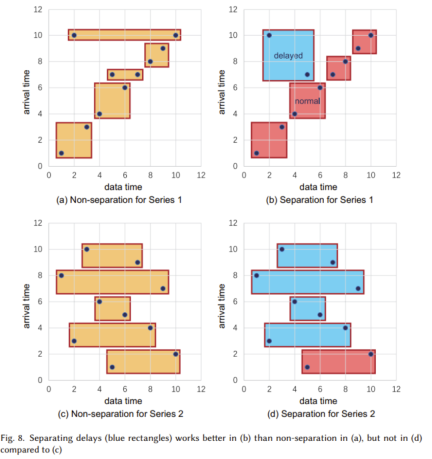

In the figure, we can see that the storage engine part is mainly used to process the writing of TsFile, Read and manage. In this part, automatic delay separation technology is adopted (as shown in the figure below)

Apache IoTDB:解决工业物联网场景下的存储、查询和使用难题的创新数据库

In most cases, when the time range in TsFile Lazy data separation is recommended when there is no overlap. However, for situations where most data is unordered, lazy data separation is not recommended

After rewriting: Another important component is the query engine, which is responsible for converting SQL Queries are converted into operators that can be executed in the database. At the same time, in order to adapt to industrial IoT scenarios, Apache IoTDB has also designed a rich time series data query function

The content that needs to be rewritten is: 4. Decentralized solution

TsFile can be distributed on HDFS and operated by Spark. In addition, it also provides native solutions for better handling of data distribution and query processing, including partition replication, NB-Raft replication and dynamic read consistency

Comparison results

In the paper, we compare TsFile and IoTDB, which are state-of-the-art file formats and timing databases widely used in industry. Through the following figure, we demonstrate the advantages of Apache IoTDB in many aspects

Apache IoTDB:解决工业物联网场景下的存储、查询和使用难题的创新数据库

Apache IoTDB:解决工业物联网场景下的存储、查询和使用难题的创新数据库

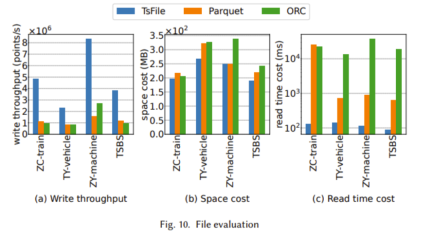

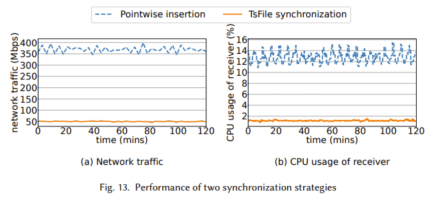

The above two figures show TsFile’s advantages in write throughput, read time cost and synchronization performance. This is mainly due to TsFile’s IoT-aware structure design, which avoids storing redundant information such as deviceId. Although there is no obvious advantage in disk usage of TsFile, this is because a more granular index is built, resulting in more space taken up. However, this sacrifice can lead to extraordinary query time improvements, as we can see a clear advantage in read time cost

Apache IoTDB:解决工业物联网场景下的存储、查询和使用难题的创新数据库

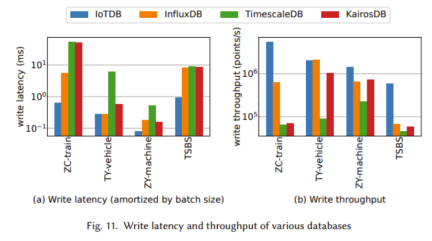

in the above chart It can be clearly seen that IoTDB exhibits better performance in almost all tests, including higher write throughput and lower write latency

Apache IoTDB:解决工业物联网场景下的存储、查询和使用难题的创新数据库

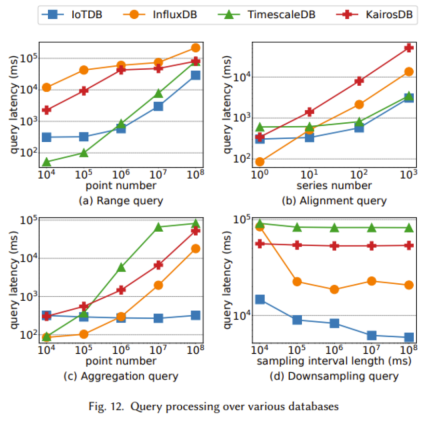

In the above experiments, we observed that IoTDB showed better performance when the query data size was larger. Especially in large-scale data aggregation, the advantages of IoTDB are particularly obvious

Summary

This paper introduces a new method called Apache IoTDB A new time series data management system that adopts an open architecture and is specifically designed to support real-time query and big data analysis for IoT applications. The system includes a new time series file format called TsFile, which uses column storage to store times and values ​​to avoid null values ​​and achieve effective compression. Based on TsFile, the IoTDB engine uses an LSM tree-like strategy to handle high-intensity writes and can handle the common delayed data arrival problem in IoT scenarios. Rich scalable query functions and pre-computed statistical information in TsFile enable IoTDB to efficiently handle OLTP and OLAP tasks

IoTDB has become better able to cope with industrial IoT scenarios A new type of database, which is the result of the above technology

The above is the detailed content of Apache IoTDB: an innovative database that solves storage, query and usage problems in industrial IoT scenarios. For more information, please follow other related articles on the PHP Chinese website!

Statement
This article is reproduced at:51CTO.COM. If there is any infringement, please contact admin@php.cn delete
