What is SPI mechanism in Java

王林
王林forward
2023-05-17 23:40:553215browse

1: Introduction to SPI mechanism

SPI The full name is Service Provider Interface, which is a JDK built-in dynamic loading implementation extension point Mechanism, through SPI technology we can dynamically obtain the implementation class of the interface without creating it ourselves. This is not a special technology, just a design concept.

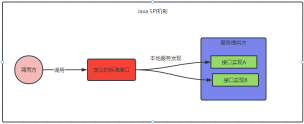

2: SPI principle

What is SPI mechanism in Java

Java SPI is actually a dynamic loading mechanism implemented by a combination of interface-based programming + strategy mode + configuration files.

There are often many different implementation solutions for various abstractions in system design. In object-oriented design, it is generally recommended that modules be programmed based on interfaces, and implementation classes should not be hard-coded between modules. If a specific implementation class is referenced in the code, then the principle of pluggability is violated. In order to implement the replacement, the code needs to be modified. A service discovery mechanism is needed to enable module assembly without dynamically specifying it in the program.

Java SPI provides a mechanism to find service implementations related to a certain interface. In modular design, a mechanism similar to the IOC idea is widely used, that is, the assembly control of components is transferred outside the program. So the core idea of ​​SPI is decoupling.

3: Usage Scenarios

The caller enables, extends, or replaces the framework’s implementation strategy according to actual usage needs

The following are some scenarios where this mechanism is used

  • JDBC driver, loading driver classes for different databases

  • Spring uses a lot of SPI, such as: the implementation of ServletContainerInitializer in the servlet3.0 specification, automatic Type Conversion SPI (Converter SPI, Formatter SPI), etc.

  • Dubbo also uses SPI extensively to implement framework extensions, but it encapsulates the native SPI provided by Java. Allow users to extend the implementation of the Filter interface

  • Tomcat loads the class that needs to be loaded under META-INF/services

  • Use the @SpringBootApplication annotation in the SpringBoot project , automatic configuration will start, and the startup configuration will scan the configuration class under META-INF/spring.factories

4: Source code demonstration

4.1 Application Call the ServiceLoader.load method

In the ServiceLoader.load method, first create a new ServiceLoader and instantiate the member variables in the class

    private static final String PREFIX = "META-INF/services/";


  private ServiceLoader(Class<S> svc, ClassLoader cl) {
        service = Objects.requireNonNull(svc, "Service interface cannot be null");
        loader = (cl == null) ? ClassLoader.getSystemClassLoader() : cl;
        acc = (System.getSecurityManager() != null) ? AccessController.getContext() : null;
        reload();
    }

	/**
     *
     * 在调用该方法之后,迭代器方法的后续调用将延迟地从头开始查找和实例化提供程序,就像新创建的加载程序所做的		  那样
     */
   public void reload() {
        providers.clear(); //清除此加载程序的提供程序缓存,以便重新加载所有提供程序。
        lookupIterator = new LazyIterator(service, loader);
    }

	private class LazyIterator implements Iterator<S>{

        Class<S> service;
        ClassLoader loader;
        Enumeration<URL> configs = null;
        Iterator<String> pending = null;
        String nextName = null;


        private boolean hasNextService() {
            if (nextName != null) {
                return true;
            }
            if (configs == null) {
                try {
                    //找到配置文件
                    String fullName = PREFIX + service.getName();
                    //加载配置文件中的内容
                    if (loader == null)
                        configs = ClassLoader.getSystemResources(fullName);
                    else
                        configs = loader.getResources(fullName);
                } catch (IOException x) {
                    fail(service, "Error locating configuration files", x);
                }
            }
            while ((pending == null) || !pending.hasNext()) {
                if (!configs.hasMoreElements()) {
                    return false;
                }
                //解析配置文件
                pending = parse(service, configs.nextElement());
            }
            //获取配置文件中内容
            nextName = pending.next();
            return true;
        }
    }

		/**
     	*
     	*  通过反射 实例化配置文件中的具体实现类
    	 */
		private S nextService() {
            if (!hasNextService())
                throw new NoSuchElementException();
            String cn = nextName;
            nextName = null;
            Class<?> c = null;
            try {
                c = Class.forName(cn, false, loader);
            } catch (ClassNotFoundException x) {
                fail(service,
                     "Provider " + cn + " not found");
            }
            if (!service.isAssignableFrom(c)) {
                fail(service,
                     "Provider " + cn  + " not a subtype");
            }
            try {
                S p = service.cast(c.newInstance());
                providers.put(cn, p);
                return p;
            } catch (Throwable x) {
                fail(service,
                     "Provider " + cn + " could not be instantiated",
                     x);
            }
            throw new Error();          // This cannot happen
        }

5: Practical combat

Step 1 Create the following class

public interface IService {

    /**
     * 获取价格
     * @return
     */
    String getPrice();

    /**
     * 获取规格信息
     * @return
     */
    String getSpecifications();
}
public class GoodServiceImpl implements IService {

    @Override
    public String getPrice() {
        return "2000.00元";
    }

    @Override
    public String getSpecifications() {
        return "200g/件";
    }
}
public class MedicalServiceImpl implements IService {

    @Override
    public String getPrice() {
        return "3022.12元";
    }

    @Override
    public String getSpecifications() {
        return "30粒/盒";
    }
}

Step 2, create the /META-INF/services directory under src/main/resources/, and add a file named after the interface org.example.IService.txt. The content is the implementation class to be applied. The data I need to put in is as follows

org.example.GoodServiceImpl
org.example.MedicalServiceImpl

Step 3, use ServiceLoader to load the implementation specified in the configuration file.

public class Main {
    public static void main(String[] args) {
        final ServiceLoader<IService> serviceLoader = ServiceLoader.load(IService.class);
        serviceLoader.forEach(service -> {
            System.out.println(service.getPrice() + "=" + service.getSpecifications());
        });
    }
}

Output:

2000.00 yuan=200g/piece
3022.12 yuan=30 capsules/box

6: Advantages and Disadvantages

6.1 Advantages

Decoupling separates the assembly control logic of the third-party service module from the caller's business code instead of coupling them together. The application can enable framework extension or replace the framework according to actual business conditions. components. Compared with the method of providing an interface jar package for third-party service modules to implement the interface, the SPI method allows the source framework to not need to care about the path of the interface implementation class

6.2 Disadvantages

  • Although ServiceLoader can be regarded as lazy loading, it can basically only be obtained through traversal, that is, all implementation classes of the interface are loaded and instantiated. If some implementation classes are loaded and instantiated but you don't need to use them, resources are wasted. The way to obtain a specific implementation class is too limited. It can only be obtained in the form of an iterator, and the corresponding implementation class cannot be obtained based on specific parameters.

  • Instances of multiple concurrent multi-threads using the ServiceLoader class are unsafe

The above is the detailed content of What is SPI mechanism in Java. For more information, please follow other related articles on the PHP Chinese website!
