How SpringBoot integrates ShedLock to implement distributed scheduled tasks

1. Background

When the project service is deployed in a cluster, the code will have scheduled tasks for everyone, but if each node is It is not appropriate to run scheduled tasks. ShedLock in SpringBoot can solve this problem very well. Below I will introduce in detail how SpringBoot integrates ShedLock, and how ShedLock implements distributed timing.

2. What is ShedLock

The following is the ShedLock lock provider, which implements locking through external storage. As can be seen from the figure below, there are still many libraries integrated with external storage:

3. Implementation

1.1 Introduction of dependency packages

shedlock required dependency packages:

<!-- web工程依赖包 -->
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
    <groupId>net.javacrumbs.shedlock</groupId>
    <artifactId>shedlock-spring</artifactId>
    <version>4.2.0</version>
</dependency>
 <!--每个外部存储实例所需依赖包不一样，这里是jdbc-->
<dependency>
    <groupId>net.javacrumbs.shedlock</groupId>
    <artifactId>shedlock-provider-jdbc-template</artifactId>
    <version>4.2.0</version>
</dependency>
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-jdbc</artifactId>
</dependency>
<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <scope>runtime</scope>
</dependency>

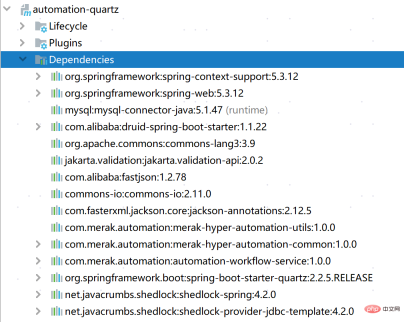

Dependency package tree diagram:

1.2 Configure database connection information

server:
port: 8105
spring:
datasource:
url: jdbc :mysql://127.0.0.1:3306/testjdbc?useUnicode=true&characterEncoding=UTF-8&serverTimezone=Asia/Shanghai
username: root
password: 123456
driver-class-name: com.mysql.cj .jdbc.Driver
type: com.mysql.cj.jdbc.MysqlDataSource

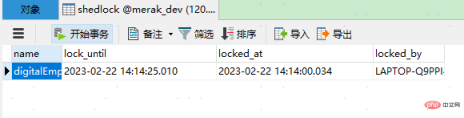

1.3 Create Mysql data table

CREATE TABLE `shedlock` (
	`name`  varchar(64) NOT NULL COMMENT 'name' ,
	`lock_until`  timestamp(3) NULL DEFAULT NULL ,
	`locked_at`  timestamp(3) NULL DEFAULT NULL ,
	`locked_by`  varchar(255) NULL DEFAULT NULL ,
	PRIMARY KEY (`name`)
)
ENGINE=InnoDB
DEFAULT CHARACTER SET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci
ROW_FORMAT=DYNAMIC
;

1.4 Configure LockProvider

ShedLockConfig. java:

import net.javacrumbs.shedlock.core.LockProvider;
import net.javacrumbs.shedlock.provider.jdbctemplate.JdbcTemplateLockProvider;
import org.springframework.context.annotation.Bean;
import org.springframework.stereotype.Component;
import javax.annotation.Resource;
import javax.sql.DataSource;
/**
 * @description: Shedlock集成Jdbc配置类
 */
@Component
public class ShedLockConfig {
    @Resource
    private DataSource dataSource;
    @Bean
    private LockProvider lockProvider() {
        return new JdbcTemplateLockProvider(dataSource);
    }
}

springboot main startup class MerakQuartzApplication:

import net.javacrumbs.shedlock.spring.annotation.EnableSchedulerLock;
import org.mybatis.spring.annotation.MapperScan;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.autoconfigure.security.servlet.SecurityAutoConfiguration;
import org.springframework.context.annotation.Bean;
import org.springframework.scheduling.annotation.EnableAsync;
import org.springframework.scheduling.annotation.EnableScheduling;
import org.springframework.scheduling.concurrent.ThreadPoolTaskExecutor;
import org.springframework.scheduling.concurrent.ThreadPoolTaskScheduler;
import java.util.concurrent.Executor;
import java.util.concurrent.ThreadPoolExecutor;
/**
 * @version 1.0
 * @ClassName: MerakQuartzApplication
 * @description: 工单任务调度
 */
// 开启定时器
@EnableScheduling
// 开启定时任务锁，指定一个默认的锁的时间30秒
@EnableSchedulerLock(defaultLockAtMostFor = "PT30S")
@EnableAsync
@MapperScan(basePackages = {"com.merak.hyper.automation.persist.**.mapper"})
@SpringBootApplication(scanBasePackages = {"com.merak.hyper.automation.**"}, exclude = {SecurityAutoConfiguration.class})
public class MerakQuartzApplication {
    public static final Logger log = LoggerFactory.getLogger(MerakQuartzApplication.class);
    public static void main(String[] args) {
        SpringApplication.run(MerakQuartzApplication.class, args);
    }
    private int taskSchedulerCorePoolSize = 15;
    private int awaitTerminationSeconds = 60;
    private String threadNamePrefix = "taskExecutor-";
    /**
     * @description: 实例化ThreadPoolTaskScheduler对象，用于创建ScheduledFuture<?> scheduledFuture
     */
    @Bean
    public ThreadPoolTaskScheduler threadPoolTaskScheduler() {
        ThreadPoolTaskScheduler taskScheduler = new ThreadPoolTaskScheduler();
        taskScheduler.setPoolSize(taskSchedulerCorePoolSize);
        taskScheduler.setThreadNamePrefix(threadNamePrefix);
        taskScheduler.setWaitForTasksToCompleteOnShutdown(false);
        taskScheduler.setAwaitTerminationSeconds(awaitTerminationSeconds);
        /**需要实例化线程*/
        taskScheduler.initialize();
//        isinitialized = true;
        log.info("初始化ThreadPoolTaskScheduler ThreadNamePrefix=" + threadNamePrefix + ",PoolSize=" + taskSchedulerCorePoolSize
                + ",awaitTerminationSeconds=" + awaitTerminationSeconds);
        return taskScheduler;
    }
    /**
     * @description: 实例化ThreadPoolTaskExecutor对象，管理线程
     */
    @Bean("asyncTaskExecutor")
    public Executor taskExecutor() {
        ThreadPoolTaskExecutor taskExecutor = new ThreadPoolTaskExecutor();
        taskExecutor.setCorePoolSize(5);
        taskExecutor.setMaxPoolSize(50);
        taskExecutor.setQueueCapacity(200);
        taskExecutor.setKeepAliveSeconds(60);
        taskExecutor.setThreadNamePrefix("asyncTaskExecutor-");
        taskExecutor.setWaitForTasksToCompleteOnShutdown(true);
        taskExecutor.setAwaitTerminationSeconds(60);
        //修改拒绝策略为使用当前线程执行
        taskExecutor.setRejectedExecutionHandler(new ThreadPoolExecutor.CallerRunsPolicy());
        //初始化线程池
        taskExecutor.initialize();
        return taskExecutor;
    }
}

1.5 Create scheduled Job

DigitalEmpTask:

package com.merak.hyper.automation.quartz.task;
import net.javacrumbs.shedlock.spring.annotation.SchedulerLock;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.scheduling.annotation.Scheduled;
import org.springframework.stereotype.Component;
import java.util.List;
/**
 * @version 1.0
 * @ClassName: BizOrderTask
 * @description: 任务队列服务调度
 */
@Component
public class DigitalEmpTask {
    public static final Logger log = LoggerFactory.getLogger(DigitalEmpTask.class);
    @Scheduled(cron = "0/30 * * * * ?")
    @SchedulerLock(name = "digitalEmpTaskScheduler", lockAtMostFor = "PT25S", lockAtLeastFor = "PT25S")
    protected void digitalEmpTaskScheduler() {
        log.info("云执行调度中心1:任务开始执行,时间:" + DateUtils.dateTimeNow(DateUtils.YYYY_MM_DD_HH_MM_SS));
        try {
        } catch (Exception e) {
            log.error("云执行调度中心1调度失败，原因：" + e.getMessage());
        }
    }
}

4. Result analysis

1. Start two service nodes respectively, the configuration is as follows:

server:
port: 12105
servlet:
context-path: /automation-quartz-one

server:
port: 12106
servlet:
context-path: /automation-quartz-two

2. Run log (snippet)

Node automation-quartz-one running log:
2023-02-22 12:01:00.143 [taskExecutor-1] INFO <46>
<46>
<46>
<46>

<46>
<46>
<46>
<46>
<46>
<46>
<46>
<46>
<46>
<46>
<46>
<46>
<46>
<46>
<46>
<46>
<

<46 cloud execution scheduling center task starts time:><46>
<46>
<46>
<46>
<46>
<46>
<46>
<46>
<46>
<46>
<46>
<46>
<46>
<46>
<46>
