How to use vue3 table component

Basic Table

Before developing the table component first, first think about what kind of API to use. Because the author uses element in production work, the styles of the first few components are similar to element, but This time I don’t plan to use the element style. I plan to change it and display it directly:
We hope users will use it like this:

<script setup>
const dataList = [
  {
    id: 1,
    name: &#39;《JavaEE企业应用实战》&#39;,
    author: &#39;dev1ce&#39;,
    price: &#39;10.22&#39;,
    desc: &#39;书中最后讲解的项目案例，涵盖从前期设计到最终实施的整个过程，对全书知识点进行串联和巩固，使读者融会贯通，掌握Java Web开发的精髓。&#39;
  },
  {
    id: 2,
    name: &#39;《代码整洁之道》&#39;,
    author: &#39;R0bert&#39;,
    price: &#39;10.22&#39;,
    desc: &#39;整洁代码并非遵循一组规则编写的。不可能因为学习一套金规玉律就成为软件大师。专业精神和手工艺来自于推动规则形成的价值。&#39;
  },
  {
    id: 3,
    name: &#39;《ECMAScript 6 入门教程》&#39;,
    author: &#39;y1feng&#39;,
    price: &#39;10.22&#39;,
    desc: &#39;本书是一本开源的 JavaScript 语言教程，全面介绍 ECMAScript 6 新引入的语法特性。&#39;
  },
]
const columnsList = [
  {
    title: &#39;书名&#39;,
    key: &#39;name&#39;
  },
  {
    title: &#39;作者&#39;,
    key: &#39;author&#39;
  },
  {
    title: &#39;价格&#39;,
    key: &#39;price&#39;
  },
  {
    title: &#39;简介&#39;,
    key: &#39;desc&#39;
  }
]
</script>
<template>
    <sanorin-table :columns="columnsList" :data="dataList"/>
</template>

Write the following code according to this

<script setup>
  import { ref, computed } from &#39;vue&#39;
  import { useProp, useNeumorphism } from &#39;../mixin/neumorphism&#39;
  const props = defineProps({
      ...useProp,
      ...{
        data: { // dataList
            type: Array,
            default: () => [],
        },
        columns: { // columnsList
            type: Array,
            default: () => [],
        },
      }
  })
  const { baseStyleObject } = useNeumorphism(props)
  let styleObject =  computed(() => ({
    // &#39;--font-size&#39;: `${props.size-26}px`, &#39;--line-height&#39;: `${props.size-20}px`, &#39;--limit-size&#39;: `${props.size-28}px`
  }))
</script>
<template>
    <div :>
      <table >
        <thead>
          <tr class="neumorphism">
            <!-- 表头循环 -->
            <th v-for="col in columns" :key="col.key">{{col.title}}</th>
          </tr>
        </thead>
        <tbody>
          <!-- 表体循环 -->
          <tr class="neumorphism" v-for="row in data" :key="row.id">
            <td v-for="col in columns" :key="col.key">
              <span>
                {{row[col.key]}}
              </span>
            </td>
          </tr>
        </tbody>
      </table>
    </div>
</template>
<script>
  export default {
    name: &#39;sanorin-table&#39;,
  }
</script>
<style scoped>
  @import "../../style/index.css";
  @import "../../style/neumorphism.css";
  table {
    width: 100%;
    /* border-collapse: collapse; */
    empty-cells: show;
    border-collapse:separate;
    border-spacing:0px 10px;
  }
  table td,
  table th {
    color: var(--text-color);
    padding: 8px 16px 8px 16px;
    text-align: left;
  }
  table th {
    color: var(--text-back-color) !important;
    font-weight: 600;
    white-space: nowrap;
  }
  table tr{
    margin-top: 20px;
  }
</style>

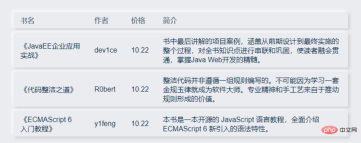

The final one comes out The effect is:

# Then after realizing this, we start to do the following, starting with fixing the header.

Fixed header

The first method will be used here. If it cannot meet the needs in the future, it will be changed to the later method.
The effects and codes are as follows:

<script setup>
  import { ref, computed } from &#39;vue&#39;
  import { useProp, useNeumorphism } from &#39;../mixin/neumorphism&#39;
  const props = defineProps({
      ...useProp,
      ...{
        data: { // dataList
            type: Array,
            default: () => [],
        },
        columns: { // columnsList
            type: Array,
            default: () => [],
        },
      }
  })
  const { baseStyleObject } = useNeumorphism(props)
  let styleObject =  computed(() => ({
  }))
</script>
<template>
    <div class="san-table scrollbar" :>
      <table>
        <thead>
            <tr class="neumorphism">
              <!-- 表头循环 -->
              <th v-for="col in columns" :key="col.key">{{col.title}}</th>
            </tr>
        </thead>
        <tbody>
          <!-- 表体循环 -->
          <tr class="neumorphism" v-for="row in data" :key="row.id">
            <td v-for="col in columns" :key="col.key">
              <span>
                {{row[col.key]}}
              </span>
            </td>
          </tr>
        </tbody>
      </table>
    </div>
</template>
<script>
  export default {
    name: &#39;sanorin-table&#39;,
  }
</script>
<style scoped>
  @import "../../style/index.css";
  @import "../../style/neumorphism.css";
  .san-table{
    padding: 0px 20px 20px 20px;
    height: 200px;
    position: relative;
    width: 700px;
    overflow: auto;
  }
  table {
    width: 100%;
    table-layout: fixed;
    empty-cells: show;
    border-collapse:separate;
    border-spacing:0px 10px;
  }
  thead {
    position: sticky;
    top: 10px;
  }
  thead:before{
    position: absolute;
    content: &#39;&#39;;
    width: calc(100% + var(--shadow-blur) * 2);
    transform: translate(calc(var(--shadow-blur) * -1) , -10px);
    height: 20px;
    background-color: var(--main-color);
    z-index: -1;
  }
  table td,
  table th {
    color: var(--text-color);
    padding: 8px 16px 8px 16px;
    text-align: left;
  }
  table th {
    color: var(--text-back-color) !important;
    font-weight: 600;
    white-space: nowrap;
  }
</style>

Height/Fluid Height

You can set a height for Table. (height)
When the amount of data changes dynamically, you can set a maximum height for Table. (maxHeight) Specifies the maximum height for the Table by setting the max-height property. At this time, if the required height of the table is greater than the maximum height, a scroll bar will be displayed.
As long as the height or maxHeight attribute is defined in the sanorin-table element, a table with a fixed header can be implemented without additional code.
The code is as follows:

<script setup>
  import { ref, computed, reactive } from &#39;vue&#39;
  import { useProp, useNeumorphism } from &#39;../mixin/neumorphism&#39;
  const props = defineProps({
      ...useProp,
      ...{
        data: { // dataList
            type: Array,
            default: () => [],
        },
        columns: { // columnsList
            type: Array,
            default: () => [],
        },
        height: {
          type: Number,
        },
        maxHeight: {
          type: Number,
        }
      }
  })
  // 高度设置
  let tableHeightStyleObj = computed(() => {
    let styleObj = ((e) => {
      if (e.maxHeight) return { maxHeight: e.maxHeight + &#39;px&#39; }
      if (e.height) return { height: e.height + &#39;px&#39; }
      return {}
    })({...props})
    return styleObj
  })
  const { baseStyleObject } = useNeumorphism(props)
  let styleObject =  computed(() => ({
    ...tableHeightStyleObj.value
  }))
</script>
<template>
    <div class="san-table scrollbar" :>
      <table>
        <colgroup>
            <col v-for="(col, index) in columns" :key="index">
        </colgroup>
        <thead>
            <tr class="neumorphism">
              <th v-for="col in columns" :key="col.key"> {{col.title}} </th>
            </tr>
        </thead>
        <tbody>
          <tr class="neumorphism" v-for="row in data" :key="row.id">
            <td v-for="col in columns" :key="col.key"> {{row[col.key]}} </td>
          </tr>
        </tbody>
      </table>
    </div>
</template>
<script>
  export default {
    name: &#39;sanorin-table&#39;,
  }
</script>
<style scoped>
  @import "../../style/index.css";
  @import "../../style/neumorphism.css";
  .san-table{
    padding: 0px 20px 20px 20px;
    position: relative;
    width: 700px;
    overflow: auto;
  }
  table {
    width: 100%;
    table-layout: fixed;
    empty-cells: show;
    border-collapse:separate;
    border-spacing:0px 10px;
  }
  thead {
    position: sticky;
    top: 10px;
  }
  thead:before{
    position: absolute;
    content: &#39;&#39;;
    width: calc(100% + var(--shadow-blur) * 2);
    transform: translate(calc(var(--shadow-blur) * -1) , -10px);
    height: 20px;
    background-color: var(--main-color);
    z-index: -1;
  }
  table td,
  table th {
    color: var(--text-color);
    padding: 8px 16px 8px 16px;
    text-align: left;
  }
  table th {
    color: var(--text-back-color) !important;
    font-weight: 600;
    white-space: nowrap;
  }
</style>

Custom column width

Next, add width control, hoping to add width to the array object passed in columns, the example is as follows:

const columnsList = [
  {
    title: '书名',
    key: 'name',
    width: 100,
  },
  {
    title: '作者',
    key: 'author',
    width: 100,
  },
  {
    title: '价格',
    key: 'price',
    width: 100,
  },
  {
    title: '简介',
    key: 'desc',
    minWidth: 350,
  }
]

Hope to achieve the following effects
1. The column containing width has a fixed width and does not change with the browser width.
2. The column containing minWidth will automatically fill the remaining width of the table when it is greater than the set value. If it is less than the set value, When setting the value, fix the width
3. Columns that do not include width and minWidth will automatically fill the remaining width of the table
According to our needs, we need to control the width display of each column individually, and when the browser width changes Recalculate and re-render columns on the fly.
First define a method to calculate the required width of each column under the current situation, and then bind it to the required dom. Then, every time the table changes/the browser width changes, the width of the Table can be changed in real time.

  const initColumns = () => {
    // 计算每一列在当前情况下所要的宽度
  }
  watch(() => props.columns, () => { initColumns() });
  onMounted(() => {
    nextTick(() => {
      initColumns();
      on(window, 'resize', throttle(() => initColumns(), 400));
    });
  });
  onBeforeUnmount(() => off(window, 'resize', () => initColumns()));

All codes:

<script setup>
  import { ref, computed, watch, onMounted, onBeforeUnmount, nextTick } from &#39;vue&#39;
  import { on, off } from &#39;../../utils/listener&#39;
  import { throttle } from "../../utils/debounce&throttle"
  import { useProp, useNeumorphism } from &#39;../mixin/neumorphism&#39;
  const table = ref() // 与html中ref=""对应，定位dom元素
  const props = defineProps({
      ...useProp,
      ...{
        data: { // dataList
            type: Array,
            default: () => [],
        },
        columns: { // columnsList
            type: Array,
            default: () => [],
        },
        height: { // height
          type: Number,
        },
        maxHeight: { // 流体高度
          type: Number,
        },
        minUnsetWidth: {  // 未设置宽度时最小宽度
          type: Number,
          default: 80
        }
      }
  })
  // 高度设置
  let tableHeightStyleObj = computed(() => {
    let styleObj = ((e) => {
      if (e.maxHeight) return { maxHeight: e.maxHeight + &#39;px&#39; }
      if (e.height) return { height: e.height + &#39;px&#39; }
      return {}
    })({...props})
    return styleObj
  })
  // 列宽设置
  let col = ref([])
  const { columns, minUnsetWidth } = props
  const _min_column_width = minUnsetWidth // 未设置宽度时最小宽度
  const initColumns = () => {
    col.value = (() => {
      let _total_width = table.value.offsetWidth  // 表格dom元素总宽度
      let _needed_minWidth = columns.reduce((t, v) => { // 需要的最小宽度
        t += v.width || v.minWidth || _min_column_width
        return t
      }, 0)
      // 需要的最小宽度比总宽度大，则取minWidth即可
      if (_needed_minWidth >= _total_width) return columns.reduce((t, v) => {
        let n = v.width || v.minWidth || _min_column_width
        t = [...t, n]
        return t
      }, [])
      // 需要的最小宽度比总宽度大，则要把minWidth加权，权重为（未分配的宽度 / minWidth之和）
      let _unassigned_width = columns.reduce((t, v) => {
        t += v.minWidth || 0
        return t
      }, 0)
      let _assigned_width = _needed_minWidth - _unassigned_width
      let _width_power = (_total_width - _assigned_width) / _unassigned_width
      return columns.reduce((t, v) => {
        let n = v.width || (v.minWidth ? (_width_power * v.minWidth).toFixed(2) : _min_column_width)
        t = [...t, n]
        return t
      }, [])
    })()
  }
  watch(() => props.columns, () => { initColumns() })
  const throttleInitColumns = () => throttle(() => initColumns(), 400)
  onMounted(() => {
    nextTick(() => {
      initColumns()
      on(window, &#39;resize&#39;, throttleInitColumns)
    })
  })
  onBeforeUnmount(() => off(window, &#39;resize&#39;, throttleInitColumns))
  const { baseStyleObject } = useNeumorphism(props)
  let styleObject =  computed(() => ({
    ...tableHeightStyleObj.value
  }))
</script>
<template>
    <div class="san-table scrollbar" :>
      <table ref="table">
        <colgroup>
            <col v-for="(item, index) in col" :key="index" :width="`${item}px`">
        </colgroup>
        <thead>
            <tr class="neumorphism">
              <th v-for="col in columns" :key="col.key"> {{col.title}} </th>
            </tr>
        </thead>
        <tbody>
          <tr class="neumorphism" v-for="row in data" :key="row.id">
            <td v-for="col in columns" :key="col.key"> {{row[col.key]}} </td>
          </tr>
        </tbody>
      </table>
    </div>
</template>
<script>
  export default {
    name: &#39;sanorin-table&#39;,
  }
</script>
<style scoped>
  @import "../../style/index.css";
  @import "../../style/neumorphism.css";
  .san-table{
    padding: 0px 20px 20px 20px;
    position: relative;
    overflow: auto;
  }
  table {
    width: 100%;
    table-layout: fixed;
    empty-cells: show;
    border-collapse:separate;
    border-spacing:0px 10px;
  }
  thead {
    position: sticky;
    top: 10px;
  }
  thead:before{
    position: absolute;
    content: &#39;&#39;;
    width: calc(100% + var(--shadow-blur) * 2);
    transform: translate(calc(var(--shadow-blur) * -1) , -10px);
    height: 20px;
    background-color: var(--main-color);
    z-index: -1;
  }
  table td,
  table th {
    color: var(--text-color);
    padding: 8px 16px 8px 16px;
    text-align: left;
    word-break:break-all;
  }
  table th {
    color: var(--text-back-color) !important;
    font-weight: 600;
    white-space: nowrap;
  }
</style>

The two js used, anti-shake throttling and registration monitoring are also put down here

/* 防抖节流函数 */
let timeout = null // 创建一个标记用来存放定时器的返回值
let count = 0;
export function debounce(fn, wait = 1000, immediate = false) {
  return function () {
    const args = arguments;
    if (immediate) {
      if (count == 0) {
        fn.apply(this, arguments)
        count++;
      } else {
        if (timeout) {
          clearTimeout(timeout) // 每当用户输入的时候把前一个 setTimeout clear 掉
        }
        timeout = setTimeout(() => {
          fn.apply(this, arguments)
        }, wait)
      }
    } else {
      if (timeout) {
        clearTimeout(timeout) // 每当用户输入的时候把前一个 setTimeout clear 掉
      }
      timeout = setTimeout(() => {
        fn.apply(this, arguments)
      }, wait)
    }
  }()
}
let canRun = true;
let count1 = 0;
export function throttle(fn, wait = 1000, immediate = true) {
  return function () {
    if (immediate) {
      if (count1 == 0) {
        fn.apply(this, arguments);
        count1++;
      } else {
        if (canRun) {
          canRun = false
          setTimeout(function () {
            fn.apply(this, arguments)
            canRun = true
          }, wait);
        }
      }
    } else {
      if (!canRun) return
      canRun = false
      setTimeout(function () {
        fn.apply(this, arguments)
        canRun = true
      }, wait);
    }
  }()
}

/**
 * 绑定事件 on(element, event, handler)
 */
export const on = (element, event, handler) => {
  if (document.addEventListener) {
    if (element && event && handler) {
      element.addEventListener(event, handler, false)
    }
  }
}
/**
 * 解绑事件 off(element, event, handler)
 */
export const off = (element, event, handler) => {
  if (document.removeEventListener) {
    if (element && event) {
      element.removeEventListener(event, handler, false)
    }
  }
}

The above is the detailed content of How to use vue3 table component. For more information, please follow other related articles on the PHP Chinese website!
