Angular + NG-ZORRO quickly develop a backend system

This article will share with you a Angular practical experience to learn how to quickly develop a backend system using angualr combined with ng-zorro. I hope it will be helpful to everyone!

We have learned a lot about angular in the past few days. This time we have a small finished product.

angualr Combined with ng-zorro to develop a backend system quickly and standardizedly. [Related tutorial recommendations: "angular tutorial"]

System functions include the following:

• Welcome page
• User list
• User added
• User modified
• User deleted

All services use simulated data.

Let’s do it as we are told.

Combined with ng-zorro

##angular The more popular ui frameworks are:

Angular Material officially designated UI framework
• NG-ZORRO, also known as Ant Design of Angular, the more popular domestic UI framework

Ant Design I believe people who do front-end development are familiar with it. So here we combine it with the NG-ZORRO framework. If you are familiar with Vue or React version of Ant Design, I believe you can connect seamlessly~

We reuse

angular-cli to generate a project ng-zorro.

Adding

ng-zorro is very simple: enter the ng-zorro root directory and execute ng add ng-zorro-antd That is Can.

Of course you can also execute

npm install ng-zorro-antd to add, but it is not recommended.

Combined

ng-zorro After completion, we run the projectnpm run start, you will be inhttp://localhost:4200 page, see the content below.

Not Bad, Bro.

Configure routing

We changed it to

hash routing and added user routing. The scaffolding has done it for us, we only need to make some minor modifications.

Idea:

• First add the page

  user User's list page, use ng-zorro in table Component

• The user's new and modified pages can share the same page, using the

  form component## in ng-zorro

#The page deletion function directly uses the pop-up prompt, using the
• modal

  component in ng-zorro

Introduce the
• ng-zorro

  component as needed

Adjust the routing file
According to the idea, we have to

ng-zorro

introduces: <pre class='brush:php;toolbar:false;'>// app.module.ts import { ReactiveFormsModule } from &amp;#39;@angular/forms&amp;#39;; import { NzTableModule } from &amp;#39;ng-zorro-antd/table&amp;#39;; import { NzModalModule } from &amp;#39;ng-zorro-antd/modal&amp;#39;; import { NzButtonModule } from &amp;#39;ng-zorro-antd/button&amp;#39;; import { NzFormModule } from &amp;#39;ng-zorro-antd/form&amp;#39;; import { NzInputModule } from &amp;#39;ng-zorro-antd/input&amp;#39;; // ... imports: [ // 是在 imports 中添加，而不是 declarations 中声明 NzTableModule, NzModalModule, NzButtonModule, NzFormModule, ReactiveFormsModule, NzInputModule ],</pre> Simple and easy to understand principle, we do not use

children

here for nesting of routes: <pre class='brush:php;toolbar:false;'>// app.routing.module.ts import { NgModule } from &amp;#39;@angular/core&amp;#39;; import { Routes, RouterModule, PreloadAllModules } from &amp;#39;@angular/router&amp;#39;; import { WelcomeComponent } from &amp;#39;./pages/welcome/welcome.component&amp;#39;; import { UserComponent } from &amp;#39;./pages/user/user.component&amp;#39;; import { UserInfoComponent } from &amp;#39;./pages/user/user-info/user-info.component&amp;#39;; // 相关的路由 const routes: Routes = [ { path: &amp;#39;&amp;#39;, pathMatch: &amp;#39;full&amp;#39;, redirectTo: &amp;#39;/welcome&amp;#39; }, { path: &amp;#39;welcome&amp;#39;, component: WelcomeComponent }, { path: &amp;#39;user&amp;#39;, component: UserComponent }, { path: &amp;#39;user/add&amp;#39;, component: UserInfoComponent }, { path: &amp;#39;user/edit/:uuid&amp;#39;, component: UserInfoComponent } ]; @NgModule({ imports: [RouterModule.forRoot( routes, { useHash: true,// 使用 hash 模式 preloadingStrategy: PreloadAllModules } )], exports: [RouterModule] }) export class AppRoutingModule { }</pre>

Change the menuThe menu generated using scaffolding does not match the functions we need to develop, let’s adjust it.

// app.component.html

<nz-layout class="app-layout">
  <nz-sider class="menu-sidebar"
            nzCollapsible
            nzWidth="256px"
            nzBreakpoint="md"
            [(nzCollapsed)]="isCollapsed"
            [nzTrigger]="null">
    <div class="sidebar-logo">
      <!-- 默认点击 logo 跳转到首页 -->
      <a routerLink="/welcome">
        <img src="/static/imghwm/default1.png"  data-src="https://ng.ant.design/assets/img/logo.svg"  class="lazy"   alt="logo">
        <h1 id="Ng-Zorro">Ng-Zorro</h1>
      </a>
    </div>
    <ul nz-menu nzTheme="dark" nzMode="inline" [nzInlineCollapsed]="isCollapsed">
      <li nz-submenu nzOpen nzTitle="用户管理" nzIcon="dashboard">
        <ul>
          <li nz-menu-item nzMatchRouter>
            <a routerLink="/user">用户列表</a>
          </li>
        </ul>
      </li>
    </ul>
  </nz-sider>
  <nz-layout>
    <nz-header>
      <div class="app-header">
        <span class="header-trigger" (click)="isCollapsed = !isCollapsed">
            <i class="trigger"
               nz-icon
               [nzType]="isCollapsed ? &#39;menu-unfold&#39; : &#39;menu-fold&#39;"
            ></i>
        </span>
      </div>
    </nz-header>
    <nz-content>
      <div class="inner-content">
        <router-outlet></router-outlet>
      </div>
    </nz-content>
  </nz-layout>
</nz-layout>

Menu display, if we need to do permission management, we need the backend to cooperate with the value transfer, and then we will render the relevant permission menu to the page

After replacing the above code, the basic skeleton obtained is as follows:

Complete user list Next, complete the skeleton of the user list. Because we use the

UI

framework, it is extremely convenient for us to write:

Get the user list

// user.component.html

<nz-table #basicTable [nzData]="list">
  <thead>
    <tr>
      <th>Name</th>
      <th>Position</th>
      <th>Action</th>
    </tr>
  </thead>
  <tbody>
    <!-- 对获取到的数据进行遍历 -->
    <tr *ngFor="let data of basicTable.data">
      <td>{{data.name}}</td>
      <td>{{data.position}}</td>
      <td>
        <a style="color: #f00;">Delete</a>
      </td>
    </tr>
  </tbody>
</nz-table>

We simulated some data in the

assets

folder user.json:<pre class='brush:php;toolbar:false;'>{ &quot;users&quot;: [ { &quot;uuid&quot;: 1, &quot;name&quot;: &quot;Jimmy&quot;, &quot;position&quot;: &quot;Frontend&quot; }, { &quot;uuid&quot;: 2, &quot;name&quot;: &quot;Jim&quot;, &quot;position&quot;: &quot;Backend&quot; } ], &quot;environment&quot;: &quot;development&quot; }</pre> After writing the service, we called to get the user's data:

// user.component.ts

import { Component, OnInit } from '@angular/core';
import { UserService } from 'src/app/services/user.service';

@Component({
  selector: 'app-user',
  templateUrl: './user.component.html',
  styleUrls: ['./user.component.scss']
})
export class UserComponent implements OnInit {

  public list: any = []

  constructor(
    private readonly userService: UserService
  ) { }

  ngOnInit(): void {
    if(localStorage.getItem('users')) {
      let obj = localStorage.getItem('users') || '{}'
      this.list =  JSON.parse(obj)
    } else {
      this.getList()
    }
  }

  // 获取用户列表
  getList() {
    this.userService.getUserList().subscribe({
      next: (data: any) => {
        localStorage.setItem('users', JSON.stringify(data.users))
        this.list = data.users
      },
      error: (error: any) => {
        console.log(error)
      }
    })
  }

}

Because no back-end service is introduced, here we use

localstorage

to record the status. After completing the above, we get the list information as follows:

New users and edit users

us Simply create a form, which contains only two fields, namely

name

and position. These two functions share a common form~We add in

html

:<pre class='brush:php;toolbar:false;'>// user-info.component.html &lt;form nz-form [formGroup]=&quot;validateForm&quot; class=&quot;login-form&quot; (ngSubmit)=&quot;submitForm()&quot;&gt; &lt;nz-form-item&gt; &lt;nz-form-control nzErrorTip=&quot;请输入用户名!&quot;&gt; &lt;input type=&quot;text&quot; nz-input formControlName=&quot;username&quot; placeholder=&quot;请输入用户名&quot; style=&quot;width: 160px;&quot; /&gt; &lt;/nz-form-control&gt; &lt;/nz-form-item&gt; &lt;nz-form-item&gt; &lt;nz-form-control nzErrorTip=&quot;请输入职位!&quot;&gt; &lt;input type=&quot;text&quot; nz-input formControlName=&quot;position&quot; placeholder=&quot;请输入职位&quot; style=&quot;width: 160px;&quot;/&gt; &lt;/nz-form-control&gt; &lt;/nz-form-item&gt; &lt;button nz-button class=&quot;login-form-button login-form-margin&quot; [nzType]=&quot;&amp;#39;primary&amp;#39;&quot;&gt;确认&lt;/button&gt; &lt;/form&gt;</pre>The page looks like this:

然后就是逻辑的判断，进行添加或者是修改。如果是连接带上 uuid 的标识，就表示是编辑，show you the codes。

// user-info.component.ts

import { Component, OnInit } from '@angular/core';
import { FormBuilder, FormGroup, Validators } from '@angular/forms';
import { ActivatedRoute, ParamMap } from '@angular/router';

@Component({
  selector: 'app-user-info',
  templateUrl: './user-info.component.html',
  styleUrls: ['./user-info.component.scss']
})
export class UserInfoComponent implements OnInit {

  public isAdd: boolean = true;
  public userInfo: any = []
  public uuid: number = 0;

  validateForm!: FormGroup;

  constructor(
    private fb: FormBuilder,
    private route: ActivatedRoute,
  ) { }

  ngOnInit(): void {
    this.userInfo = JSON.parse(localStorage.getItem('users') || '[]')
    this.route.paramMap.subscribe((params: ParamMap)=>{
      this.uuid = parseInt(params.get('uuid') || '0')
    })
    // 是编辑状态，设置标志符
    if(this.uuid) {
      this.isAdd = false
    }

    if(this.isAdd) {
      this.validateForm = this.fb.group({
        username: [null, [Validators.required]],
        position: [null, [Validators.required]]
      });
    } else {
      let current = (this.userInfo.filter((item: any) => item.uuid === this.uuid))[0] || {}
      // 信息回填
      this.validateForm = this.fb.group({
        username: [current.name, [Validators.required]],
        position: [current.position, [Validators.required]]
      })
    }

  }

  submitForm() {
    // 如果不符合提交，则报错
    if(!this.validateForm.valid) {
      Object.values(this.validateForm.controls).forEach((control: any) => {
        if(control?.invalid) {
          control?.markAsDirty();
          control?.updateValueAndValidity({ onlySelf: true });
        }
      })
      return
    }

    // 获取到表单的数据
    const data = this.validateForm.value
    // 新增用户
    if(this.isAdd) {

      let lastOne = (this.userInfo.length > 0 ? this.userInfo[this.userInfo.length-1] : {});
      this.userInfo.push({
        uuid: (lastOne.uuid ? (lastOne.uuid + 1) : 1),
        name: data.username,
        position: data.position
      })
      localStorage.setItem('users', JSON.stringify(this.userInfo))
    } else { // 编辑用户，更新信息
      let mapList = this.userInfo.map((item: any) => {
        if(item.uuid === this.uuid) {
          return {
            uuid: this.uuid,
            name: data.username,
            position: data.position
          }
        }
        return item
      })
      localStorage.setItem('users', JSON.stringify(mapList))
    }
  }

}

我们先设定一个标志符 isAdd，默认是新建用户；当 uuid 存在的时候，将其设置为 false 值，表示是编辑的状态，对内容进行表单的回填。提交表单的操作也是按照该标志符进行判断。我们直接对 localStorage 的信息进行变更，以保证同步列表信息。

删除功能

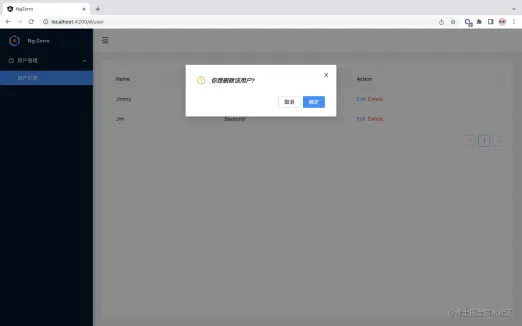

我们引入模态对话框进行询问是否删除。

// user.component.ts

// 删除
delete(data: any) {
  this.modal.confirm({
    nzTitle: &#39;<i>你想删除该用户?</i>&#39;,
    nzOnOk: () => {
      let users = JSON.parse(localStorage.getItem(&#39;users&#39;) || &#39;[]&#39;);
      let filterList = users.filter((item: any) => item.uuid !== data.uuid);
      localStorage.setItem(&#39;users&#39;, JSON.stringify(filterList));
      this.list = filterList
    }
  });
}

我们找到删除的数据，将其剔除，重新缓存新的用户数据，并更新 table 的用户列表数据。

So，到此为止，我们顺利完成了一个简单的项目。我们用 Gif 图整体来看看。
