What does bootstrap modal mean?

青灯夜游Original: 2021-11-05 15:22:152813browse

In bootstrap, modal refers to the "modal box", which is a subform covering the parent form; its purpose is to display content from a separate source without leaving the parent window. There is some interaction in the case of bodies. Modal boxes can add eye-catching prompts and interactions to the website for user notifications, visitor interactions, message alerts, or customized content interactions.

The operating environment of this tutorial: Windows7 system, bootsrap3.3.7 version, DELL G3 computer

The modal box (Modal) is overlaid on the parent A subform on a form. Typically, the purpose is to display content from a separate source that can have some interaction without leaving the parent form. Subforms provide information, interaction, and more.

Bootstrap pop-up modal box style

Use Bootstrap's JavaScript modal box plug-in to add eye-catching prompts and interactions to your website to notify users and visitors Interactions, message alerts or customized content interactions.

Close the modal box:

Click the x in the upper right corner
Click the close button in the lower right corner
Click on the mask layer

How it works

Pop-up modal boxes are built with HTML, CSS and Javascript. They sit on top of other presentation elements in the document and remove scrolling from the
event so that the content of the modal box itself can be scrolled.
Click the "backdrop" (gray background area) of the modal box to automatically close the dynamic module box.
Bootstrap only supports one modal window at a time and does not support nested modes, because superposition will cause a poor user experience.
The modal box uses position: fixed, which is very different from other elements in presentation. Please put the HTML of the pop-up modal box at the top level as much as possible to avoid interference from other elements. Especially when the .modal event is also defined in another fixed element, you may encounter problems.
It is also affected by the position: fixed attribute. There are some precautions when using modal boxes on mobile devices.
According to the semantic definition of HTML5, the autofocusHTML attribute has no effect on the Bootstrap modal box. To achieve the same effect, you need to use some JavaScript.

Normal modal box

.modal: The outermost container of the modal box.
.modal-dialog: Modal box container.
.modal-content: Place the content of the modal box and set the modal box style.
.modal-header: modal box header.
.modal-title: modal box title.
.modal-body: Modal body content.
.modal-footer: modal box footer content.

<div class="modal fade" id="modal1">
	<div class="modal-dialog">
		<div class="modal-content">
			<div class="modal-header">
				<h5 class="modal-title">标题</h5>
				<button class="close" data-dismiss="modal">
					<span>&times;</span>
				</button>
			</div>
			<div class="modal-body">
				ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.
			</div>
			<div class="modal-footer">
				<button class="btn btn-secondary" data-dismiss="modal">关闭</button>
				<button class="btn btn-primary">保存</button>
			</div>
		</div>
	</div>
</div>

<div class="container">
	<div class="row mt-5">
		<div class="col">
			<button class="btn btn-primary" data-toggle="modal" data-target="#modal1">普通的模态框</button>
		</div>
	</div>
</div>

What does bootstrap modal mean?

Modal box with scroll bar

When the user viewport viewport (pop-up content area ) or the device's modal becomes longer, they automatically scroll the page.

<div class="modal fade" id="modal1">
	<div class="modal-dialog">
		<div class="modal-content">
			<div class="modal-header">
				<h5 class="modal-title">标题</h5>
				<button class="close" data-dismiss="modal">
					<span>&times;</span>
				</button>
			</div>
			<div class="modal-body">
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>
				<p>ur et. Donec sed odio dui. Donec ullamcorper nulla non metus auctor fringilla.</p>

			</div>
			<div class="modal-footer">
				<button class="btn btn-secondary" data-dismiss="modal">关闭</button>
				<button class="btn btn-primary">保存</button>
			</div>
		</div>
	</div>
</div>
<div class="container">
	<div class="row mt-5">
		<div class="col">
			<button class="btn btn-primary" data-toggle="modal" data-target="#modal1">有滚动条的模态框</button>
		</div>
	</div>
</div>

What does bootstrap modal mean?

Vertically Centered Modal

Add .modal-dialog-centered to .modal-dialog dialog box to Vertically centered mode.

<!-- 垂直居中的模态框 -->
<div class="modal fade" id="modal2">
	<div class="modal-dialog modal-dialog-centered">	<!-- modal-dialog-centered这个class要加在这里 -->
		<div class="modal-content">
			<div class="modal-header">
				<h5 class="modal-title">标题</h5>
				<button class="close" data-dismiss="modal">
					<span>&times;</span>
				</button>
			</div>
			<div class="modal-body">
					垂直居中的模态框
			</div>
			<div class="modal-footer">
				<button class="btn btn-secondary" data-dismiss="modal">关闭</button>
				<button class="btn btn-primary">保存</button>
			</div>
		</div>
	</div>
</div>
<div class="container">
	<div class="row mt-5">
		<div class="col">
			<button class="btn btn-secondary" data-toggle="modal" data-target="#modal2">垂直居中的模态框</button>
		</div>
	</div>
</div>

What does bootstrap modal mean?

Modal box containing grid system

Add .container-fluid grid system to .modal-body , you can use the Bootsrap grid system in dynamic viewports and use the normal grid system class definition everywhere.

<!-- 使用栅格系统 -->
<div class="modal fade" id="modal3">
	<div class="modal-dialog modal-dialog-centered">	<!-- modal-dialog-centered这个class要加在这里 -->
		<div class="modal-content">
			<div class="modal-header">
				<h5 class="modal-title">标题</h5>
				<button class="close" data-dismiss="modal">
					<span>&times;</span>
				</button>
			</div>
			<div class="modal-body">
				<div class="container-fluid">
					<div class="row">
						<div class="col-md-4 bg-info border">第1列</div>
						<div class="col-md-4 bg-info border">第2列</div>
						<div class="col-md-4 bg-info border">第3列</div>
						<div class="col-md-12 bg-info border">第4列</div>
					</div>
					<div class="row">
						<div class="col bg-info border">第1列</div>
						<div class="col bg-info border">第2列</div>
						<div class="col bg-info border">第3列</div>
						<div class="col bg-info border">第4列</div>
					</div>
					<div class="row">
						<div class="col-md-5 bg-info">第1列</div>
						<div class="col-md-4 bg-info ml-auto">第2列</div>
					</div>
					<div class="row mt-3">
						<div class="col-xl-2 col-lg-3 col-md-4 col-sm-6 col-12  bg-info border">超大屏6个，大屏4个，中等屏3个，小屏2个，超小屏1个</div>
						<div class="col-xl-2 col-lg-3 col-md-4 col-sm-6 col-12  bg-info border">超大屏6个，大屏4个，中等屏3个，小屏2个，超小屏1个</div>
						<div class="col-xl-2 col-lg-3 col-md-4 col-sm-6 col-12  bg-info border">超大屏6个，大屏4个，中等屏3个，小屏2个，超小屏1个</div>
						<div class="col-xl-2 col-lg-3 col-md-4 col-sm-6 col-12  bg-info border">超大屏6个，大屏4个，中等屏3个，小屏2个，超小屏1个</div>
						<div class="col-xl-2 col-lg-3 col-md-4 col-sm-6 col-12  bg-info border">超大屏6个，大屏4个，中等屏3个，小屏2个，超小屏1个</div>
						<div class="col-xl-2 col-lg-3 col-md-4 col-sm-6 col-12  bg-info border">超大屏6个，大屏4个，中等屏3个，小屏2个，超小屏1个</div>
					</div>
				</div>
			</div>
			<div class="modal-footer">
				<button class="btn btn-secondary" data-dismiss="modal">关闭</button>
				<button class="btn btn-primary">保存</button>
			</div>
		</div>
	</div>
</div>
<div class="container">
	<div class="row mt-5">
		<div class="col">
			<button class="btn btn-danger" data-toggle="modal" data-target="#modal3">包含栅格系统的模态框</button>
		</div>
	</div>
</div>

What does bootstrap modal mean?

The size of the modal box

Add the modal box size to .modal-dialog.

##classDescriptionModal max-width.modal-xlExtra Large Size1140px.modal-lgLarge Size800pxnone(default)Default size500px.modal-smSmall size 300px

<!-- 尺寸大小-超大尺寸 -->
<div class="modal fade bd-example-modal-xl" id="modal5">	<!-- 这里添加.bd-example-modal-xl -->
	<div class="modal-dialog modal-xl">	<!-- 这里添加.modal-xl -->
		<div class="modal-content">
			<div class="modal-header">
				<h5 class="modal-title">标题</h5>
				<button class="close" data-dismiss="modal">
					<span>&times;</span>
				</button>
			</div>
			<div class="modal-body">
				超大尺寸模态框
			</div>
			<div class="modal-footer">
				<button class="btn btn-secondary" data-dismiss="modal">关闭</button>
				<button class="btn btn-primary">保存</button>
			</div>
		</div>
	</div>
</div>
<!-- 尺寸大小-大尺寸 -->
<div class="modal fade bd-example-modal-lg" id="modal6">	<!-- 这里添加.bd-example-modal-lg -->
	<div class="modal-dialog modal-lg">	<!-- 这里添加.modal-lg -->
		<div class="modal-content">
			<div class="modal-header">
				<h5 class="modal-title">标题</h5>
				<button class="close" data-dismiss="modal">
					<span>&times;</span>
				</button>
			</div>
			<div class="modal-body">
				大尺寸模态框
			</div>
			<div class="modal-footer">
				<button class="btn btn-secondary" data-dismiss="modal">关闭</button>
				<button class="btn btn-primary">保存</button>
			</div>
		</div>
	</div>
</div>
<!-- 尺寸大小-小尺寸 -->
<div class="modal fade bd-example-modal-sm" id="modal7">	<!-- 这里添加.bd-example-modal-sm -->
	<div class="modal-dialog modal-sm">	<!-- 这里添加.modal-sm -->
		<div class="modal-content">
			<div class="modal-header">
				<h5 class="modal-title">标题</h5>
				<button class="close" data-dismiss="modal">
					<span>&times;</span>
				</button>
			</div>
			<div class="modal-body">
				小尺寸模态框
			</div>
			<div class="modal-footer">
				<button class="btn btn-secondary" data-dismiss="modal">关闭</button>
				<button class="btn btn-primary">保存</button>
			</div>
		</div>
	</div>
</div>

<div class="container">
	<div class="row mt-5">
		<div class="col">
			<button class="btn btn-info" data-toggle="modal" data-target="#modal5">超大尺寸模态框</button>
			<button class="btn btn-info" data-toggle="modal" data-target="#modal6">大尺寸模态框</button>
			<button class="btn btn-info" data-toggle="modal" data-target="#modal7">小尺寸模态框</button>
		</div>
	</div>
</div>

使用数据属性

data属性，需要添加在button身上。

data-backdrop 是否显示遮罩层
data-keyboard 按esc是否关闭模态框
data-focus 让模态框获取到焦点
data-show 初始化时模态框是否显示

<!-- data属性 -->
<div class="modal fade" id="modal8">
	<div class="modal-dialog">
		<div class="modal-content">
			<div class="modal-header">
				<h5 class="modal-title">标题</h5>
				<button class="close" data-dismiss="modal">
					<span>&times;</span>
				</button>
			</div>
			<div class="modal-body">
				data属性
			</div>
			<div class="modal-footer">
				<button class="btn btn-secondary" data-dismiss="modal">关闭</button>
				<button class="btn btn-primary">保存</button>
			</div>
		</div>
	</div>
</div>
<div class="container">
	<div class="row mt-5">
		<div class="col">
			<button class="btn btn-dark" data-toggle="modal" data-target="#modal8" data-backdrop="true" data-keyboard="false" data-focus="true" data-show="false">data属性</button>
		</div>
	</div>
</div>

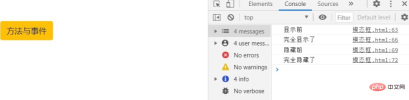

JavaScript方法事件

方法：

.modal(options)：激活您的内容作为模态，将选项加入到object内。
.modal('toggle')：手动切换动态模态框，在动态模态框实际显示或隐藏之前返回给调用者（即在shown.bs.modal或hidden.bs.modal事件发生之前)。
.modal('show')：手动打开动态模态框，在动态模态框实际显示之前返回给调用者（即在shown.bs.modal事件发生前)。
.modal('hide')：手动隐藏动态模态框，在动态模态框实际隐藏之前返回给调用者（即在hidden.bs.modal事件发生前)。

事件：

show.bs.modal：

当调用show实例方法时，会立即触发该事件。如果是由点击引起的，被点击的元素是可用的，成为Event对象的relatedTarget属性。
shown.bs.modal：="normal" data-row-style="normal">

当模态框对用户来说可见时（需要等待CSS过渡完成），会触发该事件。如果是由点击引起的，被点击的元素是可用的，成为Event对象的relatedTarget属性。
hide.bs.modal：当调用hide实例方法时，会立即触发该事件。
hidden.bs.modal：

当模态框对用户来说终于完成隐藏时（需要等待CSS过渡完成），会触发该事件。

<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1, shrink-to-fit=no">
<link rel="stylesheet" href="https://stackpath.bootstrapcdn.com/bootstrap/4.3.1/css/bootstrap.min.css"
integrity="sha384-ggOyR0iXCbMQv3Xipma34MD+dH/1fQ784/j6cY/iJTQUOhcWr7x9JvoRxT2MZw1T" crossorigin="anonymous">
<title>Bootstrap弹出模态框样式</title>
</head>
<body>
<!-- 方法与事件 -->
<div class="modal fade" id="myModal">
<div class="modal-dialog">
<div class="modal-content">
<div class="modal-header">
<h5 class="modal-title">标题</h5>
<button class="close" data-dismiss="modal">
<span>&times;</span>
</button>
</div>
<div class="modal-body">
data属性
</div>
<div class="modal-footer">
<button class="btn btn-secondary" data-dismiss="modal">关闭</button>
<button class="btn btn-primary">保存</button>
</div>
</div>
</div>
</div>
<div class="container">
<div class="row mt-5">
<div class="col">
<button class="btn btn-warning" id="myBtn">方法与事件</button>
</div>
</div>
</div>
<script src="https://code.jquery.com/jquery-3.3.1.slim.min.js"
integrity="sha384-q8i/X+965DzO0rT7abK41JStQIAqVgRVzpbzo5smXKp4YfRvH+8abtTE1Pi6jizo"
crossorigin="anonymous"></script>
<script src="https://stackpath.bootstrapcdn.com/bootstrap/4.3.1/js/bootstrap.min.js"
integrity="sha384-JjSmVgyd0p3pXB1rRibZUAYoIIy6OrQ6VrjIEaFf/nJGzIxFDsf4x0xIM+B07jRM"
crossorigin="anonymous"></script>
<script>
//方法
$(&#39;#myBtn&#39;).click(function(){
$(&#39;#myModal&#39;).modal(&#39;show&#39;);
});
/* $(&#39;#myModal&#39;).modal(&#39;show&#39;);
setTimeout(function(){
$(&#39;#myModal&#39;).modal(&#39;hide&#39;);
},2000); */
//事件
$(&#39;#myModal&#39;).on(&#39;show.bs.modal&#39;, function (e) {
console.log(&#39;显示前&#39;);
});
$(&#39;#myModal&#39;).on(&#39;shown.bs.modal&#39;, function (e) {
console.log(&#39;完全显示了&#39;);
});
$(&#39;#myModal&#39;).on(&#39;hide.bs.modal&#39;, function (e) {
console.log(&#39;隐藏前&#39;);
});
$(&#39;#myModal&#39;).on(&#39;hidden.bs.modal&#39;, function (e) {
console.log(&#39;完全隐藏了&#39;);
});
</script>
</body>
</html>

What does bootstrap modal mean?

推荐学习：《bootstrap使用教程》

The above is the detailed content of What does bootstrap modal mean?. For more information, please follow other related articles on the PHP Chinese website!

JavaScript html5 css bootstrap html Object class Event 对象事件 position viewport

Statement：

The content of this article is voluntarily contributed by netizens, and the copyright belongs to the original author. This site does not assume corresponding legal responsibility. If you find any content suspected of plagiarism or infringement, please contact admin@php.cn

Previous article：What bootstrap ui tools are generally used for development?Next article：What bootstrap ui tools are generally used for development?

See more

What does bootstrap modal mean?

Bootstrap pop-up modal box style

Related articles
