How to rotate css

In css, you can use the transform attribute to achieve element rotation. When the value is set to "rotate (angle)", 2D rotation can be achieved; when the value is "rotateX (angle)", it can be rotated along the X axis, and "rotateY" (angle)" can be rotated along the Y axis, and "rotateZ(angle)" can be rotated along the Z axis.

The operating environment of this tutorial: Windows 7 system, CSS3&&HTML5 version, Dell G3 computer.

TheTransform property applies a 2D or 3D transformation to the element. This property allows you to rotate, scale, move, tilt, etc. the element. The

Transform attribute has 5 attribute values ​​for setting translation:

• rotate(angle) defines 2D rotation and specifies the angle in the parameters.

• rotate3d(x,y,z,angle) Define 3D rotation.

• rotateX(angle) Defines a 3D rotation along the X-axis.

• rotateY(angle) Defines 3D rotation along the Y axis.

• rotateZ(angle) Defines 3D rotation along the Z axis.

Code example:

HTML code:

<!-- Rotate-->
<div class="card">
  <div class="box rotate">
    <div class="fill"></div>
  </div>
  <p>rotate(45deg)  </p>
</div>
<div class="card">
  <div class="box rotateX">
    <div class="fill"></div>
  </div>
  <p>rotateX(45deg)</p>
</div>
<div class="card">
  <div class="box rotateY">
    <div class="fill"></div>
  </div>
  <p>rotateY(45deg)</p>
</div>
<div class="card">
  <div class="box rotateZ">
    <div class="fill"></div>
  </div>
  <p>rotateZ(45deg)  </p>
</div>

<h4 id="Perspective-nbsp-nbsp">Perspective : 100</h4>
<div class="perspective-100">
  <div class="card">
    <div class="box rotateX">
      <div class="fill"></div>
    </div>
    <p>rotateX(90deg)</p>
  </div>
  <div class="card">
    <div class="box rotateY">
      <div class="fill"></div>
    </div>
    <p>rotateY(45deg)</p>
  </div>
</div>
<h4 id="Perspective-nbsp-nbsp">Perspective : 200</h4>
<div class="perspective-200">
  <div class="card">
    <div class="box rotateX">
      <div class="fill"></div>
    </div>
    <p>rotateX(90deg)</p>
  </div>
  <div class="card">
    <div class="box rotateY">
      <div class="fill"></div>
    </div>
    <p>rotateY(45deg)</p>
  </div>
</div>
<!-- transform origin-->

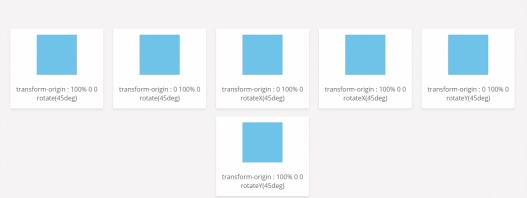

<h2 id="Transform-nbsp-origin">Transform origin</h2>
<div class="card">
  <div class="box rotate">
    <div class="fill to-100-0-0"></div>
  </div>
  <p>transform-origin : 100% 0 0  <br/>rotate(45deg)</p>
</div>
<div class="card">
  <div class="box rotate">
    <div class="fill to-0-100-0"></div>
  </div>
  <p>transform-origin : 0 100%  0<br/>rotate(45deg)</p>
</div>
<div class="card perspective-200">
  <div class="box rotateX">
    <div class="fill to-0-100-0"></div>
  </div>
  <p>transform-origin : 0 100%  0<br/>rotateX(45deg)</p>
</div>
<div class="card perspective-200">
  <div class="box rotateX">
    <div class="fill to-100-0-0"></div>
  </div>
  <p>transform-origin : 100% 0 0<br/>rotateX(45deg)</p>
</div>
<div class="card perspective-200">
  <div class="box rotateY">
    <div class="fill to-0-100-0"></div>
  </div>
  <p>transform-origin : 0 100%  0 <br/>rotateY(45deg)</p>
</div>
<div class="card perspective-200">
  <div class="box rotateY">
    <div class="fill to-100-0-0"></div>
  </div>
  <p>transform-origin : 100%  0 0<br/>rotateY(45deg)</p>
</div>

css code:

*, *:after, *:before {
  box-sizing: border-box;
}

body {
  background: #F5F3F4;
  margin: 0;
  padding: 10px;
  font-family: 'Open Sans', sans-serif;
  text-align: center;
}

h1 {
  color: #4c4c4c;
  font-weight: 600;
  border-bottom: 1px solid #ccc;
}

h2, h4 {
  font-weight: 400;
  color: #4d4d4d;
}

.card {
  display: inline-block;
  margin: 10px;
  background: #fff;
  padding: 15px;
  min-width: 200px;
  box-shadow: 0 3px 5px #ddd;
  color: #555;
}
.card .box {
  width: 100px;
  height: 100px;
  margin: auto;
  background: #ddd;
  cursor: pointer;
  box-shadow: 0 0 5px #ccc inset;
}
.card .box .fill {
  width: 100px;
  height: 100px;
  position: relative;
  background: #03A9F4;
  opacity: .5;
  box-shadow: 0 0 5px #ccc;
  -webkit-transition: 0.3s;
  transition: 0.3s;
}
.card p {
  margin: 25px 0 0;
}

.rotate:hover .fill {
  -webkit-transform: rotate(45deg);
  transform: rotate(45deg);
}

.rotateX:hover .fill {
  -webkit-transform: rotateX(45deg);
  transform: rotateX(45deg);
}

.rotateY:hover .fill {
  -webkit-transform: rotateY(45deg);
  transform: rotateY(45deg);
}

.rotateZ:hover .fill {
  -webkit-transform: rotate(45deg);
  transform: rotate(45deg);
}


.perspective-100 .box {
  -webkit-perspective: 100px;
  perspective: 100px;
}

.perspective-200 .box {
  -webkit-perspective: 200px;
  perspective: 200px;
}

.to-100-0-0 {
  -webkit-transform-origin: 100% 0 0;
          transform-origin: 100% 0 0;
}

.to-0-100-0 {
  -webkit-transform-origin: 0 100% 0;
          transform-origin: 0 100% 0;
}

(Learning video sharing: css video tutorial)
