Two ways to draw pictures in python

爱喝马黛茶的安东尼
爱喝马黛茶的安东尼Original
2019-06-15 15:49:1544058browse

How to draw a picture in python? Here we introduce to you two python drawing libraries: turtle and Matplotlib.

Related recommendations: "python视频"

Two ways to draw pictures in python

##1 Install turtle

Python2 installation command:

pip install turtule

Python3 Installation command:

pip3 install turtle

2 Basic concepts

2.1 Canvas

The canvas is the turtle that expands the drawing area for us, we can set its size and initial position.

There are two commonly used canvas methods: screensize() and setup().

(1) turtle.screensize(canvwidth=None, canvheight=None, bg=None)

The parameters are the width of the canvas (unit pixel), height, and background color

For example:

turtle.screensize(800, 600, "green")

turtle.screensize() #Return to the default size (400, 300)

(2 ) turtle.setup(width=0.5, height=0.75, startx=None, starty=None)

Parameters:

width, height: When the input width and height are integers, they represent pixels; When it is a decimal, it represents the proportion of the computer screen occupied

(startx, starty): This coordinate represents the position of the upper left corner of the rectangular window. If it is empty, the window is located in the center of the screen

For example :

turtle.setup(width=0.6, height=0.6)
turtle.setup(width=800, height=800, startx=100, starty=100)

2.2 Brush

On the canvas, there is a coordinate axis whose origin is the center of the canvas by default. There is a small turtle facing the positive direction of the x-axis on the coordinate origin.

Here we use two words when describing the little turtle: marking the origin (position), facing the positive direction of the x-axis (direction). In turtle drawing, the position and direction are used to describe the state of the little turtle (brush)

(1) Attributes of the brush

The brush has attributes such as color and line width.

1) turtle.pensize(): Set the width of the brush;

2) turtle.pencolor(): No parameters are passed in to return the current brush color; pass in parameters to set the brush color, you can It is a string such as "green", "red", or an RGB 3-tuple.

>>> pencolor('brown')
>>> tup = (0.2, 0.8, 0.55)
>>> pencolor(tup)
>>> pencolor()
    '#33cc8c'

3) turtle.speed(speed): Set the brush movement speed, the brush drawing speed range is [0,10] integer, the larger the number, the faster

(2) Drawing commands

There are many commands to control turtle drawing. These commands can be divided into three types: motion commands, brush control commands and global control commands

Brush Motion command:

##Command                                                                                                                                                                                                         ‐ ‐ ‐ ‐ ‐ ‐ ‐ ‐                                                                                            Moved distance pixels long in the direction of the current brush turtle.backward(distance)                                                                    .​ ​ ​Move degree counterclockwise °

Turtle.pendown () Draw a graphic when moving, and the default time is also drawn

Turtle.goto (x, y) to move the brush to the position of the coordinates

## Turtle.penup () Do not draw a graphic when moving, lift the pen, and use

# TURTLE.Speed ​​(SPEED) paintings when drawing another place.

TURTLE.Circle () Draw the circle, and the radius is positive (negative), indicating that the circle is on the left (right) of the brush.

#Command

                                                                                                                                                                                                                                                                    #turtle.pencolor()                                                                                     Brush color

Turtle.fillcolor (colorstring) Draw the fill color of the graphics

# Turtle.color (color1, color2). Return Is it currently in the filling state?                                                                                  Hide arrow display;

Turtle.showturtle () and hideturtle () function corresponding to

# overall control commands

:

# Section Note

TURTLE.CLEAR () Clear the Turtle window, but the position and status of Turtle will not change

Turtle.reset () to clear the window, reset the turtle state state Starting status

Turtle.undo () Revisit the previous Turtle action

Turtle.isvisible () Return to whether the current TURTLE is visible

Stamp () Copy the current graphics

#

turtle.write(s[,font=("font-name",font_size,"font_type")]) 写文本,s为文本内容,font是字体的参数,里面分别为字体名称,大小和类型;font为可选项, font的参数也是可选项。

例子:

import turtle
def drawSnake(rad, angle, len, neckrad):
    for _ in range(len):
        turtle.circle(rad, angle)
        turtle.circle(-rad, angle)
    turtle.circle(rad, angle/2)
    turtle.forward(rad/2)  # 直线前进
    turtle.circle(neckrad, 180)
    turtle.forward(rad/4)
if __name__ == "__main__":
   turtle.setup(1500, 1400, 0, 0)
   turtle.pensize(30)  # 画笔尺寸
   turtle.pencolor("green")
   turtle.seth(-40)    # 前进的方向
   drawSnake(70, 80, 2, 15)

Two ways to draw pictures in python

Matpliotlib

前提

linux ubuntu 下需安装下面三个包:

Numpy, Scipy,Matplotlib

分别输入下面的代码进行安装:

pip install numpy
pip install scipy
sudo apt-get install python-matplotlib

测试是否安装成功

python
>>> import pylab

如果没有报错则安装成功

开始画图

1. 画最简单的直线图

代码如下:

import numpy as np
import matplotlib.pyplot as plt
x=[0,1]
y=[0,1]
plt.figure()
plt.plot(x,y)
plt.savefig("easyplot.jpg")

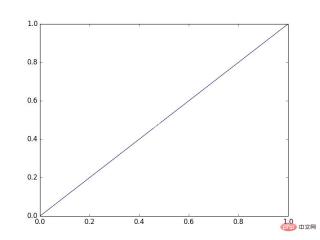

结果如下:

Two ways to draw pictures in python

代码解释:

#x轴,y轴
x=[0,1]
y=[0,1]
#创建绘图对象
plt.figure()
#在当前绘图对象进行绘图(两个参数是x,y轴的数据)
plt.plot(x,y)
#保存图象
plt.savefig("easyplot.jpg")
