Angular is very modular, and a very useful feature of modularity is that modules serve as lazy loading points. Lazy loading means that resources such as a module and all the components it contains can be loaded in the background. This way Angular doesn't need to download all the files from the server on the first screen, and won't download the corresponding module until you request it. This is a huge help in improving performance and reducing the initial download file size above the fold. And it can be set up easily.

A simple example will be used here to demonstrate how this feature works. Split the application into multiple different modules and lazily load them when needed.

Lazy loading routes need to be defined outside the root module, so you need to include the functions that need to be lazy loaded in the function module.

We use Angular CLI to create a demo project: Demo.

ng new demo

Then, enter the demo folder. Install necessary packages.

npm i

After installation, we create a new module shop. In angular CLI, ng is the command prompt instruction, and g stands for generate, which is used to create new items of a certain type.

To create a new module named shop is:

ng g module shop

This will cause a new folder to be created under the src/app file of the Angular project , and add a module definition file named shop.module.ts.

Then, we create components in the default app module and the newly created shop module.

ng g c home/home
ng g c shop/cart
ng g c shop/checkout
ng g c shop/confirm

CLI will allocate home to the app module, and allocate cart, checkout, and confirm to the shop module. For example,

The shop at this time The content of .module.ts is as follows:

import { NgModule } from '@angular/core';
import { CommonModule } from '@angular/common';
import { CheckoutComponent } from './checkout/checkout.component';
import { CartComponent } from './cart/cart.component';
import { ConfirmComponent } from './confirm/confirm.component';

@NgModule({
 imports: [
  CommonModule
 ],
 declarations: [CheckoutComponent, CartComponent, ConfirmComponent]
})
export class ShopModule { }

Modify the root component

The app.component.ts component generated by Angular CLI by default is The main page of the application contains some introductory information about Angular. We modify it to what we need. Modify the default generated app.component.html content to the following content.

<!--The content below is only a placeholder and can be replaced.-->
<h1 id="Lazy-nbsp-Load-nbsp-Module">Lazy Load Module</h1>
<a [routerLink]="[&#39;/shop&#39;]" >Shop Cart</a>
<router-outlet>
</router-outlet>

A placeholder router-outlet is provided here, and each component will be displayed in it.

At the same time, a navigation link is provided that can navigate directly to the /shop/cart component.

Create route

Root route

First create the root route.

We add a routing configuration file named main.routing.ts in the app folder. The content is as follows:

import { Routes } from '@angular/router';
// HomeComponent this components will be eager loaded
import { HomeComponent } from './home/home.component';

export const routes: Routes = [
  { path: '', component: HomeComponent, pathMatch: 'full' },
  { path: 'shop', loadChildren: './shop/shop.module#ShopModule' },
  { path: '**', component: HomeComponent }
];

Among them, the home component is loaded in advance normally.

The following points need to be noted:

1. We use loadChildren to delay loading a module. Instead of using components used by early loading.
2. We use a string instead of a symbol to avoid early loading.
3. We not only define the path of the module, but also provide the class name of the module.

Enable root routing in app.module.ts. Mainly you need to use forRoot to enable the root route.

import { BrowserModule } from '@angular/platform-browser';
import { NgModule } from '@angular/core';

import { AppComponent } from './app.component';
import { HomeComponent } from './home/home.component';
import { routes } from './main.routing';
import { RouterModule } from '@angular/router';

@NgModule({
 declarations: [
  AppComponent,
  HomeComponent
 ],
 imports: [
  BrowserModule,
  RouterModule.forRoot(routes)
 ],
 providers: [],
 bootstrap: [AppComponent]
})
export class AppModule { }

Module routing

Define module routing

For the shop module, there is nothing to define routing In particular, we can define a route definition file named shop.route.ts here. The content is as follows:

import { Routes } from '@angular/router';
import { CartComponent } from './cart/cart.component';
import { CheckoutComponent } from './checkout/checkout.component';
import { ConfirmComponent } from './confirm/confirm.component';
export const routes: Routes = [
     { path: '', component: CartComponent },
     { path: 'checkout', component: CheckoutComponent },
     { path: 'confirm', component: ConfirmComponent }
];

You also need to modify the module definition file shop. module.ts file to use this route definition. Note that we need to use forChild to enable child routes.

import { NgModule } from '@angular/core';
import { CommonModule } from '@angular/common';
import { CheckoutComponent } from './checkout/checkout.component';
import { CartComponent } from './cart/cart.component';
import { ConfirmComponent } from './confirm/confirm.component';

import { routes } from './shop.routing';
import { RouterModule } from '@angular/router';

@NgModule({
 imports: [
  CommonModule,
  RouterModule.forChild(routes)
 ],
 declarations: [CheckoutComponent, CartComponent, ConfirmComponent]
})
export class ShopModule { }

Everything is ready.

Test lazy loading

Now launch the app.

ng serve

The application will be started on port 4200 by default. Please open the browser and visit: http://localhost:4200/

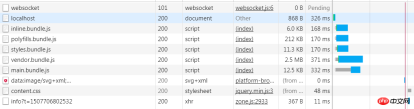

Network access to visit the homepage As shown below, it does not include the content of functional modules.

We first clear the history of network requests.

Then click the link and when accessing /shop/cart, the network request is as follows. You can see that a new script file is loaded, which contains the delayed loading function module.

Only the function module is loaded.
