Share a practical experience in mini program development

The production of the bottom navigation bar of e-commerce

I think everyone is familiar with e-commerce. Generally, the bottom navigation bar of e-commerce has the following homepage, category, shopping cart, and personal center.

app.json is used to configure the page path and navigation bar attributes. If we want to make the homepage, category, shopping cart, and personal center interfaces, we must also add these interfaces to the page, so in app. Add the following code to the json page and write the page path. The system will automatically help you create the interface.

  "pages":["pages/home/home","pages/classify/classify",  "pages/cart/cart","pages/mine/mine","pages/index/index"
  ],

Okay, now that four interfaces have been added, how do we make the bottom navigation bar? Let’s give the app today .json adds another attribute, that is, you can configure the navigation bar in app.json. Add the following code to app.json

 "tabBar": {"color": "#858585","selectedColor": "#f0145a","backgroundColor": "#ffffff","borderStyle": "#000","list": [
      {"pagePath": "pages/home/home","iconPath": "images/bottomNav/home.png","selectedIconPath": "images/bottomNav/home_select.png","text": "首页"
      },
      {"pagePath": "pages/classify/classify","iconPath": "images/bottomNav/classify.png","selectedIconPath": "images/bottomNav/classify_select.png","text": "分类"
      },
      {"pagePath": "pages/cart/cart","iconPath": "images/bottomNav/cart.png","selectedIconPath": "images/bottomNav/cart_select.png","text": "购物车"
      },
      {"pagePath": "pages/mine/mine","iconPath": "images/bottomNav/mine.png","selectedIconPath": "images/bottomNav/mine_select.png","text": "我的"
      }
    ]
  }

tabBar The system has its own field and cannot be changed. Adding this field tells the system that you To add a navigation bar, color, selectedColor, and backgroundColor are literally fields, and the corresponding attributes are the default font color, checked font color, and background color. Let’s focus on borderStyle, which defines the boundary line between the bottom navigation bar and the interface. The property is a bit special. What’s special is that if you don’t want this boundary line, you can set the property to white. The rest does not matter what you write, the system Everyone understands that this dividing line needs to be added. If you don’t believe me, you can try it. The list attribute is naturally used to set the interface corresponding to the navigation bar.

• pagePath: The page path is the path you write in the page

• iconPath : Default navigation bar image path

• selectedIconPath: Checked image path

• text: Navigation bar name

What I want to say here is that the picture path must be written correctly, otherwise it will not be displayed if the picture cannot be found. Here I provide you with my navigation bar picture---extraction code: 8zwe You can follow my picture Create the corresponding folder in the path, as shown below


Note:

• When adding tabBar, don’t forget to remember that there is a comma on it. This is used to distinguish each attribute, so every time you add an attribute, you must separate it with a comma. Pay attention to this, otherwise an error will be reported. , this is the error log where I removed the punctuation. Generally, the error log reported Expecting 'EOF' XXXXXXXXX and got STRING are grammatical errors, so you need to check carefully to see where there is something missing.





• Also, it cannot be written in the .json file Comments, I originally wanted to add some comments to facilitate readers' reading, but the following error message will appear. The solution is very simple, just delete the comments




  ##1 -3.png


  draw inferences

We have created four navigation bars, so if I want to add two more navigation bars, is it okay?
1. You may think it is very simple, just try adding two to the list. I did the same, but something went wrong. The system will report an error. You know this time, the maximum can only be five. There is no way. Who makes WeChat the boss? If they set a maximum of five, then there can only be a maximum of five!






I don’t know if you have noticed that the navigation bar defaults to the home page. The check mark is red, then I want the default check mark to be red. What should I do?
2. This is a bit difficult. What I first thought was that changing the first home attribute and classify attribute in the list in the tabBar attribute should solve the problem. However, this is not the case, because it has no effect, and it happened again later. I found it by accident. Let me give you a little tip. Have you noticed that the first path of pages is pages/home/home? Yes, that’s it. If you want to classify, classify will be the default check option. , you only need to change the home path and classify path in the pages attribute, save and recompile, and the effect you want will come out. One thing that can be summarized here is that tabBar is the first line path to the page as the default Check the option.




E-commerce top navigation bar production

Now that we have talked about the navigation bar, let me explain a little more today, and then teach you how to make the top navigation bar. First Above rendering


这个导航栏可不像底部导航栏啦，因为他的级别比较低，是页面级别的导航栏，所以要写在页面里，你想要在哪个页面加入顶部导航栏就在哪个页面里添加如下代码，这里以首页的界面为例：
home.wxss

/* pages/home/home.wxss */page{
  display: flex;
  flex-direction: column;
  height: 100%;
}
.navbar{
  flex: none;
  display: flex;
  background: #fff;
}
.navbar .item{
  position: relative;
  flex: auto;
  text-align: center;
  line-height: 80rpx;
  font-size:14px;
}
/* 顶部导航字体颜色 */.navbar .item.active{
  color: #f0145a;
}
/* 顶部指示条属性 */.navbar .item.active:after{
  content: "";
  display: block;
  position: absolute;
  bottom: 0;
  left: 0;
  right: 0;
  height: 6rpx;
  background: #f0145a;
}

home.wxml

<!--导航条-->
<view class="navbar">
  <text wx:for="{{navbar}}" data-idx="{{index}}" class="item {{currentTab==index ? &#39;active&#39; : &#39;&#39;}}" wx:key="unique" bindtap="navbarTap">{{item}}</text>
</view>

在home.wxml里面bindtap字段我们已经讲解过啦，是事件监听的标识符，事件名称叫“navbarTap”可以到home.js里查找到这个事件wx:for这个字段重点讲解，在组件上使用wx:for控制属性绑定一个数组，即可使用数组中各项的数据重复渲染该组件。默认数组的当前项的下标变量名默认为index，数组当前项的变量名默认为item，这是官方解释，说白了就是item默认叫做变量的值，index表示第几个变量的值，还不太明白请看这个 微信 wx:for 的讲解

• wx:for="{{navbar}}" 意思是虚幻navbar的数组数据

• {{item}} 这里面是navbar数组里面的值，如护肤、彩妆等值

• wx:key="unique" 来指定列表中项目的唯一的标识符

• data-idx="{{index}}" 存储一些数据供home.js里调用，这里data-xxx，xxx就是你给home.js里提供的数据关键词，home.js通过获取xxx关键词来获取xxx里面的数据

home.js

// pages/home/home.jsvar app = getApp()
Page({  data: {navbar: ['护肤', '彩妆', '香水','个人护理'],currentTab: 0,
  },  // 导航切换监听
  navbarTap: function (e) {console.debug(e);this.setData({      currentTab: e.currentTarget.dataset.idx
    })
  },

})

home.js，这里读过微信小程序入门篇（二）都知道，page页面里.js一般是放data数据和事件监听的，这里data有一个navbar导航栏数据，还有一个记录当前位置的currentTab,字段可以自由命名，赋值的时候对应上就好，

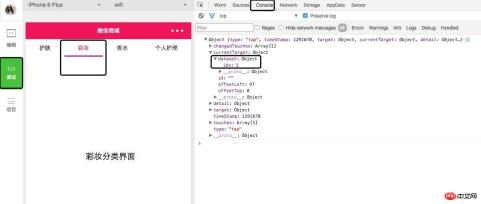

• navbarTap 记得在home.wxml里面data-idx属性吗，在这里用到，currentTab: e.currentTarget.dataset.idx 把当前用户选择的Tab传给currentTab里，为了验证一下结果，我在这里面加入了一个输出日志console.debug(e);，可以在控制台上看输出的日志，我选择点击彩妆，输出台的数据idx：1刚好是彩妆的位置。


总结

今天我们讲解的微信小程序的底部导航栏和顶部导航栏，导航栏应该说是必须的对于电商小程序来说，那么今天的导航栏教程你掌握了吗？

学习过程中遇到什么问题或者想获取学习资源的话，欢迎加入学习交流群
