The push box game is an old game. There are various versions on the Internet. Let me talk about the simple implementation of the push box game, as well as some reference videos and examples I found;

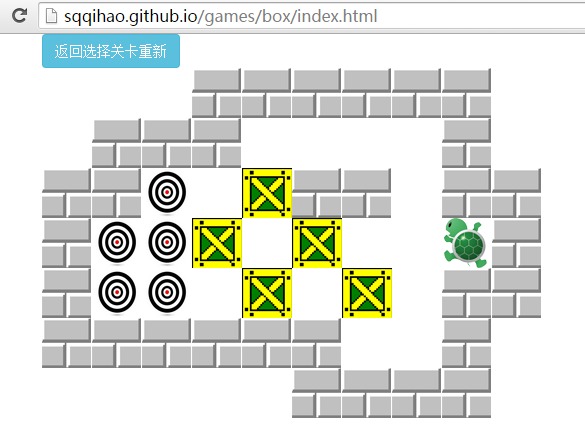

The following is the rendering:
This box dragging game has been adapted to the mobile terminal. I used zepto’s touch module to control the turtle to go in different directions by sliding the screen with your finger;
Because the Sokoban game is relatively simple, the code is written directly in a procedural way. The module is two Views and Model, and the rest is the user's event Controller. Every time the user presses the direction key on the keyboard, the data will be changed. Model data, then regenerate the static HTML of the game, and then insert it into the interface using innerHTML to automatically generate DOM nodes;
The level model of the game is data. I divided the data of each level into three pieces:
Map data, two-dimensional array (map data includes tiles, target location of the box, and blank location)
Box data, one-dimensional array (initial position of the box)
Data of little turtle, json object
Each level has corresponding game level data. The simulated data is as follows:
level: [ { //0是空的地图 //1是板砖 //3是目标点 state:[ [0,0,1,1,1,0,0,0,0], [0,1,1,3,3,1,0,0,0], [0,1,0,0,0,0,1,0,0], [0,1,0,0,0,0,1,0,0], [0,1,1,1,1,1,1,0,0] ], person: {x : 2, y : 2}, box: [{x:3, y : 2},{x:4,y:2}] }, //第二关 { //0是空的地图 //1是板砖 //3是目标点 state:[ [0,1,1,1,1,1,0,0], [0,1,0,0,1,1,1,0], [0,1,0,0,0,0,1,0], [1,1,1,0,1,0,1,1], [1,3,1,0,1,0,0,1], [1,3,0,0,0,1,0,1], [1,3,0,0,0,0,0,1], [1,1,1,1,1,1,1,1] ], person: {x : 2, y : 2}, box: [{x:3, y : 2}, {x:2,y:5} ,{x:5, y:6}] /* box : [ {x:3, y : 1}, {x:4, y : 1}, {x:4, y : 2}, {x:5, y : 5} ] */ }, //第三关 { //0是空的地图 //1是板砖 //3是目标点 state:[ [0,0,0,1,1,1,1,1,1,0], [0,1,1,1,0,0,0,0,1,0], [1,1,3,0,0,1,1,0,1,1], [1,3,3,0,0,0,0,0,0,1], [1,3,3,0,0,0,0,0,1,1], [1,1,1,1,1,1,0,0,1,0], [0,0,0,0,0,1,1,1,1,0] ], person: {x : 8, y : 3}, box: [{x:4, y : 2}, {x:3,y:3} ,{x:4, y:4},{x:5, y:3},{x:6, y:4}] }, //第四关 { //0是空的地图 //1是板砖 //3是目标点 state:[ [0,1,1,1,1,1,1,1,0,0], [0,1,0,0,0,0,0,1,1,1], [1,1,0,1,1,1,0,0,0,1], [1,0,0,0,0,0,0,0,0,1], [1,0,3,3,1,0,0,0,1,1], [1,1,3,3,1,0,0,0,1,0], [0,1,1,1,1,1,1,1,1,0] ], person: {x : 2, y : 3}, box: [{x:2, y : 2}, {x:4,y:3} ,{x:6, y:4},{x:7, y:3},{x:6, y:4}] }, //第五关 { //0是空的地图 //1是板砖 //3是目标点 state:[ [0,0,1,1,1,1,0,0], [0,0,1,3,3,1,0,0], [0,1,1,0,3,1,1,0], [0,1,0,0,0,3,1,0], [1,1,0,0,0,0,1,1], [1,0,0,1,0,0,0,1], [1,0,0,0,0,0,0,1], [1,1,1,1,1,1,1,1] ], person: {x : 4, y : 6}, box: [{x:4, y : 3}, {x:3,y:4} ,{x:4, y:5}, {x:5,y:5}] /* box : [ {x:3, y : 1}, {x:4, y : 1}, {x:4, y : 2}, {x:5, y : 5} ] */ }, //第六关 { //0是空的地图 //1是板砖 //3是目标点 state:[ [0,0,0,0,1,1,1,1,1,1,1,0], [0,0,0,0,1,0,0,1,0,0,1,0], [0,0,0,0,1,0,0,0,0,0,1,0], [1,1,1,1,1,0,0,1,0,0,1,0], [3,3,3,1,1,0,0,0,0,0,1,1], [3,0,0,1,0,0,0,0,1,0,0,1], [3,0,0,0,0,0,0,0,0,0,0,1], [3,0,0,1,0,0,0,0,1,0,0,1], [3,3,3,1,1,1,0,1,0,0,1,1], [1,1,1,1,1,0,0,0,0,0,1,0], [0,0,0,0,1,0,0,1,0,0,1,0], [0,0,0,0,1,1,1,1,1,1,1,0] ], person: {x : 5, y : 10}, box: [ {x:5, y:6}, {x:6, y:3}, {x:6, y:5}, {x:6, y:7}, {x:6, y:9}, {x:7, y:2}, {x:8, y:2}, {x:9, y:6} ] } ]
One very important thing is the main logic of the push box game: because the place where the little turtle can only walk is a blank area, and if there is a wall in front of the turtle, it cannot walk, or if there is a box in front of the turtle, then judge the front of the box. Is there a wall? If there is no wall, both the turtle and the box can move forward. If there is a wall, they cannot move. Every time the little turtle walks away, the map data is changed, and then the interface is regenerated. In this cycle, after every little turtle walks, it will check whether the box data in the map data are all aligned. If they are aligned, the user will be prompted and entered. Next level;
The game’s template engine uses handlebarsJS. You can go to the official website to see the API. This is a blog I wrote, Handlebars usage documentation (Handlebars.js): Open, template content:
<script id="tpl" type="text/x-handlebars-template"> {{#initY}}{{/initY}} {{#each this}} {{#each this}} <div class="{{#getClass this}}{{/getClass}}" data-x="{{@index}}" data-y="{{#getY}}{{/getY}}" style="left:{{#calc @index}}{{/calc}};top:{{#calc 1111}}{{/calc}}"> <!--{{@index}} {{#getY}}{{/getY}} --> </div> {{/each}} {{#addY}}{{/addY}} {{/each}} </script>
Several helpers are defined for Handlebars, including initY, getClass, getY, calc,,,,. The template engine is mainly used as an auxiliary function. It is not very wise to use Handlebars here. The readability of the code becomes a bit worse. , closures are also used to save variables to avoid pollution of global variables:
(function() { var y = 0; Handlebars.registerHelper("initY", function() { y = 0; }); Handlebars.registerHelper("addY", function() { y++; }); Handlebars.registerHelper("getY", function() { return y; }); Handlebars.registerHelper("calc", function(arg) { //console.log(arg) if(arg!==1111) { return 50*arg + "px"; }else{ return 50*y + "px"; }; }); Handlebars.registerHelper("getClass", function(arg) { switch( arg ) { case 0 : return "bg" case 1 : return "block" case 2 : return "box" case 3 : return "target" }; }); window.util = { isMobile : function() { return navigator.userAgent.toLowerCase().indexOf("mobile") !== -1 || navigator.userAgent.toLowerCase().indexOf("android") !== -1 || navigator.userAgent.toLowerCase().indexOf("pad") !== -1; } } })();
Because it needs to be compatible with mobile devices, we need to check whether it is a mobile phone or tablet. If so, I will add the corresponding DOM element (direction key DOM element), and then bind the corresponding event. zeptoJS provides the touch module, we Go to the official website to find it, then add additional references, open the address, and then you can use the swipeLeft, swipeUp, swipeDown, swipeRight events:
if( window.util.isMobile() ) { $(window).on("swipeLeft",function() { _this.step("left"); }).on("swipeRight",function() { _this.step("right"); }).on("swipeUp",function() { _this.step("top"); }).on("swipeDown",function() { _this.step("bottom"); }); mobileDOM(); $(".arrow-up").tap(function() { _this.step("top"); }); $(".arrow-down").tap(function() { _this.step("bottom"); }); $(".arrow-left").tap(function() { _this.step("left"); }); $(".arrow-right").tap(function() { _this.step("right"); }); }else{ $(window).on("keydown", function(ev) { var state = ""; switch( ev.keyCode ) { case 37 : state = "left"; break; case 39 : state = "right"; break; case 38 : state = "top"; break; case 40 : state = "bottom"; break; }; _this.step(state) }); };
Because we need to save the user’s current level, we also use the jQuery-cookies plug-in. Every time a level is successfully cleared, we will save the current level record. When the user does not want to play or closes the browser for other reasons, the browser will be closed after a few days. You can continue playing when you want to play again;
if( G.now+1 > G.level.length-1 ) { alert("闯关成功"); return ; }else{ //如果可用的等级大于当前的等级,就把level设置进去; if( G.now+1 > parseInt( $.cookie('level') || 0 )) { $.cookie('level' , G.now+1 , { expires: 7 }); }; start( G.now+1 ); return ; };
All the codes are here:
<!DOCTYPE html> <html> <head lang="en"> <meta charset="UTF-8"> <title></title> <meta name="viewport" content="width=device-width, initial-scale=1, maximum-scale=1, user-scalable=no"> <link rel="stylesheet" href="http://cdn.bootcss.com/bootstrap/3.3.4/css/bootstrap.min.css"> <link rel="stylesheet" href="http://sqqihao.github.io/games/rusBlock/libs/Tiny-Alert/css/zepto.alert.css"/> <script src="libs/jquery-1.9.1.min.js"></script> <script src="libs/handlebars.js"></script> <script src="libs/jquery-cookie.js"></script> <script src="http://sqqihao.github.io/games/rusBlock/libs/Tiny-Alert/js/zepto.alert.js"></script> <script id="tpl" type="text/x-handlebars-template"> {{#initY}}{{/initY}} {{#each this}} {{#each this}} <div class="{{#getClass this}}{{/getClass}}" data-x="{{@index}}" data-y="{{#getY}}{{/getY}}" style="left:{{#calc @index}}{{/calc}};top:{{#calc 1111}}{{/calc}}"> <!--{{@index}} {{#getY}}{{/getY}} --> </div> {{/each}} {{#addY}}{{/addY}} {{/each}} </script> <script> (function() { var y = 0; Handlebars.registerHelper("initY", function() { y = 0; }); Handlebars.registerHelper("addY", function() { y++; }); Handlebars.registerHelper("getY", function() { return y; }); Handlebars.registerHelper("calc", function(arg) { //console.log(arg) if(arg!==1111) { return 50*arg + "px"; }else{ return 50*y + "px"; }; }); Handlebars.registerHelper("getClass", function(arg) { switch( arg ) { case 0 : return "bg" case 1 : return "block" case 2 : return "box" case 3 : return "target" }; }); window.util = { isMobile : function() { return navigator.userAgent.toLowerCase().indexOf("mobile") !== -1 || navigator.userAgent.toLowerCase().indexOf("android") !== -1 || navigator.userAgent.toLowerCase().indexOf("pad") !== -1; } } })(); </script> </head> <style> #game{ display: none; } #house{ position: relative; } .bg{ position: absolute; width:50px; height:50px; box-sizing: border-box; } .block{ position: absolute; background-image: url(imgs/wall.png); width:50px; height:50px; box-sizing: border-box; } .box{ position: absolute; background: #fbd500; width:50px; height:50px; background-image: url(imgs/box.png); } .target{ position: absolute; background: url(imgs/target.jpg); background-size: 50px 50px;; width:50px; height:50px; box-sizing: border-box; } #person{ background-image: url(imgs/person.png); width:50px; height:50px; position: absolute; } #person.up{ background-position: 0 0; } #person.right{ background-position:-50px 0 ; } #person.bottom{ background-position:-100px 0 ; } #person.left{ background-position:-150px 0 ; } /*移动端的DOM*/ .operate-bar{ font-size:30px; } .height20percent{ height:30%; } .height30percent{ height:30%; } .height40percent{ height:40%; } .height100percent{ height:100%; } .font30{ font-size:30px; color:#34495e; } </style> <body> <div id="select"> <div class="container"> <div class="row"> <p class="text-info"> 已经解锁的关卡: <p id="level"> </p> </p> <button id="start" class="btn btn-default"> 开始游戏 </button> </div> </div> </div> <div id="game" class="container"> <div class="row"> <button onclick="location.reload()" class="btn btn-info" > 返回选择关卡重新 </button> <div id="house"> </div> </div> </div> <script> G = { level: [ { //0是空的地图 //1是板砖 //3是目标点 state:[ [0,0,1,1,1,0,0,0,0], [0,1,1,3,3,1,0,0,0], [0,1,0,0,0,0,1,0,0], [0,1,0,0,0,0,1,0,0], [0,1,1,1,1,1,1,0,0] ], person: {x : 2, y : 2}, box: [{x:3, y : 2},{x:4,y:2}] }, //第二关 { //0是空的地图 //1是板砖 //3是目标点 state:[ [0,1,1,1,1,1,0,0], [0,1,0,0,1,1,1,0], [0,1,0,0,0,0,1,0], [1,1,1,0,1,0,1,1], [1,3,1,0,1,0,0,1], [1,3,0,0,0,1,0,1], [1,3,0,0,0,0,0,1], [1,1,1,1,1,1,1,1] ], person: {x : 2, y : 2}, box: [{x:3, y : 2}, {x:2,y:5} ,{x:5, y:6}] /* box : [ {x:3, y : 1}, {x:4, y : 1}, {x:4, y : 2}, {x:5, y : 5} ] */ }, //第三关 { //0是空的地图 //1是板砖 //3是目标点 state:[ [0,0,0,1,1,1,1,1,1,0], [0,1,1,1,0,0,0,0,1,0], [1,1,3,0,0,1,1,0,1,1], [1,3,3,0,0,0,0,0,0,1], [1,3,3,0,0,0,0,0,1,1], [1,1,1,1,1,1,0,0,1,0], [0,0,0,0,0,1,1,1,1,0] ], person: {x : 8, y : 3}, box: [{x:4, y : 2}, {x:3,y:3} ,{x:4, y:4},{x:5, y:3},{x:6, y:4}] }, //第四关 { //0是空的地图 //1是板砖 //3是目标点 state:[ [0,1,1,1,1,1,1,1,0,0], [0,1,0,0,0,0,0,1,1,1], [1,1,0,1,1,1,0,0,0,1], [1,0,0,0,0,0,0,0,0,1], [1,0,3,3,1,0,0,0,1,1], [1,1,3,3,1,0,0,0,1,0], [0,1,1,1,1,1,1,1,1,0] ], person: {x : 2, y : 3}, box: [{x:2, y : 2}, {x:4,y:3} ,{x:6, y:4},{x:7, y:3},{x:6, y:4}] }, //第五关 { //0是空的地图 //1是板砖 //3是目标点 state:[ [0,0,1,1,1,1,0,0], [0,0,1,3,3,1,0,0], [0,1,1,0,3,1,1,0], [0,1,0,0,0,3,1,0], [1,1,0,0,0,0,1,1], [1,0,0,1,0,0,0,1], [1,0,0,0,0,0,0,1], [1,1,1,1,1,1,1,1] ], person: {x : 4, y : 6}, box: [{x:4, y : 3}, {x:3,y:4} ,{x:4, y:5}, {x:5,y:5}] /* box : [ {x:3, y : 1}, {x:4, y : 1}, {x:4, y : 2}, {x:5, y : 5} ] */ }, //第六关 { //0是空的地图 //1是板砖 //3是目标点 state:[ [0,0,0,0,1,1,1,1,1,1,1,0], [0,0,0,0,1,0,0,1,0,0,1,0], [0,0,0,0,1,0,0,0,0,0,1,0], [1,1,1,1,1,0,0,1,0,0,1,0], [3,3,3,1,1,0,0,0,0,0,1,1], [3,0,0,1,0,0,0,0,1,0,0,1], [3,0,0,0,0,0,0,0,0,0,0,1], [3,0,0,1,0,0,0,0,1,0,0,1], [3,3,3,1,1,1,0,1,0,0,1,1], [1,1,1,1,1,0,0,0,0,0,1,0], [0,0,0,0,1,0,0,1,0,0,1,0], [0,0,0,0,1,1,1,1,1,1,1,0] ], person: {x : 5, y : 10}, box: [ {x:5, y:6}, {x:6, y:3}, {x:6, y:5}, {x:6, y:7}, {x:6, y:9}, {x:7, y:2}, {x:8, y:2}, {x:9, y:6} ] } ], //map data mapData : (function() { var data = {}; return { get: function () { return data; }, set: function (arg) { data = arg; }, //穿进来的数据在界面中是否存在; collision: function (x, y) { if( data.state[y][x] === 1)return true; return false; }, collisionBox : function(x,y) { for(var i= 0, len= data.box.length; i< len; i++) { if( data.box[i].x === x&& data.box[i].y === y)return data.box[i]; }; return false; } } })(), view : { initMap : function(map) { document.getElementById("house").innerHTML = Handlebars.compile( document.getElementById("tpl").innerHTML )( map ); }, initPerson : function(personXY) { var per = document.createElement("div"); per.id = "person"; G.per = per; document.getElementById("house").appendChild(per); per.style.left = 50* personXY.x+"px"; per.style.top = 50* personXY.y+"px"; }, initBox : function(boxs) { for(var i=0;i<boxs.length; i++) { var box = document.createElement("div"); box.className = "box"; G.box = box; document.getElementById("house").appendChild(box); box.style.left = boxs[i].x*50 + "px"; box.style.top = boxs[i].y*50 + "px"; }; }, deleteBox : function() { var eBoxs = document.getElementsByClassName("box"); var len = eBoxs.length; while( len-- ) { eBoxs[len].parentNode.removeChild( eBoxs[len] ); }; } }, /* * 0;向上 * 1:向右 * 2:向下 * 3:向左 * */ direction : 0, step : function(xy) { //这里面要做很多判断 /*包括: 用户当前的方向和以前是否一样,如果不一样要先转头; 如果一样的话,判断前面是否有石头, 是否有箱子; 如果前面有墙壁或者 前面有箱子,而且箱子前面有墙壁就return 把人物往前移动 如果人物的位置上有一个箱子,把箱子也移动一下; */ var mapData = this.mapData.get(); //对参数进行处理; if ( typeof xy === "string" ) { var x = 0, y = 0, xx = 0, yy = 0; switch( xy ) { case "left" : if(this.direction==0){ x = -1; xx = -2; }else{ x = 0; }; this.direction = 0; break; case "top" : if(this.direction===1){ y = -1; yy = -2 }else{ y = 0; }; this.direction = 1; break; case "right" : if(this.direction === 2) { x = 1; xx = 2; }else{ x = 0; }; this.direction = 2; break; case "bottom" : if(this.direction ===3 ) { y = 1; yy = 2; }else{ y = 0; }; this.direction = 3; }; //如果是墙壁就不能走 if( this.mapData.collision(mapData.person.x + x, mapData.person.y+y) ) { return; }; //如果碰到的是箱子, 而且箱子前面是墙壁, 就return if( this.mapData.collisionBox(mapData.person.x+x, mapData.person.y+y) && this.mapData.collision(mapData.person.x+xx, mapData.person.y+yy)) { return; }; if( this.mapData.collisionBox(mapData.person.x+x, mapData.person.y+y) && this.mapData.collisionBox(mapData.person.x+xx, mapData.person.y+yy)) { return } //mapData.x+xx, mapData.y+yy mapData.person.x = mapData.person.x + x; mapData.person.y = mapData.person.y + y; this.per.style.left = 50* mapData.person.x+"px"; this.per.style.top = 50* mapData.person.y+"px"; this.per.className = { 0:"up", 1:"right", 2:"bottom", 3:"left" }[this.direction]; var theBox = {}; if(theBox = this.mapData.collisionBox(mapData.person.x, mapData.person.y)) { theBox.x = mapData.person.x+x; theBox.y = mapData.person.y+y; this.view.deleteBox(); this.view.initBox(mapData.box); this.testSuccess(); }; //如果碰到了箱子,而且箱子前面不能走就return, 否则就走箱子和人物; }; }, /* * return Boolean; * */ //遍历所有的box,如果在box中的所有x,y在地图中对应的值为3,全部通过就返回true testSuccess : function() { var mapData = this.mapData.get(); for(var i=0; i<mapData.box.length; i++) { if(mapData.state[mapData.box[i].y][mapData.box[i].x] != 3) { return false; }; }; $.dialog({ content : '游戏成功, 进入下一关!', title : 'alert', ok : function() { if( G.now+1 > G.level.length-1 ) { alert("闯关成功"); return ; }else{ //如果可用的等级大于当前的等级,就把level设置进去; if( G.now+1 > parseInt( $.cookie('level') || 0 )) { $.cookie('level' , G.now+1 , { expires: 7 }); }; start( G.now+1 ); return ; }; }, cancel : function(){ location.reload(); }, lock : true }); }, //这里面需要处理 map, 人物数据, box数据 init : function() { //更新地图; //this.level[0].state this.view.initMap( this.mapData.get().state ); this.view.initPerson( this.mapData.get().person ); this.view.initBox( this.mapData.get().box ); //this.person = this.factory.Person(0,0); //this.box = this.factory.Box([{x:0,y:1},{x:1,y:1},{x:0,y:2},{x:1,y:2}]); if( this.hasBind ) { return }; this.hasBind = true; this.controller(); }, controller : function() { function mobileDOM() { var mobileDOMString = '\ <div class="navbar-fixed-bottom height20percent operate-bar" >\ <div class="container height100percent">\ <div class="row text-center height100percent">\ <div class="height40percent arrow-up">\ <span class="glyphicon glyphicon-arrow-up" aria-hidden="true"></span>\ </div>\ <div class="height30percent">\ <div class="col-xs-6 arrow-left">\ <span class="glyphicon glyphicon-arrow-left" aria-hidden="true"></span>\ </div>\ <div class="col-xs-6 arrow-right">\ <span class="glyphicon glyphicon-arrow-right" aria-hidden="true"></span>\ </div>\ </div>\ <div class="height30percent arrow-down">\ <span class="glyphicon glyphicon-arrow-down" aria-hidden="true"></span>\ </div>\ </div>\ </div>\ </div>\ '; +function addDOM() { $("#game").append( mobileDOMString ); }(); }; var _this = this; if( window.util.isMobile() ) { $(window).on("swipeLeft",function() { _this.step("left"); }).on("swipeRight",function() { _this.step("right"); }).on("swipeUp",function() { _this.step("top"); }).on("swipeDown",function() { _this.step("bottom"); }); mobileDOM(); $(".arrow-up").tap(function() { _this.step("top"); }); $(".arrow-down").tap(function() { _this.step("bottom"); }); $(".arrow-left").tap(function() { _this.step("left"); }); $(".arrow-right").tap(function() { _this.step("right"); }); }else{ $(window).on("keydown", function(ev) { var state = ""; switch( ev.keyCode ) { case 37 : state = "left"; break; case 39 : state = "right"; break; case 38 : state = "top"; break; case 40 : state = "bottom"; break; }; _this.step(state) }); }; } }; function start( level ) { G.now = level; G.mapData.set(G.level[level] ); G.init(); $("#game").show(); $("#select").hide(); }; function init() { var cookieLevel = $.cookie('level') || 0; start( cookieLevel ); }; $("#start").click(function() { init(); }); String.prototype.repeat = String.prototype.repeat || function(num) { return (new Array(num+1)).join( this.toString() ); }; window.onload = function() { var cookieLevel = $.cookie('level') || 0; $("#level").html( function() { var index = 0; return "<a href='###' class='btn btn-info' onclick='start({{i}})'>关卡</a> ".repeat((parseInt($.cookie('level')) || 0)+1).replace(/{{i}}/gi, function() { return index++; }) }); } </script> </body> </html>
There are 6 levels in the game. Successfully passing each level will unlock the next level. You can actually find more maps, haha;
Online DEMO of Sokoban game: Open
The above is the entire content of this article, I hope you all like it.
