How to use SpringBoot + Redis to implement interface current limiting

Configuration

First we create a Spring Boot project, introduce Web and Redis dependencies, and consider that interface current limiting is generally marked through annotations, and annotations are parsed through AOP, so we also need Including AOP dependencies, the final dependencies are as follows:

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-redis</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-aop</artifactId>
</dependency>

Then prepare a Redis instance in advance. After our project is configured, we can directly configure the basic information of Redis, as follows:

spring.redis.host=localhost
spring.redis.port=6379
spring.redis.password=123

Current limiting annotation

Next we create a current limiting annotation. We divide the current limiting into two situations:

• Global current limiting for the current interface , for example, the interface can be accessed 100 times in 1 minute.

• Rate limit for a certain IP address, for example, an IP address can be accessed 100 times in 1 minute.

For these two situations, we create an enumeration class:

public enum LimitType {
    /**
     * 默认策略全局限流
     */
    DEFAULT,
    /**
     * 根据请求者IP进行限流
     */
    IP
}

Next we create the current limiting annotation:

@Target(ElementType.METHOD)
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface RateLimiter {
    /**
     * 限流key
     */
    String key() default "rate_limit:";

    /**
     * 限流时间,单位秒
     */
    int time() default 60;

    /**
     * 限流次数
     */
    int count() default 100;

    /**
     * 限流类型
     */
    LimitType limitType() default LimitType.DEFAULT;
}

First A parameter current-limiting key. This is just a prefix. In the future, the complete key will be this prefix plus the complete path of the interface method, which together form the current-limiting key. This key will be stored in Redis.

The other three parameters are easy to understand, so I won’t say more.

Okay, if the interface needs to limit the flow in the future, just add the @RateLimiter annotation on that interface, and then configure the relevant parameters.

Customized RedisTemplate

In Spring Boot, we are actually more accustomed to using Spring Data Redis to operate Redis, but the default RedisTemplate has a small pitfall, that is, JdkSerializationRedisSerializer is used for serialization. I don’t know. Friends, have you ever noticed that the keys and values ​​saved to Redis using this serialization tool will somehow have more prefixes, which may cause errors when you read them with commands.

For example, when storing, the key is name and the value is test, but when you operate on the command line, get name cannot get the data you want. The reason is that the data is stored After arriving in redis, there are some more characters in front of the name. At this time, we can only continue to use RedisTemplate to read them out.

When we use Redis for current limiting, we will use Lua scripts. When using Lua scripts, the situation mentioned above will occur, so we need to modify the serialization scheme of RedisTemplate.

Some friends may ask why not use StringRedisTemplate? StringRedisTemplate does not have the problems mentioned above, but the data types it can store are not rich enough, so it is not considered here.

Modify the RedisTemplate serialization scheme, the code is as follows:

@Configuration
public class RedisConfig {

    @Bean
    public RedisTemplate<Object, Object> redisTemplate(RedisConnectionFactory connectionFactory) {
        RedisTemplate<Object, Object> redisTemplate = new RedisTemplate<>();
        redisTemplate.setConnectionFactory(connectionFactory);
        // 使用Jackson2JsonRedisSerialize 替换默认序列化(默认采用的是JDK序列化)
        Jackson2JsonRedisSerializer<Object> jackson2JsonRedisSerializer = new Jackson2JsonRedisSerializer<>(Object.class);
        ObjectMapper om = new ObjectMapper();
        om.setVisibility(PropertyAccessor.ALL, JsonAutoDetect.Visibility.ANY);
        om.enableDefaultTyping(ObjectMapper.DefaultTyping.NON_FINAL);
        jackson2JsonRedisSerializer.setObjectMapper(om);
        redisTemplate.setKeySerializer(jackson2JsonRedisSerializer);
        redisTemplate.setValueSerializer(jackson2JsonRedisSerializer);
        redisTemplate.setHashKeySerializer(jackson2JsonRedisSerializer);
        redisTemplate.setHashValueSerializer(jackson2JsonRedisSerializer);
        return redisTemplate;
    }
}

There is actually nothing to say about this. We use the default jackson serialization method in Spring Boot for both key and value. .

Lua script

In fact, I mentioned this in the previous vhr video. We can use Lua scripts to implement some atomic operations in Redis. If we want to call Lua scripts, we have Two different ideas:

• Define the Lua script on the Redis server, and then calculate a hash value. In the Java code, use this hash value to lock which Lua to execute. script.

• Define the Lua script directly in the Java code and then send it to the Redis server for execution.

Spring Data Redis also provides an interface for operating Lua scripts, which is quite convenient, so we will adopt the second solution here.

We create a new lua folder in the resources directory specifically to store lua scripts. The content of the script is as follows:

local key = KEYS[1]
local count = tonumber(ARGV[1])
local time = tonumber(ARGV[2])
local current = redis.call('get', key)
if current and tonumber(current) > count then
    return tonumber(current)
end
current = redis.call('incr', key)
if tonumber(current) == 1 then
    redis.call('expire', key, time)
end
return tonumber(current)

This script is actually not difficult. You can probably tell what it is used for at a glance. KEYS and ARGV are both parameters passed in when calling. Tonumber is to convert a string into a number. redis.call is to execute specific redis instructions. The specific process is as follows:

• First, obtain the incoming key and the current limit count and time.

• Get the value corresponding to this key through get. This value is the number of times this interface can be accessed in the current time window.

• If it is the first visit, the result obtained at this time is nil. Otherwise, the result obtained should be a number, so the next step is to judge if the result obtained is A number, and this number is greater than count, it means that the traffic limit has been exceeded, then the query results can be returned directly.

• If the result obtained is nil, it means it is the first access. At this time, increase the current key by 1, and then set an expiration time.

• Finally, just return the value that has been incremented by 1.

In fact, this Lua script is easy to understand.

Next we load this Lua script in a Bean, as follows:

@Bean
public DefaultRedisScript<Long> limitScript() {
    DefaultRedisScript<Long> redisScript = new DefaultRedisScript<>();
    redisScript.setScriptSource(new ResourceScriptSource(new ClassPathResource("lua/limit.lua")));
    redisScript.setResultType(Long.class);
    return redisScript;
}

Okay, our Lua script is now ready.

Annotation analysis

Next we need to customize the aspect to parse this annotation. Let’s take a look at the definition of the aspect:

@Aspect
@Component
public class RateLimiterAspect {
    private static final Logger log = LoggerFactory.getLogger(RateLimiterAspect.class);
    @Autowired
    private RedisTemplate<Object, Object> redisTemplate;
    @Autowired
    private RedisScript<Long> limitScript;
    @Before("@annotation(rateLimiter)")
    public void doBefore(JoinPoint point, RateLimiter rateLimiter) throws Throwable {
        String key = rateLimiter.key();
        int time = rateLimiter.time();
        int count = rateLimiter.count();

        String combineKey = getCombineKey(rateLimiter, point);
        List<Object> keys = Collections.singletonList(combineKey);
        try {
            Long number = redisTemplate.execute(limitScript, keys, count, time);
            if (number==null || number.intValue() > count) {
                throw new ServiceException("访问过于频繁，请稍候再试");
            }
            log.info("限制请求&#39;{}&#39;,当前请求&#39;{}&#39;,缓存key&#39;{}&#39;", count, number.intValue(), key);
        } catch (ServiceException e) {
            throw e;
        } catch (Exception e) {
            throw new RuntimeException("服务器限流异常，请稍候再试");
        }
    }

    public String getCombineKey(RateLimiter rateLimiter, JoinPoint point) {
        StringBuffer stringBuffer = new StringBuffer(rateLimiter.key());
        if (rateLimiter.limitType() == LimitType.IP) {
            stringBuffer.append(IpUtils.getIpAddr(((ServletRequestAttributes) RequestContextHolder.currentRequestAttributes()).getRequest())).append("-");
        }
        MethodSignature signature = (MethodSignature) point.getSignature();
        Method method = signature.getMethod();
        Class<?> targetClass = method.getDeclaringClass();
        stringBuffer.append(targetClass.getName()).append("-").append(method.getName());
        return stringBuffer.toString();
    }
}

This aspect is to intercept all additions The @RateLimiter annotated method is added, and the annotation is processed in the pre-notification.

• 首先获取到注解中的 key、time 以及 count 三个参数。

• 获取一个组合的 key，所谓的组合的 key，就是在注解的 key 属性基础上，再加上方法的完整路径，如果是 IP 模式的话，就再加上 IP 地址。以 IP 模式为例，最终生成的 key 类似这样：rate_limit:127.0.0.1-org.javaboy.ratelimiter.controller.HelloController-hello（如果不是 IP 模式，那么生成的 key 中就不包含 IP 地址）。

• 将生成的 key 放到集合中。

• 通过 redisTemplate.execute 方法取执行一个 Lua 脚本，第一个参数是脚本所封装的对象，第二个参数是 key，对应了脚本中的 KEYS，后面是可变长度的参数，对应了脚本中的 ARGV。

• 判断 Lua 脚本执行后的结果是否超过 count，若超过则视为过载，抛出异常处理即可。

接口测试

接下来我们就进行接口的一个简单测试，如下：

@RestController
public class HelloController {
    @GetMapping("/hello")
    @RateLimiter(time = 5,count = 3,limitType = LimitType.IP)
    public String hello() {
        return "hello>>>"+new Date();
    }
}

每一个 IP 地址，在 5 秒内只能访问 3 次。

这个自己手动刷新浏览器都能测试出来。

全局异常处理

由于过载的时候是抛异常出来，所以我们还需要一个全局异常处理器，如下：

@RestControllerAdvice
public class GlobalException {
    @ExceptionHandler(ServiceException.class)
    public Map<String,Object> serviceException(ServiceException e) {
        HashMap<String, Object> map = new HashMap<>();
        map.put("status", 500);
        map.put("message", e.getMessage());
        return map;
    }
}

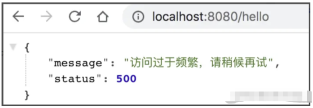

我将这句话重写成如下： 这个 demo 很小，所以我没有定义实体类，而是直接使用 Map 来返回 JSON。 最后我们看看过载时的测试效果：
