How Redis implements delay queue

Use

Dependency configuration

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.12.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.homeey</groupId>
    <artifactId>redis-delay-queue</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>redis-delay-queue</name>
    <description>redis-delay-queue</description>
    <properties>
        <java.version>1.8</java.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.redisson/redisson -->
        <dependency>
            <groupId>org.redisson</groupId>
            <artifactId>redisson-spring-boot-starter</artifactId>
            <version>3.19.3</version>
        </dependency>
        <dependency>
            <groupId>org.redisson</groupId>
            <artifactId>redisson-spring-data-23</artifactId>
            <version>3.19.3</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

Note: Handle redisson and springboot compatibility issues

Configuration file

There are three ways for springboot to integrate redisson

• The first: general redis configuration redisson automatic configuration [the simplest]

• The second type: Use a separate redisson configuration file

• The third type: Use spring.redis.redisson to configure under the configuration key

For detailed integration, view springboot integrated redisson configuration

spring:
  redis:
    database: 0
    host: localhost
    port: 6379
    timeout: 10000
    lettuce:
      pool:
        max-active: 8
        max-wait: -1
        min-idle: 0
        max-idle: 8

demo code

package com.homeey.redisdelayqueue.delay;

import lombok.RequiredArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.redisson.api.RBlockingQueue;
import org.redisson.api.RDelayedQueue;
import org.redisson.api.RedissonClient;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.stereotype.Component;

import javax.annotation.PostConstruct;
import java.util.concurrent.ExecutorService;
import java.util.concurrent.Executors;
import java.util.concurrent.TimeUnit;

/**
 * 明天的你会因今天到的努力而幸运
 *
 * @author jt4mrg@qq.com
 * 23:11 2023-02-19 2023
 **/
@Slf4j
@Component
@RequiredArgsConstructor
public class RedissonDelayQueue {

    private final RDelayedQueue<String> delayedQueue;
    private final RBlockingQueue<String> blockingQueue;


    @PostConstruct
    public void init() {
        ExecutorService executorService = Executors.newFixedThreadPool(1);
        executorService.submit(() -> {
            while (true) {
                try {
                    String task = blockingQueue.take();
                    log.info("rev delay task:{}", task);
                } catch (Exception e) {
                    log.error("occur error", e);
                }
            }
        });
    }

    public void offerTask(String task, long seconds) {
        log.info("add delay task:{},delay time:{}s", task, seconds);
        delayedQueue.offer(task, seconds, TimeUnit.SECONDS);
    }


    @Configuration
    static class RedissonDelayQueueConfigure {

        @Bean
        public RBlockingQueue<String> blockingQueue(RedissonClient redissonClient) {
            return redissonClient.getBlockingQueue("TOKEN-RENEWAL");
        }

        @Bean
        public RDelayedQueue<String> delayedQueue(RBlockingQueue<String> blockingQueue,
                                                  RedissonClient redissonClient) {
            return redissonClient.getDelayedQueue(blockingQueue);
        }
    }
}

execution effect

principle analysis

From RedissonDelayedQueueIn the implementation we see four roles

• ##redisson_delay_queue_timeout:xxx, sorted set data Type, stores all delayed tasks, sorted according to the expiration timestamp of the delayed tasks (the timestamp delay time when the task is submitted), so the first element at the front of the list is the earliest task to be executed in the entire delayed queue , this concept is very important

• redisson_delay_queue:xxx, list data type, I have not found any use for the time being, but it will be written here when submitting the task, queue transfer The elements inside will be deleted

• xxx: list data type, which is called the target queue. The tasks stored in this queue have all reached the delay time. Tasks that can be obtained by consumers, so the take method of RBlockingQueue in the demo above obtains the task

• redisson_delay_queue_channel:xxx from this target queue, which is A channel used to notify the client to start a delayed task

Queue creation

RedissonDelayedQueueWhen the delayed queue is created, the queue transfer service is specified. As well as the four important color correction keys for implementing the delay queue. The core code is to specify the queue transfer task

 QueueTransferTask task = new QueueTransferTask(commandExecutor.getConnectionManager()) {

            @Override
            protected RFuture<Long> pushTaskAsync() {
                return commandExecutor.evalWriteAsync(getRawName(), LongCodec.INSTANCE, RedisCommands.EVAL_LONG,
                        "local expiredValues = redis.call(&#39;zrangebyscore&#39;, KEYS[2], 0, ARGV[1], &#39;limit&#39;, 0, ARGV[2]); "//拿到zset中过期的值列表
                      + "if #expiredValues > 0 then " //如果有
                          + "for i, v in ipairs(expiredValues) do "
                              + "local randomId, value = struct.unpack(&#39;dLc0&#39;, v);"//解构消息，在提交任务时打包的消息
                              + "redis.call(&#39;rpush&#39;, KEYS[1], value);" //放入无前缀的list 队头
                              + "redis.call(&#39;lrem&#39;, KEYS[3], 1, v);"//移除带前缀list 队尾元素
                          + "end; "
                          + "redis.call(&#39;zrem&#39;, KEYS[2], unpack(expiredValues));" //移除zset中本次读取的过期元素
                      + "end; "
                        // get startTime from scheduler queue head task
                      + "local v = redis.call(&#39;zrange&#39;, KEYS[2], 0, 0, &#39;WITHSCORES&#39;); "//取zset最小分值的元素
                      + "if v[1] ~= nil then "
                         + "return v[2]; " //返回分值，即过期时间
                      + "end "
                      + "return nil;",
                      Arrays.asList(getRawName(), timeoutSetName, queueName),
                      System.currentTimeMillis(), 100);
            }

            @Override
            protected RTopic getTopic() {
                return RedissonTopic.createRaw(LongCodec.INSTANCE, commandExecutor, channelName);
            }
        };

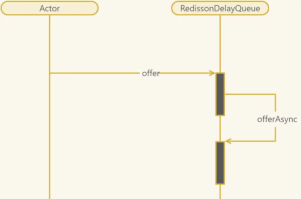

Producer

Core code

RedissonDelayedQueue#offerAsync

 return commandExecutor.evalWriteNoRetryAsync(getRawName(), codec, RedisCommands.EVAL_VOID,
                "local value = struct.pack('dLc0', tonumber(ARGV[2]), string.len(ARGV[3]), ARGV[3]);" //打包消息体：消息id，消息长度，消息值
              + "redis.call('zadd', KEYS[2], ARGV[1], value);"//zset中加入消息及其超时分值
              + "redis.call('rpush', KEYS[3], value);" //向带前缀的list中添加消息
              // if new object added to queue head when publish its startTime
              // to all scheduler workers
              + "local v = redis.call('zrange', KEYS[2], 0, 0); "//取出zset中第一个元素
              + "if v[1] == value then " //如果最快过期的元素就是这次发送的消息
                 + "redis.call('publish', KEYS[4], ARGV[1]); " //channel中发布一下超时时间
              + "end;",
              Arrays.asList(getRawName(), timeoutSetName, queueName, channelName),
              timeout, randomId, encode(e));

Consumer

The easiest way for consumers is to simply read BLPOP from the list without prefix
