How to implement MySQL master-slave replication based on SSL secure connection

王林
王林forward
2023-05-26 17:38:301232browse

    A mysql host in the production environment has a single point of failure, so we need to ensure the high availability of mysql, that is, if one of the two MySQL servers hangs up, , another one can immediately take over its work.

    The principle of master-slave replication

    The master records the binary log. Before each transaction updates the data, the master records these changes in the secondary log. The storage engine receives a notification from the master server after the binary log is completed to commit the MySQL transaction. Next, the slave needs to copy the master's binary log to its own relay log. First, the slave starts a working thread - the I/O thread. The I/O thread opens a normal connection on the master, and then starts the binlog dump process. The Binlog dump process reads events from the master's binary log. If the master has been synchronized, it sleeps and waits for the master to generate new events. The I/O thread writes these events to the relay log. The final step of this process is handled by the SQL slave thread.. The SQL thread reads the events in the relay log and reproduces these events to update the data in the slave database to maintain consistency with the data in the master database. Because relay logs are typically stored in the operating system's cache, there is little overhead as long as the thread is consistent with the I/O thread.

    Environment preparation: Open two MySQL servers and deploy the network environment.

    How to implement MySQL master-slave replication based on SSL secure connection

    Deploy master

    1. Create an SSL/RSA file on the host

    [root@master ~]# cd /usr/local/mysql/bin/
    [root@master bin]# mysql_ssl_rsa_setup --user=mysql --basedir=/usr/llocal/mysql --datadir=/usr/local/mysql/data

    2. Grant permissions and restart.

    [root@master bin]# chmod +r /usr/local/mysql/data/server-key.pem
    [root@master bin]# service mysqld restart
    Shutting down MySQL..                                      [  确定  ]
    Starting MySQL.                                            [  确定  ]

    3. Log in to mysql to check whether ssl is enabled and create a replication user.

    How to implement MySQL master-slave replication based on SSL secure connection

    Note: Enable mysql to support ssl secure connection, which is mainly used for mysql master-slave replication (LAN can use non-ssh connection, that is, plain text replication, but it is recommended to use ssl connection for internet replication)

    mysql> grant replication slave on *.* to rep@'192.168.8.3' identified by '123';
    Query OK, 0 rows affected, 1 warning (0.07 sec)

    4. The master turns on the binary log and checks the binary log file after restarting.

    It should be noted that server_id must be unique.

    [root@master ~]# vim /etc/my.cnf
    #添加下面内容
    log-bin=mysql-bin
    service_id=1
    [root@master ~]# service mysqld restart
    Shutting down MySQL..                                      [  确定  ]
    Starting MySQL.                                            [  确定  ]
    [root@master ~]# mysql -uroot -p123 -e "show master status"
    mysql: [Warning] Using a password on the command line interface can be insecure.
    +------------------+----------+--------------+------------------+-------------------+
    | File             | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set |
    +------------------+----------+--------------+------------------+-------------------+
    | mysql-bin.000001 |      154 |              |                  |                   |
    +------------------+----------+--------------+------------------+-------------------+

    5. Firewall configuration. You can turn off the firewall in the experimental environment. In the production environment, you need to configure firewall rules to allow port 3306.

    [root@master ~]# firewall-cmd --permanent --add-port=3306/tcp
    success
    [root@master ~]# firewall-cmd --reload
    success

    6. Copy the ssl file to slave

    [root@master data]# scp ca.pem client-cert.pem client-key.pem root@192.168.8.3:/usr/local/mysql/data
    The authenticity of host '192.168.8.3 (192.168.8.3)' can't be established.
    ECDSA key fingerprint is SHA256:LFby9KMDz/kkPfOESbeJ7Qh+3hmQaX2W5gkDDMwSGHA.
    ECDSA key fingerprint is MD5:03:32:64:b4:c2:5b:6c:a4:e2:f0:7f:df:7a:35:19:80.
    Are you sure you want to continue connecting (yes/no)? yes
    Warning: Permanently added '192.168.8.3' (ECDSA) to the list of known hosts.
    root@192.168.8.3's password:
    ca.pem                             100% 1112   232.5KB/s   00:00
    client-cert.pem                    100% 1112   240.4KB/s   00:00
    client-key.pem                     100% 1676   205.0KB/s   00:00

    Deploy slave

    1. Enable ssl and relay logs, grant read permission to the ssl file and restart mysql.

    [root@slave ~]# vim /etc/my.cnf
    #添加下面内容
    server_id=2
    relay-log=relay-log
    ssl_ca=ca.pem
    ssl_cert=client-cert.pem
    ssl_key=client-key.pem

    [root@slave ~]# cd /usr/local/mysql/data
    [root@slave data]# ll ca.pem client-cert.pem client-key.pem
    -rw-r--r--. 1 mysql mysql 1112 3月  31 14:31 ca.pem
    -rw-r--r--. 1 mysql mysql 1112 3月  31 14:31 client-cert.pem
    -rw-------. 1 mysql mysql 1676 3月  31 14:31 client-key.pem
    [root@slave data]# chmod +r client-key.pem
    [root@slave ~]# service mysqld restart
    Shutting down MySQL..                                      [  确定  ]
    Starting MySQL.                                            [  确定  ]

    2. Confirm that SSL is enabled successfully

    [root@slave ~]# mysql -uroot -p123 -e "show variables like '%ssl%'"
    mysql: [Warning] Using a password on the command line interface can be insecure.
    +-------------------------------------+-----------------+
    | Variable_name                       | Value           |
    +-------------------------------------+-----------------+
    | have_openssl                        | YES             |
    | have_ssl                            | YES             |
    | performance_schema_show_processlist | OFF             |
    | ssl_ca                              | ca.pem          |
    | ssl_capath                          |                 |
    | ssl_cert                            | client-cert.pem |
    | ssl_cipher                          |                 |
    | ssl_crl                             |                 |
    | ssl_crlpath                         |                 |
    | ssl_key                             | client-key.pem  |
    +-------------------------------------+-----------------+

    3. Before configuring master-slave replication, you can try using SSL to connect to the master server on the slave mysql.

    Pay attention to the IP, 8.2 is the Master's IP. You can see the SSL protocol CIPHER in use is Ecdhe-RSA-AES128-GCM-SHA256

    [root@slave ~]# cd /usr/local/mysql/data
    [root@slave data]# mysql --ssl-ca=ca.pem --ssl-cert=client-cert.pem --ssl-key=client-key.pem -u rep -p123 -h 192.168.8.2
    mysql: [Warning] Using a password on the command line interface can be insecure.
    Welcome to the MySQL monitor.  Commands end with ; or \g.
    Your MySQL connection id is 3
    Server version: 5.7.40-log MySQL Community Server (GPL)

    Copyright (c) 2000, 2022, Oracle and/or its affiliates.

    Oracle is a registered trademark of Oracle Corporation and/or its
    affiliates. Other names may be trademarks of their respective
    owners.

    Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

    mysql>
    mysql> \s
    --------------
    mysql  Ver 14.14 Distrib 5.7.40, for linux-glibc2.12 (x86_64) using  EditLine wrapper

    Connection id:		3
    Current database:
    Current user:		rep@192.168.8.3
    SSL:			Cipher in use is ECDHE-RSA-AES128-GCM-SHA256
    Current pager:		stdout
    Using outfile:		''
    Using delimiter:	;
    Server version:		5.7.40-log MySQL Community Server (GPL)
    Protocol version:	10
    Connection:		192.168.8.2 via TCP/IP
    Server characterset:	latin1
    Db     characterset:	latin1
    Client characterset:	utf8
    Conn.  characterset:	utf8
    TCP port:		3306
    Uptime:			22 min 19 sec

    Threads: 1  Questions: 8  Slow queries: 0  Opens: 109  Flush tables: 1  Open tables: 102  Queries per second avg: 0.005
    --------------

    1. replicate

    Remember to exit the connection first and log in to the slave's mysql service.

    mysql> exit
    Bye
    [root@slave data]# mysql -uroot -p123
    #省略部分登录信息
    mysql> change master to
        -> master_host='192.168.8.2',						#masterIP
        -> master_user='rep',								#master用户
        -> master_password='123',							#master密码
        -> master_log_file='mysql-bin.000001',				#master二进制日志文件
        -> master_log_pos=154,								#master位置
        -> master_ssl=1,									#masterssl
        -> master_ssl_cert='client-cert.pem',
        -> master_ssl_key='client-key.pem',
        -> master_ssl_ca='ca.pem';
    Query OK, 0 rows affected, 2 warnings (0.07 sec)

    mysql> start slave;				#启用从
    Query OK, 0 rows affected (0.02 sec)

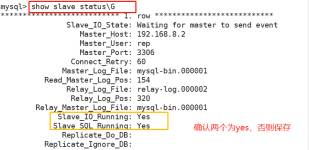

    Confirm that the activation is successful.

    How to implement MySQL master-slave replication based on SSL secure connection

    Test SSL master-slave replication

    1. Log in to the master and write some data

    [root@master ~]# mysql -uroot -p123
    #省略部分内容
    mysql> create database bbs;
    Query OK, 1 row affected (0.01 sec)

    mysql> use bbs;
    Database changed
    mysql> create table tb1(id int,
        -> name varchar(20));
    Query OK, 0 rows affected (0.02 sec)

    mysql> insert into tb1 values(1,'z3');
    Query OK, 1 row affected (0.02 sec)

    2. Log in to the slave and view the data

    [root@slave ~]# mysql -uroot -p123
    #省略部分内容
    mysql> select * from bbs.tb1;
    +------+------+
    | id   | name |
    +------+------+
    |    1 | z3   |
    +------+------+
    1 row in set (0.01 sec)

    Finally you can see z3, the master and slave are successful.

    The above is the detailed content of How to implement MySQL master-slave replication based on SSL secure connection. For more information, please follow other related articles on the PHP Chinese website!
