1. Database setup

A very simple user table, add two users admin and wskh

How to use WebSocket+SpringBoot+Vue to build a simple web chat room

2. Backend setup

2.1 Introducing key dependencies
<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-websocket</artifactId>
</dependency>
2.2 WebSocket configuration class

The function of WebSocketConfig is to enable WebSocket monitoring

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.socket.server.standard.ServerEndpointExporter;

/**
* @Author:WSKH
* @ClassName:WebSocketConfig
* @ClassType:配置类
* @Description:WebSocket配置类
* @Date:2022/1/25/12:21
* @Email:1187560563@qq.com
* @Blog:https://blog.csdn.net/weixin_51545953?type=blog
*/

@Configuration
public class WebSocketConfig {
    /** * 开启webSocket * @return */
    @Bean
    public ServerEndpointExporter serverEndpointExporter() {
        return new ServerEndpointExporter();
    }
}

WebSocketServer writes some events, such as sending message events , establishing connection events, closing connection events, etc.

import com.wskh.chatroom.util.FastJsonUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.stereotype.Component;

import javax.websocket.*;
import javax.websocket.server.PathParam;
import javax.websocket.server.ServerEndpoint;
import java.io.EOFException;
import java.io.IOException;
import java.util.concurrent.ConcurrentHashMap;

@ServerEndpoint("/websocket/{sid}")
@Component
public class WebSocketServer {
    private static final Logger log = LoggerFactory.getLogger(WebSocketServer.class);

    private static int onlineCount = 0;

    private static ConcurrentHashMap<String,WebSocketServer> webSocketServerMap = new ConcurrentHashMap<>();

    private Session session;

    private String sid;


    @OnOpen
    public void onOpen(Session session, @PathParam("sid") String sid) {
        this.sid = sid;
        this.session = session;
        webSocketServerMap.put(sid, this);
        addOnlineCount();
        log.info("有新窗口开始监听:"+sid+",当前在线人数为" + getOnlineCount());
        try {
            sendInfo("openSuccess:"+webSocketServerMap.keySet());
        } catch (IOException e) {
            e.printStackTrace();
        }
    }

    @OnClose
    public void onClose() {
        webSocketServerMap.remove(sid);
        subOnlineCount();
        log.info("有一连接关闭!当前在线人数为" + getOnlineCount());
        try {
            sendInfo("openSuccess:"+webSocketServerMap.keySet());
        } catch (IOException e) {
            e.printStackTrace();
        }
    }

    @OnMessage
    public void onMessage(String message) throws IOException {
        if("ping".equals(message)) {
            sendInfo(sid, "pong");
        }
        if(message.contains(":")) {
            String[] split = message.split(":");
            sendInfo(split[0], "receivedMessage:"+sid+":"+split[1]);
        }
    }

    @OnError
    public void onError(Session session, Throwable error) {
        if(error instanceof EOFException) {
            return;
        }
        if(error instanceof IOException && error.getMessage().contains("已建立的连接")) {
            return;
        }
        log.error("发生错误", error);
    }

    /**
     * 实现服务器主动推送
     */
    public void sendMessage(String message) throws IOException {
        synchronized (session) {
            this.session.getBasicRemote().sendText(message);
        }
    }

    public static void sendObject(Object obj) throws IOException {
        sendInfo(FastJsonUtils.convertObjectToJSON(obj));
    }

    public static void sendInfo(String sid,String message) throws IOException {
        WebSocketServer socketServer = webSocketServerMap.get(sid);
        if(socketServer != null) {
            socketServer.sendMessage(message);
        }
    }

    public static void sendInfo(String message) throws IOException {
        for(String sid : webSocketServerMap.keySet()) {
            webSocketServerMap.get(sid).sendMessage(message);
        }
    }

    public static void sendInfoByUserId(Long userId,Object message) throws IOException {
        for(String sid : webSocketServerMap.keySet()) {
            String[] sids =  sid.split("id");
            if(sids.length == 2) {
                String id = sids[1];
                if(userId.equals(Long.parseLong(id))) {
                    webSocketServerMap.get(sid).sendMessage(FastJsonUtils.convertObjectToJSON(message));
                }
            }
        }
    }

    public static Session getWebSocketSession(String sid) {
        if(webSocketServerMap.containsKey(sid)) {
            return webSocketServerMap.get(sid).session;
        }
        return null;
    }

    public static synchronized void addOnlineCount() {
        onlineCount++;
    }

    public static synchronized void subOnlineCount() {
        onlineCount--;
    }

    public static synchronized int getOnlineCount() {
        return onlineCount;
    }
}
2.3 Configuring cross-domain
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.CorsRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter;

@Configuration
public class WebMvcConfig extends WebMvcConfigurerAdapter {

    @Override
    // 跨域配置
    public void addCorsMappings(CorsRegistry registry) {
        registry.addMapping("/**")
                .allowedOrigins("*")
                .allowedMethods("POST", "GET", "PUT", "OPTIONS", "DELETE")
                .maxAge(3600)
                .allowCredentials(true);
    }

}
2.4 Control class for sending messages
/**
 * @Author:WSKH
 * @ClassName:MsgController
 * @ClassType:控制类
 * @Description:信息控制类
 * @Date:2022/1/25/12:47
 * @Email:1187560563@qq.com
 * @Blog:https://blog.csdn.net/weixin_51545953?type=blog
 */
@ApiModel("信息控制类")
@RestController
@RequestMapping("/chatroom/msg")
public class MsgController {
    @ApiOperation("发送信息方法")
    @PostMapping("/sendMsg")
    public R sendMsg(String msg) throws IOException {
        WebSocketServer.sendInfo(msg);
        return R.ok().message("发送成功");
    }
}

At this point, the back-end part is generally configured.

3. Front-end construction

This article uses the vue-admin-template-master template to build the front-end of the chat room

3.1 Custom file websocket.js

Place the following files in the api folder

How to use WebSocket+SpringBoot+Vue to build a simple web chat room##

//websocket.js
import Vue from &#39;vue&#39;

// 1、用于保存WebSocket 实例对象
export const WebSocketHandle = undefined

// 2、外部根据具体登录地址实例化WebSocket 然后回传保存WebSocket
export const WebsocketINI = function(websocketinstance) {
  this.WebSocketHandle = websocketinstance
  this.WebSocketHandle.onmessage = OnMessage
}

// 3、为实例化的WebSocket绑定消息接收事件:同时用于回调外部各个vue页面绑定的消息事件
// 主要使用WebSocket.WebSocketOnMsgEvent_CallBack才能访问  this.WebSocketOnMsgEvent_CallBack 无法访问很诡异
const OnMessage = function(msg) {
  // 1、消息打印
  // console.log(&#39;收到消息:&#39;, msg)

  // 2、如果外部回调函数未绑定 结束操作
  if (!WebSocket.WebSocketOnMsgEvent_CallBack) {
    console.log(WebSocket.WebSocketOnMsgEvent_CallBack)
    return
  }

  // 3、调用外部函数
  WebSocket.WebSocketOnMsgEvent_CallBack(msg)
}

// 4、全局存放外部页面绑定onmessage消息回调函数:注意使用的是var
export const WebSocketOnMsgEvent_CallBack = undefined

// 5、外部通过此绑定方法 来传入的onmessage消息回调函数
export const WebSocketBandMsgReceivedEvent = function(receiveevent) {
  WebSocket.WebSocketOnMsgEvent_CallBack = receiveevent
}

// 6、封装一个直接发送消息的方法:
export const Send = function(msg) {
  if (!this.WebSocketHandle || this.WebSocketHandle.readyState !== 1) {
    // 未创建连接 或者连接断开 无法发送消息
    return
  }
  this.WebSocketHandle.send(msg)// 发送消息
}

// 7、导出配置
const WebSocket = {
  WebSocketHandle,
  WebsocketINI,
  WebSocketBandMsgReceivedEvent,
  Send,
  WebSocketOnMsgEvent_CallBack
}

// 8、全局绑定WebSocket
Vue.prototype.$WebSocket = WebSocket

3.2 Globally introduce websocket in main.js
import &#39;@/utils/websocket&#39; // 全局引入 WebSocket 通讯组件
3.3 Declare the websocket object in App.vue
App.vue

<template>
  <div id="app">
    <router-view />
  </div>
</template>

<script>
  import {getInfo} from &#39;./api/login.js&#39;;
  import {getToken} from &#39;./utils/auth.js&#39;
  export default {
    name: &#39;App&#39;,
    mounted() {
      // 每3秒检测一次websocket连接状态 未连接 则尝试连接 尽量保证网站启动的时候 WebSocket都能正常长连接
      setInterval(this.WebSocket_StatusCheck, 3000)
      // 绑定消息回调事件
      this.$WebSocket.WebSocketBandMsgReceivedEvent(this.WebSocket_OnMesage)
      // 初始化当前用户信息
      this.token = getToken()
      getInfo(this.token).then((rep)=>{
        console.log(rep)
        this.userName = rep.data.name
      }).catch((error)=>{
        console.log(error)
      })
    },
    data(){
      return{

      }
    },
    methods: {

      // 实际消息回调事件
      WebSocket_OnMesage(msg) {
        console.log(&#39;收到服务器消息:&#39;, msg.data)
        console.log(msg)
        let chatDiv = document.getElementById("chatDiv")
        let newH3 = document.createElement("div")
        if(msg.data.indexOf(&#39;openSuccess&#39;)>=0){
			// 忽略连接成功消息提示
        }else{
          if(msg.data.indexOf(this.userName)==0){
            // 说明是自己发的消息,应该靠右边悬浮
            newH3.innerHTML = "<div style=&#39;width:100%;text-align: right;&#39;><h4 id="msg-data">"+msg.data+"</h4></div>"
          }else{
            newH3.innerHTML = "<div style=&#39;width:100%;text-align: left;&#39;><h4 id="msg-data">"+msg.data+"</h4></div>"
          }
        }
        chatDiv.appendChild(newH3)
      },

      // 1、WebSocket连接状态检测:
      WebSocket_StatusCheck() {
        if (!this.$WebSocket.WebSocketHandle || this.$WebSocket.WebSocketHandle.readyState !== 1) {
          console.log(&#39;Websocket连接中断,尝试重新连接:&#39;)
          this.WebSocketINI()
        }
      },

      // 2、WebSocket初始化:
      async WebSocketINI() {
        // 1、浏览器是否支持WebSocket检测
        if (!(&#39;WebSocket&#39; in window)) {
          console.log(&#39;您的浏览器不支持WebSocket!&#39;)
          return
        }

        let DEFAULT_URL = "ws://" + &#39;127.0.0.1:8002&#39; + &#39;/websocket/&#39; + new Date().getTime()

        // 3、创建Websocket连接
        const tmpWebsocket = new WebSocket(DEFAULT_URL)

        // 4、全局保存WebSocket操作句柄:main.js 全局引用
        this.$WebSocket.WebsocketINI(tmpWebsocket)

        // 5、WebSocket连接成功提示
        tmpWebsocket.onopen = function(e) {
          console.log(&#39;webcoket连接成功&#39;)
        }

        //6、连接失败提示
        tmpWebsocket.onclose = function(e) {
          console.log(&#39;webcoket连接关闭:&#39;, e)
        }
      }

    }
  }
</script>

3.4 Chat room interface.vue
<template>
  <div>
    <div >聊天内容:</div>
    <div  id="chatDiv">

    </div>
    <div >聊天输入框:</div>
    <el-input v-model="text">

    </el-input>
    <el-button @click="sendMsg">点击发送</el-button>
  </div>
</template>

<script>
  import {getInfo} from &#39;../../api/login.js&#39;;
  import {getToken} from &#39;../../utils/auth.js&#39;
  import msgApi from &#39;../../api/msg.js&#39;
  export default {
    mounted() {
      //
      this.token = getToken()
      getInfo(this.token).then((rep)=>{
        console.log(rep)
        this.userName = rep.data.name
      }).catch((error)=>{
        console.log(error)
      })
    },
    data() {
      return {
        text: "",
        token:"",
        userName:"",
      }
    },
    methods: {
      sendMsg(){
        let msg = this.userName+":"+this.text
        msgApi.sendMsg(msg).then((rep)=>{

        }).catch((error)=>{

        })
        this.text = ""
      }
    }
  }
</script>

<style scoped="true">
  .selfMsg{
    float: right;
  }
</style>

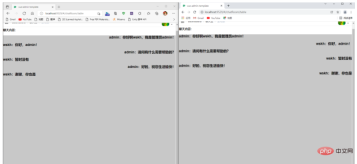

3.5 Final effect
Use two different browsers to log in to the admin account and Chat test with wskh account, the effect is as follows (admin is on the left):

How to use WebSocket+SpringBoot+Vue to build a simple web chat room

The above is the detailed content of How to use WebSocket+SpringBoot+Vue to build a simple web chat room. For more information, please follow other related articles on the PHP Chinese website!

Statement
This article is reproduced at:亿速云. If there is any infringement, please contact admin@php.cn delete
What are the advantages of using bytecode over native code for platform independence?What are the advantages of using bytecode over native code for platform independence?Apr 30, 2025 am 12:24 AM

Bytecodeachievesplatformindependencebybeingexecutedbyavirtualmachine(VM),allowingcodetorunonanyplatformwiththeappropriateVM.Forexample,JavabytecodecanrunonanydevicewithaJVM,enabling"writeonce,runanywhere"functionality.Whilebytecodeoffersenh

Is Java truly 100% platform-independent? Why or why not?Is Java truly 100% platform-independent? Why or why not?Apr 30, 2025 am 12:18 AM

Java cannot achieve 100% platform independence, but its platform independence is implemented through JVM and bytecode to ensure that the code runs on different platforms. Specific implementations include: 1. Compilation into bytecode; 2. Interpretation and execution of JVM; 3. Consistency of the standard library. However, JVM implementation differences, operating system and hardware differences, and compatibility of third-party libraries may affect its platform independence.

How does Java's platform independence support code maintainability?How does Java's platform independence support code maintainability?Apr 30, 2025 am 12:15 AM

Java realizes platform independence through "write once, run everywhere" and improves code maintainability: 1. High code reuse and reduces duplicate development; 2. Low maintenance cost, only one modification is required; 3. High team collaboration efficiency is high, convenient for knowledge sharing.

What are the challenges in creating a JVM for a new platform?What are the challenges in creating a JVM for a new platform?Apr 30, 2025 am 12:15 AM

The main challenges facing creating a JVM on a new platform include hardware compatibility, operating system compatibility, and performance optimization. 1. Hardware compatibility: It is necessary to ensure that the JVM can correctly use the processor instruction set of the new platform, such as RISC-V. 2. Operating system compatibility: The JVM needs to correctly call the system API of the new platform, such as Linux. 3. Performance optimization: Performance testing and tuning are required, and the garbage collection strategy is adjusted to adapt to the memory characteristics of the new platform.

How does the JavaFX library attempt to address platform inconsistencies in GUI development?How does the JavaFX library attempt to address platform inconsistencies in GUI development?Apr 30, 2025 am 12:01 AM

JavaFXeffectivelyaddressesplatforminconsistenciesinGUIdevelopmentbyusingaplatform-agnosticscenegraphandCSSstyling.1)Itabstractsplatformspecificsthroughascenegraph,ensuringconsistentrenderingacrossWindows,macOS,andLinux.2)CSSstylingallowsforfine-tunin

Explain how the JVM acts as an intermediary between the Java code and the underlying operating system.Explain how the JVM acts as an intermediary between the Java code and the underlying operating system.Apr 29, 2025 am 12:23 AM

JVM works by converting Java code into machine code and managing resources. 1) Class loading: Load the .class file into memory. 2) Runtime data area: manage memory area. 3) Execution engine: interpret or compile execution bytecode. 4) Local method interface: interact with the operating system through JNI.

Explain the role of the Java Virtual Machine (JVM) in Java's platform independence.Explain the role of the Java Virtual Machine (JVM) in Java's platform independence.Apr 29, 2025 am 12:21 AM

JVM enables Java to run across platforms. 1) JVM loads, validates and executes bytecode. 2) JVM's work includes class loading, bytecode verification, interpretation execution and memory management. 3) JVM supports advanced features such as dynamic class loading and reflection.

What steps would you take to ensure a Java application runs correctly on different operating systems?What steps would you take to ensure a Java application runs correctly on different operating systems?Apr 29, 2025 am 12:11 AM

Java applications can run on different operating systems through the following steps: 1) Use File or Paths class to process file paths; 2) Set and obtain environment variables through System.getenv(); 3) Use Maven or Gradle to manage dependencies and test. Java's cross-platform capabilities rely on the JVM's abstraction layer, but still require manual handling of certain operating system-specific features.

See all articles

Hot AI Tools

Undresser.AI Undress

Undresser.AI Undress

AI-powered app for creating realistic nude photos

AI Clothes Remover

AI Clothes Remover

Online AI tool for removing clothes from photos.

Undress AI Tool

Undress AI Tool

Undress images for free

Clothoff.io

Clothoff.io

AI clothes remover

Video Face Swap

Video Face Swap

Swap faces in any video effortlessly with our completely free AI face swap tool!

Hot Tools

Dreamweaver CS6

Dreamweaver CS6

Visual web development tools

SAP NetWeaver Server Adapter for Eclipse

SAP NetWeaver Server Adapter for Eclipse

Integrate Eclipse with SAP NetWeaver application server.

PhpStorm Mac version

PhpStorm Mac version

The latest (2018.2.1) professional PHP integrated development tool

Atom editor mac version download

Atom editor mac version download

The most popular open source editor

Safe Exam Browser

Safe Exam Browser

Safe Exam Browser is a secure browser environment for taking online exams securely. This software turns any computer into a secure workstation. It controls access to any utility and prevents students from using unauthorized resources.
