Memory has always been an integral part of computing, whether it is RAM or VRAM. While RAM helps your system manage most CPU-intensive resources, VRAM is high-bandwidth memory reserved for GPU-intensive tasks.

How to check VRAM on Windows 11

You can check VRAM on Windows 11 in 5 different ways depending on the GPU installed in your system.

Use the following methods to help you find the VRAM currently available on your PC.

Method 1: Using Task Manager (dGPU only)

Press Ctrl Shift Esc to launch Task Manager. Once it launches on your PC, click on Performance.

2022 年在 Windows 11 上检查 VRAM 的 5 种最佳方法

Now click on

GPU 1.

2022 年在 Windows 11 上检查 VRAM 的 5 种最佳方法

NOTE: GPU 0 will be your iGPU, but Task Manager will not show its private memory, only shared memory. You can instead use one of the following methods to check the dedicated memory supported by your iGPU.

You will now be shown performance statistics for your dedicated GPU. Check out the stats below.

You will find your current VRAM capacity under Dedicated GPU Memory .

2022 年在 Windows 11 上检查 VRAM 的 5 种最佳方法

#This is how you can find out your VRAM using Task Manager.

Method 2: Using the OEM Control Panel (dGPU only)

All dedicated GPUs come with an OEM control panel to help you manage their behavior and performance. This utility also helps to display detailed information about all GPU specifications, including its VRAM capacity. Depending on your OEM, use any of the following tutorials.

For Nvidia

Shift Right-click on your desktop and select Nvidia Control Panel.

2022 年在 Windows 11 上检查 VRAM 的 5 种最佳方法

Click

System Information.

2022 年在 Windows 11 上检查 VRAM 的 5 种最佳方法

Scroll down the

Details section to find Dedicated Video Memory. This is the current VRAM capacity of your dedicated GPU.

2022 年在 Windows 11 上检查 VRAM 的 5 种最佳方法

This is how you find VRAM for your Nvidia card.

For AMD

AMD cards have two different utilities depending on their model. Select any of the following tutorials based on the current software installed on your PC.

For Radeon Software

Shift Right-click on your desktop and select AMD Radeon Software. Click the gear ( ) icon 2022 年在 Windows 11 上检查 VRAM 的 5 种最佳方法 in the upper right corner, then click System. You will now see your GPU model and the VRAM capacity next to it. You can click More Details to view more information about the card.

This is how you can view VRAM size using AMD Radeon Software.

For AMD Catalyst Control Center

Shift Right-click on an empty area of ​​the desktop and click AMD Catalyst Control Center. Now, click Information in the left column and select Hardware. You will see all the details of the graphics card currently installed on your system. Looking for memory size. This is the VRAM capacity of your GPU.

This is how you can view VRAM size using AMD Catalyst Center.

Method 3: Use Display Settings

You can also use Windows Display Adapter Settings to see your current VRAM capacity. This method works on both iGPU and dGPU. Let's take a quick look.

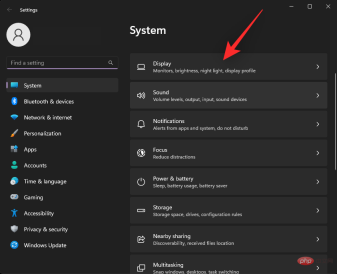

Press

Windows i and click Display.

2022 年在 Windows 11 上检查 VRAM 的 5 种最佳方法

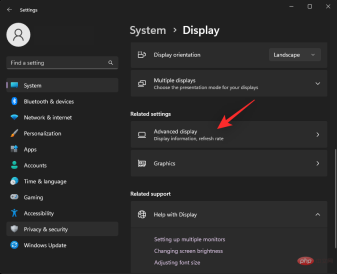

Now click on

Advanced Display.

2022 年在 Windows 11 上检查 VRAM 的 5 种最佳方法

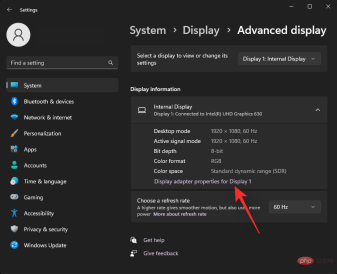

Click

Display 1's Display Adapter Properties.

2022 年在 Windows 11 上检查 VRAM 的 5 种最佳方法

Note: You can only use this method to view the IGPU's VRAM if you have a laptop. This is because almost all laptop monitors are designed to be powered by an IGPU by default. Your laptop should only switch to the DGPU when necessary for graphics-intensive tasks.

Now look for the value named Dedicated Video Memory. This is the current VRAM capacity of your chosen GPU.

2022 年在 Windows 11 上检查 VRAM 的 5 种最佳方法

This is how you can view VRAM using display settings.

Method 4: Use the DirectX Diagnostic Tool

Press Windows R to start running.

2022 年在 Windows 11 上检查 VRAM 的 5 种最佳方法

Type the following and press Enter. You can also click "OK" if necessary.

dxdiag

2022 年在 Windows 11 上检查 VRAM 的 5 种最佳方法

The DirectX Diagnostic Tool will now open on your PC. Click the at the top to display 1.

2022 年在 Windows 11 上检查 VRAM 的 5 种最佳方法

This is your iGPU and you will find its VRAM capacity next to Display Memory (VRAM).

2022 年在 Windows 11 上检查 VRAM 的 5 种最佳方法

Click to display 2.

2022 年在 Windows 11 上检查 VRAM 的 5 种最佳方法

#Note: This only applies to systems with dedicated GPUs.

You will find the VRAM capacity of your dGPU next to Display Memory (VRAM).

2022 年在 Windows 11 上检查 VRAM 的 5 种最佳方法

This is how you can check VRAM using the DirectX diagnostic tool in Windows 11.

Method 5: Use a third-party application

You can also use a third-party application to check your VRAM capacity. We recommend using HWinfo to perform a detailed analysis of all your hardware components. Please follow the steps below to help you through the process.

  • Download link

Use the link above to download HWinfo. We recommend you choose the portable version for easier access. Once downloaded, unzip and launch HWinfo from the same file using the .exe file relevant to your system.

2022 年在 Windows 11 上检查 VRAM 的 5 种最佳方法

Click Run.

2022 年在 Windows 11 上检查 VRAM 的 5 种最佳方法

Double-click Video Adapter in the left sidebar.

2022 年在 Windows 11 上检查 VRAM 的 5 种最佳方法

Click and select the desired GPU.

2022 年在 Windows 11 上检查 VRAM 的 5 种最佳方法

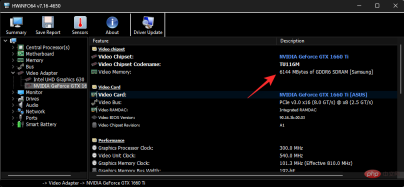

Find the video memory value on the right. This is the VRAM capacity of the current GPU.

2022 年在 Windows 11 上检查 VRAM 的 5 种最佳方法

Note: Your iGPU may be using shared memory in RAM, depending on your Windows setup. This will also be reflected in the iGPU readings. If your VRAM capacity appears to be off in HWinfo, we recommend verifying it using the advanced display settings using the method above. You can also use DirectX diagnostic tools for more detailed analysis.

This is how to find the VRAM size using HWinfo.
