Record an EKG on Apple Watch: Step-by-Step Tutorial

WBOY
WBOYforward
2023-04-13 12:16:052660browse

Which Apple Watch supports electrocardiogram (ECG) measurements?

Because recording an ECG requires your Apple Watch to have an electronic heart sensor, this means the ECG app is only available on select Apple Watch models. These include:

  • Apple Watch Series 4
  • Apple Watch Series 5
  • Apple Watch Series 6
  • Apple Watch Series 7
  • Apple Watch Series 8
  • Apple Watch Ultra

If you have an Apple Watch Series 3, Watch SE, or an older device, you will not be able to record your heartbeat and rhythm to Make an electrocardiogram.

What do I need to use an EKG on Apple Watch?

In addition to having a compatible Apple Watch, you'll also need to make sure you meet the following requirements to record your EKG:

  • You're using an iPhone 8 or newer device with your Apple Watch pair.
  • The connected iPhone has been updated to the latest version of iOS.
  • Your Apple Watch has been updated to the latest version of watchOS.
  • You live in an area where Apple supports ECG. You can check your region from the "Brand Services: EKG" section of this page.
  • Make sure you have the ECG app installed on your Apple Watch. If the app isn't available, download it directly from the App Store on your watch.
  • You must be at least 22 years old to successfully read an EKG.

After meeting the above requirements, you can proceed to set up ECG on Apple Watch.

How to Set Up an ECG on Apple Watch

If this is your first time recording an ECG on your Apple Watch, you need to set it up before you can use the ECG app on your watch. The ECG feature can be enabled using the Health app on a connected iPhone, and the ECG app should appear on your Apple Watch once setup is complete.

First, please open the “Health” app on your iPhone.

Record an EKG on Apple Watch: Step-by-Step Tutorial

In Health, you may see a prompt to set up the ECG app on your watch if you haven't already. If this prompt is not available, click the Browse tab in the lower right corner.

Record an EKG on Apple Watch: Step-by-Step Tutorial

On the browse screen, select Heart under Health Categories.

Record an EKG on Apple Watch: Step-by-Step Tutorial

Here, click on Electrocardiogram (ECG).

Record an EKG on Apple Watch: Step-by-Step Tutorial

On the next screen, tap Set up ECG app, then follow the on-screen instructions to continue and enable the ECG app on your Apple Watch.

Record an EKG on Apple Watch: Step-by-Step Tutorial

Once setup is complete, you should see the ECG app on your watch; if not, open the Watch app on your iPhone.

Record an EKG on Apple Watch: Step-by-Step Tutorial

In Watch, scroll down and select Heart.

Record an EKG on Apple Watch: Step-by-Step Tutorial

On the next screen, click "Install" within the "ECG" section to download the app to your Apple Watch.

Record an EKG on Apple Watch: Step-by-Step Tutorial

How to Prepare for ECG Readings

After you enable the ECG app on your Apple Watch, you can start taking ECG readings from your wrist at any time. Before you do this, you must be prepared to successfully read your EKG. To do this, follow the necessary steps listed below to get the most accurate readings from your ECG application:

  • During the recording process, do not move, especially your arms.
  • For best results, place your arms on the table in your lap while the EKG is read.
  • Make sure your Apple Watch fits snugly around your wrist and doesn't come loose enough that your watch makes contact with the top of your wrist. It should fit snugly, but at the same time, you want to make sure there's enough room for your skin to breathe.
  • Before taking a reading, make sure your Apple Watch and wrist are clean to avoid getting inaccurate measurements.
  • When taking an EKG, avoid being near other electronic devices because they may interfere with the readings if they are plugged into an electrical outlet.
  • Make sure to wipe off any water or liquid from your wrist or the back of your Apple Watch, as the ECG app requires the contact surface to be dry to get an accurate reading. If you want to take an EKG reading immediately after swimming, showering, sweating, or washing your hands, drain all the water from the watch and take the reading after the watch is completely dry, preferably one hour later.
  • For ECG readings to show accurate results, make sure you have your Apple Watch on your wrist and set up in Watch Orientation. To check your orientation, check your watch by going to WatchApps>My Watch>General>Watch Orientation Wear it on your right wrist or change it to your preferred orientation from this screen.

How to Read an ECG on Apple Watch

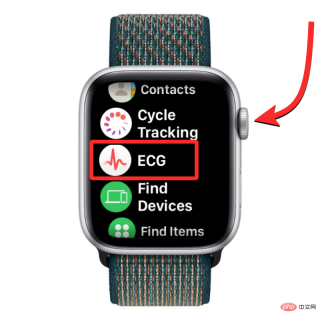

After you enable the ECG app on your watch and perform the necessary preparations to take an ECG reading, you can measure an ECG directly from your Apple Watch. First, press the Digital Crown on the right side of your Apple Watch and select ECG from the app list/grid displayed on the screen.

Record an EKG on Apple Watch: Step-by-Step Tutorial

#When the app opens, make sure your wrist is in a resting position and flat on a table or lap. When you're ready, press the face of the Digital Crown with the fingers of your other hand. For example, if you wear your Apple Watch on your left wrist and the Digital Crown faces right, touch and hold the Digital Crown with the fingers of your right hand.

Record an EKG on Apple Watch: Step-by-Step Tutorial

NOTE: To take a reading, you simply touch and hold the Digital Crown instead of pressing it.

When you touch the Digital Crown with your finger, the ECG app will start recording your heartbeat and rhythm to create an electrocardiogram. A recording takes 30 seconds, so you'll want to make sure you're holding the Digital Crown the entire time.

Record an EKG on Apple Watch: Step-by-Step Tutorial

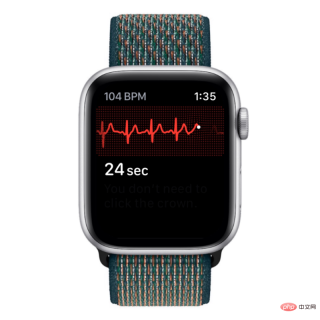

When recording starts, you'll see your heart rate in the upper left corner, followed by your heartbeat rhythm and a countdown timer.

Record an EKG on Apple Watch: Step-by-Step Tutorial

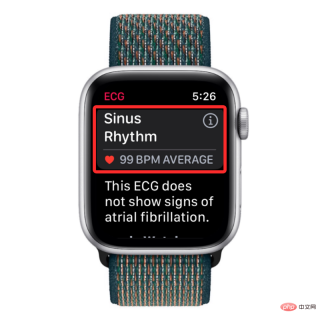

At the end of these 30 seconds, you will see your ECG breakdown, which gives an indication of your heart health.

Record an EKG on Apple Watch: Step-by-Step Tutorial

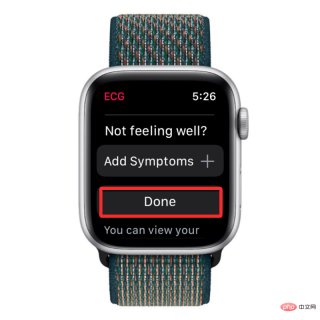

If the app says you are in sinus rhythm and you are not feeling any symptoms, use the Digital Crown to scroll down and tap Done to Close current reading.

Record an EKG on Apple Watch: Step-by-Step Tutorial

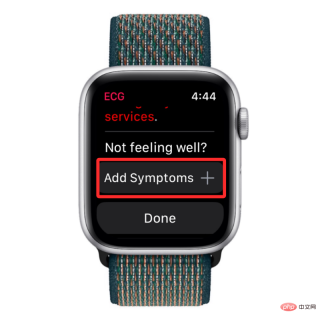

If you feel unwell, you can add your symptoms to match the ECG reading by clicking "Add Symptoms".

Record an EKG on Apple Watch: Step-by-Step Tutorial

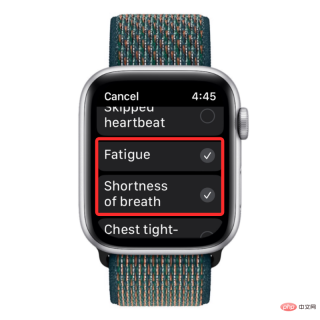

#From the list of symptoms that appear, select the symptom you are currently feeling.

Record an EKG on Apple Watch: Step-by-Step Tutorial

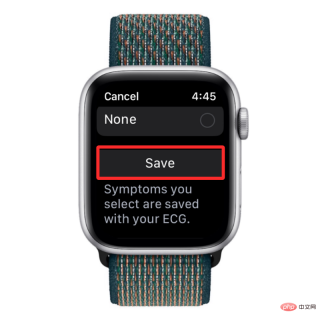

Next, click Save to confirm the changes.

Record an EKG on Apple Watch: Step-by-Step Tutorial

What do my EKG readings show?

When you take a successful reading using the ECG app, you'll see different classifications based on the heartbeats and rhythms detected by your Apple Watch. The ECG app can show you five types of classifications based on your readings. These include:

  • Sinus Rhythm: Ideally, for most people, you should see this classification after the ECG app takes your readings. Getting this result means your heart rate is between 50 and 100 BPM and your heart is beating in an even pattern. A regular display of sinus rhythm indicates that the upper and lower chambers of your heart are beating in sync.
  • Atrial Fibrillation: Also known as AFib, this result means your heart beats in an irregular pattern. If you receive an AFib classification on your ECG app, you may have a serious arrhythmia, or irregular heartbeat. If you haven't been diagnosed with AFib, you should talk to your doctor about this reading and get further testing. The ECG app can check for atrial fibrillation between 50 and 150 BPM in app version 2 and between 50 and 120 BPM in app version 1. The version of the app you use depends on your country's restrictions on ECG functionality, you can check which version of the ECG app you have by going to Settings > Heart > ECG on your Apple Watch. You can also check on your iPhone by going to Health > Browse > Heart > EKG > About.
  • Low or high heart rate: If your heart rate is below 50 BPM or above 150 BPM in ECG version 2 (or 120 BPM in version 1), the ECG app Will display your readings as low heart rate or high heart rate. When this classification occurs, the ECG application will not be able to check for AFib. You may see a low heart rate as a result of certain medications when electrical signals are not conducted properly through the heart, or if you are an elite athlete. A high heart rate can be caused by exercise, stress, tension, alcohol, dehydration, infection, AFib, or other cardiac arrhythmias.
  • Inconclusive: If your ECG reading shows inconclusive, it means the record cannot be classified. This may occur if your heart rate is found to be between 100 and 120 BPM on ECG app version 1 with no signs of AFib. Other reasons for this result could be because you have certain heart conditions or certain arrhythmias, or you have a pacemaker or ICD. For some users, readings may be inconclusive if their physiological condition prevents the app from generating an adequate electrical signal. If you don't have any of these symptoms, your Apple Watch may be too loose on your wrist, preventing accurate readings.
  • RecordPoor: You will only see this classification on ECG app version 2, which essentially indicates that your Apple Watch cannot read data from your wrist A successful reading was obtained. To prevent this result, follow the steps in the "How to Prepare for an EKG Reading" section above before preparing for another reading.

How to View ECG Readings from Apple Watch

When you take an ECG reading, you should be able to see the results directly on your Apple Watch. However, this result only shows your reading category and average heart rate over a 30-second period. Additionally, you will not be able to view previous ECG readings through the ECG app on your watch. This is where the Health app on your iPhone comes in handy, as it allows you to view your readings. To see more details about your last ECG reading, you can tap on your iPhone's Alerts for

ECG records received are available on the Lock screen or Notification Center, which appear as soon as the ECG app has finished reading.

If you want to view previous ECG readings, you can first open the "Record an EKG on Apple Watch: Step-by-Step TutorialHealth" app on your iPhone.

In Health, check the Record an EKG on Apple Watch: Step-by-Step TutorialElectrocardiogram (ECG) section of the Summary screen.

If you can't find it, please click the "Record an EKG on Apple Watch: Step-by-Step TutorialBrowse" tab in the lower right corner.

On this screen, click Record an EKG on Apple Watch: Step-by-Step TutorialHeart under the Health Category.

#Here you should see the Electrocardiogram (ECG) section under the current date or a previous date. This section will show you the last recorded category and the date or dates of the last ECG collection. To view all of your previously recorded ECGs, click Record an EKG on Apple Watch: Step-by-Step TutorialElectrocardiogram (ECG) on this screen.

On the Electrocardiogram (ECG) screen, you'll see a list of all your previous ECG readings. You can scroll through the readings to see their categories, average heart rate, and heartbeat graphs. You can click read to see more details.

Record an EKG on Apple Watch: Step-by-Step Tutorial

When you select a reading from the electrocardiogram (ECG) screen, you will see a detailed heartbeat graph dragged to the right.

Record an EKG on Apple Watch: Step-by-Step Tutorial

You can scroll down to see the reading’s start/end time, source, version, watch model, and software version.

Record an EKG on Apple Watch: Step-by-Step Tutorial

If you want to share the record with a doctor or others, click Export PDF below the ECG.

Record an EKG on Apple Watch: Step-by-Step Tutorial

The next screen will show your heartbeat in 3 different graphs, 10 seconds each, along with the ECG classification and your average heart rate. To share this form with your friends, family, or doctor, click the Share icon in the upper right corner.

Record an EKG on Apple Watch: Step-by-Step Tutorial

#In the share sheet that appears, click the app or person you want to share the ECG record with. You can also keep an electronic copy of your ECG readings on your iPhone by selecting "Save to File" .

Record an EKG on Apple Watch: Step-by-Step Tutorial

If the ECG readings show inaccurate results, or you used the watch to record someone else's ECG, you can resolve the issue by turning on the unwanted ECG reading in the ECG Details screen Scroll down and click Delete Record to delete it from your ECG history.

Record an EKG on Apple Watch: Step-by-Step Tutorial

In the next prompt, click Delete to confirm the changes.

Record an EKG on Apple Watch: Step-by-Step Tutorial

#You can view all ECGs from the Health app’s home screen by adding them to your favorites. To do this, go to the electrocardiogram (ECG) screen on the Health app, scroll down, and tap Add to Favorites.

Record an EKG on Apple Watch: Step-by-Step Tutorial

When you do this, you will see a blue star icon on the right indicating that the ECG section has been added to Favorites on the Summary screen "middle.
