cocos2dx gets xml or json data from the editor (cocostudio or flash plug-in dragonBones), and calls the code similar to the following to display the animation effect

ArmatureDataManager::getInstance()->addArmatureFileInfoAsync(
  "armature/Dragon.png", "armature/Dragon.plist", "armature/Dragon.xml",
   this, schedule_selector(TestAsynchronousLoading::dataLoaded));
Armature *armature = nullptr;
armature = Armature::create("Dragon");
armature->getAnimation()->playWithIndex(1);
addChild(armature);

So how is the internal call implemented?

What do Armature::create and armature->getAnimation()->playWithIndex implement?? These articles will analyze Armature from the source code.

This article is the first article of Armature analysis. It will analyze the skeletal animation in cocos2dx as a whole. The content involved is as follows:

What is skeletal animation

Overview of editor export data format

Source code overview

What is skeletal animation

Animations in the game can be roughly divided into the following three types:

Frame animation

Tween

Skeleton Skin Animation

Frame animation

This is the most basic animation and the basis for the following two animations. One frame displays a picture. Animate in cocos2dx Action is a frame animation. The advantage is that it is simple to implement, but the disadvantage is that it wastes resources (one picture per frame, compare the two animations below).

Tweened animation

Tweening animations are often used in flash. There is no need for one picture per frame, only the starting state and the ending state. The intermediate state can be calculated based on the difference and elapsed time. The advantage is that it saves resources and is familiar to artists.

Skeleton skin animation

Skeleton animation can be considered an extension of tweening animation, which allows the various parts of the animation to generate associated structures (skeletons), and then bind the graphics to the bones. The disadvantage is that the program implementation is more complicated, and its advantages compared with tweened animation are the following two points (other advantages have not been discovered yet):

1. Export configuration data is small and art production is simple

Suppose there is a bone with the following structure

body

armLeft

handLeft

armRight

handRight

head

legLeft

legRight

Suppose you want to move the entire animation to the right in one frame. Using tweening animation, you need to move the body, armLeft, legRight, etc. to create a new frame. However, skeletal animation only needs to move the position of the body and its child nodes. Will follow the movement of the parent node. In the configuration corresponding to the export, tween animation must process the data exported by all sub-nodes such as body and armLeft, while skeletal animation only changes the data of one node of the body, so the exported data will be much smaller.

2. Joint crack repair

The picture below is stolen from page 449 of "Game Engine Architecture". It means that if you don't pay attention when drawing, there may be cracks in the joint links. This problem can be solved by using skeletal animation. The skin in skeletal animation can be bound to multiple joints (in the bones) according to the weight, and can be stretched according to the weight. I am not familiar with the cocostudio skeletal animation editor. I wonder if I can bind more. , the dragonBones plug-in for flash will not work. spine has good support for this kind of multi-binding.

Overview of editor export data format

The json structure exported by cocostudio is similar to the xml structure exported by dragonbones. They are both three-layer structures of bone layer, animation layer and image layer. Take dragonbones official demo as an example (with deletions):

<skeleton name="DragonBones_Tutorial_MultiBehavior" frameRate="24" version="2.2">
 <armatures>
  <armature name="Dragon">
   <b name="tail" parent="body" x="45.9" y="-70.8" kX="30" kY="30" cX="1" cY="1" pX="11.5" pY="176.35" z="10">
    <d name="parts-tail" pX="0" pY="-63.8"/>
   </b>
  </armature>
 </armatures>
 <animations>
  <animation name="Dragon">
   <mov name="stand" dr="7" to="6" drTW="100" lp="1" twE="0">
   </mov>
   <mov name="walk" dr="8" to="5" drTW="200" lp="1" twE="0">
   </mov>
   <mov name="jump" dr="5" to="3" drTW="5" lp="1" twE="NaN">
   </mov>
   <mov name="fall" dr="5" to="6" drTW="5" lp="1" twE="NaN">
   </mov>
  </animation>
 </animations>
 <TextureAtlas name="DragonBones_Tutorial_MultiBehavior" width="512" height="512">
 </TextureAtlas>
</skeleton>

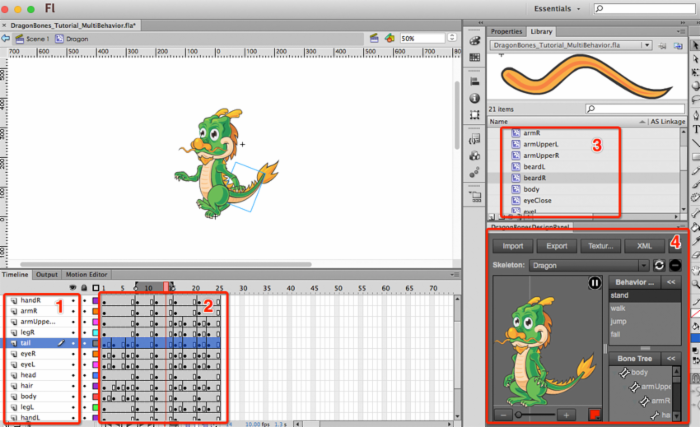

031f985c524add179bc74f3972cb2b62db0f662b56ce326847cc07ec202a961f is the skeleton part, corresponding to area 1 in flash, and a layer is a bone.

ec48449cb61873d5e7b87658fbddfc1d5a366519b1981adca6be91f5faf21047 is the animation part, corresponding to the 2 areas in flash, and uses frame labels to distinguish which animations, such as stand, walk, jump, etc.

c7b678c1511d81bfb3f6217278ea81d0306332f7e00d2ebbe809c14cd91e309d is the skeleton part, corresponding to the 3 areas in flash, and is the skin, which is the image information.

With this information, you can restore the animation effects in flash in the program. The specific meaning of dr, drTW, x, kX, kY, etc. will be discussed in the following article.

Source code overview

The code can be roughly divided into two parts: parsing xml or json data and generating animation using the parsed data.

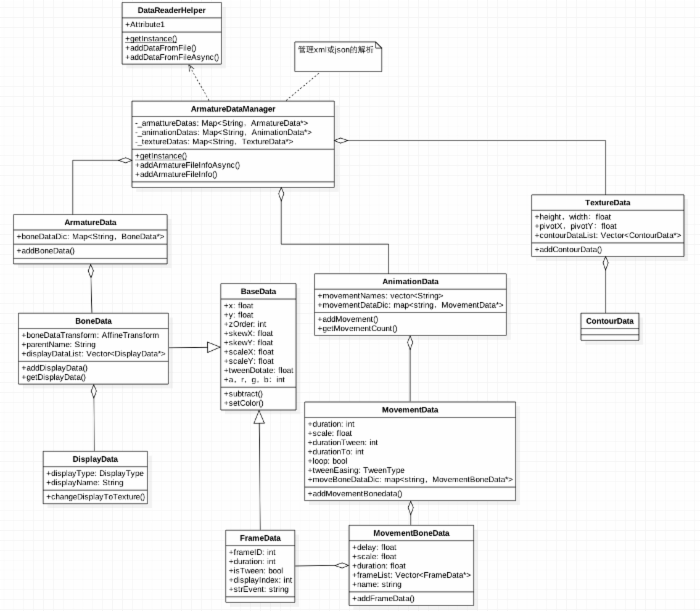

UML of data parsing related code

A brief introduction to the role of each class:

DataReaderHelper: Data structures ArmatureData, AnimationData, and TextureData that can be used directly by the data generation program that parses armatures, animations, and TextureAtlas.

ArmatureDataManager: manages DataReaderHelper and its parsed data.

ArmatureData: corresponds to 42272462d2c96339e487aa53d54897b3b5ca92f89c0db1b672bc4bc49dd5a9be in xml.

AnimationData: corresponds to 7c29fd164dc9c189f07464aede213def1b9b914a75b85bfcfcc28a69d6511bab in xml.

TextureData: corresponds to 2eb80949e68bb309b7a57afd4be2e2feb992ebf4aaf4a251b54037e36bb1b0b9 in xml.

BoneData: corresponds to a4b561c25d9afb9ac8dc4d70affff4190d36329ec37a2cc24d42c7229b69747a in xml.

DisplayData: corresponds to a3ac92cb7e65fa28e53b5d109c7708e5abd73b85f7c61f178e6945240bab1a8e in xml.

MovementData: corresponds to cd194de5e5bfcb04f00343babb70903498011551e877b751002db1bd5aa30b32 in xml.

MovementBoneData: corresponds to cd194de5e5bfcb04f00343babb709034a4b561c25d9afb9ac8dc4d70affff4190d36329ec37a2cc24d42c7229b69747a98011551e877b751002db1bd5aa30b32 in xml.

FrameData: corresponds to cd194de5e5bfcb04f00343babb709034a4b561c25d9afb9ac8dc4d70affff419a8bcb09c1d46d7a577601887ce747dfc2a7d3096e8abc229a8d3f8a617a185c60d36329ec37a2cc24d42c7229b69747a98011551e877b751002db1bd5aa30b32 in xml.

Generate UML for animation related code

A brief introduction to the role of each class:

Armature: It contains skeleton information and animation information. With this, you can play animations.

Tween: Tween for skeletal animation, one Tween for each bone. The corresponding flash panel above is the first to seventh frames of the tail layer of the stand animation.

ArmatureAnimation: The collection of all Tweens is enough to form an animation.

Bone: Bone information with Tween, from which you can get the bone status at a certain point in time.

DisplayFactory: Create display objects such as skin.

DisplayManager: There is one in each Bone, which manages the display objects on the bones.

Skin: The display object of the picture.

The above content is the cocos2dx skeletal animation Armature source code analysis (1) shared by the editor of Script House. I hope you like it.
