What to do if vue file upload error occurs

Solution to vue file upload error: 1. Create a vue project through "vue init webpack demo"; 2. Add an element to upload files; 3. Add "upload(data)" to the method Method; 4. Use FromData to add the required parameters, and use axios to submit the request.

The operating environment of this tutorial: Windows 10 system, vue3 version, DELL G3 computer

What should I do if there is an error when uploading vue files?

The solution to Vue’s failure to upload files

A colleague who developed the front-end in a project used Vue to develop a Module for uploading files, but it cannot submit this POST request to the background service anyway.
The specific phenomenon is that when the front-end interface uploads files,
Content-Type is always application/x-www-form-urlencoded , and then SpringBoot's background service reports an error: Current is not a multipart request. It means that the request is wrong.

In fact, when the post uploads the file, it should be Content-Type: multipart/form-data, but the front end is inside the intranet and is encapsulated. After analysis and testing, there is no problem uploading a file using ordinary HTML. The problem must lie in the VUE submission request process. Because the real development environment is in the company's intranet environment and is isolated from the outside world, I decided to simulate this scenario on my computer to facilitate problem solving.

In order to realize this simulated environment, you need to install a Vue development environment and a Python development environment. These two development installation methods are not the focus of the article, so they are skipped.

General idea:

Use Vue to develop a simple front-end interface to implement the file upload function, and then use Python to develop a Web back-end service.

Step 1: Create a WEB page with Vue

Create a vue project:

vue init webpack demo

To submit a request using axios, you don’t need to install it. Use Just import it directly

Use VSCode to open the newly created vue project

Add an element to upload files:

<template>
  <div>
    <img  src="/static/imghwm/default1.png" data-src="./assets/logo.png" class="lazy" alt="What to do if vue file upload error occurs" >
    <router-view></router-view>
    <input>
  </div>

</template>
<script></script>
<script>

import axios from &#39;axios&#39;
export default {
  name: &#39;App&#39;
}
</script>

<style>
#app {
  font-family: &#39;Avenir&#39;, Helvetica, Arial, sans-serif;
  -webkit-font-smoothing: antialiased;
  -moz-osx-font-smoothing: grayscale;
  text-align: center;
  color: #2c3e50;
  margin-top: 60px;
}
</style>

Key points

Then add the control script:

<template>
  <div>
    <img  src="/static/imghwm/default1.png" data-src="./assets/logo.png" class="lazy" alt="What to do if vue file upload error occurs" >
    <router-view></router-view>
    <input>
  </div>

</template>
<script></script>
<script>
import axios from &#39;axios&#39;
export default {
  name: &#39;App&#39;,
    methods:{
    upload(data){
          console.log(&#39;--->&#39;,data)
          var formData = new FormData();
          formData.append(&#39;side&#39;, &#39;front&#39;);
          formData.append(&#39;file&#39;,data.target.files[0]);

          let config = {
             headers: {
               &#39;Content-Type&#39;: &#39;multipart/form-data&#39;
             }
          };
          axios.post(&#39;http://127.0.0.1:5050/icard/check&#39;,formData,config)
            .then((response) => {
                console.log("OK");
          })
        }
  }
}</script>

Add the upload(data) method to the method
Use FromData to add the required parameters and submit it with axios Just request it.

Step 2: Use Python to develop a simple Web service

from flask import Flask, request
from flask_cors import CORS

app = Flask(__name__)

#跨域处理
cors = CORS(app, supports_credentials=True)

@app.route('/icard/check',methods=['POST'])
def deal_request1():
    print('收到post请求')
    side = request.form["side"]
    image = request.files.get('file')

    print("side= %s"% (side))
    print("filename= %s"% (image.filename))

    return "OK"

if __name__ == '__main__':
    app.run(host="127.0.0.1", port=5050)

Python's Flask is simply too sharp, and it is so easy to create a simple WEB service.
The basic idea is to create a service on the local port 5050. When there is an HTTP request for the URL http://127.0.0.1:5050/idcard/check, it receives parameters and prints out the received parameters.

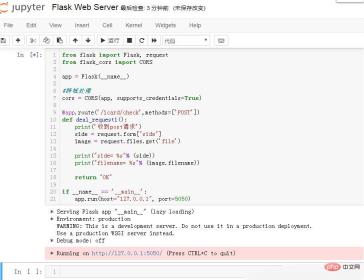

After starting in jupyter, the following is as follows:

After starting, the prompt: Running on http://127.0.0.1:5050/ (Press CTRL C to quit )

OK, the simple WEB service is started, then start vue,

Open the command line terminal in VSCodel, enter npm run dev to start,

Then Open in the browser https://www.php.cn/link/5ba026c424f718a4808f9d3f75856dab

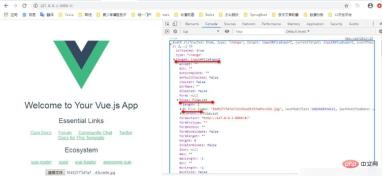

##Because it is the initial project of vue, so after opening it, this is the key point It is the last line to select a file. At this time, open the browser debugging tool first, then select a file and look at the information in the browser debugging tool. The highlight is coming

because a log is added to the vue code Output: console.log('--->',data)

So you can see the log information in the browser

The important places are marked with red lines, you can see For the data in the event output here,

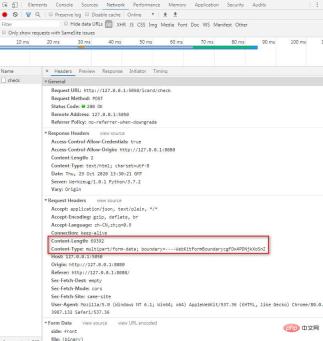

you can get the file object that needs to be uploaded according to event.target.file[0], and then look at the situation in the Network:

There are two lines of important information in the Request Header:

  Content-Length: 69392
  Content-Type: multipart/form-data; boundary=----WebKitFormBoundarycgFDx4PDNjkXoSnZ

第一行表示上传的文件大小字节数，
Content-Type代表发送端发送的实体数据的数据类型，如果向服务器端发送的是普通的字符串，默认设置为：text/html;
post请求肯定要发送数据包;
因此对数据包的Type有专门的限定:
Content-Type只能是
application/x-www-form-urlencoded,
application/json
multipart/form-data
或 text/plain中的一种。
其他的均不常见。

在看看服务端的情况：

Web 服务端立即输出了相关信息，说明已经得到了上传文件的数据，这里为了做测试仅仅输出了文件名和另一个参数。
在我的电脑上测试上传文件，接收文件都OK。
然后同事根据我的代码修改了内网VUE工程的代码，问题来了，在内网里上传文件时也用console.log(data)输出了event,但是格式和这里不同哦，这是很大的疑惑或许是环境问题吧，
在我的测试工程中用event.target.file[0]可以得到需要上传的文件对象，但是在内网环境下event里面根本木有target这个节点，根据最后需要的是file节点的特征，在raw节点下找到了file节点，然后代码修改为


upload(data){
          console.log('--->',data)
          var formData = new FormData();
          formData.append('side', 'front');
          formData.append('file',data.raw.files[0]);

          let config = {
            // headers: {
            //   'Content-Type': 'multipart/form-data'
            // }
          };
          axios.post('http://127.0.0.1:5050/icard/check',formData,config)
            .then((response) => {
                console.log("OK");
          })
        }

内网环境下上传文件成功了。并且测试发现，只要这里正确得到了文件对象参数，那么可以不用显式指定Content-Type，这里也会自动把Content-Type设置为multipart/form-data，我不了解Vue底层是如何处理的，可能是发现提交的数据是流，因此把这里的类型自动设置成了multipart/form-data。

 推荐学习：《vue视频教程》
