What is the Snapdragon processor of vivoy3s?

The vivoy3s processor is not Snapdragon, but MediaTek MT6765 processor. The MT6765 processor integrates the ARM Cortex-A53 operating system, with a maximum frequency of 2.2GHz, an eight-core design, and a 12-nanometer process; it integrates Bluetooth, FM, wlan and GPS modules, including a modem and an application processing subsystem, supporting LTE/LTE-A and C2K smartphone applications.

The operating environment of this tutorial: Funtouch OS 13 system, vivo Y3s mobile phone.

vivo Y3s is a mobile phone product released by vivo on October 21, 2020.

vivo Y3s is a 4G full network mobile phone, equipped with MediaTek MT6765 processor, pre-installed with the Android-based Funtouch OS operating system; the rear camera is 13 million pixels and the main lens is 2 million pixels Depth of field lens, front camera is 8 million pixels; equipped with a non-removable battery with a capacity of 5000 mAh.

Body design

vivo Y3s uses a 6.35-inch LCD water drop screen; the body The back shell is made of plastic material; it supports rear fingerprint recognition and facial recognition; the upper left corner of the back of the fuselage is designed with a dual-camera module, and the bottom of the fuselage is a 3.5mm headphone jack and USB interface.

The body length is 159.43 mm, the width is 76.77 mm, the thickness is 8.92 mm, and the weight is 190.5 grams; it comes in three body colors: dark night blue, sea breeze green, and crimson red.

Processor

MT6765 is a mid-to-low-end eight-core processor from MediaTek and an entry-level processor from MediaTek.

The MT6765 processor has a maximum frequency of 2.2GHz and adopts an eight-core design. Mobile phones equipped with MT6765 processor include Xiaomi Play, Honor Play 8a, Huawei Play 9e and Honor Play 8aPro.

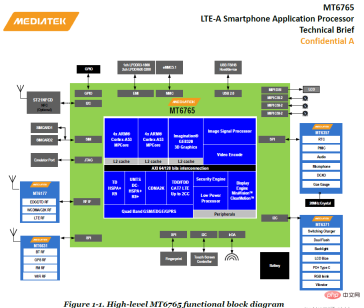

MediaTek MT6765 processor has an 8-core SoC and uses a 12nm process. It is a low-end entry-level product. MT6765 is a highly integrated baseband platform that integrates Bluetooth, FM, wlan and GPS modules. Includes a modem and an application processing subsystem to support LTE/LTE-A and C2K smartphone applications. The chip integrates ARM Cortex-A53 and its operating frequency can reach 2.0GHz.

4G full network module based on MT6765 eight-core (4×A53 2.3GHz 4×A53 1.8GHz) processor. Built-in Android 9.1 system. High performance, small size, integrated function-rich interfaces (such as LCM, camera, touch screen, microphone, speaker, UART, USB, I2C and SPI interface, etc.) can be widely used in barcode scanning handheld machines, PDAs, smart cars, smart homes, Wireless monitoring, intelligent robots, AR, VR, police communication, law enforcement instruments, intelligent intercoms, vending machines, logistics cabinets and other intelligent terminals.

MT6765 includes modem and application processing subsystem to enable LTE/LTE-A and C2K smartphone applications. The chip integrates the ARM Cortex-A53 operating system, up to 2.3GHz and powerful multi-standard video codecs. In addition, an extensive set of interfaces to connect peripherals include interfaces with cameras, touch screen displays and MMC/SD cards.

Features

• ##Battery life

  vivo Y3s is equipped with a 5,000 mAh capacity battery that supports intelligent AI power-saving technology and reverse charging. The 5,000 mAh battery can meet the daily battery life of many users.

• image

  vivo Y3s rear main camera uses a 13-megapixel lens that supports PDAF phase focusing, and the secondary camera uses a 2-megapixel depth-of-field camera; Smart beauty that supports AI image recognition can provide users with a better experience based on the different facial features of men and women, as well as information such as skin texture, skin tone, and light.

• Facial recognition

  vivo Y3s can detect 1024 feature dimensions of the face when the screen is turned on, and intelligently match it in the next second The unlocking process can provide users with a face unlocking experience.

• SOS Emergency Call

  After turning on the SOS function on vivo Y3s, press the power button five times, and the phone will automatically call the set relatives and friends. phone number, and send your location and location link as a text message.

• Artificial Intelligence Assistant

  vivo Y3s Long press the power button to trigger the Jovi voice function. In dictation mode, it can complete speech-to-text. Provide users with a better AI interactive experience.

• Game Magic Box

• vivo Y3s is equipped with a Game Magic Box, which turns on the idle mode and cuts out large games. Still running in the background without interruption; E-sports mode 1.0 can mobilize mobile phone resources during games and provide intelligent temperature rise strategies to provide a better gaming experience.

Configuration parameters

vivo Y3s configuration parameters

Content	Description
Hardware	CPU model: MediaTek MT6765 CPU frequency: 2.3GHz Number of CPU cores: eight cores GPU model: IMG GE8320 RAM capacity: 4GB RAM storage type: LPDDR4X ROM Capacity: 128GB ROM storage type: eMMC5.1 Memory card: MicroSD card Extended capacity: 256GB Factory system kernel: Android 9 Operating system: Funtouch OS 9
Screen	Screen size: 6.35 inches Screen type: Full screen (water drop screen) Screen ratio: 19.3:9 Screen material: 1544×720 pixels Resolution: LCD Pixel density: 268ppi Screen-to-body ratio: 89.04% Touch screen type: capacitive screen, multi-touch Screen color: 16.7 million colors, 70% Screen color gamut, 70% (typ) color saturation Contrast ratio: 1500:1 Screen technology: In-Cell full lamination technology
Camera	Total number of cameras: 3 Rear main camera: 13 million pixels Rear depth of field lens: 200 Megapixel Front main camera: 8 million pixels Aperture: Rear main camera: f/2.2 Rear depth of field lens: f /2.4 Front main camera: f/1.8 Wide angle: Rear main camera: 76.7° Rear depth of field lens: 81.6° Front main camera: 82.7° Sensor model: Rear main camera: OV13B10 Rear depth of field lens: GC2375H Rear camera functions: PDAF phase focusing, 10x digital zoom, professional, panoramic, beauty, photo, video, portrait background blur, dynamic photo Rear video shooting: 1080p (1920x1080) video Record 720p (1280×720, 30 frames/second) video record 480p (720×480, 24 frames/second) video recording support 720p 120 frames slow motion video Macro: 35cm Front camera function: 2x digital zoom, panorama, beauty, photo, video, portrait background blur, dynamic photo Front video shooting: 1080p (1920×1080, 30 frames/second) video Record 720p (1280×720, 30 frames/second) video record 480p (720×480, 24 frames/second) video recording Sensor type: CMOS Flash: LED fill light Other camera parameters; Front: 1/4" sensor area, 1.12μm pixel size Rear main camera: 1/3.06" sensor area, 1.12μm pixel size Rear depth of field: 1/5" sensor area, 1.75μm pixel size photo resolution Rear: maximum 3120×4160 pixels, front: maximum 2448×3264 pixels
Network and connection	Network type: 4G, 3G 4G network: China Mobile TD-LTE, China Unicom TD-LTE, China Unicom FDD-LTE, China Telecom TD-LTE, China Telecom FDD-LTE 3G network: China Mobile 3G (TD-SCDMA), China Unicom 3G (WCDMA), China Telecom 3G (CDMA2000), China Unicom 2G/China Mobile 2G (GSM) Network frequency band: 2G: GSM 850/900/ 1800/1900MHz2G: CDMA 800MHz3G: WCDMA 850/900/2100MHz3G: CDMA2000 800MHz3G: TD-SCDMA 1880/2010MHz4G: TDD-LTE B34/B38/B39/B40/B414G: FDD-LTE B1/B3/B4/B5/B8 SIM card type: dual card (2 1 card slot, dual Nano-Sim card micro-SD card) WLAN function: dual-band WiFi, WiFi4 (IEEE 802.11 a/b/g/ n) Positioning navigation: GPS navigation, Galileo navigation, GLONASS navigation, Beidou navigation Bluetooth: Bluetooth 5.0, support SBC, AAC, aptX HD, LDAC Connect with Sharing: OTG, WLAN hotspot, VoLTE Body interface: 3.5 mm headphone jack, USB interface
Battery and battery life	Battery type: non-removable battery Battery capacity: 5000 mAh Battery time: theoretical 4G standby time: up to 736.8 hours theoretical 4G Volte talk time: up to 18.9 hours Wired charging: 5W (5V/1A)
Features and Services	Three-proof function: IPX2 level Sensor: Gravity sensor, light sensor, distance sensor, gyroscope, electronic compass, fingerprint recognition Audio support: Support WAV/ M4A/MP3/MP2/MIDI/OGG/APE/FLAC and other formats Video support: support 3GP/MP4 and other formats Picture support: support JPEG and other formats Service Features: Jovi supports voice, Jovi homepage, screen recognition and other functions
