This article brings you relevant knowledge about css, which mainly introduces issues related to relative positioning, absolute positioning and fixed positioning of css. The position attribute in css, position has Four values: relative (relative positioning), absolute (absolute positioning), static (static positioning) and fixed (fixed positioning). Use top, left, bottom, right to adjust the position of the element. Let’s take a look at it together. I hope it will be useful to everyone. helpful.

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning

(Learning video sharing: css video tutorial, html video tutorial)

1. What is position?

The position attribute in css has four values: relative (relative positioning), absolute (absolute positioning), static (static positioning) and fixed (fixed positioning), through top, left, bottom, right To adjust the position of the element

2. The role of each attribute value

Attribute value Function Remarks
relative Relative positioning Reference element itself
absolute Absolute positioning Refer to the nearest ancestor element
static Static positioning Basic positioning regulations
fixed Fixed positioning Reference browser window

1. Relative positioning

The offset element of relative positioning refers to the element itself and will not cause the element to break away from the document flow. The space occupied by the initial position of the element will be retained

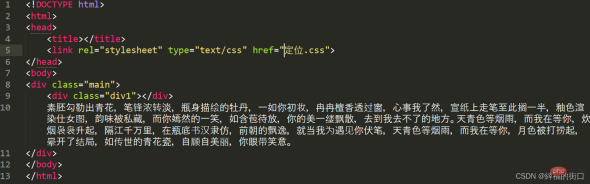

html Code:

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
css code:

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning

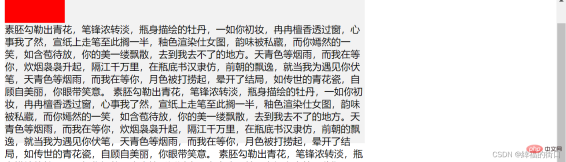

Web page effect:

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning

It can be seen that relative positioning is relative to the element itself, which is 30px from the top and 20px from the left, and does not break away from the document flow

2. Absolute positioning

Absolute positioning is relative For the positioned nearest ancestor element, if the nearest ancestor element is not positioned, its position is relative to the original containing block (body)

css code:

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
Web page effect: Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning

You can see that absolute positioning is out of the document flow. Since the parent element is not positioned, it is based on the initial containing block ( body) to position, now position the parent element of the element

css code:

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
Web page effect:

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
After the parent element is positioned here, the element is positioned based on the parent element

3. Static positioning

There is no special setting, it does not break away from the document flow, and it follows the basic Positioning stipulations cannot be hierarchical through z-index

css code:

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
Web page effect:

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
You can see The position of the red block has not changed. You can know that static (static, default attribute) is usually not used. The position value is generally the default

4. Fixed positioning

Fixed positioning is relative to the browser Window, separated from the document flow, using fixed elements will not scroll with the scrolling of the window

html code:

css code:

Web page effect (fixed positioning is not set) ):
Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
Web page effect (set fixed positioning)
Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
It can be seen that after fixed positioning, even if the window is scrolled, the position of the red block remains unchanged

3. Relative and absolute positioning

Use three color blocks to distinguish relative positioning and absolute positioning

When no positioning is performed, the default web page effect:

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning

1. Relative positioning

css code:

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
Web page effect:

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
You can see Relative positioning has the same effect as default positioning

2. Absolute positioning

css code:

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
Web page effect:

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
Here the red, yellow, and blue blocks are displayed overlappingly, that is, they are separated from the document flow

3. Relative positioning and absolute positioning

In order to make the effect more obvious, the red, yellow, and blue blocks are displayed here. The yellow and blue color blocks are offset to a certain extent

(1) Relative positioning

css code:
Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
Web page effect:
Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning

(2) Absolute positioning

css code:

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
Web page effect:

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning

4. Relative, absolute positioning and floating

Absolute positioning and floating are both separated Document flow

1. Relative positioning

css code:

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
Web page effect:

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning

2. Absolute positioning

css code:

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
Web page effect:
Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning

3. Floating

css code:

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
Web page effect:
Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
You can see that the float surrounds the red color block for the text, but the distance between the text and the red color block is too large Close, cannot set margin

4, relative positioning and floating

css code:

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
Web page effect:
Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
The combination of relative positioning and floating can set the margin between the text and the red color block

5. Absolute positioning and floating

css code:

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
Web page effect:
Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning

5. Use of z-index

If you want to display the red color block on top of the yellow color block in the following color block, you can use z -index
Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
css code:

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
Web page effect:

Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning
You can see that the red color block is displayed in red Above the color block, the z-index values ​​here are 40, 20, and 30. In fact, the web page sometimes has more than these, maybe hundreds. This is just for convenience of display.

(Learning video sharing: css video tutorial, html video tutorial)

The above is the detailed content of Detailed explanation of css positioning--relative positioning, absolute positioning and fixed positioning. For more information, please follow other related articles on the PHP Chinese website!
