Example Analysis: How to use conditional formatting to create a project progress chart in Excel

This article brings you relevant knowledge about excel, which mainly organizes related issues on how to use conditional formatting to create project progress charts, including building a framework, setting cell formats, etc. Let’s take a look at the content below. I hope it will be helpful to everyone.

Related learning recommendations: excel tutorial

Today we share a simple and practical method of making a project progress chart. Let’s take a look at the effect first. :

Next let’s take a look at the specific steps.

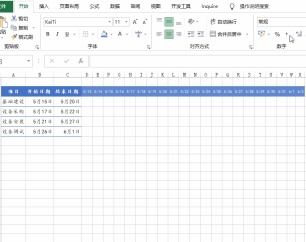

The first step: first build a framework.

Enter the subproject name and start and end dates in columns A, B, and C respectively.

Enter the project construction date at D2:X2.

Step 2: Set the cell format.

Select D3:X3 and set the cell to a light gray lower border.

The cursor is close to the lower right corner of cell X3 and drag the fill handle downward.

Step 3: Set conditional formatting.

Select D3:X6, [Start] → [Conditional Formatting] → [New Rule] → Use the formula:

=(D$2>=$B3)*(D$2< ;=$C3)

Click the [Format] button to set the fill color.

Pay attention to the changes in the reference method in the formula.

Step 4: Set today’s line

Select D3:X6, [Start]→[Conditional Formatting]→[New Rule]→Use the formula as ：

=D$2=TODAY()

Click the [Format] button and set the right border to red.

OK, let’s take a look at the effect:

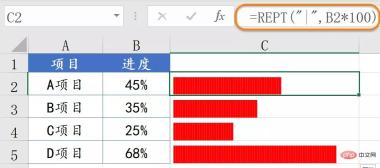

If you want to show the progress percentage, the following effect is also good:

##The formula of cell C2 is:

=REPT(“|”,B2*100)

Then set the font to Stencil. Can.
