A brief discussion on how to implement the tab card switching function in mini programs

How does the mini program implement the tab card switching function? This article will introduce to you how to implement tab card switching in WeChat applet. I hope it will be helpful to you!

1. UI and interaction

First of all, let’s take a look at the UI appearance and interaction effect to be achieved. The picture below is One of our entrances. Clicking on each icon area below will display the corresponding card display.

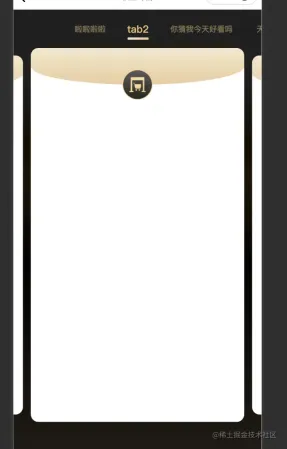

For example, when I click on the icon of tab2, the corresponding jump will be as shown in the figure below.

The page is displayed as a long tab bar at the head, which can be slid left and right. Blank areas need to be left on both sides to achieve the centering effect of the tabs at both ends., click the corresponding tab The corresponding card can be displayed, , and the text of the tab will be displayed in the center. Similar to the effect of switching left and right carousels, I think as a user it should be easy to think of this kind of interaction.

The currently activated card will have an effect that feels slightly larger than other cards, and the edges of the front and back cards can be seen. And the card area can also be slid left and right to achieve the same interactive effect as the head tab bar.

This is probably such an interactive effect!

2. Design of the implementation plan

1. First of all, we need to know that all the tabs displayed on the front end are always displayed like this. Is it more than one, or is it possible that it will be expanded in the future, or that it is possible to iterate on it. I personally think we can discuss this with the back-end to unify the content we need to display into a set of constant configuration, and then we can make our dynamic rendering. Here I roughly maintain such a constant.

data: [
  {
    title: 'tab2', // 标题
    logoUrl: 'xxx', // 图标地址
    isNeed: false, // 是否需要该tab
    id: '', // 每个tab对应的一个id,与后端交互使用
    content: '' // 每个tab对应的一些内容,用于扩展
    ...
  }
]

is roughly the above data structure.

2. When clicking the corresponding icon at the entrance, you can bring the corresponding array index or id into the details page to display the corresponding card And the corresponding ui

3. In the design of the details page, I divided the page into two components for display.

• Header is the corresponding scroll-tab component. In this component, I used the component scroll-view provided by the WeChat applet. Here we need to set it## The #scroll-x parameter enables it to slide left and right. Setting the scroll-left parameter allows us to scroll to the middle when we click on a tab or slide the card. Content is the corresponding
swiper-card
• component. In this component, I used the component swiper provided by the WeChat applet. Here we need to set it previous-margin and next-margin properties set the distance between the current card and the two cards before and after, current property sets the currently displayed card, bindchange event is used for card switching time interaction. In passing parameters on the index page, I choose to pass some corresponding data as well as
current value
• and event processing function

  <view>
      <scroll-tab data="{{data}}" current="{{current}}" bind:chooseDetail="handleChooseDetail" />
      <swiper-card data="{{data}}" current="{{current}}" bind:swiperChange="handleSwiperChange" />
  </view>

4. Specific implementation

• 对于Header的tab栏两边留出可滑动的空间，因为scroll-view内部元素是无法占满该tab的宽度的，因此我们没有办法给其设置100%来实现。在这里我开始的想法是给其前后放置一个空白元素来给其宽度实现，后面参考了某个写法用了page-meta这个我也不太清楚是什么鬼的组件来设置左右的padding来实现，但是会有page-meta只用于页面首个节点的warning。对于两边距离的的设置，和scroll-left的设置，我采用了以下方法。

wx.getSystemInfo({
          success: res => {
            this.marginWidth = res.windowWidth / 2 // 两边空白距离
          }
        })


const computedPosition = (margin, textArr, preWidthArr) => {
  // margin每个tab之间的间距
  // textArr为所有tab的文字宽度的数组
  // preWidthArr为每一个tab与前一个tab的距离数组，第一个默认为0
  let distanceArr = []
  let len = textArr?.length
  for (let i = 0; i < textArr?.length; i++) {
    distanceArr.unshift(preWidthArr[len - 1] + (len - 1) * margin + textArr[len - 1] / 2)
    len--
  }
  // distanceArr为每个tab居中展示时应该设置的scroll-left值
  return distanceArr
}

// textArr[n] = 第 n - 1元素的宽度
// const widthArr = [78, 78, 78, 52, 52, 52]

// preWidthArr[n] = 第n - 1个tab距离前面tab的距离 = 元素宽 + margin
// 第一个tab没有前面的元素
// const arr = [0, 78, 156, 234, 286, 338]

// 获取元素信息
getElementAttr() {
        wx.createSelectorQuery()
          .in(this)
          .selectAll(&#39;.swiper-text__item&#39;)
          .boundingClientRect(res => {
            const textWidth = res?.map(item => item.width)
            const preWidth = this.getPreWidth(textWidth)
            this.distanceArr = computedPosition(MARGIN, textWidth, preWidth)
          })
          .exec()
},
getPreWidth(textWidth) {
        const arr = [0]
        for (let i = 0; i < textWidth.length - 1; i++) {
          arr.push(textWidth[i] + arr[i])
        }
        return arr
}

• 对于Content内容区域的卡片，可以给当前卡片与别的卡片设置不同的transfrom: scale(倍数)，并且给一个过渡效果transition即可实现简单的交互效果。

三、大功告成，开始复盘

• scroll-view的scroll-left曾经踩过不生效的
• scroll-view的内容区域并不能撑满宽度100%
• 如何根据不同tab文字的宽度来设置对应的scroll-left距离
• 如何实现左右两边留出可滑动区域
• 如何做出更顺畅更友好的交互效果

写在最后

前段时间接了这个需求的时候我作为owner，和一个同事为该需求评估排期时间时评的是10人日，我自然而然的也想尝试一下所以选择了ui与交互更为复杂的内容，当然以上要实现的内容只是其中一个部分，说实话在实现过程中我真的挺痛苦的，还有一个半圆弧状的进度条展示，首尾都要有弧度的那一种，作为一个应届小白，还是有太多不会的东西了，即使是这些在他们眼里看作为很简单的内容，一下就能实现的内容，在我这里可要经历太多了，我知道我菜，但我会继续努力，作为一个前端开发，高还原度实现ui设计稿一直作为我的初衷。但希望你们不要以这个我xxx（多久时间）就能做出来的口吻来pua我，至少我认为在几年后我会比你们更加优秀，但一定不会用这样的口吻来对待我的应届同事们。
