Let’s talk about two ways to debug Node.js code

青灯夜游
青灯夜游forward
2021-11-30 19:01:082611browse

How to debug your Node code? The following article will introduce to you two common ways to debug Node.js. It has certain reference value and I hope it will be helpful to you!

Let’s talk about two ways to debug Node.js code

Many times, I worry about debugging Node.js and only use the intrusive method of console.log, but in fact Node.js can also be as convenient as browser debugging.

Environment of this article:

mac
Chrome 94.0.4606.81
node v12.12.0
vscode Version: 1.61.1

Example of this article

The example of this article uses the onion model that was previously explored. There is only one file, which is index.js in the root directory. , as follows:

const Koa = require('koa');

const app = new Koa();
console.log('test')

// 中间件1
app.use((ctx, next) => {
  console.log(1);
  next();
  console.log(2);
});

// 中间件 2
app.use((ctx, next) => {
  console.log(3);
  next();
  console.log(4);
});

app.listen(9000, () => {
    console.log(`Server is starting`);
});

V8 Inspector Protocol Chrome DevTools

v8 Inspector Protocol is a newly added debugging protocol in nodejs v6.3, which interacts with Client/IDE through websocket, and at the same time Devtools based on Chrome/Chromium browser provides a graphical debugging interface.

We enter the project root directory and execute (note the 8888 port, which will be used later):

node --inspect=8888 index.js

The results are as follows:

Let’s talk about two ways to debug Node.js code

The result is a link——ws://127.0.0.1:8888/5f5c59fc-d42b-4ab0-be15-6feb1a05ed2d. This link is the websocket address that Node.js and Chrome used to communicate before. Through websocket communication, we can see the results of Node.js in Chrome in real time.

How to enter Chrome’s debugging interface

The first way (try it yourself is invalid)

Openhttp://localhost:8888 /json/list, where 8888 is the parameter of --inspect above.

[
    {
        "description": "node.js instance",
        "devtoolsFrontendUrl": "chrome-devtools://devtools/bundled/js_app.html?experiments=true&v8only=true&ws=localhost:8888/5f5c59fc-d42b-4ab0-be15-6feb1a05ed2d",
        "devtoolsFrontendUrlCompat": "chrome-devtools://devtools/bundled/inspector.html?experiments=true&v8only=true&ws=localhost:8888/5f5c59fc-d42b-4ab0-be15-6feb1a05ed2d",
        "faviconUrl": "https://nodejs.org/static/images/favicons/favicon.ico",
        "id": "5f5c59fc-d42b-4ab0-be15-6feb1a05ed2d",
        "title": "index.js",
        "type": "node",
        "url": "file:///Users/gpingfeng/Documents/Personal/Test/test-onion/index.js",
        "webSocketDebuggerUrl": "ws://localhost:8888/5f5c59fc-d42b-4ab0-be15-6feb1a05ed2d"
    }
]

A lot of information says that it can be accessed directly through devtoolsFrontendUrl, but I tried it and it didn't work. [Maybe related to my environment]

Second method

I checked the information and found the corresponding solution in stackoverflow, as follows:

devtools://devtools/bundled/inspector.html?experiments=true&ws=127.0.0.1:8888/5f5c59fc-d42b-4ab0-be15-6feb1a05ed2d

devtools://devtools/bundled/inspector.html?experiments=true is fixed, and the ws parameter corresponds to the websocket address.

You can see the interface as follows:

Let’s talk about two ways to debug Node.js code

The third method

Chrome browser opens the HTTP listening interface Page, open the dev tool, and after executing node --inspect=8888 index.js, you can see this icon, click on it:

Let’s talk about two ways to debug Node.js code

The same debugging page as the browser appears, such as Sources Panel to view scripts, Profile Panel to monitor performance, etc.

Let’s talk about two ways to debug Node.js code

In addition, you can visit chrome://inspect/#devices and you can see all the inspects currently monitored by the browser.

Let’s talk about two ways to debug Node.js code

Vscode debugging

In addition to browsers, all major IDEs support Node.js debugging. This article takes Vscode as an example.

Launch Configuration

Open the debugging page and add a launch configuration to our Node project:

Let’s talk about two ways to debug Node.js code

Select Node.js

Let’s talk about two ways to debug Node.js code

This will generate the corresponding file .vscode/launch.json (of course you can also create it manually) in the project root directory, where program refers to the file entry, ${workspaceFolder} refers to the root directory.

{
  // Use IntelliSense to learn about possible attributes.
  // Hover to view descriptions of existing attributes.
  // For more information, visit: https://go.microsoft.com/fwlink/?linkid=830387
  "version": "0.2.0",
  "configurations": [
    {
      "type": "pwa-node",
      "request": "launch",
      "name": "Launch Program",
      "skipFiles": [
        "<node_internals>/**"
      ],
      "program": "${workspaceFolder}/index.js"
    }
  ]
}

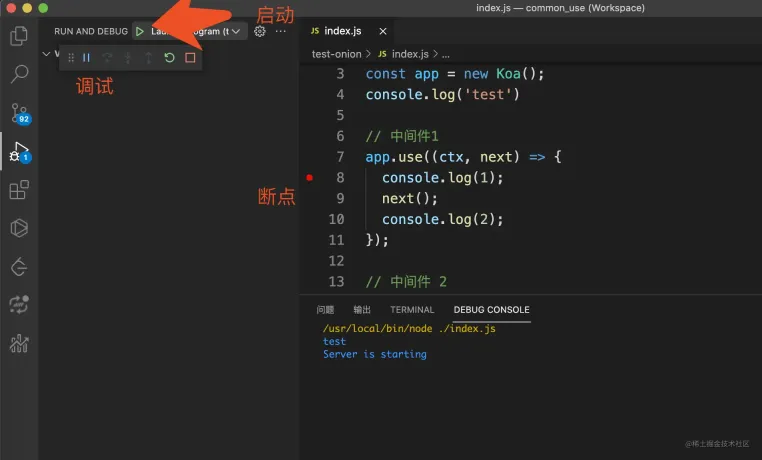

Press F5, or click the following button:

Let’s talk about two ways to debug Node.js code

The result:

Let’s talk about two ways to debug Node.js code

You can see , you can display the value of the current scope, call stack and other information on the left side, and you can also gradually debug functions, restart and other functions on the upper right side, which is very powerful.

Attach to Node Process Action

With Attach to Node Process Action, we can directly debug the running Node.js process.

For example, let’s start the project first——npm run start.

Thencommand shift p (window Ctrl Shift p), enter Attach to Node Process Action, press Enter, and then select the running process Press Enter again and you can debug the code as configured above.

Let’s talk about two ways to debug Node.js code

1Let’s talk about two ways to debug Node.js code

Summary

This article summarizes two common ways to debug Node.js. The first Node.js transmits information to the Chrome browser through websocket, and we debug directly in Chrome. The second is to debug through Vscode Launch Configuration and custom configuration. Through Attach to Node Process Action, you can conveniently debug the running Node.js code without configuration.
