What is Ivy compilation in Angular? How to enable Ivy compilation?

青灯夜游
青灯夜游forward
2021-08-04 10:44:263275browse

This article will take you through the new compilation engine Ivy in Angular, introduce what Ivy compilation is, and how to enable Ivy compilation.

What is Ivy compilation in Angular? How to enable Ivy compilation?

Angular

Angular is currently one of the most popular frameworks in the world, but due to the many libraries and compilation in the framework Knowledge needs to be learned, and the usage rate in China is not high. At the same time, due to the long loading time and the large project file generated by Angular, it is also defeated by the better packaging volume and better development experience of React and Vue.

But if we master the principles of Angular, we can also develop a Web App that has performance that is almost the same as that of React applications. Since the previous Angular 8.0 version used the View Engine compiler to compile Angular project files, the packaging volume was large and it was difficult to track bugs. So the Angular team launched the Ivy compiler. [Related tutorial recommendations: "angular tutorial"]

What is Ivy compilation

Ivy is the next generation of template compilation The engine and rendering pipeline tools are very advanced and provide previously unavailable advanced features and faster compilation speeds. In fact, Ivy is a complete rewrite of the previous rendering engine of Angular. Specifically, it is the fourth rewrite. Using Ivy, components can be compiled independently, and at the same time There is also better support for hot updates. When rewriting the compiled application, only the components that have changed will be involved in compiling.

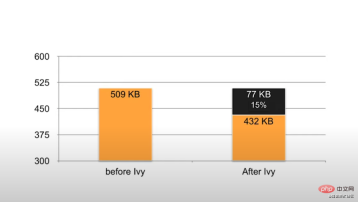

The following is a angularComparison of volume changes before and after compilation using Ivy:

What is Ivy compilation in Angular? How to enable Ivy compilation?

You can see the process The optimization of Ivy has reduced the packaging size a lot.

treeshakable

At the same timeIvyAnother important point is the treeshaking of the project file , meaning to delete unused code during the compilation and packaging process. This can also be done through some tools such as Rollup and Uglify. During the build process, the treeshaking tool uses static analysis to eliminate unused and unreferenced code. Due to the static analysis dependencies and references of the code, when the conditional logic judgment code exists, the tool cannot correctly identify it and failure will occur.

Locality

Locality refers to the process of compiling each component independently using native code, by re-repairing the modified parts. Compile rather than recompile the entire project file to build faster, which will significantly improve build speed. In the previous Angular code, each component has its parent information, which leads to compilation dependencies and thus more compiled files. In Ivy, each component only generates information about the component itself, except the nouns and package names that can declare dependencies.

Ivy compilation example

Try to write the following code in Angular:

    <div>
        <p>ivy works</p>
        <app-child></app-child>
    </div>

Hereapp- child represents a referenced child component. The Ivy.component.js obtained through Ivy is compiled as shown in the figure

What is Ivy compilation in Angular? How to enable Ivy compilation?

and we then pass it without opening Ivy Compile again under the conditions of , this time the following directory structure is obtained:

What is Ivy compilation in Angular? How to enable Ivy compilation?

Choose two main files hereivy.component.js and ivy.component.ngfactory.js to display the View Engine compiled file

What is Ivy compilation in Angular? How to enable Ivy compilation?

What is Ivy compilation in Angular? How to enable Ivy compilation?

You can see that the types of files and the amount of code after compilation have increased a lot compared to Ivy compilation.

AOT compilation and JIT compilation

Angular The application mainly consists of components and their HTML templates. Components are written in the Typescript language and defined using decorators. Since the browser cannot directly understand the components and templates provided by Angular, the Angular application It needs to be compiled before running in the browser.

Here is a diagram of the compilation process of angular:

What is Ivy compilation in Angular? How to enable Ivy compilation?

在浏览器下载和运行代码之前的编译阶段,Angular 预先(AOT)编译器会先把你的 Angular HTML 和 TypeScript 代码转换成高效的 JavaScript 代码。 在构建期间编译应用可以让浏览器中的渲染更快速。而在官方文档中给出了使用AOT的部分原因:

  • 更快的渲染
  • 更少的异步请求
  • 较小的 Angular 框架下载大小
  • 尽早检测模板错误
  • 更高的安全性( AOT 在将 HTML 模板和组件提供给客户端之前就将其编译为 JavaScript 文件。没有要读取的模板,没有潜藏风险的客户端 HTML 或 JavaScript eval,受到注入攻击的机会就更少了。)

在早期的Angular8版本之前,Angular并没有采用AOT编译的方法,而是采用了JIT(即时编译)编译来生成应用,它会在运行期间在浏览器中编译你的应用。JIT编的一般步骤是、 首先将Typescript代码(包括用户编写的代码,以及Angular框架、Angular编译器代码)编译成JavaScript代码。接着将这些代码部署到服务器端然后浏览器发起请求下载代码开始执行,接着Angular启动,Angular调用Angular编译器。对于每个组件类、ngModule、Pipe等都需要编译,之前typescript代码编译为javascript代码所保存的metadata,根据metadata编译出浏览器可以执行的Javascript代码前面图里的NgFactory文件。接着通过NgFactories文件来构建整个应用的具体组件。

这里有对AOT与JIT编译详解的文章:Angular编译机制AOT和JIT

开启Ivy编译

Ivy编译默认采用的是AOT编译方法,在之前angular主要使用的都是JIT编译,如果需要使用Ivy编译,需要修改tsconfig.app.ts中添加angularCompilerOptions选项以及开启enableIvy

{
   "compilerOptions": { ... },
  "angularCompilerOptions": {
    "enableIvy": true
  }
}

其次要确认的是angular配置文件angular.jsonaot设置为true

Ivy运行时

新的运行时引擎基于increnmental DOM的概念。这是一种使用指令表达和应用更新到 DOM 树的方法。DOM 更新是 Angular 中变化检测的主要部分,因此这个概念可以方便地应用到框架中。在在这篇文章中可以了解更多关于它的内容,它解释了这个概念背后的推理,并将它与React 中的Virtual DOM进行了对比。增量 DOM 也恰好是一个,但是新的 Ivy 引擎没有使用它,而是实现了自己的增量DOM版本。

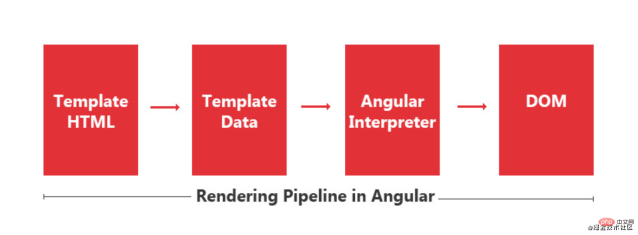

在之前Angular的主要实现逻辑是实例化组件、创建DOM节点以及进行更改检测,而这个整体是通过一个很小的原子单元实现的(atomic unit)。编译器只是生成有关的组件以及组件中定义元素的元数据meta data。如下图

What is Ivy compilation in Angular? How to enable Ivy compilation?

而新的Ivy引擎下的步骤如下:

What is Ivy compilation in Angular? How to enable Ivy compilation?

可与看出模板指令是实例化组件、创建 DOM 节点和运行变更检测的逻辑所在。但是它已经从整体的解释器转移到了单个的指令中。而Ivy带来的另一个优点是对于变更检测(change detection)的调试。新的Ivy编译环境下可以直接在模板函数中放置断点即可调试组件的变更检测。

新的编译器还会将一组独立的Typescript类转换编译为表示Class组件的的AST。这些转换都会被实现为一种纯函数,这个函数接受表示装饰器的元数据meta data并将该定义作为静态字段添加到组件类中。

The above is an introduction to the Ivy compilation engine, and the new Ivy will also bring changes to the original change detection. This will be discussed in the next article about change detection. Summarize.
