Understand the automatic margin in flex in one article

青灯夜游
青灯夜游forward
2020-07-01 10:26:183695browse

In order to introduce the topic of this article, let’s first look at this question. What is the fastest way to center an element horizontally and vertically?

Horizontal and vertical centering is also the most common problem in the CSS field. The methods in different scenarios are different, each with its own advantages and disadvantages. Well, the following one should be considered the most convenient:

<div class="g-container">
    <div class="g-box"></div>
</div>
.g-container {
    display: flex;
}

.g-box {
    margin: auto;
}

It is also possible to replace the above display: flex with display: inline-flex | grid | inline-grid.

CodePen Demo -- Use margin auto to center elements horizontally and vertically

How to make margin: auto vertically center the element

Hmm. This actually involves a question, how to make margin: auto take effect in the vertical direction?

In other words, under the traditional display: block BFC (block formatting context), why can margin: auto center elements in the horizontal direction but not in the vertical direction?

Usually we will use this code:

div {
    width: 200px;
    height: 200px;
    margin: 0 auto;
}

Let the element be horizontally centered relative to the parent element. But if we want the element to be vertically centered relative to the parent element, using margin: auto 0 will not take effect.

BFC undermargin: auto The reason why elements cannot be centered vertically

View CSS Documentation, for the following reasons, under BFC:

If both margin-left and margin-right are auto, their used values ​​​​are equal, causing horizontal centring.

—CSS2 Visual formatting model details: 10.3.3

If margin-top, or margin-bottom are auto, their used value is 0.

—CSS2 Visual formatting model details: 10.6.3

Under simple translation, in the block formatting context, if margin-left and margin-right are both auto, their expression values ​​are equal, resulting in elements level is centered. (The calculated value here is half of the remaining available space of the element)

And if margin-top and margin-bottom are both auto, then they The values ​​​​are all 0, of course, it cannot cause centering in the vertical direction.

Use FFC/GFC to make <span style="font-size: 18px;">margin: auto</span> Center the element vertically

OK, here to enable a single element to use margin: auto to center the element in the vertical direction, the element needs to be in FFC (flex formatting context) or GFC (grid formatting context) In the context, that is, among these values:

{
    display: flex;
    display: inline-flex;
    display: grid;
    display: inline-grid;
}

FFC under <span style="font-size: 18px;">#margin: auto</span> The vertical direction can be centered The reason for the element

This article will not talk about the grid layout for the time being. Our business needs are more likely to use flex layout. The following will focus on some performances of automatic margin in the flex context.

Well, there are also many front-end engineers who are jokingly called flex engineers, and they can flex any layout.

Check the CSS document for the following reasons, under dispaly: flex:

●　Prior to alignment via justify-content and align-self, any positive free space is distributed to auto margins in that dimension.

CSS Flexible Box Layout Module Level 1 -- 8.1. Aligning with auto margins

A simple translation, the general idea is: In the flex formatting context, for elements with margin: auto set, any free space will be allocated to the automatic margin in that direction before aligning through justify-content and align-self.

Here , a very important point is that margin auto takes effect not only in the horizontal direction, but also in the vertical direction to automatically allocate the remaining space.

Use automatic margin to implement space-between | space-around under flex layout

Understand the core sentence above:

● In Before alignment through justify-content and align-self, any free space will be allocated to the automatic margin in that dimension.

After that, we You can use automatic margin to simulate space-between and space-around under flex layout under flex layout.

Auto margin implementationspace-around

For such a flex layout:

<ul class="g-flex">
    <li>liA</li>
    <li>liB</li>
    <li>liC</li>
    <li>liD</li>
    <li>liE</li>
</ul>

If its CSS code is:

.g-flex {
    display: flex;
    justify-content: space-around;
}

li { ... }

The effect is as follows:

Understand the automatic margin in flex in one article

那么下面的 CSS 代码与上面的效果是完全等同的：

.g-flex {
    display: flex;
    // justify-content: space-around;
}

li {
    margin: auto;
}

CodePen Demo -- margin auto 实现 flex 下的 space-around

自动 margin 实现 space-between

同理，使用自动 margin，也很容易实现 flex 下的 space-between，下面两份 CSS 代码的效果的一样的：

.g-flex {
    display: flex;
    justify-content: space-between;
}

li {...}
.g-flex {
    display: flex;
    // justify-content: space-between;
}

li {
    margin: auto;
}

li:first-child {
    margin-left: 0;
}

li:last-child {
    margin-right: 0;
}

CodePen Demo -- margin auto 实现 flex 下的 space-between

当然，值得注意的是，很重要的一点：

Note: If free space is distributed to auto margins, the alignment properties will have no effect in that dimension because the margins will have stolen all the free space left over after flexing.

CSS Flexible Box Layout Module Level 1 -- 8.1. Aligning with auto margins

意思是，如果任意方向上的可用空间分配给了该方向的自动 margin ，则对齐属性（justify-content/align-self）在该维度中不起作用，因为 margin 将在排布后窃取该纬度方向剩余的所有可用空间。

也就是使用了自动 margin 的 flex 子项目，它们父元素设置的 justify-content 已经它们本身的 align-self 将不再生效，也就是这里存在一个优先级的关系。

使用自动 margin 实现 flex 下的 align-self: flex-start | flex-end | center

自动 margin 能实现水平方向的控制，也能实现垂直方向的控制，原理是一样的。

用 margin: auto 模拟 flex 下的 align-self: flex-start | flex-end | center，可以看看下面几个 Demo：

●　CodePen Demo -- margin auto 实现 flex 下的 align-self: center

●　CodePen Demo -- margin auto 实现 flex 下的 align-self: flex-end

不同方向上的自动 margin

OK，看完上面的一大段铺垫之后，大概已经初步了解了 FFC 下，自动 margin 的神奇。

无论是多个方向的自动 margin，抑或是单方向的自动 margin，都是非常有用的。

再来看几个有意思的例子：

使用 margin-left: auto 实现不规则两端对齐布局

假设我们需要有如下布局：

Understand the automatic margin in flex in one article

DOM 结构如下：

<ul class="g-nav">
    <li>导航A</li>
    <li>导航B</li>
    <li>导航C</li>
    <li>导航D</li>
    <li class="g-login">登陆</li>
</ul>

对最后一个元素使用 margin-left: auto，可以很容易实现这个布局：

.g-nav {
    display: flex;
}

.g-login {
    margin-left: auto;
}

此时， auto 的计算值就是水平方向上容器排列所有 li 之后的剩余空间。

当然，不一定是要运用在第一个或者最后一个元素之上，例如这样的布局，也是完全一样的实现：

Understand the automatic margin in flex in one article

<ul class="g-nav">
    <li>导航A</li>
    <li>导航B</li>
    <li>导航C</li>
    <li>导航D</li>
    <li class="g-login">登陆</li>
    <li>注册</li>
</ul>
.g-nav {
    display: flex;
}

.g-login {
    margin-left: auto;
}

Understand the automatic margin in flex in one article

Codepen Demo -- nav list by margin left auto

垂直方向上的多行居中

OK，又或者，我们经常会有这样的需求，一大段复杂的布局中的某一块，高度或者宽度不固定，需要相对于它所在的剩余空间居中：

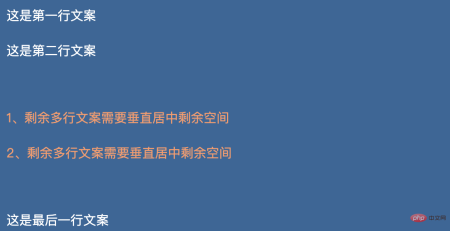

Understand the automatic margin in flex in one article

这里有 5 行文案，我们需要其中的第三、第四行相对于剩余空间进行垂直居中。

这里如果使用 flex 布局，简单的 align-self 或者 align-items 好像都没法快速解决问题。

而使用自动 margin，我们只需要在需要垂直居中的第一个元素上进行 margin-top: auto，最后一个元素上进行 margin-bottom: auto 即可，看看代码示意：

<div class="g-container">
    <p>这是第一行文案</p>
    <p>这是第二行文案</p>
    <p class="s-thirf">1、剩余多行文案需要垂直居中剩余空间</p>
    <p class="s-forth">2、剩余多行文案需要垂直居中剩余空间</p>
    <p>这是最后一行文案</p>
</div>
.g-container {
    display: flex;
    flex-wrap: wrap;
    flex-direction: column;
}

.s-thirf {
    margin-top: auto;
}

.s-forth {
    margin-bottom: auto;
}

当然，这里将任意需要垂直居中剩余空间的元素用一个 div 包裹起来，对该 div 进行 margin: auto 0也是可以的。

嗯，非常的好用且方便：CodePen Demo -- 自动margin快速垂直居中任意段落

使用 margin-top: auto 实现粘性 footer 布局

OK，最后再来看这样一个例子。

要求：页面存在一个 footer 页脚部分，如果整个页面的内容高度小于视窗的高度，则 footer 固定在视窗底部，如果整个页面的内容高度大于视窗的高度，则 footer 正常流排布（也就是需要滚动到底部才能看到 footer），算是粘性布局的一种。

看看效果：

Understand the automatic margin in flex in one article

嗯，这个需求如果能够使用 flex 的话，使用 justify-content: space-between 可以很好的解决，同理使用 margin-top: auto 也非常容易完成：

<div class="g-container">
    <div class="g-real-box">
        ...
    </div>
    <div class="g-footer"></div>
</div>
.g-container {
    height: 100vh;
    display: flex;
    flex-direction: column;
}

.g-footer {
    margin-top: auto;
    flex-shrink: 0;
    height: 30px;
    background: deeppink;
}

Codepen Demo -- sticky footer by flex margin auto

上面的例子旨在介绍更多自动 margin 的使用场景。当然，这里不使用 flex 布局也是可以实现的，下面再给出一种不借助 flex 布局的实现方式：

CodePen Demo -- sticky footer by margin/paddig

值得注意的点

自动 margin 还是很实用的，可以使用的场景也很多，有一些上面提到的点还需要再强调下：

  • 块格式化上下文中margin-top 和 margin-bottom 的值如果是 auto，则他们的值都为 0

  • flex 格式化上下文中，在通过 justify-content 和 align-self 进行对齐之前，任何正处于空闲的空间都会分配到该方向的自动 margin 中去

  • 单个方向上的自动 margin 也非常有用，它的计算值为该方向上的剩余空间

  • 使用了自动 margin 的 flex 子项目，它们父元素设置的 justify-content 以及它们本身的 align-self 将不再生效

好了，本文到此结束，希望对你有帮助 :)

本文转载自：https://www.cnblogs.com/coco1s/p/10910588.html

原作者：ChokCoco
