jQuery可以制作出与Flash媲美的动画效果，这点绝对毋庸置疑，本文将通过实例演示一个左右按钮点击的图片切换效果。

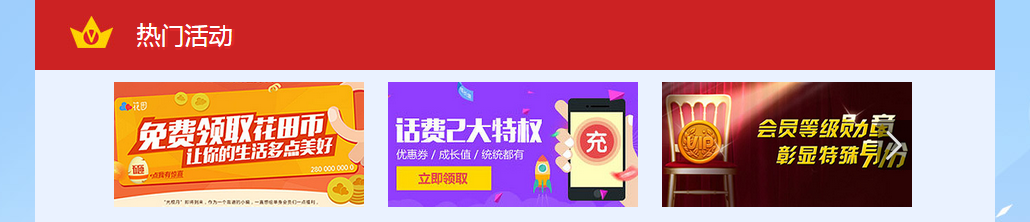

一、最终效果

二、功能分析
1、需求分析
点击左边pre按钮，显示前面三个图片，点击右边的next按钮，显示后面的一组（三个）图片。初始化只显示next按钮，到最后一组只显示pre按钮，中间过程两按钮都显示。
2、html结构分析

 <div class="activity" id="activity-slide">
  <a href="javascript:void(0)" class="pg_left ps_pre"></a>
  <a href="javascript:void(0)" class="pg_right ps_next" ></a>
   <ul class="clearfix">
   <li><a href="javascript:;"><img  src="/static/imghwm/default1.png"  data-src="images/activity01-1410.jpg"  class="lazy" alt="Implement image switching effect on left and right button clicks based on jquery_jquery" ></a></li>
   <li><a href="javascript:;"><img  src="/static/imghwm/default1.png"  data-src="images/activity02-1410.jpg"  class="lazy" alt="Implement image switching effect on left and right button clicks based on jquery_jquery" ></a></li>
   <li><a href="javascript:;"><img  src="/static/imghwm/default1.png"  data-src="images/activity03-1410.jpg"  class="lazy" alt="Implement image switching effect on left and right button clicks based on jquery_jquery" ></a></li>
   <li><a href="javascript:;"><img  src="/static/imghwm/default1.png"  data-src="images/activity03-1410.jpg"  class="lazy" alt="Implement image switching effect on left and right button clicks based on jquery_jquery" ></a></li>
   <li><a href="javascript:;"><img  src="/static/imghwm/default1.png"  data-src="images/activity02-1410.jpg"  class="lazy" alt="Implement image switching effect on left and right button clicks based on jquery_jquery" ></a></li>
  </ul>
</div>

#activity-slide是整个幻灯的入口，后面会将其作为参数来调用幻灯功能。

两个按钮ps_pre和ps_next将添加click事件响应点击切换功能。

3、功能分析
因为左右切换都是三个为一组的切换，如果li总个数不是3的倍数时，需要增加li节点填满。

//需要追加的li节点个数
var addli = 0;
//一组切换3个li
var num=3;
var lisize = a.find("ul li").size();//获取li个数

//判断需要添加的li节点数量
var reminder=lisize%num;
if(lisize%num!=0){addli = num-reminder;}
else{addli = 0;}
addlist();

上面是判断得到需要追加的个数lisize，然后调用addlist追加。

addlist如下，从ul的第一个li开始复制，需要几个就复制出几个节点追加。节点追加完毕后重新计算ul的宽度。

 function addlist(){
   for(i=0;i<addli;i++){
    var html = a.find("ul li").eq(i).html();
    a.find("ul").append("<li>"+html+"</li>");
   }
   a.find("ul").css({"width":(w_li+margin_li*2)*(lisize+addli)});
  }

现在准备工作已经完成了。接下来就是给按钮添加响应事件。在幻灯切换时涉及到左右按钮的显示和隐藏，所以先说这个按钮显示功能，将此分装成一个函数btnshow。

 /***
  参数说明：
  now:当前是第几组，默认是0
  c:总共有几组
  d:初始化时li的个数
  e:每组显示li个数
  ***/
  function btnshow(now,c,d,e){
   if(d<=e){//如果初始化时li的个数小于一组要显示的数，则不显示pre和next按钮
    a.find(".ps_next").hide();
    a.find(".ps_pre").hide();
   }else if(now==0){//初始化now=0，显示第一组，只显示next
    a.find(".ps_next").show();
    a.find(".ps_pre").hide();
   }else if(now==c-1){//显示到最后一组，只显示pre
    a.find(".ps_next").hide();
    a.find(".ps_pre").show();
   }else{//显示中间组，pre和next都需要显示
    a.find(".ps_next").show();
    a.find(".ps_pre").show();
   }
  }

接下来幻灯切换。这里a是传入的参数，也就是 #activity-slide。给它下面的所以的pre和next添加响应。

向前一组，组数now减一，now是几，就让ul的margin-left为负几倍的组宽（即3倍的（li宽度+margin宽度）），然后显示对于按钮即可。

向后滑动一组li同理。

 function photoscroll(){
   a.find(".ps_pre").on("click",function(){//console.log(num);
    now--;
    if(now >= 0){
     a.find("ul").animate({"margin-left":-now*num*(w_li+margin_li*2)});
     btnshow(now,parseInt((lisize+addli)/num),lisize,num);
    }
   });

   a.find(".ps_next").on("click",function(){//console.log(num);
    now++;
    if(now < (lisize+addli)/num){
     a.find("ul").animate({"margin-left":-now*num*(w_li+margin_li*2)});
     btnshow(now,parseInt((lisize+addli)/num),lisize,num);
    }
   });
   btnshow(now,parseInt((lisize+addli)/num),lisize,num);
  }

三、实例代码
1、用到图片

2、完整代码

<!DOCTYPE HTML>
<html>
<head>
<meta charset="utf-8">
<title></title>
<link rel="stylesheet" type="text/css" href="css/style.css">

<script>
window.onresize=function(){
 var winWidth = document.body.clientWidth;
 if(winWidth <=1180){
  body.className="grid-960";
 }else if (winWidth<= 1410){
  body.className="grid-1180";
 }else if (winWidth>1410){
  body.className="grid-1410";
 }else {
  alert("do not know!");
 }
}
</script>
</head>
<body id="body" class="">
<script>//初始化状态显示样式判断,放在body后面
var winWidth = document.body.clientWidth;
if (winWidth <=1180){
 body.className="grid-960";
}else if (winWidth<= 1410){
 body.className="grid-1180";
}else if (winWidth>1410){
 body.className="grid-1410";
}else {
 alert("do not know!");
}
</script>
<div class="wapper">

 <div class="section">
  <h2 id="热门活动">热门活动</h2>
  <div class="activity" class="movie" id="activity-slide">
   <a href="javascript:void(0)" class="pg_left ps_pre"></a>
   <a href="javascript:void(0)" class="pg_right ps_next" ></a>
   <ul class="clearfix">
    <li><a href="javascript:;"><img  src="/static/imghwm/default1.png"  data-src="images/activity01-1410.jpg"  class="lazy" alt="Implement image switching effect on left and right button clicks based on jquery_jquery" ></a></li>
    <li><a href="javascript:;"><img  src="/static/imghwm/default1.png"  data-src="images/activity02-1410.jpg"  class="lazy" alt="Implement image switching effect on left and right button clicks based on jquery_jquery" ></a></li>
    <li><a href="javascript:;"><img  src="/static/imghwm/default1.png"  data-src="images/activity03-1410.jpg"  class="lazy" alt="Implement image switching effect on left and right button clicks based on jquery_jquery" ></a></li>
    <li><a href="javascript:;"><img  src="/static/imghwm/default1.png"  data-src="images/activity03-1410.jpg"  class="lazy" alt="Implement image switching effect on left and right button clicks based on jquery_jquery" ></a></li>
    <li><a href="javascript:;"><img  src="/static/imghwm/default1.png"  data-src="images/activity02-1410.jpg"  class="lazy" alt="Implement image switching effect on left and right button clicks based on jquery_jquery" ></a></li>
   </ul>
  </div>
 </div>

</div>


</body>
</html>
<script src="http://code.jquery.com/jquery-latest.js"></script>
<script>
//首页图片滚动切换
(function($){
 $.photolist=function(a){
  var w_li = a.find("li").width();
  var h_li = a.find("li").height();
  var margin_li=parseInt(a.find("li").css("marginLeft"));
  var now = 0;
  var num = 0;
  var addli = 0;
  var lisize = a.find("ul li").size();
  var htmlall = a.find("ul").html();

  //判断每次滚动数量
  /*
  var w_body = $("body").width();
  if(w_body <=1170){
   var num = 3;
  }else if(w_body<= 1380){
   var num = 4;
  }else if(w_body>1380){
   var num = 5;
  }
  */
  var num=3;

  //判断需要添加的li节点数量
  var reminder=lisize%num;
  if(lisize%num!=0){addli = num-reminder;}
  else{addli = 0;}
  addlist();
  //点击滚动事件
  photoscroll();

  $(window).resize(function(){
   //location.reload();
   now = 0;
   addli = 0;
   a.find("ul").html(htmlall);//html内容还原初始值
   a.find(".ps_next").show();//按钮样式初始化
   a.find(".ps_pre").hide();
   //判断每次滚动数量
   /*
   var w_body = $("body").width();
   if(w_body <=1170){
    var num = 3;
   }else if(w_body<= 1380){
    var num = 4;
   }else if(w_body>1380){
    var num = 5;
   }
   */
   var num=3;
   //判断需要添加的li节点数量
   var reminder=lisize%num;
   if(lisize%num!=0){addli = num-reminder;}
   else{addli = 0;}
   addlist();
   w_li = a.find("li").width();
   margin_li=parseInt(a.find("li").css("marginLeft"));
   a.find("ul").css({"width":(w_li+margin_li*2)*(lisize+addli)});
   a.find("ul").animate({"margin-left":0});//ul位置还原
   btnshow(now,parseInt((lisize+addli)/num),lisize,num);
  });


  function addlist(){
   for(i=0;i<addli;i++){
    var html = a.find("ul li").eq(i).html();
    a.find("ul").append("<li>"+html+"</li>");
   }
   a.find("ul").css({"width":(w_li+margin_li*2)*(lisize+addli)});
   //console.log(a.find("ul li").size());
  }
  function photoscroll(){
   a.find(".ps_pre").on("click",function(){//console.log(num);
    now--;
    if(now >= 0){
     a.find("ul").animate({"margin-left":-now*num*(w_li+margin_li*2)});
     btnshow(now,parseInt((lisize+addli)/num),lisize,num);
    }
   });

   a.find(".ps_next").on("click",function(){//console.log(num);
    now++;
    if(now < (lisize+addli)/num){
     a.find("ul").animate({"margin-left":-now*num*(w_li+margin_li*2)});
     btnshow(now,parseInt((lisize+addli)/num),lisize,num);
    }
   });
   btnshow(now,parseInt((lisize+addli)/num),lisize,num);
  }
  /***
  参数说明：
  now:当前是第几组，默认是0
  c:总共有几组
  d:初始化时li的个数
  e:每组显示li个数
  ***/
  function btnshow(now,c,d,e){
   if(d<=e){//如果初始化时li的个数小于一组要显示的数，则不显示pre和next按钮
    a.find(".ps_next").hide();
    a.find(".ps_pre").hide();
   }else if(now==0){//初始化now=0，显示第一组，只显示next
    a.find(".ps_next").show();
    a.find(".ps_pre").hide();
   }else if(now==c-1){//显示到最后一组，只显示pre
    a.find(".ps_next").hide();
    a.find(".ps_pre").show();
   }else{//显示中间组，pre和next都需要显示
    a.find(".ps_next").show();
    a.find(".ps_pre").show();
   }
  }

 }
})(jQuery);
$.photolist($("#activity-slide"));
</script>

css部分：

@charset "utf-8";
body, div, h1, h2, h3, h4, h5, h6, hr, p, blockquote, dl, dt, dd, ul, ol, li, pre, code, form, fieldset, legend, button, textarea, table, tbody, tfoot, thead, th, td, article, aside, dialog, figure, footer, header, hgroup, menu, nav, section, time, mark, audio, video { margin: 0; padding: 0; outline:nonebackground:transparent;
}
article, aside, dialog, figure, footer, header, hgroup, nav, section { display: block; }
body, button, input, select, textarea { font: 12px/1.5 arial, \5b8b\4f53, sans-serif; }
h1, h2, h3, h4, h5, h6, button, input, select, textarea { font-size: 100%; outline: none }
address, cite, dfn, em, var { font-style: normal; }
code, kbd, pre, samp { font-family: courier new, courier, monospace; }
small { font-size: 12px; }
ul, ol, li { list-style: none; }
img { border: none; }
a { text-decoration: none; outline: thin none; }
a:hover { text-decoration: underline; }
table { border-collapse: collapse; border-spacing: 0; }
.clear { clear: both; }
.clearfix:after { visibility: hidden; display: block; font-size: 0; content: " "; clear: both; height: 0; }
html { -webkit-text-size-adjust: none; }
body { font: 12px/1.5 \5FAE\8F6F\96C5\9ED1, tahoma, arial, \5b8b\4f53, sans-serif; }



.grid-960 .wapper { width: 100%; min-width:960px;height: auto; margin: 0 auto; background: url(../images/bg-body-960.jpg) no-repeat center top; }
.grid-1180 .wapper { width: 100%; min-width:1180px;height: auto; margin: 0 auto; background: url(../images/bg-body-1180.jpg) no-repeat center top; }
.grid-1410 .wapper { width: 100%; min-width:1410px;height: auto; margin: 0 auto; background: url(../images/bg-body-1410.jpg) no-repeat center top; }

/*热门活动*/
.grid-960 .section { width: 960px; margin: 0 auto;background-color:#eaf2ff; }
.grid-1180 .section { width: 1180px; margin: 0 auto;background-color:#eaf2ff;}
.grid-1410 .section { width: 1410px; margin: 0 auto;background-color:#eaf2ff;}

.title{padding:0 102px;height:70px;line-height:70px;font-size:24px;font-weight:normal;color:#fff;text-shadow: 0 3px #df2828, 3px 0 #df2828;background:#cc2223 url(../images/bg-title.jpg) no-repeat left top;}

.viewall:hover{text-decoration:none;}
.viewall{font-size:18px;;color:#fff;text-shadow: 0 3px #df2828, 3px 0 #df2828;float:right;}

.grid-1410 .title {padding:0 116px;background-image:url(../images/bg-title-1410.jpg);}

.grid-960 .contentwrap{width:800px;margin:0 auto;}
.grid-1180 .contentwrap{width:980px;margin:0 auto;}
.grid-1410 .contentwrap{width:1180px;margin:0 auto;}

.grid-960 .activity{width:826px;height:152px;overflow:hidden;margin:0 auto;position:relative;}
.grid-1180 .activity{width:1020px;height:192px;overflow:hidden;margin:0 auto;position:relative;}
.grid-1410 .activity{width:1230px;height:232px;overflow:hidden;margin:0 auto;position:relative;}

.grid-960 .activity ul{height:152px;overflow:hidden;}
.grid-1180 .activity ul{height:192px;overflow:hidden;}
.grid-1410 .activity ul{height:232px;overflow:hidden;}

.activity li img{display:block;width:100%;height:100%;}
.activity li{display:block;float:left;}

.grid-960 .activity li{width:250px;height:125px;overflow:hidden;margin:12px;}
.grid-1180 .activity li{width:300px;height:150px;overflow:hidden;margin:20px;}
.grid-1410 .activity li{width:360px;height:180px;overflow:hidden;margin:25px;}
/*js切换*/
.pg_left,.pg_right {position: absolute;z-index: 999;width: 35px;height: 50px;overflow: hidden;}
.pg_right {background: transparent url(../images/pg_right.png) no-repeat scroll 5px 7px;}
.pg_right:hover {background: transparent url(../images/hover.png) no-repeat scroll 0 0;}
.grid-960 .pg_right{top:75px;right:16px;margin-top:-25px;}
.grid-1180 .pg_right{top:95px;right:20px;margin-top:-25px;}
.grid-1410 .pg_right{top:115px;right:25px;margin-top:-25px;}

.pg_left {background: transparent url(../images/pg_left.png) no-repeat scroll 5px 7px;}
.pg_left:hover {background: transparent url(../images/hover.png) no-repeat scroll right 0;}
.grid-960 .pg_left{top:75px;left:13px;margin-top:-25px;}
.grid-1180 .pg_left{top:95px;left:20px;margin-top:-25px;}
.grid-1410 .pg_left{top:115px;left:25px;margin-top:-25px;}

以上就是本文的全部内容，希望对大家的学习有所帮助。

Statement

The content of this article is voluntarily contributed by netizens, and the copyright belongs to the original author. This site does not assume corresponding legal responsibility. If you find any content suspected of plagiarism or infringement, please contact admin@php.cn

Replace String Characters in JavaScriptMar 11, 2025 am 12:07 AM

Detailed explanation of JavaScript string replacement method and FAQ This article will explore two ways to replace string characters in JavaScript: internal JavaScript code and internal HTML for web pages. Replace string inside JavaScript code The most direct way is to use the replace() method: str = str.replace("find","replace"); This method replaces only the first match. To replace all matches, use a regular expression and add the global flag g: str = str.replace(/fi

Custom Google Search API Setup TutorialMar 04, 2025 am 01:06 AM

This tutorial shows you how to integrate a custom Google Search API into your blog or website, offering a more refined search experience than standard WordPress theme search functions. It's surprisingly easy! You'll be able to restrict searches to y

Build Your Own AJAX Web ApplicationsMar 09, 2025 am 12:11 AM

So here you are, ready to learn all about this thing called AJAX. But, what exactly is it? The term AJAX refers to a loose grouping of technologies that are used to create dynamic, interactive web content. The term AJAX, originally coined by Jesse J

Example Colors JSON FileMar 03, 2025 am 12:35 AM

This article series was rewritten in mid 2017 with up-to-date information and fresh examples. In this JSON example, we will look at how we can store simple values in a file using JSON format. Using the key-value pair notation, we can store any kind

8 Stunning jQuery Page Layout PluginsMar 06, 2025 am 12:48 AM

Leverage jQuery for Effortless Web Page Layouts: 8 Essential Plugins jQuery simplifies web page layout significantly. This article highlights eight powerful jQuery plugins that streamline the process, particularly useful for manual website creation

What is 'this' in JavaScript?Mar 04, 2025 am 01:15 AM

Core points This in JavaScript usually refers to an object that "owns" the method, but it depends on how the function is called. When there is no current object, this refers to the global object. In a web browser, it is represented by window. When calling a function, this maintains the global object; but when calling an object constructor or any of its methods, this refers to an instance of the object. You can change the context of this using methods such as call(), apply(), and bind(). These methods call the function using the given this value and parameters. JavaScript is an excellent programming language. A few years ago, this sentence was

Improve Your jQuery Knowledge with the Source ViewerMar 05, 2025 am 12:54 AM

jQuery is a great JavaScript framework. However, as with any library, sometimes it’s necessary to get under the hood to discover what’s going on. Perhaps it’s because you’re tracing a bug or are just curious about how jQuery achieves a particular UI

10 Mobile Cheat Sheets for Mobile DevelopmentMar 05, 2025 am 12:43 AM

This post compiles helpful cheat sheets, reference guides, quick recipes, and code snippets for Android, Blackberry, and iPhone app development. No developer should be without them! Touch Gesture Reference Guide (PDF) A valuable resource for desig

See all articles
