Implement wavy lines and cubes with css (with code)

The content of this article is about realizing wavy lines and cubes in CSS (with code). It has certain reference value. Friends in need can refer to it. I hope it will be helpful to you.

A recent project has been able to draw a wavy line effect. Here it is achieved by using linear-gradient, that is, drawing a circle, and then using the background color to cover part of the circle;
Using the css3 attribute perspective Add rotation to realize cube 1.css to implement wavy lines

• html

<p class="card-list">
    <p class="wave-container">
        <p class="wave"></p>
        <!-- 实现波浪线的p -->
        <p class="wave-left-decorate"></p>
        <p class="wave-right-decorate"></p>
    </p>
</p>

• css

.card-list{
    display: flex;
    padding: 20px;
    width: 100%;
}
.wave-container{
    position: relative;
    margin-right: 28px;
    width: 20%;
}
.wave{
    width: 100%;
    height: 90px;
    background: linear-gradient(to right, rgb(85, 181, 255), rgb(207, 224, 232));
}
/* 波浪线 */
.wave-left-decorate{
    position: absolute;
    top: -4px;
    width: 90px;
    height: 8px;
    transform-origin: center left;
    transform: rotate(90deg);
    background: radial-gradient(circle, #fff 2px, #fff, transparent 3px, transparent 4px, transparent 4px, transparent);
    background-size: 8px 8px;
}

• Rendering

2. Implement cube

• html file

<p class="content">
    <p class="leftContent">
        <p class="leftContentItem">
            <p class="itemImg">
                <img class="leftContentImg lazy"  src="/static/imghwm/default1.png"  data-src="images/rabbit.jpg"    alt=""/>
                <img class="leftContentImg lazy"  src="/static/imghwm/default1.png"  data-src="images/rabbit.jpg"    alt=""/>
                <img class="leftContentImg lazy"  src="/static/imghwm/default1.png"  data-src="images/rabbit.jpg"    alt=""/>
                <img class="leftContentImg lazy"  src="/static/imghwm/default1.png"  data-src="images/rabbit.jpg"    alt=""/>
                <img class="leftContentImg lazy"  src="/static/imghwm/default1.png"  data-src="images/rabbit.jpg"    alt=""/>
                <img class="leftContentImg lazy"  src="/static/imghwm/default1.png"  data-src="images/rabbit.jpg"    alt=""/>
            </p>
        </p>
    </p>
</p>

• css file

.content{
    position: relative;
    display: flex;
    margin: 0 auto;
    padding-top: 50px;
    width: 1200px;
    height: 380px;
    background: url(../images/bg2.jpg) no-repeat;
    background-size: 1200px 100%;
}
.content .leftContent{
    margin-right: 25px;
    padding-left: 45px;
    padding-bottom: 30px;
    box-sizing: border-box;
}
/* 旋转的图片 */
.content .leftContent .leftContentItem{
    width: 350px;
    height: 350px;
    /* 设置景深 */
    perspective: 1000px;
    /* 设置背景颜色在中间为椭圆形 */
    /*background: radial-gradient(ellipse at center, #430d6d 0%, #000 100%);*/
}
.leftContent .leftContentItem .itemImg{
    position: absolute;
    left: 20%;
    top: 20%;
    width: 200px;
    height: 200px;
    /* 实现3D呈现 */
    transform-style: preserve-3d;
    transform: rotateX(-20deg) rotateY(-20deg);
    -webkit-animation: 6s imgRotate linear infinite;
    -o-animation: 6s imgRotate linear infinite;
    animation: 6s imgRotate linear infinite;
}
.leftContent .leftContentItem .itemImg *{
    position: absolute;
    width: 100%;
    height: 100%;
    box-shadow: 0 0 25px rgba(0, 128, 0, .4);
}
.leftContentItem .itemImg .leftContentImg{
    position: absolute;
    width: 100%;
    height: 100%;
}
/* 分别对各个面进行旋转、平移操作 */
.leftContentItem .itemImg .leftContentImg:nth-child(1){
    transform: translateZ(100px);
}
.leftContentItem .itemImg .leftContentImg:nth-child(2){
    transform: rotateX(180deg) translateZ(100px);
}
.leftContentItem .itemImg .leftContentImg:nth-child(3){
    transform: rotateY(-90deg) translateZ(100px);
}
.leftContentItem .itemImg .leftContentImg:nth-child(4){
    transform: rotateY(90deg) translateZ(100px);
}
.leftContentItem .itemImg .leftContentImg:nth-child(5){
    transform: rotateX(90deg) translateZ(100px);
}
.leftContentItem .itemImg .leftContentImg:nth-child(6){
    transform: rotateX(-90deg) translateZ(100px);
}
@-webkit-keyframes imgRotate {
    from{
        transform: translateZ(-100px) rotateX(0) rotateY(0);
    }
    to{
        transform: translateZ(-100px) rotateX(360deg) rotateY(360deg);
    }
}

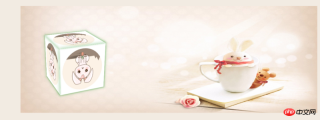

• Rendering




• The main thing is to set the depth of field perspective, and then rotate and translate each surface

The content of this article is about css Realizing wavy lines and cubes (with code) has certain reference value. Friends in need can refer to CSS3 video tutorial, I hope it will be helpful to you.

The above is the detailed content of Implement wavy lines and cubes with css (with code). For more information, please follow other related articles on the PHP Chinese website!
