Detailed analysis of Node timer

JavaScript runs in a single thread, and asynchronous operations are particularly important. This article mainly introduces you to the relevant knowledge of Node timer. As long as you use functions other than the engine, you need to interact with the outside to form asynchronous operations. Because there are so many asynchronous operations, JavaScript has to provide a lot of asynchronous syntax.

Node’s asynchronous syntax is more complicated than that of a browser, because it can talk to the kernel, and a special library libuv has to be built to do this. This library is responsible for the execution time of various callback functions. After all, asynchronous tasks must eventually return to the main thread and be queued for execution one by one.

In order to coordinate asynchronous tasks, Node actually provides four timers so that tasks can run at specified times.

• setTimeout()

• setInterval()

• setImmediate()

• process.nextTick()

The first two are language standards, and the last two are unique to Node. They are written in similar ways and have similar functions, so it is not easy to distinguish them.

Can you tell me the result of running the following code?

// test.js
setTimeout(() => console.log(1));
setImmediate(() => console.log(2));
process.nextTick(() => console.log(3));
Promise.resolve().then(() => console.log(4));
(() => console.log(5))();

The running results are as follows.

$ node test.js

If you can get it right right away, you may not need to read any more. This article explains in detail how Node handles various timers, or more broadly, how the libuv library arranges asynchronous tasks to be executed on the main thread.

1. Synchronous tasks and asynchronous tasks

First of all, synchronous tasks are always executed earlier than asynchronous tasks.

In the previous piece of code, only the last line is a synchronization task, so it is executed earliest.

(() => console.log(5))();

2. This cycle and the second cycle

Asynchronous tasks can be divided into two types.

Add asynchronous tasks in this cycle
Add asynchronous tasks in the second cycle

The so-called "loop" refers to the event loop. This is how the JavaScript engine handles asynchronous tasks, which will be explained in detail later. Just understand here that this cycle must be executed earlier than the second cycle.

Node stipulates that the callback functions of process.nextTick and Promise are appended to this cycle, that is, once the synchronization tasks are completed, they will be executed. The callback functions of setTimeout, setInterval, and setImmediate are added in the second cycle.

This means that the third and fourth lines of the code at the beginning of the article must be executed earlier than the first and second lines.

// 下面两行，次轮循环执行
setTimeout(() => console.log(1));
setImmediate(() => console.log(2));
// 下面两行，本轮循环执行
process.nextTick(() => console.log(3));
Promise.resolve().then(() => console.log(4));

3. process.nextTick()

The name process.nextTick is a bit misleading. It is executed in this cycle and is the fastest among all asynchronous tasks.

#After Node has executed all synchronization tasks, it will then execute the task queue of process.nextTick. So, the following line of code is the second output.

process.nextTick(() => console.log(3));

Basically, if you want an asynchronous task to execute as fast as possible, use process.nextTick.

4. Microtasks

According to the language specifications, the callback function of the Promise object will enter the "microtask" queue in the asynchronous task.

The microtask queue is appended to the process.nextTick queue and also belongs to this cycle. Therefore, the following code always outputs 3 first and then 4.

process.nextTick(() => console.log(3));
Promise.resolve().then(() => console.log(4));
// 3
// 4

Note that the next queue will not be executed until the previous queue is completely emptied.

process.nextTick(() => console.log(1));
Promise.resolve().then(() => console.log(2));
process.nextTick(() => console.log(3));
Promise.resolve().then(() => console.log(4));
// 1
// 3
// 2
// 4

In the above code, all process.nextTick callback functions will be executed earlier than Promise.

At this point, the execution sequence of this cycle is finished.

同步任务
process.nextTick()
微任务

5. The concept of event loop

The following begins to introduce the execution sequence of the second round of loops. This requires understanding what an event loop is.

First of all, some people think that in addition to the main thread, there is a separate event loop thread. That's not the case, there is only one main thread, and the event loop is completed on the main thread.

Secondly, when Node starts executing the script, it will initialize the event loop first, but the event loop has not started yet, and the following things will be completed first.

• Synchronous tasks

• Issue an asynchronous request

• Plan the time when the timer takes effect

Execute process.nextTick() and so on

Finally, after all the above things are done, the event loop officially begins.

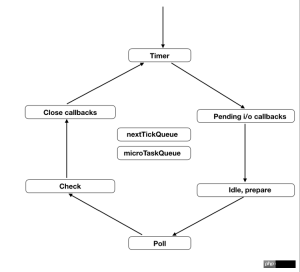

6. Six stages of event loop

The event loop will be executed infinitely, round after round. Execution will stop only when the callback function queue of the asynchronous task is cleared.

Each round of event loop is divided into six stages. These stages are executed sequentially.

timers
I/O callbacks
idle, prepare
poll
check
close callbacks

Each stage has A first-in, first-out queue of callback functions. Only when the callback function queue of one stage is cleared and all callback functions that should be executed are executed, will the event loop enter the next stage.

下面简单介绍一下每个阶段的含义，详细介绍可以看官方文档，也可以参考 libuv 的源码解读。

（1）timers

这个是定时器阶段，处理setTimeout()和setInterval()的回调函数。进入这个阶段后，主线程会检查一下当前时间，是否满足定时器的条件。如果满足就执行回调函数，否则就离开这个阶段。

（2）I/O callbacks

除了以下操作的回调函数，其他的回调函数都在这个阶段执行。

• setTimeout()和setInterval()的回调函数

• setImmediate()的回调函数

• 用于关闭请求的回调函数，比如socket.on('close', ...)

（3）idle, prepare

该阶段只供 libuv 内部调用，这里可以忽略。

（4）Poll

这个阶段是轮询时间，用于等待还未返回的 I/O 事件，比如服务器的回应、用户移动鼠标等等。

这个阶段的时间会比较长。如果没有其他异步任务要处理（比如到期的定时器），会一直停留在这个阶段，等待 I/O 请求返回结果。

（5）check

该阶段执行setImmediate()的回调函数。

（6）close callbacks

该阶段执行关闭请求的回调函数，比如socket.on('close', ...)。

七、事件循环的示例

下面是来自官方文档的一个示例。

const fs = require('fs');
const timeoutScheduled = Date.now();
// 异步任务一：100ms 后执行的定时器
setTimeout(() => {
 const delay = Date.now() - timeoutScheduled;
 console.log(`${delay}ms`);
}, 100);
// 异步任务二：至少需要 200ms 的文件读取
fs.readFile('test.js', () => {
 const startCallback = Date.now();
 while (Date.now() - startCallback <p>上面代码有两个异步任务，一个是 100ms 后执行的定时器，一个是至少需要 200ms 的文件读取。请问运行结果是什么？</p><p><img src="/static/imghwm/default1.png" data-src="https://img.php.cn/upload/article/000/054/025/bb879731f400b02eba47769ebd3f65e1-4.jpg?x-oss-process=image/resize,p_40" class="lazy" title="" alt=""></p><p>脚本进入第一轮事件循环以后，没有到期的定时器，也没有已经可以执行的 I/O 回调函数，所以会进入 Poll 阶段，等待内核返回文件读取的结果。由于读取小文件一般不会超过 100ms，所以在定时器到期之前，Poll 阶段就会得到结果，因此就会继续往下执行。</p><p>第二轮事件循环，依然没有到期的定时器，但是已经有了可以执行的 I/O 回调函数，所以会进入 I/O callbacks 阶段，执行fs.readFile的回调函数。这个回调函数需要 200ms，也就是说，在它执行到一半的时候，100ms 的定时器就会到期。但是，必须等到这个回调函数执行完，才会离开这个阶段。</p><p>第三轮事件循环，已经有了到期的定时器，所以会在 timers 阶段执行定时器。最后输出结果大概是200多毫秒。</p><p>八、setTimeout 和 setImmediate</p><p>由于setTimeout在 timers 阶段执行，而setImmediate在 check 阶段执行。所以，setTimeout会早于setImmediate完成。</p><pre class="brush:php;toolbar:false">setTimeout(() => console.log(1));
setImmediate(() => console.log(2));

上面代码应该先输出1，再输出2，但是实际执行的时候，结果却是不确定，有时还会先输出2，再输出1。

这是因为setTimeout的第二个参数默认为0。但是实际上，Node 做不到0毫秒，最少也需要1毫秒，根据官方文档，第二个参数的取值范围在1毫秒到2147483647毫秒之间。也就是说，setTimeout(f, 0)等同于setTimeout(f, 1)。

实际执行的时候，进入事件循环以后，有可能到了1毫秒，也可能还没到1毫秒，取决于系统当时的状况。如果没到1毫秒，那么 timers 阶段就会跳过，进入 check 阶段，先执行setImmediate的回调函数。

但是，下面的代码一定是先输出2，再输出1。

const fs = require('fs');
fs.readFile('test.js', () => {
 setTimeout(() => console.log(1));
 setImmediate(() => console.log(2));
});

上面代码会先进入 I/O callbacks 阶段，然后是 check 阶段，最后才是 timers 阶段。因此，setImmediate才会早于setTimeout执行。
