Example sharing of drawing 3d pie chart with highCharts in Vue

This article mainly introduces you to an example of drawing a 3D pie chart in Vue with highCharts. Highcharts is a well-known foreign chart library based on JavaScript. Since the configuration of using highcharts in Vue on the Chinese official website is cumbersome and requires the introduction of jquery as a dependency, it is deprecated. Hope this article can help everyone.
Next, let me give you a brief introduction to the use and configuration of highcharts in vue.

首先使用 npm在你的项目中安装vue-highcharts

npm install vue-highcharts --save

由于vue-highcharts依赖于highcharts，我们还需要安装后者

npm install highcharts --save

After the installation is completed, enter the project main.js for configuration:

import highcharts from 'highcharts'
import VueHighCharts from 'vue-highcharts'

引入以上两项之后，因为我们需要使用3d图表，还需要引入：

import highcharts3d from 'highcharts/highcharts-3d'

调用3d图表：

highcharts3d(highcharts)

OK, so far highcharts has been configured in vue. Next, draw a 3d pie chart according to the API
Create a pie chart component:

<template>
<p>
    </p>
<p></p>

</template>
<script>
import HighCharts from &#39;highcharts&#39;
export default {
    props: {
        id: {
            type: String
        },
            //option 是图表的配置数据
        option: {
            type: Object
        }
    },
    mounted() {
        HighCharts.chart(this.id, this.option)
    }
}
</script>

<style>
/* 容器 */
.container {
width: 1000px;
height: 550px;
}
</style>

Configure the option data in the page where the pie chart needs to be used

<template>
    <p>
        <pie></pie>
    </p>

</template>

<script>
import pie from &#39;../components/pie&#39;
import manes from &#39;../components/list&#39;
export default {
    components: {
        pie,
    },
    data() {
        return {
            id: &#39;test&#39;,
            option: {
                chart: {
                    type: &#39;pie&#39;,//饼图
                     options3d: {
                         enabled: true,//使用3d功能
                         alpha: 60,//延y轴向内的倾斜角度
                         beta: 0,
                     }
                },
                title: {
                    text: &#39;测试用&#39;//图表的标题文字
                },
                subtitle: {
                    text: &#39;&#39;//副标题文字
                },

            plotOptions: {
                pie: {
                    allowPointSelect: true,//每个扇块能否选中
                    cursor: &#39;pointer&#39;,//鼠标指针
                    depth: 35,//饼图的厚度
                    dataLabels: {
                        enabled: true,//是否显示饼图的线形tip
                    }
                }
            },
                series: [
                {
                    type: &#39;pie&#39;,
                    name: &#39;测试用1&#39;,//统一的前置词,非必须
                    data: [
                        [&#39;测试1&#39;,12],//模块名和所占比，也可以{name: &#39;测试1&#39;,y: 12}
                        [&#39;测试2&#39;,23],
                        [&#39;测试3&#39;,19],
                        [&#39;测试4&#39;,29]
                    ]
                 }
                ]
            }
        }
    },

}
</script>

<style>

</style>

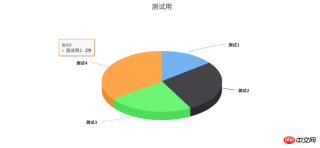

See the effect.

More configuration instructions can be viewed on the Chinese official website https://www.hcharts.cn/
