Detailed graphic explanation of the principle of iptables in Linux

黄舟
黄舟Original
2017-07-26 16:00:092555browse

, netfilter and iptables


(1) Netfilter is a Linux 2.4 kernel firewall framework proposed by Rusty Russell. The framework is both simple and flexible and can implement security policies. Many features in the application, such as packet filtering, packet processing, address masquerading, transparent proxy, dynamic Network Address Translation (NAT), and filtering based on user and Media Access Control (MAC) addresses and state-based filtering, packet rate limiting, etc. These rules of Iptables/Netfilter can be flexibly combined to form a large number of functions, covering all aspects, all thanks to its excellent design ideas.

Netfilter is a packet processing module within the core layer of the Linux operating system. It has the following functions:

  • Network Address Translate

  • Data packet content modification

  • Packet filtering firewall

 (2) Data packets are formulated in the Netfilter platform Five mount points (Hook Point, we can understand it as a callback function point. When the data packet reaches these locations, our function will be actively called, giving us the opportunity to change their direction and content when the data packet is routed) , these 5 mount points are PRE_ROUTING, INPUT, OUTPUT, FORWARD, POST_ROUTING.

  (3) The rules set by Netfilter are stored in the kernel memory, and iptables is an application layer application that passes Netfilter The released interface is used to modify the XXtables (Netfilter configuration table) stored in the kernel memory. This XXtables consists of tables tables, chains chains, and rules rules. iptables is responsible for modifying this rule file at the application layer. A similar application is firewalld.




2. Four tables of filter, nat, mangle and other rules


(1) table has filter , nat, mangle and other rule tables;

 filter table

Mainly used to filter data packets and decide whether to release them based on specific rules The data packet (such as DROP, ACCEPT, REJECT, LOG). The kernel module corresponding to the filter table is iptable_filter, which contains three rule chains:

    • ##INPUT chain: INPUT targets those destinations It is a local packet

    • ##FORWARDChain: FORWARD filters all packets that are not generated locally and the destination is not local (that is, the local machine is only responsible for forwarding )

    • OUTPUT chain: OUTPUT is used to filter all locally generated packets



nat table



is mainly used to modify the IP address, port number and other information of the data packet (network address translation, such as SNAT, DNAT, MASQUERADE, REDIRECT). Packets belonging to a flow (data may be divided into multiple packets due to packet size restrictions) will only pass through this table once. If the first packet is allowed to be NAT or Masqueraded, then the remaining packets will automatically be subjected to the same operation, that is, the remaining packets will not pass through this table. The kernel module corresponding to the table is iptable_nat, which contains three chains <strong></strong>

    ##PREROUTING
      chain:
    • is used when the packet just reaches the firewall Change its destination address

      OUTPUT
    • Chain:
    • Change the destination address of locally generated packets

      POSTROUTING
    • Chain:
    • Change the source address of the packet just before it leaves the firewall

      ##

      mangle Table

Mainly used to modify the TOS (Type Of Service, service type), TTL (Time To Live, life cycle) of the data packet and set the Mark mark for the data packet to achieve Applications such as Qos (Quality Of Service) adjustment and policy routing are not widely used because they require corresponding routing equipment support. Contains five rule chains - PREROUTING, POSTROUTING, INPUT, OUTPUT, FORWARD.  raw table

                                 around over through down is a new table added to iptables since version 1.2.9. It is mainly used to determine whether the data packet is tracked by the state. Mechanism processing. When matching data packets, the rules of the raw table take precedence over other tables. Contains two rule chains - OUTPUT, PREROUTING

<strong></strong>

(2) 4 different states of data packets and 4 types of tracked connections in iptables:

    • NEW: This package wants to start a connection (reconnect or redirect the connection)

    • RELATED: This package is a new connection established by an already established connection. For example: FTP data transmission connection is the connection RELATED from the control connection. --icmp-type 0 (ping response) is RELATED by --icmp-type 8 (ping request).

    • ESTABLISHED:As long as a data connection is sent and a response is received, a data connection changes from NEW to ESTABLISHED, and the status will continue to match the connection. subsequent packets.

    • INVALIDThe data packet cannot be identified to which connection it belongs or has no status such as memory overflow, and an ICMP message indicating that it does not belong to which connection is received. The error message should generally DROP any data in this state.


##Three, INPUT, FORWARD and other rules five chains and rules


(1) When processing various data packets, iptables provides 5 default rule chains according to different intervention timings of firewall rules. Understand these chains from the perspective of application time point:

    • INPUTChain: Rules in this chain are applied when a packet is received (inbound) for the firewall's native address.

    • #OUTPUTChain: When the firewall natively When sending packets outbound (outbound), the rules in this chain are applied.

    • ##FORWARDChain: When received, it needs to pass The firewall applies the rules in this chain when it sends (forwards) packets to other addresses.

    • #PREROUTING

      Chain: is processing the data packet Rules in this chain, such as DNAT, are applied before routing.

      #POSTROUTING
    • Chain:

      is operating on the data packet After routing, the rules in this chain, such as SNAT, are applied.

(2) Among them, the INPUT and OUTPUT chains are more commonly used in the "host firewall". That is, it is mainly aimed at the security control of data entering and exiting the server itself; and the FORWARD, PREROUTING, and POSTROUTING chains are more commonly used in "network firewalls", especially when the firewall server is used as a gateway.

4. Principles of Linux Packet Routing


(1) Understand the architecture and functions of Netfilter and Iptables, and learn to control Netfilter behavior The structure of the Xtables table, so how does this Xtables table play a role in the packet routing of the kernel protocol stack?


Work flow: The network port data packet is received by the underlying network card NIC. After being unpacked by the data link layer (removing the data link frame header), it enters the TCP/IP protocol stack (essentially a The kernel driver that processes network packets) and Netfilter are mixed in the packet processing process. The process of receiving, processing, and forwarding data packets constitutes a finite state vector machine. After passing through a series of kernel processing functions and Netfilter Hook points, it is finally forwarded or digested by the upper-layer application this time.

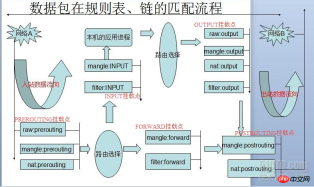

As shown in the picture:

From the above picture, we can summarize the following rules:

When a data packet enters the network card, the data packet first enters the

PREROUTING chain
    . In the PREROUTING chain we have the opportunity to modify the DestIP (destination IP) of the data packet, and then the kernel's "routing module" passes the "data packet" "Destination IP" and "routing table in the kernel" determine whether it needs to be forwarded (note that the DestIP of the data packet may have been modified by us at this time)
    • If the data packet is When entering the local machine (that is, the destination IP of the data packet is the network port IP of the local machine), the data packet will move downward along the diagram and reach the INPUT chain

      . After the packet reaches the INPUT chain, any process will - receive it
    • Programs running on this machine can also send data packets. These data packets go through the OUTPUT chain, and then reach the POSTROTING chain output(note that at this time The SrcIP of the data packet may have been modified by us)

    • If the data packet is to be forwarded (that is, the destination IP address is no longer in the current subnet), and the kernel allows forwarding , the data packet will move to the right, pass through the FORWARD chain, and then reach the POSTROUTING chain output (select the network port corresponding to the subnet to send out)

 When writing iptables rules, always keep this routing sequence diagram in mind, and flexibly configure the rules according to the different Hook points


5. IPTABLES writing rules


# command Format:

示 Example: <strong></strong>



1 iptables -I INPUT -s 0/0 -d 192.168.42.153 -p tcp -m multiport --dports 22,80,3306 -j ACCEPT   1 iptables -t filter -I INPUT -d 192.168.42.153 -p tcp --dport 80 -j ACCEPT

 1.[-t table name]

: Which table this rule operates on, you can use filter, nat, etc., if not specified, the default is filter<strong></strong><strong></strong>

    -A
      : Add a rule to the last line of the rule chain list
    • -I
    • : Insert a rule to the original rule at this position It will move backwards in sequence. If no number is specified, it will be 1
    • -D
    • : To delete a rule from the rule chain, either enter the complete rule or specify the rule number. Delete
    • -R
    • : Replace a rule. Rule replacement will not change the order, and the number must be specified.
    • -P
    • : Set the default action of a certain rule chain
    • -nL
    • :
    • -L

      , -n, view the list of currently running firewall rules


    • 2.
    chain name
: Specify which chain of the rule table, such as INPUT, OUPUT, FORWARD, PREROUTING, etc.

    [Rule number]
      : Insert Use when deleting or replacing rules,
    • --line-numbers

      display numbers

      [-i|o network card name]
    • : i is Specify which network card the data packet enters from, o specifies which network card the data packet outputs from
    • [-p protocol type]
    • : You can specify the protocol to which the rule applies , including tcp, udp and icmp, etc.
    • [-s source IP address]
    • : IP address or subnet address of the source host
    • [--sport source port number]
    • : Source port number of the IP of the packet
    • [-d destination IP address]
    • : The IP address or subnet address of the target host
    • [--dport target port number]
    • : The target port number of the IP of the data packet
    •
    3.-m

:extend matches, this option is used to provide more matching parameters, such as: <strong></strong><strong></strong>


  • ##-m state --state ESTABLISHED,RELATED

    • -m tcp --dport 22

    • -m multiport --dports 80,8080

    • -m icmp --icmp- type 8

    •
    • 4.<-j Action>

: Action to process the data packet, including ACCEPT , DROP, REJECT, etc.<strong></strong><strong></strong>


  • #ACCEPT
    • Allow the data packet to pass
    • DROP

      :
    • Drop the data packet directly without giving any response information
    • REJECT

      :
    • Reject the data packet to pass through, and will send a response message to the data sending end if necessary.
    • SNAT

      :
    • Source address translation. After entering the route at the routing level and before exiting the local network stack, the source address is rewritten, the destination address remains unchanged, and a NAT table entry is established on the local machine. When the data is returned, the destination address data is rewritten as data according to the NAT table and sent out. source address and sent to the host. Solve the problem of intranet users using the same public address to access the Internet.
    • MASQUERADE is a special form of SNAT, suitable for IPs that change temporarily like adsl

    • DNAT:Destination address translation. Contrary to SNAT, before the IP packet passes through the route, the destination address is re-modified, and the source address remains unchanged. A NAT entry is established on the local machine. When the data is returned, the source address is modified according to the NAT table to the destination address when the data was sent. Concurrently to the remote host. The real address of the backend server can be hidden. (Thanks to the netizen for pointing out that this place was written backwards with SNAT)
      REDIRECT: It is a special form of DNAT that forwards network packets to the local host (regardless of the target address specified in the IP header) What), it is convenient to do port forwarding on this machine.

    • LOG: Record log information in the /var/log/messages file and then pass the packet to the next rule

## ​​Except for the last

LOG, after the first three rules match the data packet, the data packet will not continue to match, so the order of writing the rules Extremely critical.
