Detailed explanation of the box model in CSS

1. Box model

The so-called box model treats the elements in the HTML page as a rectangular box, which is a container that holds content. Each rectangle consists of the element's content, padding, border, and margin.

The formula is expressed as: Box = border + inner margin + content area + outer margin

The innermost part of the element box Part is the actual content, and what directly surrounds the content is the padding. Padding presents the element's background. The edge of the padding is the border. Outside the border is the margin, which is transparent by default and therefore does not obscure any elements behind it.

Note: The background is applied to the area consisting of content, padding, and borders.

 ​

You can see that the background color penetrates the content area, padding area and border.

Padding, borders, and margins are all optional, and the default value is zero. However, many elements will have margins and padding set by user-agent style sheets. These browser styles can be overridden by setting the element's margin and padding to zero. This can be done individually or using a universal selector for all elements:

* {margin: 0;padding: 0;
}

In CSS, width and height refer to the width and height of the content area. Increasing padding, borders, and margins will not affect the size of the content area, but it will increase the overall size of the element's box.

2. Padding

The blank area between the border and the content area is called padding, which is defined by the padding attribute of CSS. You can use length values ​​or percentage values, but they are not allowed. Use negative values ​​(setting has no effect).

You can set the top, right, bottom, and left padding (clockwise) by using the following four separate properties.

• padding-top

• padding-right

• padding-bottom

• padding-left

For example:

padding attribute is a composite attribute

• padding:10px; means up, down, left and right They all have a padding of 10px

• padding:10px 12px; means setting a width of 10px for the top and bottom, and a width of 12px for the left and right

• padding :10px 12px 13px 14px; Set the width of the top, right, bottom and left margins respectively

• padding:10px 20px 5px; means the top margin is 10px, the left and right margins are 20px, and the bottom margin is 5px

3. Border

The border of an element is one or more lines surrounding the content and padding of the element. The CSS border property allows you to specify the style, width, and color of an element's border.

3.1. Border style

You can use the following four properties to set the styles of the top, right, bottom, and left borders respectively (clockwise)

• border-top-style

• border-right-style

• ##border-bottom-style

• border-left-style

Common border styles are: none (default), solid single solid line, dashed dotted line, dotted dotted line, double double solid line

The same border style border-style is also a composite attribute, which is the same as the inner margin padding setting

3.2, border width

You can use the following four properties to set the width of the top, right, bottom, and left borders respectively (clockwise)

• border-top-width

• border-right-width

• border-bottom-width

• border-left-width

Usually, pixel values ​​are used to represent the width of the border. Before setting the width of the border, you must set the style of the border. Otherwise, setting the width of the border has no meaning. The width of the border, border-width, is a composite attribute, and The inner margin padding settings are the same

It can also be seen from here that the background color penetrates the border of the box

3.3, border color

Same as the border style and border width, the border color can also use four properties to set the width of the top, right, bottom, and left borders respectively (clockwise)

• border-top-color

• border-right-color

• border-bottom-color

• border-left-color

Similarly, the border color border-color is also a composite property, and the setting is the same as the border style and border width

4. Margin

The blank area between the borders of elements is the margin, which is defined by the margin attribute of CSS. Any length unit, percentage value or even negative value can be used.

Similar to padding, you can set the top, right, bottom, and left margins (clockwise) by using the following four separate properties.

• margin-top

• margin-right

• margin-bottom

• margin-left

margin is also a composite attribute, set in the same way as padding.

5. Margin merging

Margin merging means that when two vertical margins meet, they will form one margin. The height of the merged margin is equal to the greater of the heights of the two merged margins.

Margin merging (overlapping) is a fairly simple concept. However, it can cause a lot of confusion when laying out web pages in practice.
Simply put, margin merging means that when two vertical margins meet, they will form one margin. The height of the merged margin is equal to the greater of the heights of the two merged margins.
When an element appears above another element, the bottom margin of the first element and the top margin of the second element will be merged. Take a look at the image below:

When an element is contained within another element (assuming there is no padding or border separating the margins), their top and /Or the bottom margin will also be merged. Take a look at the image below:

#Although it looks a little strange, margins can even merge with themselves.

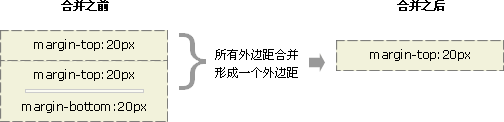

Suppose there is an empty element, which has margins, but no borders or padding. In this case, the top margin and the bottom margin meet together, and they will merge:

If this margin meets the margin of another element , it will also merge:

This is why a series of paragraph elements take up very little space, because all their margins are merged together to form a Small margins.
Margin merging may seem a bit strange at first, but in reality, it makes sense. Take, for example, a typical text page consisting of several paragraphs. The space above the first paragraph is equal to the paragraph's top margin. Without margin merging, the margins between all subsequent paragraphs will be the sum of the adjacent top and bottom margins. This means the space between paragraphs is twice as large as the top of the page. If margin merging occurs, the top and bottom margins between paragraphs are merged together so that the distances everywhere are consistent.

Note: Margin merging will only occur for the vertical margins of block boxes in normal document flow. Margins between inline boxes, floated boxes, or absolutely positioned boxes are not merged.
