Detailed explanation of code examples for getting started with HTML5 canvas (picture)

1) HTMLCanvasElement Members of object :

# #height——corresponds to the height attribute of the canvas element;

##width—— Corresponds to the width attribute of the canvas element;

# getContext()— — Return the drawing context for the canvas;

##2) Draw the rectangle:

## fillRect(x,y,w,h)——Draw a solid rectangle;

# strokeRect(x,y,w,h)——Draw a hollow rectangle;

clear

Rect(x,y,w,h)——Clear the specified rectangle;

canvas{
            border:medium double black;
            margin: 4px;
        }
        body > *{
            float: left;
        }

<canvas id="canvas1" width="500" height="200">
        您的浏览器不支持<code>canvas</code>!
    </canvas>

<script>
        //绘制矩形
        var ctx=document.getElementById("canvas1").getContext("2d");
        //ctx.fillRect(10,10,50,50);
        var offset=10;
        var size=50;
        var count=5;
        for(var i=0;i<count;i++){
            ctx.fillRect(i*(offset+size)+offset,offset,size,size);
            ctx.strokeRect(i*(offset+size)+offset,(2*offset)+size,size,size);
            ctx.clearRect(i*(offset+size)+offset,offset+5,size,size-10);
        }
    </script>

3) Set canvas drawing status:

li neWidth——Get or set the width of the line (default value is 1.0);

lineJoin——Get or set The style when the line is connected to the graphic (default value is miter);

fillStyle——Get or set for solid The style of the graphic (default value is black);

strokeStyle - Gets or sets the style used for lines (default value is black );

#

 <canvas id="canvas2" width="500" height="70">
        您的浏览器不支持<code>canvas</code>!
    </canvas>

    <script>
        //在执行操作前绘制设置状态
        var ctx=document.getElementById("canvas2").getContext("2d");
        ctx.lineWidth=2;
        ctx.strokeRect(10,10,50,50);
        ctx.lineWidth=4;
        ctx.strokeRect(70,10,50,50);
        ctx.lineWidth=6;
        ctx.strokeRect(130,10,50,50);
        ctx.lineWidth=8;
        ctx.strokeRect(200,10,50,50);
    </script>

<canvas id="canvas3" width="500" height="140">
        您的浏览器不支持<code>canvas</code>!
    </canvas>

    <script>
        //设置lineJoin属性
        var ctx=document.getElementById("canvas3").getContext("2d");
        ctx.lineWidth=20;

        ctx.lineJoin="round";
        ctx.strokeRect(20,20,100,100);
        ctx.lineJoin="bevel";
        ctx.strokeRect(160,20,100,100);
        ctx.lineJoin="miter";
        ctx.strokeRect(300,20,100,100);
    </script>

    <canvas id="canvas4" width="500" height="140">
        您的浏览器不支持<code>canvas</code>!
    </canvas>

    <script>
        //设置填充和笔触样式
        var ctx=document.getElementById("canvas4").getContext("2d");
        var offset=10;
        var size=50;
        var count=5;
        var lineWidth=3;
        var fillColors=["black","grey","lightgrey","red","blue"];
        var strokeColors=["rgb(0,0,0)","rgb(100,100,100)","rgb(200,200,200)","rgb(255,0,0)","rgb(0,0,255)"];
        for(var i=0;i<count;i++){
            ctx.fillStyle=fillColors[i];
            ctx.strokeStyle=strokeColors[i];
            ctx.fillRect(i*(offset+size)+offset,offset,size,size);
            ctx.strokeRect(i*(offset+size)+offset,(2*offset)+size,size,size);

        }
    </script>

4) Use gradient

createLinearGradient (x0,y0,x1,y1)——Create a linear gradient and return a CanvasGradient object;

createRadialGradient(x0,y0,r0,x1,y1,r1 )——Create a radial gradient and return a CanvasGradient object;

CanvasGradient object

Methods:

## addColorStop(position>,)——Add a gradient line to the gradient A solid color;

##

    <canvas id="canvas5" width="500" height="140">
        您的浏览器不支持<code>canvas</code>!
    </canvas>

rrree

    <canvas id="canvas6" width="500" height="140">
        您的浏览器不支持<code>canvas</code>!
    </canvas>

    <script>
        //使用径向渐变
        var ctx=document.getElementById("canvas6").getContext("2d");
        var grad=ctx.createRadialGradient(250,70,20,200,60,100);
        grad.addColorStop(0,"red");
        grad.addColorStop(0.5,"white");
        grad.addColorStop(1,"black");
        ctx.fillStyle=grad;
        ctx.fillRect(0,0,500,140);
    </script>

    <canvas id="canvas7" width="500"    style="max-width:90%">
        您的浏览器不支持<code>canvas</code>!
    </canvas>

    <script>
        //使用较小的图形和径向渐变
        var ctx=document.getElementById("canvas7").getContext("2d");
        var grad=ctx.createRadialGradient(250,70,20,200,60,100);
        grad.addColorStop(0,"red");
        grad.addColorStop(0.5,"white");
        grad.addColorStop(1,"black");
        ctx.fillStyle=grad;
        ctx.fillRect(150,20,75,50);
        ctx.lineWidth=8;
        ctx.strokeStyle=grad;
        ctx.strokeRect(250,20,75,50);
    </script>

5）使用图案

   createPattern(,int2)——创建图案，指定图案文件的来源和重复方式；

  int2的值是指定重复样式：分别有repeat、repeat-x、repeat-y、no-repeat;

    <canvas id="canvas8" width="500" height="150">
        您的浏览器不支持<code>canvas</code>!
    </canvas>
    <img  src="/static/imghwm/default1.png"  data-src="images/banana-small.png"  class="lazy"  id="banana" hidden / alt="Detailed explanation of code examples for getting started with HTML5 canvas (picture)" >

    <script>
        //使用图像类的图案
        var ctx=document.getElementById("canvas8").getContext("2d");
        var imageElem=document.getElementById("banana");
        var pattern=ctx.createPattern(imageElem,"repeat");
        ctx.fillStyle=pattern;
        ctx.fillRect(0,0,500,148);
    </script>

6)保存和恢复状态

 save()——保存绘制状态属性的值，并把它们推入状态栈；

 restore()——取出状态栈的第一组值，用它们来设置绘制状态；

    <canvas id="canvas9" width="500" height="150" preload="auto">
        您的浏览器不支持<code>canvas</code>!
    </canvas>
    <p>
        <button>Save</button>
        <button>Restore</button>
    </p>

    <script>
        //保存和恢复状态
        var ctx=document.getElementById("canvas9").getContext("2d");
        var grad=ctx.createLinearGradient(500,0,500,140);
        grad.addColorStop(0,"red");
        grad.addColorStop(0.5,"white");
        grad.addColorStop(1,"black");
        var colors=["black",grad,"red","green","yellow","black","grey"];
        var cIndex=0;
        ctx.fillStyle=colors[cIndex];
        draw();
        var buttons=document.getElementsByTagName("button");
        for(var i=0;i<buttons.length;i++){
            buttons[i].onclick=handleButtonPress;
        }
        function handleButtonPress(e){
            switch(e.target.innerHTML){
                case &#39;Save&#39;:
                    ctx.save();
                    cIndex=(cIndex+1)%colors.length;
                    ctx.fillStyle=colors[cIndex];
                    draw();
                    break;
                case &#39;Restore&#39;:
                    cIndex=Math.max(0,cIndex-1);
                    ctx.restore();
                    draw();
                    break;
            }
        }
        function draw(){
            ctx.fillRect(0,0,500,140);
        }
    </script>

7）绘制图像

  drawImage方法——在画布上绘制图像，指定一个img、canvas或video元素作为来源；

    <canvas id="canvas10" width="500" height="150" preload="auto">
        您的浏览器不支持<code>canvas</code>!
    </canvas>
    <img  src="/static/imghwm/default1.png"  data-src="images/banana-small.png"  class="lazy"  id="banana2" hidden / alt="Detailed explanation of code examples for getting started with HTML5 canvas (picture)" >

    <script>
        //使用drawImage方法
        var ctx2=document.getElementById("canvas10").getContext("2d");
        var imageElement=document.getElementById("banana2");
        ctx2.drawImage(imageElement,10,10);
        ctx2.drawImage(imageElement,120,10,100,120);
        ctx2.drawImage(imageElement,20,20,100,50,250,10,100,120);
    </script>

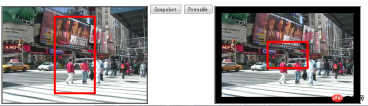

    <video id="vid" src="raw/timessquare.webm" controls preload="auto" width="360"    style="max-width:90%">
        您的浏览器不支持；
    </video>
    <canvas id="canvas11" width="360" height="240">
        您的浏览器不支持；
    </canvas>
    <p>
        <button id="pressme">Snapshot</button>
        <button id="pressme2">PressMe</button>
    </p>
    <canvas id="canvas12" width="360" height="240">
        您的浏览器不支持；
    </canvas>

    <script>
        //使用视频作为drawImage方法的来源
        var ctx3=document.getElementById("canvas11").getContext("2d");
        var imageElement3=document.getElementById("vid");
        document.getElementById("pressme").onclick=function(e){
            ctx3.drawImage(imageElement3,0,0,360,240);
        }
        var width=100;
        var height=10;
        ctx3.lineWidth=5;
        ctx3.strokeStyle="red";
        setInterval(function(){
            ctx3.drawImage(imageElement3,0,0,360,240);
            ctx3.strokeRect(180-(width/2),120-(height/2),width,height);
        },25);
        setInterval(function(){
            width=(width-1)%200;
            height=(height+3)%200;
        },100);
    </script>
    <script>
        //将画布作为drawImage方法的来源
        var srcCanvasElement=document.getElementById("canvas11");
        var ctx4=srcCanvasElement.getContext("2d");
        var ctx5=document.getElementById("canvas12").getContext("2d");
        var imageElement4=document.getElementById("vid");
        document.getElementById("pressme2").onclick=takeSnapshot;
        var width=100;
        var height=10;
        ctx4.lineWidth=5;
        ctx4.strokeStyle="red";
        ctx5.lineWidth=30;
        ctx5.strokeStyle="black";
        setInterval(function(){
            ctx4.drawImage(imageElement4,0,0,360,240);
            ctx4.strokeRect(180-(width/2),120-(height/2),width,height);
        },25);
        setInterval(function(){
            width=(width+1)%200;
            height=(height+3)%200;
        },100);
        function takeSnapshot(){
            ctx5.drawImage(srcCanvasElement,0,0,360,240);
            ctx5.strokeRect(0,0,360,240);
        }
    </script>
