Detailed introduction to file upload in HTML5 applications

黄舟Original: 2017-03-27 16:39:212264browse

This article mainly introduces the file upload of HTML5 applications. The editor thinks it is quite good, so I will share it with you now and give it as a reference. Let’s follow the editor to take a look.

For a long time, developers have been troubled by this problem. Most of them have adopted flash as a solution to solve this problem. However, flash is not a panacea because the flash version is divided into The resulting problems sometimes turn into nightmares. Some websites use the enctype=multipart/form-data attribute of the form tag, but this attribute requires the server to make special settings to display progress, and it is also complex. Complexity means errors are prone to occur. This is not what we want.

Now let’s take a look at why Html5 can solve this problem and how well it can do it.

Uploading files with HTML5

In the HTML5 standard, the XMLHttpRequest object is redefined and is called "XMLHttpRequest Level 2", which contains The following 5 new features have been added:

1. Support uploading and downloading byte streams, such as files, blobs and form data

2. Added progress events in uploading and downloading

3. Support for cross-domain requests

4. Allow sending anonymous requests (that is, do not send the Referer part of HTTP)

5. Allow setting the timeout of the request

In this tutorial, we will focus on the first and second features, especially the second one - which provides the upload progress we want. Unlike the previous solution, this solution does not require special server settings, so you can try it out while watching the tutorial.

Detailed introduction to file upload in HTML5 applications

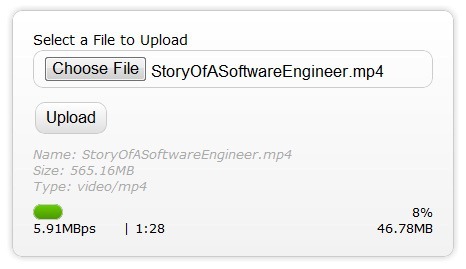

The above diagram shows what we can achieve:

1. Display the uploaded file information, such as File name, type, size

2, a progress bar that can show the real progress

3, upload speed

4, estimate of remaining time

5. The amount of uploaded data

6. The response returned by the server after the upload is completed

In addition, with XMLHttpRequest, our entire upload process is asynchronous, so the user is uploading the file At this time, you can still operate other elements in the web page, and there is no need to wait for the upload to be completed. After the upload is completed, we can get the response sent back by the server, so the entire upload process seems quite logical.

HTML5’s progress event

HTML5 has added a new progress event (Progress Events). This event provides us with the following information:

1. total – file size

2. loaded – uploaded size

3. lengthComputable – whether the progress can be calculated

Not much information , but it is sufficient for calculating file progress. Of course, there are a lot of things that it doesn't give directly, which is a pity.

HTML

is not much different from ordinary file upload code. However, note that the input tag is associated with a JavaScript function on change.

 <!DOCTYPE html>
<html>
<head>
    <title>使用XMLHttpRequest上传文件</title>
</head>
<body>
<form id="form1" enctype="multipart/form-data" method="post" action="upload.php">
<p class="row">
      <label for="fileToUpload">Select a File to Upload</label>
<input type="file" name="fileToUpload" id="fileToUpload" onchange="fileSelected();"/>
    </p>
<p id="fileName"></p>
<p id="fileSize"></p>
<p id="fileType"></p>
<p class="row">
<input type="button" onclick="uploadFile()" value="Upload" />
    </p>
<p id="progressNumber"></p>
</form>

</body>
</html>

JavaScript

Once we use input in HTML, we can get a FileList object in JS code . This object is part of the newly added file API in HTML5. Each FileList object is a collection of file objects, and the file objects have the following attributes:

1, name – file name (not Contains the path)

2. type – the MIME type of the file (lowercase)

3. size – the size of the file (in bytes)

This is what we needs. Of course, there is a FileReader object in HTML5, but we don't use it here. Now, through the above three contents, we have been able to control the file size and file type uploaded by users, so as to reduce the pressure on the server when detecting again and improve the security factor.

 function fileSelected() {
  var file = document.getElementById(&#39;fileToUpload&#39;).files[0];
  if (file) {
    var fileSize = 0;
    if (file.size > 1024 * 1024)
      fileSize = (Math.round(file.size * 100 / (1024 * 1024)) / 100).toString() + &#39;MB&#39;;
    else
      fileSize = (Math.round(file.size * 100 / 1024) / 100).toString() + &#39;KB&#39;;

    document.getElementById(&#39;fileName&#39;).innerHTML = &#39;Name: &#39; + file.name;
    document.getElementById(&#39;fileSize&#39;).innerHTML = &#39;Size: &#39; + fileSize;
    document.getElementById(&#39;fileType&#39;).innerHTML = &#39;Type: &#39; + file.type;
  }
}

So what happens when the user selects the file and clicks to upload it?

 function uploadFile() {
  var xhr = new XMLHttpRequest();
  var fd = document.getElementById(&#39;form1&#39;).getFormData();

  /* event listners */
  xhr.upload.addEventListener("progress", uploadProgress, false);
  xhr.addEventListener("load", uploadComplete, false);
  xhr.addEventListener("error", uploadFailed, false);
  xhr.addEventListener("abort", uploadCanceled, false);
  /* Be sure to change the url below to the url of your upload server side script */
  xhr.open("POST", "upload.php");
  xhr.send(fd);
}

function uploadProgress(evt) {
  if (evt.lengthComputable) {
    var percentComplete = Math.round(evt.loaded * 100 / evt.total);
    document.getElementById(&#39;progressNumber&#39;).innerHTML = percentComplete.toString() + &#39;%&#39;;
  }
  else {
    document.getElementById(&#39;progressNumber&#39;).innerHTML = &#39;unable to compute&#39;;
  }
}

function uploadComplete(evt) {
  /* This event is raised when the server send back a response */
  alert(evt.target.responseText);
}

function uploadFailed(evt) {
  alert("There was an error attempting to upload the file.");
}

function uploadCanceled(evt) {
  alert("The upload has been canceled by the user or the browser dropped the connection.");
}

In the second line of code, our JS code uses another new object introduced by HTML5-FormData. The FormData object is a collection of user form data. It stores form data in the form of key-value pairs, and its values can include numbers, strings, and files. We submit data to the server by tossing this object.

Of course, we can also construct this object manually in the code, for example like this:

var fd = new FormData();
fd.append("author", "Shiv Kumar");
fd.append("name", "Html 5 File API/FormData");
fd.append("fileToUpload", document.getElementById(&#39;fileToUpload&#39;).files[0]);

Back to the topic. Looking back at the previous code, we added many event listeners related to XMLHttpRequest, the purpose of which is to obtain the real situation of file upload. It is particularly important to note that what we are hooking is not XMLHttpRequest itself, but its attributes, such as uploadProgress.

Complete code

Finally, let’s take a look at the complete code.

 <!DOCTYPE html>
<html>
<head>
    <title>Upload Files using XMLHttpRequest - Minimal</title>

    <script type="text/javascript">
      function fileSelected() {
        var file = document.getElementById(&#39;fileToUpload&#39;).files[0];
        if (file) {
          var fileSize = 0;
          if (file.size > 1024 * 1024)
            fileSize = (Math.round(file.size * 100 / (1024 * 1024)) / 100).toString() + &#39;MB&#39;;
          else
            fileSize = (Math.round(file.size * 100 / 1024) / 100).toString() + &#39;KB&#39;;

          document.getElementById(&#39;fileName&#39;).innerHTML = &#39;Name: &#39; + file.name;
          document.getElementById(&#39;fileSize&#39;).innerHTML = &#39;Size: &#39; + fileSize;
          document.getElementById(&#39;fileType&#39;).innerHTML = &#39;Type: &#39; + file.type;
        }
      }

      function uploadFile() {
        var fd = new FormData();
        fd.append("fileToUpload", document.getElementById(&#39;fileToUpload&#39;).files[0]);
        var xhr = new XMLHttpRequest();
        xhr.upload.addEventListener("progress", uploadProgress, false);
        xhr.addEventListener("load", uploadComplete, false);
        xhr.addEventListener("error", uploadFailed, false);
        xhr.addEventListener("abort", uploadCanceled, false);
        xhr.open("POST", "UploadMinimal.aspx");
        xhr.send(fd);
      }

      function uploadProgress(evt) {
        if (evt.lengthComputable) {
          var percentComplete = Math.round(evt.loaded * 100 / evt.total);
          document.getElementById(&#39;progressNumber&#39;).innerHTML = percentComplete.toString() + &#39;%&#39;;
        }
        else {
          document.getElementById(&#39;progressNumber&#39;).innerHTML = &#39;unable to compute&#39;;
        }
      }

      function uploadComplete(evt) {
        /* This event is raised when the server send back a response */
        alert(evt.target.responseText);
      }

      function uploadFailed(evt) {
        alert("There was an error attempting to upload the file.");
      }

      function uploadCanceled(evt) {
        alert("The upload has been canceled by the user or the browser dropped the connection.");
      }
    </script>
</head>
<body>
<form id="form1" enctype="multipart/form-data" method="post" action="upload.php">
<p class="row">
      <label for="fileToUpload">Select a File to Upload</label>
<input type="file" name="fileToUpload" id="fileToUpload" onchange="fileSelected();"/>
    </p>
<p id="fileName"></p>
<p id="fileSize"></p>
<p id="fileType"></p>
<p class="row">
<input type="button" onclick="uploadFile()" value="Upload" />
    </p>
<p id="progressNumber"></p>
</form>

</body>
</html>

我们的任务完成了吗？可以说完成了，因为这段代码已经能够完成上传文件的任务，而且也能够显示上传的进度；但是理应说我们没有，因为除了这个骨架HTML之外，我们还有很多没有做的事情，比如CSS的美化等等。不过这就不是我们这篇文章的主题了。

最后，提醒一下，教程的代码应当在支持新特性的浏览器之上运行，如果你不清楚自己的浏览器是否支持，可以在这里查询。
