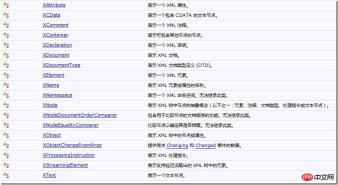

1. LINQ to XML class

Detailed introduction to graphic code based on LINQ to XML programming

The following code demonstrates how to use LINQ to XML to quickly create an xml:


Hide line number Copy code ? Create XML

public static void CreateDocument()
{
    string path = @"d:\website";

    XDocument xdoc = new XDocument(new XDeclaration("1.0", "utf-8", "yes"),
                                   new XElement("Root", "root"));

    xdoc.Save(path);
}

Running this example will get an xml file with the following content:

<?xml version="1.0" encoding="utf-8" standalone="yes"?>
<Root>root</Root>

2. XElement class

The XElement class is LINQ One of the base classes in to XML. It represents an XML element. You can use this class to create an element; change the element's content; add, change, or delete child elements; add attributes to the element; or serialize the element's content in text format. It also interoperates with other classes in System.Xml, such as XmlReader, XmlWriter, and XslCompiledTransform.

There are many ways to create xml documents using LINQ to XML. The specific method to use depends on actual needs. The simplest and most common way to create xml documents is to use the XElement class. The following code demonstrates how to use the XElement class to create an xml document:

Display line number Copy code ? This is a piece of program code.

public static void CreateCategories()
{
    string path = @"d:\website";

    XElement root = new XElement("Categories",

        new XElement("Category",

            new XElement("CategoryID", Guid.NewGuid()),

            new XElement("CategoryName", "Beverages")
            ),

        new XElement("Category",

            new XElement("CategoryID", Guid.NewGuid()),

            new XElement("CategoryName", "Condiments")

            ),

        new XElement("Category",

            new XElement("CategoryID", Guid.NewGuid()),

            new XElement("CategoryName", "Confections")

            )

       );

    root.Save(path);

}

Running this example will result in an xml file whose content is:

<?xml version="1.0" encoding="utf-8"?>
<Categories>
  <Category>
    <CategoryID>57485174-46fc-4e8c-8d98-d25b53d504a1</CategoryID>
    <CategoryName>Beverages</CategoryName>
  </Category>
  <Category>
    <CategoryID>1474dde1-8014-48f7-b093-b47ca5d5b770</CategoryID>
    <CategoryName>Condiments</CategoryName>
  </Category>
  <Category>
    <CategoryID>364224e0-e002-4939-90fc-0fd93e0cf35b</CategoryID>
    <CategoryName>Confections</CategoryName>
  </Category>
</Categories>


The XElement class contains many methods that make processing xml Got it easy. Please refer to MSDN for these methods.

Among them, Save, CreateReader, ToString and WriteTo methods are the three more commonly used methods:

Detailed introduction to graphic code based on LINQ to XML programming

3, XAttribute class

The XAttribute class is used to process the attributes of elements. Attributes are "name-value" pairs associated with elements. Each element cannot have attributes with repeated names. Using the XAttribute class is very similar to using the XElement class. The following example demonstrates how to add an attribute to an xml tree when creating it:

Display line number Copy code ? This is a piece of program code.

public static XElement CreateCategoriesByXAttribute()
{
    XElement root = new XElement("Categories",

        new XElement("Category",

            new XAttribute("CategoryID", Guid.NewGuid()),

            new XElement("CategoryName", "Beverages")

            ),

        new XElement("Category",

            new XAttribute("CategoryID", Guid.NewGuid()),

            new XElement("CategoryName", "Condiments")

            ),

        new XElement("Category",

            new XAttribute("CategoryID", Guid.NewGuid()),

            new XElement("CategoryName", "Confections")

            )
       );

    root.Save(path);

    return root;
}

Running this example will get an xml file whose content is:

<?xml version="1.0" encoding="utf-8"?>
<Categories>
  <Category CategoryID="a6d5ef04-3f83-4e00-aeaf-52444add7570">
    <CategoryName>Beverages</CategoryName>
  </Category>
  <Category CategoryID="67a168d5-6b22-4d82-9bd4-67bec88c2ccb">
    <CategoryName>Condiments</CategoryName>
  </Category>
  <Category CategoryID="17398f4e-5ef1-48da-8a72-1c54371b8e76">
    <CategoryName>Confections</CategoryName>
  </Category>
</Categories>

The XAttribute class has relatively few methods, and the three commonly used ones are:

Detailed introduction to graphic code based on LINQ to XML programming

The following example uses Remove to delete the CategoryID attribute of the first element:

Display line number Copy code ? This is a piece of program code.

public static void RemoveAttribute()
{

    XElement xdoc = CreateCategoriesByXAttribute();

    XAttribute xattr = xdoc.Element("Category").Attribute("CategoryID");

    xattr.Remove();

    xdoc.Save(path);

}

Running this example will result in an xml file with the following content:

<?xml version="1.0" encoding="utf-8"?>
<Categories>
  <Category>
    <CategoryName>Beverages</CategoryName>
  </Category>
  <Category CategoryID="5c311c1e-ede5-41e5-93f7-5d8b1d7a0346">
    <CategoryName>Condiments</CategoryName>
  </Category>
  <Category CategoryID="bfde8db5-df84-4415-b297-cd04d8db9712">
    <CategoryName>Confections</CategoryName>
  </Category>
</Categories>

As an experiment, try the following method of deleting attributes:

public static void RemoveAttributeByDoc()
{

    XElement xdoc = CreateCategoriesByXAttribute();

    XAttribute xattr = xdoc.Attribute("CategoryID");

    xattr.Remove();

    xdoc.Save(path);

}

Running this example will throw a null reference exception because the Categories element does not have a property called CategoryID.

4. XDocument class

The XDocument class provides methods for processing xml documents, including declarations, comments and processing instructions. An XDocument object can contain the following content:

Detailed introduction to graphic code based on LINQ to XML programming

#The following example creates a simple xml document that contains several elements and an attribute, as well as a processing instruction and some comments :

public static void CreateXDocument()
      {

          XDocument xdoc = new XDocument(

                  new XProcessingInstruction("xml-stylesheet", "title=&#39;EmpInfo&#39;"),

                  new XComment("some comments"),

                  new XElement("Root",

                          new XElement("Employees",

                                  new XElement("Employee",

                                          new XAttribute("id", "1"),

                                          new XElement("Name", "Scott Klein"),

                                          new XElement("Title", "Geek"),

                                          new XElement("HireDate", "02/05/2007"),

                                          new XElement("Gender", "M")

                                      )

                              )

                      ),

                  new XComment("more comments")

              );

          xdoc.Save(path);

      }


Running this example will get an xml file whose content is:

<?xml version="1.0" encoding="utf-8"?>
<?xml-stylesheet title=&#39;EmpInfo&#39;?>
<!--some comments-->
<Root>
  <Employees>
    <Employee id="1">
      <Name>Scott Klein</Name>
      <Title>Geek</Title>
      <HireDate>02/05/2007</HireDate>
      <Gender>M</Gender>
    </Employee>
  </Employees>
</Root>
<!--more comments-->

The XDocument class contains multiple methods that are the same as the XElement class. For specific content, please refer to MSDN. It should be noted that most functions for processing nodes and elements can be obtained through XElement. It is necessary to use the XDocument class only when document-level processing capabilities are absolutely required, and when access to annotations, processing instructions, and declarations is required.

After creating the xml document, you can use the NodesAfterSelf method to return all sibling elements after the specified XElement element. It should be noted that this method only returns sibling elements in the collection, not descendants. This method uses delayed execution. The following code demonstrates this process:

Display line number Copy code ? This is a piece of program code.

public static void NodesAfterSelf()
{

    XElement root = new XElement("Categories",
        new XElement("Category",
                new XElement("CategoryID", Guid.NewGuid()),
                new XElement("CategoryName", "食品"),
                new XElement("Description", "可以吃的东西")
            )
        );

    foreach (var item in root.Element("Category").Element("CategoryID").NodesAfterSelf())
    {
        Console.WriteLine((item as XElement).Value);
    }
}

2. LINQ to XML programming concepts

This section will introduce the related concepts of LINQ to XML programming, such as how to load xml, create Brand new xml, manipulate xml information and traverse xml documents.

1、加载已有的xml

使用LINQ to XML加载xml可以从多种数据源获得,例如字符串、XmlReader、TextReader或文件。

下面的示例演示了如何从文件中加载xml:

public static void LoadFromFile()
{

    XElement root = XElement.Load(path);

    Console.WriteLi


也可以使用Parse方法从一个字符串加载xml:

public static void LoadFromString()
    {

        XElement root = XElement.Parse(@"

    <Categories>

      <Category>

        <CategoryID>1</CategoryID>

        <CategoryName>Beverages</CategoryName>

        <Description>Soft drinks, coffees, teas, beers, and ales</Description>

      </Category>

    </Categories>

");

        Console.WriteLine(root.ToString());

    }

2、保存xml

在前面的示例中曾多次调用XElement对象的Save方法来保存xml文档,在这里就不冗述了。

3、创建xml

在前面的示例中曾多次调用XElement对象的构造函数来创建xml文档,在这里就不冗述了。需要说明的是,在使用LINQ to XML创建xml文档时,会有代码缩进,这使代码的可读性大大加强。

4、遍历xml

使用LINQ to XML在xml树中遍历xml是相当简单的。只需要使用XElement和XAttribute类中所提供的方法。Elements和Element方法提供了定位到某个或某些元素的方式。下面的示例演示了如何遍历xml树,并获取指定元素的方式:

public static void Enum()

{

    XElement root = new XElement("Categories");

    using (NorthwindDataContext db = new NorthwindDataContext())

    {

        root.Add(

                db.Categories

                .Select

                (

                    c => new XElement

                    (

                        "Category"

                        , new XElement("CategoryName", c.CategoryName)

                    )

                )

            );

    }

    foreach (var item in root.Elements("Category"))
    {
        Console.WriteLine(item.Element("CategoryName").Value);

    }

}

上述代码运行的结果为:

Detailed introduction to graphic code based on LINQ to XML programming

是不是很简单呢?Nodes()、Elements()、Element(name)和Elements(name)方法为xml树的导航提供了基本功能。

5、操纵xml

LINQ to XML一个重要的特性是能够方便地修改xml树,如添加、删除、更新和复制xml文档的内容。

I.插入

使用XNode类的插入方法可以方便地向xml树添加内容:

Detailed introduction to graphic code based on LINQ to XML programming

在下面的示例中,使用AddAfterSelf方法向现有xml中添加一个新节点:

public static void AddAfterSelf()

{

    XElement root = XElement.Parse(@"

        <Categories>

          <Category>

            <CategoryID>1</CategoryID>

            <CategoryName>Beverages</CategoryName>

            <Description>Soft drinks, coffees, teas, beers, and ales</Description>

          </Category>

        </Categories>

    ");

    XElement xele = root.Element("Category").Element("CategoryName");

    xele.AddAfterSelf(new XElement("AddDate", DateTime.Now));

    root.Save(path);

}

运行该示例将会得到一个xml文件,其内容为:

<?xml version="1.0" encoding="utf-8"?>

<Categories>

  <Category>

    <CategoryID>1</CategoryID>

    <CategoryName>Beverages</CategoryName>

    <AddDate>2010-01-31T03:08:51.813736+08:00</AddDate>

    <Description>Soft drinks, coffees, teas, beers, and ales</Description>

  </Category>

</Categories>

当需要添加一个元素到指定节点之前时,可以使用AddBeforeSelf方法。



II.更新

在LINQ to XML中更新xml内容可以使用以下几种方法:

Detailed introduction to graphic code based on LINQ to XML programming

在下面的示例中使用了ReplaceWith与SetElementValue方法对xml进行了更新操作:

public static void Update()
{

    XElement root = XElement.Parse(@"
                                   <Categories>
                                      <Category>
                                        <CategoryID>1</CategoryID>
                                        <CategoryName>Beverages</CategoryName>
                                        <Description>Soft drinks, coffees, teas, beers, and ales</Description>
                                      </Category>
                                    </Categories>
                                  ");

    root.Element("Category").Element("CategoryID").ReplaceWith(new XElement("ID", "2"));
    root.Element("Category").SetElementValue("CategoryName", "test data");
    root.Save(path);
}

运行该示例将会得到一个xml文件,其内容为:

<?xml version="1.0" encoding="utf-8"?>

<Categories>

  <Category>

    <ID>2</ID>

    <CategoryName>test data</CategoryName>

    <Description>Soft drinks, coffees, teas, beers, and ales</Description>

  </Category>

</Categories>

III.删除

可以使用Remove(XElement)与RemoveAll方法来删除xml。

在下面的示例中,使用了RemoveAll方法:

}
  public static void Remove()
  {
      string path = @"d:\";

      XElement root = XElement.Parse(@"
                                  <Categories>

                                    <Category>

                                      <CategoryID>1</CategoryID>

                                      <CategoryName>Beverages</CategoryName>

                                      <Description>Soft drinks, coffees, teas, beers, and ales</Description>

                                    </Category>

                                  </Categories>

                                ");

      root.RemoveAll();

      root.Save(path);

  }

运行该示例将会得到一个xml文件,其内容为:

<?xml version="1.0" encoding="utf-8"?>

<Categories />

在下面的示例中,使用了Remove方法删除了xml的Description元素:

public static void Remove()
{

    XElement root = XElement.Parse(@"
                                <Categories>
                                  <Category>
                                    <CategoryID>1</CategoryID>
                                    <CategoryName>Beverages</CategoryName>
                                    <Description>Soft drinks, coffees, teas, beers, and ales</Description>
                                  </Category>
                                </Categories>
                                ");

    root.Element("Category").Element("Description").Remove();
    root.Save(path);
}

运行该示例将会得到一个xml文件,其内容为:

<?xml version="1.0" encoding="utf-8"?>

<Categories>

  <Category>

    <CategoryID>1</CategoryID>

    <CategoryName>Beverages</CategoryName>

  </Category>

</Categories>



6、处理属性

I.添加

LINQ to XML添加属性与添加元素师类似的,可以使用构造函数或者Add方法来添加属性:

public static void AddAttribute()
{
    XElement root = new XElement("Categories",
        new XElement("Category",
            new XAttribute("CategoryID", "1"),
            new XElement("CategoryName", "Beverages"),
            new XElement("Description", "Soft drinks, coffees, teas, beers, and ales")
        )
    );

    root.Element("Category").Add(new XAttribute("AddDate", DateTime.Now.ToShortDateString()));
    root.Save(path);
}

运行该示例将会得到一个xml文件,其内容为:

<?xml version="1.0" encoding="utf-8"?>

<Categories>

  <Category CategoryID="1" AddDate="2010-01-31">

    <CategoryName>Beverages</CategoryName>

    <Description>Soft drinks, coffees, teas, beers, and ales</Description>

  </Category>

</Categories>

II.检索

检索属性可以使用Attribute(name)方法:

显示行号 复制代码 这是一段程序代码。

public static void SelectAttribute()
{
    XElement root = new XElement("Categories",
        new XElement("Category",
            new XAttribute("CategoryID", "1"),
            new XElement("CategoryName", "Beverages"),
            new XElement("Description", "Soft drinks, coffees, teas, beers, and ales")
        )
    );

    XAttribute xattr = root.Element("Category").Attribute("CategoryID");
    Console.WriteLine(xattr.Name);
    Console.WriteLine(xattr.Value);
}

上述代码的运行结果为:

CategoryID
1

本文总结

本文介绍了LINQ to XML的编程基础,即System.Xml.Linq命名空间中的多个LINQ to XML类,这些类都是LINQ to XML的支持类,它们使得处理xml比使用其他的xml工具容易得多。在本文中,着重介绍的是XElement、XAttribute和XDocument。

 以上就是LINQ to XML 编程基础的图文代码详细介绍的内容,更多相关内容请关注PHP中文网(www.php.cn)!


Statement
The content of this article is voluntarily contributed by netizens, and the copyright belongs to the original author. This site does not assume corresponding legal responsibility. If you find any content suspected of plagiarism or infringement, please contact admin@php.cn
Creating RSS Documents: A Step-by-Step TutorialCreating RSS Documents: A Step-by-Step TutorialApr 13, 2025 am 12:10 AM

The steps to create an RSS document are as follows: 1. Write in XML format, with the root element, including the elements. 2. Add, etc. elements to describe channel information. 3. Add elements, each representing a content entry, including,,,,,,,,,,,. 4. Optionally add and elements to enrich the content. 5. Ensure the XML format is correct, use online tools to verify, optimize performance and keep content updated.

XML's Role in RSS: The Foundation of Syndicated ContentXML's Role in RSS: The Foundation of Syndicated ContentApr 12, 2025 am 12:17 AM

The core role of XML in RSS is to provide a standardized and flexible data format. 1. The structure and markup language characteristics of XML make it suitable for data exchange and storage. 2. RSS uses XML to create a standardized format to facilitate content sharing. 3. The application of XML in RSS includes elements that define feed content, such as title and release date. 4. Advantages include standardization and scalability, and challenges include document verbose and strict syntax requirements. 5. Best practices include validating XML validity, keeping it simple, using CDATA, and regularly updating.

From XML to Readable Content: Demystifying RSS FeedsFrom XML to Readable Content: Demystifying RSS FeedsApr 11, 2025 am 12:03 AM

RSSfeedsareXMLdocumentsusedforcontentaggregationanddistribution.Totransformthemintoreadablecontent:1)ParsetheXMLusinglibrarieslikefeedparserinPython.2)HandledifferentRSSversionsandpotentialparsingerrors.3)Transformthedataintouser-friendlyformatsliket

Is There an RSS Alternative Based on JSON?Is There an RSS Alternative Based on JSON?Apr 10, 2025 am 09:31 AM

JSONFeed is a JSON-based RSS alternative that has its advantages simplicity and ease of use. 1) JSONFeed uses JSON format, which is easy to generate and parse. 2) It supports dynamic generation and is suitable for modern web development. 3) Using JSONFeed can improve content management efficiency and user experience.

RSS Document Tools: Building, Validating, and Publishing FeedsRSS Document Tools: Building, Validating, and Publishing FeedsApr 09, 2025 am 12:10 AM

How to build, validate and publish RSSfeeds? 1. Build: Use Python scripts to generate RSSfeed, including title, link, description and release date. 2. Verification: Use FeedValidator.org or Python script to check whether RSSfeed complies with RSS2.0 standards. 3. Publish: Upload RSS files to the server, or use Flask to generate and publish RSSfeed dynamically. Through these steps, you can effectively manage and share content.

Securing Your XML/RSS Feeds: A Comprehensive Security ChecklistSecuring Your XML/RSS Feeds: A Comprehensive Security ChecklistApr 08, 2025 am 12:06 AM

Methods to ensure the security of XML/RSSfeeds include: 1. Data verification, 2. Encrypted transmission, 3. Access control, 4. Logs and monitoring. These measures protect the integrity and confidentiality of data through network security protocols, data encryption algorithms and access control mechanisms.

XML/RSS Interview Questions & Answers: Level Up Your ExpertiseXML/RSS Interview Questions & Answers: Level Up Your ExpertiseApr 07, 2025 am 12:19 AM

XML is a markup language used to store and transfer data, and RSS is an XML-based format used to publish frequently updated content. 1) XML describes data structures through tags and attributes, 2) RSS defines specific tag publishing and subscribed content, 3) XML can be created and parsed using Python's xml.etree.ElementTree module, 4) XML nodes can be queried for XPath expressions, 5) Feedparser library can parse RSSfeed, 6) Common errors include tag mismatch and encoding issues, which can be validated by XMLlint, 7) Processing large XML files with SAX parser can optimize performance.

Advanced XML/RSS Tutorial: Ace Your Next Technical InterviewAdvanced XML/RSS Tutorial: Ace Your Next Technical InterviewApr 06, 2025 am 12:12 AM

XML is a markup language for data storage and exchange, and RSS is an XML-based format for publishing updated content. 1. XML defines data structures, suitable for data exchange and storage. 2.RSS is used for content subscription and uses special libraries when parsing. 3. When parsing XML, you can use DOM or SAX. When generating XML and RSS, elements and attributes must be set correctly.

See all articles

Hot AI Tools

Undresser.AI Undress

Undresser.AI Undress

AI-powered app for creating realistic nude photos

AI Clothes Remover

AI Clothes Remover

Online AI tool for removing clothes from photos.

Undress AI Tool

Undress AI Tool

Undress images for free

Clothoff.io

Clothoff.io

AI clothes remover

AI Hentai Generator

AI Hentai Generator

Generate AI Hentai for free.

Hot Article

R.E.P.O. Energy Crystals Explained and What They Do (Yellow Crystal)
3 weeks agoBy尊渡假赌尊渡假赌尊渡假赌
R.E.P.O. Best Graphic Settings
3 weeks agoBy尊渡假赌尊渡假赌尊渡假赌
R.E.P.O. How to Fix Audio if You Can't Hear Anyone
3 weeks agoBy尊渡假赌尊渡假赌尊渡假赌
WWE 2K25: How To Unlock Everything In MyRise
4 weeks agoBy尊渡假赌尊渡假赌尊渡假赌

Hot Tools

MinGW - Minimalist GNU for Windows

MinGW - Minimalist GNU for Windows

This project is in the process of being migrated to osdn.net/projects/mingw, you can continue to follow us there. MinGW: A native Windows port of the GNU Compiler Collection (GCC), freely distributable import libraries and header files for building native Windows applications; includes extensions to the MSVC runtime to support C99 functionality. All MinGW software can run on 64-bit Windows platforms.

DVWA

DVWA

Damn Vulnerable Web App (DVWA) is a PHP/MySQL web application that is very vulnerable. Its main goals are to be an aid for security professionals to test their skills and tools in a legal environment, to help web developers better understand the process of securing web applications, and to help teachers/students teach/learn in a classroom environment Web application security. The goal of DVWA is to practice some of the most common web vulnerabilities through a simple and straightforward interface, with varying degrees of difficulty. Please note that this software

EditPlus Chinese cracked version

EditPlus Chinese cracked version

Small size, syntax highlighting, does not support code prompt function

SublimeText3 Linux new version

SublimeText3 Linux new version

SublimeText3 Linux latest version

SublimeText3 Chinese version

SublimeText3 Chinese version

Chinese version, very easy to use
