1 Problem description
Use Java EE related technologies to implement a simple Web chat room system. The specific requirements are as follows.
(1) Write a login page. The login information includes username and password. Use two buttons to submit and reset the login information respectively.
(2) Write a Servlet program Main.java to process the login information submitted by the user through request assignment. If the user name is the name of a member of this group and the password is the corresponding student number, jump to the LoginSuccess display chat interface (similar to In the QQ group chat interface, you can use the frameset tag in HTML to generate two windows, one for user information input and the other for displaying all user chat records); otherwise, it jumps to the LoginFail page and prompts the user to log in again (Note: This page should include the previous login interface).
(3) Write two Servlet programs to display the contents of the "Information Input" window and the "Chat Record Display" window respectively; the user types the chat content in the "Information Input" window and clicks the "Send" button. The name of the user who sent the message and the chat content are displayed in the "Chat History Display" window. Tip: Use the textarea tag in HTML to achieve this.
(4) Implement the function of remembering username and password on the login interface, so that when the user selects this function and successfully logs in, he or she can log in without entering the username and password the next time he logs in. Tip: This feature is available through two cookies.
Select the following functions:
(5) Write a Listener program to monitor the creation and destruction events of sessions to count the number of people currently online (logged in) and display them on the chat interface.
(6) Add a Filter to filter all Servlet programs in this system. This Filter implements the setting of the encoding format of the request and response objects (after implementing this function, the Servlet can directly obtain parameter information from the request object without implementing the Request format encoding). Output the execution sequence of the program between Filter and other resources in the [GlassFish Server] view.
2 Solution
2.1 Expected effect

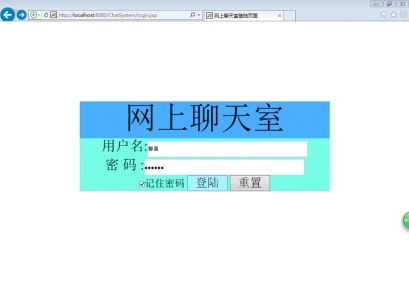

Figure 1: Schematic diagram of online chat system operation
2.2 Schematic diagram of system structure
Figure 2: System Structural diagram
welcome. jsp specific page:
Figure 3: actual operation diagram of welcome.jsp
2.3 Specific coding
(1) Main.java (Servlet class) handles the login submitted by the user of the login.jsp page through request assignment information (and uses cookies to implement the function of remembering the user's login username and password). If successful, it will jump to welcome.jsp, if it fails, it will jump to login.jsp. The specific implementation is as follows:
Online chat system login home page login.jsp page code:
<%@ page language="java" import="java.util.*" pageEncoding="utf-8"%>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";
String username = "";
String password = "";
//String[] checkBox = request.getParameterValues("save_password");
//获取当前站点的所有Cookie
Cookie[] cookies = request.getCookies();
for (int i = 0; i < cookies.length; i++) {
//对cookies中的数据进行遍历，找到用户名、密码的数据
if ("username".equals(cookies[i].getName())) {
//读取时URLDecoder.decode进行解码(PS:Cookie存取时用URLEncoder.encode进行编码)
username = java.net.URLDecoder.decode(cookies[i].getValue(),"UTF-8");
} else if ("password".equals(cookies[i].getName())) {
password = java.net.URLDecoder.decode(cookies[i].getValue(),"UTF-8");
}
}
%>
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
<head>
<base href="<%=basePath%>">
<title>网上聊天室登陆页面</title>
<meta http-equiv="pragma" content="no-cache">
<meta http-equiv="cache-control" content="no-cache">
<meta http-equiv="expires" content="0">
<meta http-equiv="keywords" content="keyword1,keyword2,keyword3">
<meta http-equiv="content-type" content="text/html; charset=utf-8">
<meta http-equiv="description" content="This is my page">
<!--
<link rel="stylesheet" type="text/css" href="styles.css">
-->
<style type="text/css">
*
{
margin: 0;
padding: 0;
}
body
{
font-size: 0px;
padding: 200px;
}
</style>
</head>
<body>
<form action="Main" method="post">
<div style="background:#49AFFF;font-size: 80px;text-align:center;">网上聊天室</div>
<div style="background:#75FFE7;font-size: 35px;text-align:center;">
<span>用户名:</span><input type="text" name="username" value="<%=username%>" style="border:1px solid #ccc; width:400px; height:40px;" ></div>
<div style="background:#75FFE7;font-size: 35px;text-align:center;">
<span>密 码 :</span><input type="password" name="password" value="<%=password%>" style="border:1px solid #ccc; width:400px; height:40px;" ></div>
<div style="background:#75FFE7;font-size: 25px;text-align:center;">
<input type="checkbox" value="save" name="save_password">记住密码
<input type="submit" value="登陆" name="login" style="width: 100px; height: 40px;font-size: 30px;">
<input type="reset" value="重置" name="reset" style="width: 100px; height: 40px;font-size: 30px;"></div>
</form>
</body>
</html>Main.java class code:
package com.liuzhen.chart;
import java.io.IOException;
import java.net.URLEncoder;
import javax.servlet.ServletException;
import javax.servlet.http.Cookie;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
@SuppressWarnings("serial")
public class Main extends HttpServlet {
/**
* Constructor of the object.
*/
public Main() {
super();
}
/**
* Destruction of the servlet. <br>
*/
public void destroy() {
super.destroy(); // Just puts "destroy" string in log
// Put your code here
}
public void doGet(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
doPost(request,response);
}
public void doPost(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
//response.setContentType("text/html;charset=utf-8");
//此出注解是因为使用CodeFilter类过滤所有Servlet，转换编码
//request.setCharacterEncoding("utf-8");
String userName = request.getParameter("username");
String passWord = request.getParameter("password");
String checkBox = request.getParameter("save_password");
System.out.println("userName:"+userName+"\n"+"passWord:"+passWord);
request.getSession().setAttribute("nameSession", userName); //将用户名存入session中
String[] name_one = {"柳真","刘仁杰","吴超","张浩东","陈初相"};
String[] pwd_one = {"201421092073","201421092068","201421092077","201421092082","201421092119"};
String name_two = "";
String pwd_two = "";
boolean login_test = false;
for(int i=0;i<5;i++){
name_two = name_one[i];
pwd_two = pwd_one[i];
if(userName.equals(name_two) && passWord.equals(pwd_two))
login_test = true;
}
if(login_test) {
if ("save".equals(checkBox)) {
//Cookie存取时用URLEncoder.encode进行编码(PS:读取时URLDecoder.decode进行解码)
String name = URLEncoder.encode(userName,"UTF-8");
//创建两个Cookie对象
Cookie nameCookie = new Cookie("username", name);
//设置Cookie的有效期为3天
nameCookie.setMaxAge(60 * 60 * 24 * 3);
String pwd = URLEncoder.encode(passWord,"UTF-8");
Cookie pwdCookie = new Cookie("password", pwd);
pwdCookie.setMaxAge(60 * 60 * 24 * 3);
response.addCookie(nameCookie);
response.addCookie(pwdCookie);
}
request.getRequestDispatcher("welcome.jsp").forward(request, response);
}
else{
response.sendRedirect("loginFail.jsp");
// request.getRequestDispatcher("loginFail.jsp").forward(request, response);
}
}
/**
* Initialization of the servlet. <br>
*
* @throws ServletException if an error occurs
*/
public void init() throws ServletException {
// Put your code here
}
}Login failure page loginFail.jsp page code:
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";
%>
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
<head>
<base href="<%=basePath%>">
<title>My JSP 'loginFail.jsp' starting page</title>
<meta http-equiv="pragma" content="no-cache">
<meta http-equiv="cache-control" content="no-cache">
<meta http-equiv="expires" content="0">
<meta http-equiv="keywords" content="keyword1,keyword2,keyword3">
<meta http-equiv="content-type" content="text/html; charset=gb2312">
<meta http-equiv="description" content="This is my page">
<!--
<link rel="stylesheet" type="text/css" href="styles.css">
-->
</head>
<body>
<br>
<br>
<h1>用户名和密码不匹配，请重新登陆!</h1>
<a href="login.jsp">重新登陆</a>
</body>
</html>Login success page welcome.jsp page code ( The frameset tag is used here, which is divided into three parts: header, left and middle homepage, which target header.jsp, left.jsp and main.jsp pages respectively):
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";
%>
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
<head>
<base href="<%=basePath%>">
<title>网上聊天室</title>
<meta http-equiv="pragma" content="no-cache">
<meta http-equiv="cache-control" content="no-cache">
<meta http-equiv="expires" content="0">
<meta http-equiv="keywords" content="keyword1,keyword2,keyword3">
<meta http-equiv="content-type" content="text/html; charset=gb2312">
<meta http-equiv="description" content="This is my page">
<!--
<link rel="stylesheet" type="text/css" href="styles.css">
-->
</head>
<frameset rows="100,*" cols="*" frameborder="no" border="0" framespacing="0">
<frame src="header.jsp" name="topFrame" scrolling="auto" noresize="noresize" id="topFrame"/>
<frameset cols="213,*" frameborder="no" border="0" framespacing="0">
<frame src="left.jsp" name="leftFrame" scrolling="No" noresize="noresize" id="leftFrame"/>
<frame src="main.jsp" name="mainFrame" scrolling="auto" id="mainFrame"/>
</frameset>
</frameset>
<body>
</body>
</html>Chat head header.jsp page code:
<%@ page language="java" import="java.util.*" contentType="text/html;charset=gb2312" pageEncoding="gb2312"%>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";
%>
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
<head>
<base href="<%=basePath%>">
<title></title>
<meta http-equiv="pragma" content="no-cache">
<meta http-equiv="cache-control" content="no-cache">
<meta http-equiv="expires" content="0">
<meta http-equiv="keywords" content="keyword1,keyword2,keyword3">
<meta http-equiv="description" content="This is my page">
<meta http-equiv="Content-Type" content="text/html;charset=gb2312">
<!--
<link rel="stylesheet" type="text/css" href="styles.css">
-->
</head>
<body topmargin="0" leftmargin="0" rightmargin="0">
<form action="">
<table width="100%" height="79" border="0" cellpadding="0"
cellspacing="0" align=center>
<tr>
<td bgcolor="F9A859" valign="top">
<table width="100%" height="50" border="0" align="center"
cellpadding="0" cellspacing="0" bgcolor="FBEAD0">
<tr>
<td align="center" style="font-size:40px;">
网上聊天室
</td>
</tr>
</table>
</td>
</tr>
<tr>
<td bgcolor="F9A859" valign="top">
<table width="100%" border="0" align="center" cellpadding="0"
cellspacing="0">
<tr>
<td align="center" style="font-size:20px" valign="middle">
欢迎<%=(String)request.getSession().getAttribute("nameSession") %>访问!
当前在线人数为<%=application.getAttribute("peopleOnline")%>人
</td>
</tr>
</table>
</td>
</tr>
</table>
</form>
</body>
</html>The left.jsp page code on the left side of the chat (the jquery-1.4.2 package is used here for beautiful display):
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";
%>
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
<head>
<base href="<%=basePath%>">
<title>My JSP 'test.jsp' starting page</title>
<meta http-equiv="pragma" content="no-cache">
<meta http-equiv="cache-control" content="no-cache">
<meta http-equiv="expires" content="0">
<meta http-equiv="keywords" content="keyword1,keyword2,keyword3">
<meta http-equiv="content-type" content="text/html; charset=gb2312">
<meta http-equiv="description" content="This is my page">
<!--
<link rel="stylesheet" type="text/css" href="styles.css">
-->
<style type="text/css">
*
{
margin: 0;
padding: 0;
}
body
{
font-size: 15px;
padding: 00px;
}
.menu
{
width: 500px;
border-bottom: solid 1px gray;
}
.menu h3
{
border: solid 1px gray;
height: 30px;
line-height: 30px;
padding-left: 10px;
padding:0 5px;
border-bottom: none;
cursor: pointer;
}
.menu p
{
border-left: solid 1px gray;
border-right: solid 1px gray;
padding: 20px 0;
padding-left: 5px;
}
.changecolor{background-color:red;}
</style>
<script src="js/jquery-1.4.2.min.js" type="text/javascript"></script>
<script type="text/javascript">
$(function () {
$(".menu p:not(:first)").hide();
$(".menu h3").css("background", "#ccc");
$(".menu h3").hover(function () { $(this).css("background-color", "gray").siblings("h3").css
("background-color", "#ccc");});
$(".menu h3").mouseleave(function () {
$(".menu h3").css("background", "#ccc");}); //离开时将其变为原来颜色
var index = $(".menu h3").index(this);
$(".menu h3").click(function () { $(this).next("p").slideToggle().siblings("p").slideUp(); });
});
</script>
</head>
<body>
<div class="menu">
<h3>
我的好友</h3>
<p>
<a href="index.jsp">周杰伦</a><br/><br/>
<a href="index.jsp">周杰伦</a><br/><br/>
<a href="index.jsp">周杰伦</a><br/><br/>
<a href="index.jsp">周杰伦</a><br/><br/>
<a href="index.jsp">周杰伦</a><br/><br/>
<a href="index.jsp">周杰伦</a><br/><br/>
<a href="index.jsp">周杰伦</a><br/><br/>
<a href="index.jsp">周杰伦</a><br/>
</p>
<h3>
我的朋友</h3>
<p>
<a href="index.jsp">李连杰</a><br/><br/>
<a href="index.jsp">李连杰</a><br/><br/>
<a href="index.jsp">李连杰</a><br/><br/>
<a href="index.jsp">李连杰</a><br/><br/>
<a href="index.jsp">李连杰</a><br/><br/>
<a href="index.jsp">李连杰</a><br/><br/>
<a href="index.jsp">李连杰</a><br/><br/>
<a href="index.jsp">李连杰</a><br/>
</p>
<h3>
陌生人</h3>
<p>
<a href="index.jsp">比尔盖茨</a><br/><br/>
<a href="index.jsp">比尔盖茨</a><br/><br/>
<a href="index.jsp">比尔盖茨</a><br/><br/>
<a href="index.jsp">比尔盖茨</a><br/><br/>
<a href="index.jsp">比尔盖茨</a><br/><br/>
<a href="index.jsp">比尔盖茨</a><br/><br/>
<a href="index.jsp">比尔盖茨</a><br/>
</p>
</div>
</body>
</html>Chat homepage main.jsp page code:
<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";
%>
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">
<html>
<head>
<base href="<%=basePath%>">
<title>My JSP 'main.jsp' starting page</title>
<meta http-equiv="pragma" content="no-cache">
<meta http-equiv="cache-control" content="no-cache">
<meta http-equiv="expires" content="0">
<meta http-equiv="keywords" content="keyword1,keyword2,keyword3">
<meta http-equiv="content-type" content="text/html; charset=utf-8">
<meta http-equiv="description" content="This is my page">
<!--
<link rel="stylesheet" type="text/css" href="styles.css">
-->
</head>
<body>
<form action="InputInformation" method=post>
<textarea cols="105" rows="25" name="show_textarea"><%=request.getAttribute("input_textarea")%></textarea>
<br>
<textarea cols="105" rows="5" name="input_textarea"></textarea><br>
<input type="submit" value="发送" name="button_one"
style="width: 100px; height: 40px;font-size: 25px;"><br>
</form>
</body>
</html>(2) InputInformation.java (Servlet class) Passed Request assignment to obtain the input information in the main.jsp chat input box, jump to the main.jsp page, and display the chat information in the chat record display box. The specific implementation is as follows:
The InputInformation.java class code is as follows:
package com.liuzhen.chart;
import java.io.IOException;
import java.text.SimpleDateFormat;
import java.util.Date;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
@SuppressWarnings("serial")
public class InputInformation extends HttpServlet {
public String chat_record = ""; //定义聊天记录变量，此处为全局变量
/**
* Constructor of the object.
*/
public InputInformation() {
super();
}
/**
* Destruction of the servlet. <br>
*/
public void destroy() {
super.destroy(); // Just puts "destroy" string in log
// Put your code here
}
public void doGet(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
doPost(request,response);
}
public void doPost(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
//response.setContentType("text/html;charset=utf-8");
//此出注解是因为使用CodeFilter类过滤所有Servlet，转换编码
//request.setCharacterEncoding("utf-8");
String input_textarea = request.getParameter("input_textarea");
Date now = new Date(); //创建日期对象，及系统当前时间
SimpleDateFormat dateFormat = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");//设置日期格式
String time = dateFormat.format( now ); //按照给定的日期格式获取系统当前时间
String t = (String)request.getSession().getAttribute("nameSession"); //获取登陆页面用户名
chat_record += t+" "+input_textarea+" "+time+"\n"; //聊天记录存储
request.setAttribute("input_textarea",chat_record); //将当前聊天输入内容存储
request.getRequestDispatcher("main.jsp").forward(request,response); //跳转到当前聊天输入界面，即界面布局不变
}
/**
* Initialization of the servlet. <br>
*
* @throws ServletException if an error occurs
*/
public void init() throws ServletException {
// Put your code here
}
}（3）CodeFilter.java（过滤器类）截取系统所有Servlet类，实现对请求和响应对象的编码格式的设置，均设置为UTF-8。具体实现如下：
CodeFilter.java类代码如下：
package com.liuzhen.chart;
import java.io.IOException;
import javax.servlet.Filter;
import javax.servlet.FilterChain;
import javax.servlet.FilterConfig;
import javax.servlet.ServletException;
import javax.servlet.ServletRequest;
import javax.servlet.ServletResponse;
import javax.servlet.annotation.WebFilter;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
//采用注解方式配置URL，此处就不必再在web.xml文件中配置。如果两者均配置的话，系统将以web.xml文件中配置信息为准
@WebFilter(filterName="CodeFilter",urlPatterns={"/*"})
public class CodeFilter implements Filter{
@Override
public void destroy() {
System.out.println("destroy---CodeFilter");
}
@Override
public void doFilter(ServletRequest arg0, ServletResponse arg1, FilterChain arg2)
throws IOException, ServletException {
System.out.println("start----doFilter--CodeFilter");
HttpServletRequest request =(HttpServletRequest) arg0;
HttpServletResponse response =(HttpServletResponse) arg1;
//以上是强制内型转换，使用request对象和response对象
request.setCharacterEncoding("utf-8"); //设置过滤页面提取数据的编码
response.setContentType("text/html;charset=utf-8"); //设置过滤页面显示数据的编码
arg2.doFilter(arg0, arg1);//在页面跳转之前执行此语句前面的代码，执行完页面的代码之后，在执行后面的语句
System.out.println("第一个字符过滤器");
System.out.println("end------doFilter--CodeFilter");
}
@Override
public void init(FilterConfig filterConfig) throws ServletException {
System.out.println("init----CodeFilter");
}
}（4）OnlineListener.java（监听器类）主动监听系统Web容器，返回当前聊天系统在线人数，具体实现如下：
OnlineListener.java类代码如下：
package com.liuzhen.chart;
import javax.servlet.ServletContext;
import javax.servlet.http.HttpSessionEvent;
import javax.servlet.http.HttpSessionListener;
public class OnlineListener implements HttpSessionListener{
public void sessionCreated(HttpSessionEvent arg0) {
ServletContext context = arg0.getSession().getServletContext();
Integer count = (Integer) context.getAttribute("peopleOnline");
if (count == null) {
count = 1;
} else {
count++;
}
context.setAttribute("peopleOnline", count);
}
public void sessionDestroyed(HttpSessionEvent arg0) {
ServletContext context = arg0.getSession().getServletContext();
Integer count = (Integer) context.getAttribute("peopleOnline");
count--;
context.setAttribute("peopleOnline", count);
}
}此处还要给OnlineListener监听器类在web.xml文件中配置路径，web.xml配置代码具体如下（红色标记代码）：
<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.0"
xmlns="http://java.sun.com/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd">
<display-name></display-name>
<listener>
<listener-class>com.liuzhen.chart.OnlineListener</listener-class>
</listener>
<servlet>
<description>This is the description of my J2EE component</description>
<display-name>This is the display name of my J2EE component</display-name>
<servlet-name>Main</servlet-name>
<servlet-class>com.liuzhen.chart.Main</servlet-class>
</servlet>
<servlet>
<description>This is the description of my J2EE component</description>
<display-name>This is the display name of my J2EE component</display-name>
<servlet-name>InputInformation</servlet-name>
<servlet-class>com.liuzhen.chart.InputInformation</servlet-class>
</servlet>
<servlet-mapping>
<servlet-name>Main</servlet-name>
<url-pattern>/Main</url-pattern>
</servlet-mapping>
<servlet-mapping>
<servlet-name>InputInformation</servlet-name>
<url-pattern>/InputInformation</url-pattern>
</servlet-mapping>
<welcome-file-list>
<welcome-file>login.jsp</welcome-file>
</welcome-file-list>
</web-app>在调用监听器类实现监听系统当前在线人数时，本机上同一个浏览器同时登陆多个用户，只能算作一次，本机上不同浏览器登陆则分别算作一次。以下分别是在IE、谷歌和360浏览器登陆在线人数显示：
图四：IE浏览器登陆，显示在线人数1人
图五：谷歌浏览器登陆，显示在线人数2人
图六：360浏览器登陆，显示在线人数3人
附：本文系统代码Coding链接：https://coding.net/u/LiuZhen1995/p/MyDemo/git/tree/origin_seven
Statement：
The content of this article is voluntarily contributed by netizens, and the copyright belongs to the original author. This site does not assume corresponding legal responsibility. If you find any content suspected of plagiarism or infringement, please contact admin@php.cn
Previous article：Introduction to SQL Server databasesNext article：Introduction to SQL Server databases
