Introduction and application of commonly used forms in Extjs_extjs

Goal:
Know how to create the form panel
Understand the application of xtype type in the form panel
Know how to validate, bind, and get the value of the form panel
Comprehensive application of the form panel (play with it)
Content:
The first thing we need to understand is that FormPanel also inherits the panel component. So it has the attributes of panel
It is actually very simple to create a form panel var MyformPanel=new Ext.form.formpanel();
Like the panel, the form panel only appears as a container, and we need to use items to add each Control elements to enrich our form panel,
defaults:{}, this attribute extracts the common attributes of each component in items

is very useful for xtype: in the form panel, there is no need to change it every time Use new to create a component, which defines the type of the component and allows the component to be rendered after loading.

Copy code The code is as follows:

form Ext.FormPanel
checkbox Ext.form. Checkbox
combo Ext.form.ComboBox
datefield Ext.form.DateField
field Ext.form.Field
fieldset Ext.form.FieldSet
hidden Ext.form.Hidden
htmleditor Ext.form.HtmlEditor
label Ext.form.Label
numberfield Ext.form.NumberField
radio Ext.form.Radio
textarea Ext.form.TextArea
textfield Ext.form.TextField
timefield Ext.form.TimeField
trigger Ext.form.TriggerField

Extjs provides very powerful support for form validation, which you can find in the following examples

Explanation of example analysis:

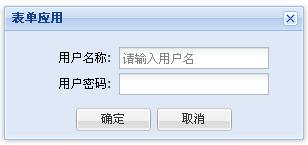

1. Create a form panel

Copy the code The code is as follows:

function Read2() {
Ext.QuickTips.init();
var MyForm=new Ext.form.FormPanel({
title:'Form Application',
width:300,
x:300,
y:50,
floating:true,
tools:[{id:'close'}],
frame:true,
bodyStyle:'padding:10px 0px 1px 1px',
labelSeparator:':',
labelAlign:'right',
renderTo:Ext.getBody(),//Why can't it be used here' id1'
defaults:{xtype:'textfield',width:150,allowBlank:false,msgTarget:'side'},//Extract common attributes
items:[
{
fieldLabel:' Username',
name:'username',
id:'user',
emptyText:'Please enter username',
blankText:'Please enter username'
},
{
fieldLabel:'user password',
name:'userpassword',
id:'password',
inputType:'password',//It also includes radiocheck text (default ) filepassword, etc.
blankText:'Please enter password'

}

],
buttons:[{text:"OK"},{text:"Cancel", handler:function(){alert("Event! ");}}],
buttonAlign:'center'

});
}

Note: renderTo:'id1' At this time, the form panel display fails. I have been thinking about it for a long time and I don’t know why.

Second, application instructions for basic form construction ( Usually we use xtype to describe the type of components in items)
Application of fieldset

Copy code The code is as follows :

function Read3() {
var MyformPanel=new Ext.form.FormPanel({
title:'Application of fieldset',
renderTo:Ext.getBody() ,
frame:true,
width:350,
x:400,
y:50,
floating:true,
items:[
{
xtype :'fieldset',
title:'User Information',
collapsible:true,
autoHeight:true,
autoWidth:true,
defaults:{width:150,allowBlank:false, xtype:'textfield'},
items:[
{
fieldLabel:'User name',
emptyText:'Chen Jianqiang',
blankText:'Please enter user name'
},
{
fieldLabel:'User password',
inputType:'password',
blankText:'Please enter user password'
}
]
}
]
});
}

Introduction to the basic components in the form panel

Copy Code The code is as follows:

function Read3() {
2 Ext.QuickTips.init();//Initialization tips
3 Ext.apply(Ext.form.VTypes,{
4 password:function( val,field){//val refers to the text box value here, field refers to this text box component, everyone must understand this meaning
5 if(field.confirmTo){//confirmTo is our custom configuration parameter, generally Used to save the id value of another component
6 var pwd=Ext.get(field.confirmTo);//Get the value of the id of confirmTo
7 return (val==pwd.getValue());
8 }
9 return true;
}
});
var MyformPanel=new Ext.form.FormPanel({
title:'fieldset application',
renderTo:Ext.getBody(),
frame:true,
width:550,
x:400,
y:50,
draggable:{
insertProxy: false,/ /Do not display the original position with a dotted line when dragging
onDrag: function(e){
var pel = this.proxy.getEl();
this.x = pel.getLeft(true);
this.y = pel.getTop(true);//Get the coordinates of the panel when dragging
var s = this.panel.getEl().shadow;
if (s){
s.realign (this.x, this.y, pel.getWidth(), pel.getHeight());
}
},
endDrag : function(e){
this.panel.setPosition( this.x, this.y);//Move to the final position
}
},
plain:true,
floating:true,
items:[
{
xtype:'fieldset',
checkboxToggle:true,
checkboxName:'user',
title:'user information',
collapsible:true,
autoHeight:true,
autoWidth:true,
labelSeparator:':',
labelAlign:'right',
labelWidth:70,
defaults:{width:150,allowBlank:false,xtype:'textfield'},
items:[
{
fieldLabel:'username',
emptyText:'陈杰强',
id:'user',
name:'userName',
blankText:'Please enter user name',
anchor:'95%'
},
{
fieldLabel:'User password',
inputType:'password',// password text checkbox rodio
id:'password',
name:'userpassword',
value:'0717',
blankText:'Please enter user password',
anchor:'95%'
},
{
fieldLabel:'Confirm password',
id:'password2',
name:'userpassword2',
inputType:'password',
vtype :'password',
vtypeText:'The passwords entered twice are inconsistent',
confirmTo:'userpassword',
anchor:'95%'
},
{
xtype :"datefield",
fieldLabel:"date of birth",
anchor:"95%"
},
{
fieldLabel:'My Blog',
value:' http://www.cnblogs.com/chenjq0717',
vtype:'url',
vtypeText:'Not a valid url',
id1:'myblog',
name:'myblog ',
anchor:'95%'
},
{
//alpha can only enter letters, not others (such as numbers, special symbols, etc.)
//2.alphanum //Only letters and numbers can be entered, others cannot be entered
//3.email//email verification, the required format is "langsin@gmail.com"
//4.url//url format verification, The required format is http://www.langsin.com
fieldLabel:'email',
vtype:'email',
vtypeText:'not a valid email',
name:' email',
anchor:'95%'
},
{
xtype:"panel",
layout:"column",
fieldLabel:'gender',
isFormField:true,
items:[{
columnWidth:.5,
xtype:"radio",
boxLabel:"male",
name:"sex"
/ /inputValue
},{
columnWidth:.5,
checked:true,
xtype:"radio",
boxLabel:"female",
name:"sex"
}]
},
{
xtype:"panel",
layout:"column",//It can also be a table to implement multi-column layout
fieldLabel:'hobby' ,
isFormField:true,//Very important, otherwise the panel will not display fieldLabel by default
items:[{
columnWidth:.5,//The width is 50%
xtype: "checkbox",
boxLabel: "Football", //The text displayed on the right side of the check box
name: ""
},{
columnWidth:.5,
xtype: "checkbox",
boxLabel:"Basketball",
name:""
}]
},
{
xtype:'combo',
fieldLabel:'User's hometown',
name:'family',
store:<%=getfamilyData() %>,//Call the background variable
emptyText: 'Please select your hometown'
},
{
xtype :"htmleditor",
id:"myinfo",
fieldLabel:"Personal description",
anchor:"99%"
}
]
}
]
});
}

The form data is submitted to the server submit

submit: function(){
this.getEl() .dom.action = 'MyPages/GetForm.aspx', //The page redirected after submission
this.getEl().dom.method='POST',//Submission method
this.getEl(). dom.submit();//Execute submission
},

Add submit button

buttons:[{text:"OK",handler:login,formBind:true},{ text:"Cancel",handler:reset}]

Add submission method:

function login(){
MyformPanel.form.submit();//Submit
}
function reset(){
MyformPanel.form.reset();//Cancel
}


Code for this lesson:
Comprehensive application of form panel

Copy code The code is as follows:

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Ext7.aspx.cs" Inherits="EXT1.Ext7" %>
2
3
4
5
6
7
8
9
