jQuery时间轴插件使用详解_jquery
- WBOYOriginal
- 2016-05-16 15:50:061171Durchsuche
这个时间轴是工作上用到的，自己写了一个， qq空间有时间轴的控件， 百度文库也有时间轴的控件；

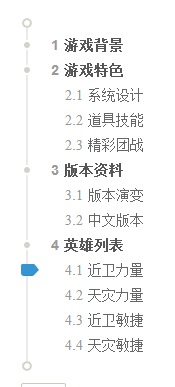

百度的时间轴大概是这样的：
用户点击对应的锚链接， 那个三角会滚动， 然后左侧的界面也会滚动；

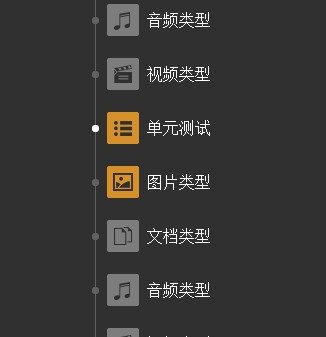

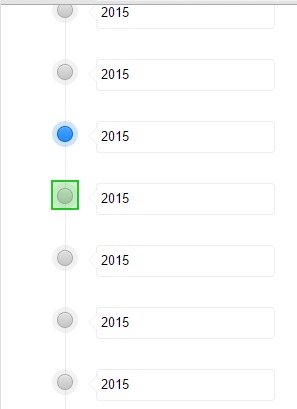

实际的效果如下图，用户点击左侧的按钮或者右侧的input，滚动条都会主动滚动， 这里有个小技巧就是用after和before伪类生成三角形， 用户点击按钮的滚动效果直接用jq的animate方法：
<!--
//设置内容;
window.onWebMessage( '{"type":"setItems","data":{"items":[{"name":1111},{"name":2222}]}}' ) ;
//设置内容, 对应的item对象如果active为true为激活态;
window.onWebMessage( '{"type":"setItems","data":{"items":[{"name":1000},{"name":1111},{"name":2222},{"name":3333,"active":true}]}}' ) ;
//设置某个第n个位置的item;
window.onWebMessage('{"type":"setItem","data":[2,{ "name" : "add-item"}]}');
//激活第三个锚链接为选中态;
window.onWebMessage( '{"type":"active","data":2}' )
//获取目前的数据:
window.onWebMessage( '{"type":"getItem"}' );
-->
<html>
<head>
<meta charset="utf-8" />
<script src="http://cdn.bootcss.com/jquery/2.1.4/jquery.js"></script>
</head>
<style>
/*初始的reset样式*/
*{
margin:0;
padding:0;
}
.time-line-wrap{
position: relative;
width: 400px;
margin:0 auto;
}
ul{
list-style: none;
}
body,html{
height: 100%;
}
body{
-webkit-user-select: none;
-moz-user-select: none;
-ms-user-select: none;
user-select: none;
}
/*样式开始*/
.scroll-time-line{
height:100%;
overflow: hidden;
}
.time-line-wrap{
position: relative;
}
.time-line-ul{
position: relative;
}
/**
时间轴的轴用伪类实现;
*/
.time-line-ul::before{
display: block;
position:absolute;
content:"";
height:100%;
width:1;
left:27px;
top:0;
background: #eee;
}
.time-line-ul li{
padding:14px;
position: relative;
}
.time-line-ul input {
vertical-align: super;
border-radius: 4px;
border:1px solid #eee;
padding:4px;
line-height: 22px;
margin-left:10px;
}
/**
使用after和before伪类实现input前面的三角形;
*/
.time-line-ul li::before{
position: absolute;
content: "";
display: block;
top: 21px;
left: 40px;
width: 0px;
height: 0px;
border: 10px solid rgba(0, 0, 0, 0);
border-right: 10px solid #EEE;
}
.time-line-ul li::after{
position: absolute;
content: "";
display: block;
top: 21px;
left: 41px;
width: 0px;
height: 0px;
border: 10px solid rgba(0, 0, 0, 0);
border-right: 10px solid #fff;
}
/**
默认时间轴锚链接的样式
*/
.time-line-icon{
width: 26px;
height: 28px;
display: inline-block;
background: url(http://images0.cnblogs.com/blog2015/497865/201507/131424386411828.png);
}
/**
鼠标移动上来，或者锚链接有active时候的背景图样式
*/
.time-line-icon.active,.time-line-icon:hover{
background-position: 0px 28px;
}
</style>
<!--模板，勿删!-->
<script type="text/tempate" id="li-tpl">
<% for(var i=0; i<items.length; i++ ) {%>
<li class="li-<%=i%>">
<a href="###" class="time-line-icon <% if(items[i].active){ %> <%="active"%> <%}%> "></a>
<input type="text" value="<%=items[i].name%>"/>
</li>
<% } %>
</script>
<body>
<!--
滚动出现在这个div里面
-->
<div class="scroll-time-line">
<!---
时间轴相关的html结构
-->
<div class="time-line-wrap">
<ul class="time-line-ul">
<li>
<a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
</li>
<li>
<a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
</li>
<li>
<a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
</li>
<li>
<a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
</li>
<li>
<a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
</li>
<li>
<a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
</li>
<li>
<a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
</li>
<li>
<a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
</li>
<li>
<a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
</li>
<li>
<a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
</li>
<li>
<a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
</li>
<li>
<a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
</li>
<li>
<a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
</li>
<li>
<a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
</li>
<li>
<a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
</li>
<li>
<a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
<li>
<a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
</li>
<li>
<a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
</li>
<li>
<a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
</li>
<li>
<a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
</li>
<li>
<a href="###" class="time-line-icon"></a> <input type="text" value="2015"/>
</li>
</ul>
</div>
<!---
时间轴相关的html结构结束
-->
</div>
<script>
//模板引擎的代码
(function () {
//underscore抄的模板引擎;
var escaper = /\\|'|\r|\n|\t|\u2028|\u2029/g;
var escapes = {
"'": "'",
'\\': '\\',
'\r': 'r',
'\n': 'n',
'\t': 't',
'\u2028': 'u2028',
'\u2029': 'u2029'
};
$.templateSettings = {
evaluate : /<%([\s\S]+?)%>/g,
interpolate : /<%=([\s\S]+?)%>/g,
escape : /<%-([\s\S]+?)%>/g
}
$.template = function(text, data, settings) {
var render;
settings = $.extend({}, settings, $.templateSettings);
// Combine delimiters into one regular expression via alternation.
var matcher = new RegExp([
(settings.escape || noMatch).source,
(settings.interpolate || noMatch).source,
(settings.evaluate || noMatch).source
].join('|') + '|$', 'g');
// Compile the template source, escaping string literals appropriately.
var index = 0;
var source = "__p+='";
text.replace(matcher, function(match, escape, interpolate, evaluate, offset) {
source += text.slice(index, offset)
.replace(escaper, function(match) { return '\\' + escapes[match]; });
if (escape) {
source += "'+\n((__t=(" + escape + "))==null?'':_.escape(__t))+\n'";
}
if (interpolate) {
source += "'+\n((__t=(" + interpolate + "))==null?'':__t)+\n'";
}
if (evaluate) {
source += "';\n" + evaluate + "\n__p+='";
}
index = offset + match.length;
return match;
});
source += "';\n";
// If a variable is not specified, place data values in local scope.
if (!settings.variable) source = 'with(obj||{}){\n' + source + '}\n';
source = "var __t,__p='',__j=Array.prototype.join," +
"print=function(){__p+=__j.call(arguments,'');};\n" +
source + "return __p;\n";
try {
render = new Function(settings.variable || 'obj', '_', source);
} catch (e) {
e.source = source;
throw e;
}
if (data) return render(data, _);
var template = function(data) {
return render.call(this, data);
};
// Provide the compiled function source as a convenience for precompilation.
template.source = 'function(' + (settings.variable || 'obj') + '){\n' + source + '}';
return template;
};
})();
(function( fn ) {
$( fn.call( $ ,$) );
})(function ($) {
$.timeLineSetting = {
offsetTop : 100
};
$.extend($.fn, {
timeLine : function() {
$.each(this, function() {
var _this = this;
$(this).delegate(".time-line-ul>li", "click", function( ev ) {
$(".time-line-icon.active").removeClass("active");
$(this).find(".time-line-icon").addClass("active");
$(_this).animate({scrollTop: this.offsetTop - $.timeLineSetting.offsetTop},300);
ev.preventDefault();
});
});
}
});
});
$(function() {
var compile= $.template( $("#li-tpl").html() || "");
//与客户端的交互事件;
var orginalData = {};
window.onWebMessage = function( msg ) {
msg = JSON.parse(msg);
switch( msg.type ) {
case "setItems" :
$(".time-line-ul").html( compile(msg.data) );
//结构化复制;
orginalData = JSON.parse(JSON.stringify(msg.data));
break;
case "setItem" :
orginalData.items&&orginalData.items.splice(msg.data[0],0,msg.data[1]);
$(".time-line-ul").html( compile(orginalData) );
break;
case "getItem" :
alert(JSON.stringify( orginalData ));
break;
case "active" :
$(".time-line-icon.active").removeClass("active");
$(".time-line-ul>li").eq( msg.data).find(".time-line-icon").addClass("active")
break;
};
};
//启用插件;
$(".scroll-time-line").timeLine();
})
</script>
</body>
</html>
模板用了underscore，tempate方法挂到了$下， 作为$的工具方法（依赖于jQuery），模板的js代码直接放这里方便一些小项目直接用：
//模板引擎的代码
(function () {
//underscore抄的模板引擎;
var escaper = /\\|'|\r|\n|\t|\u2028|\u2029/g;
var escapes = {
"'": "'",
'\\': '\\',
'\r': 'r',
'\n': 'n',
'\t': 't',
'\u2028': 'u2028',
'\u2029': 'u2029'
};
$.templateSettings = {
evaluate : /<%([\s\S]+?)%>/g,
interpolate : /<%=([\s\S]+?)%>/g,
escape : /<%-([\s\S]+?)%>/g
}
$.template = function(text, data, settings) {
var render;
settings = $.extend({}, settings, $.templateSettings);
// Combine delimiters into one regular expression via alternation.
var matcher = new RegExp([
(settings.escape || noMatch).source,
(settings.interpolate || noMatch).source,
(settings.evaluate || noMatch).source
].join('|') + '|$', 'g');
// Compile the template source, escaping string literals appropriately.
var index = 0;
var source = "__p+='";
text.replace(matcher, function(match, escape, interpolate, evaluate, offset) {
source += text.slice(index, offset)
.replace(escaper, function(match) { return '\\' + escapes[match]; });
if (escape) {
source += "'+\n((__t=(" + escape + "))==null?'':_.escape(__t))+\n'";
}
if (interpolate) {
source += "'+\n((__t=(" + interpolate + "))==null?'':__t)+\n'";
}
if (evaluate) {
source += "';\n" + evaluate + "\n__p+='";
}
index = offset + match.length;
return match;
});
source += "';\n";
// If a variable is not specified, place data values in local scope.
if (!settings.variable) source = 'with(obj||{}){\n' + source + '}\n';
source = "var __t,__p='',__j=Array.prototype.join," +
"print=function(){__p+=__j.call(arguments,'');};\n" +
source + "return __p;\n";
try {
render = new Function(settings.variable || 'obj', '_', source);
} catch (e) {
e.source = source;
throw e;
}
if (data) return render(data, _);
var template = function(data) {
return render.call(this, data);
};
// Provide the compiled function source as a convenience for precompilation.
template.source = 'function(' + (settings.variable || 'obj') + '){\n' + source + '}';
return template;
};
})();
模板的使用的DEMO如下, 也可以参考官方的文档：http://underscorejs.org/#template：
<html>
<head>
<body>
<script src="http://cdn.bootcss.com/jquery/2.1.4/jquery.js"></script>
<script>
//模板引擎的代码
(function () {
//underscore抄的模板引擎;
var escaper = /\\|'|\r|\n|\t|\u2028|\u2029/g;
var escapes = {
"'": "'",
'\\': '\\',
'\r': 'r',
'\n': 'n',
'\t': 't',
'\u2028': 'u2028',
'\u2029': 'u2029'
};
$.templateSettings = {
evaluate : /<%([\s\S]+?)%>/g,
interpolate : /<%=([\s\S]+?)%>/g,
escape : /<%-([\s\S]+?)%>/g
}
$.template = function(text, data, settings) {
var render;
settings = $.extend({}, settings, $.templateSettings);
// Combine delimiters into one regular expression via alternation.
var matcher = new RegExp([
(settings.escape || noMatch).source,
(settings.interpolate || noMatch).source,
(settings.evaluate || noMatch).source
].join('|') + '|$', 'g');
// Compile the template source, escaping string literals appropriately.
var index = 0;
var source = "__p+='";
text.replace(matcher, function(match, escape, interpolate, evaluate, offset) {
source += text.slice(index, offset)
.replace(escaper, function(match) { return '\\' + escapes[match]; });
if (escape) {
source += "'+\n((__t=(" + escape + "))==null?'':_.escape(__t))+\n'";
}
if (interpolate) {
source += "'+\n((__t=(" + interpolate + "))==null?'':__t)+\n'";
}
if (evaluate) {
source += "';\n" + evaluate + "\n__p+='";
}
index = offset + match.length;
return match;
});
source += "';\n";
// If a variable is not specified, place data values in local scope.
if (!settings.variable) source = 'with(obj||{}){\n' + source + '}\n';
source = "var __t,__p='',__j=Array.prototype.join," +
"print=function(){__p+=__j.call(arguments,'');};\n" +
source + "return __p;\n";
try {
render = new Function(settings.variable || 'obj', '_', source);
} catch (e) {
e.source = source;
throw e;
}
if (data) return render(data, _);
var template = function(data) {
return render.call(this, data);
};
// Provide the compiled function source as a convenience for precompilation.
template.source = 'function(' + (settings.variable || 'obj') + '){\n' + source + '}';
return template;
};
})();
</script>
<script>
//会输出 <div>haahah</div>;
console.log( $.template('<div><%=data%></div>')( {data:"haahah"} ) );
</script>
</body>
</head>
</html>
修改了时间轴的样式， 又为这个插件添加了拖拽的方法，代码一下变得好乱， 顺便普及一下拖拽的事件， ondrop， ondragover，ondrag， 如果要让元素可以拖拽, 就要为要拖拽的元素添加draggable="true", 元素可以拖拽以后 ， 要为可以拖放到的的DIV或者其他块元素，绑定一个dragover方法， 这个方法就做一件事， ev.preventDefault()， 看代码撒：
运行下面代码
<!DOCTYPE HTML>
<html>
<head>
<meta charset="utf-8"/>
<style type="text/css">
#div1 {width:488px;height:70px;padding:10px;border:1px solid #aaaaaa;}
</style>
<script type="text/javascript">
//当元素dragover时候一定要阻止默认事件， 否则把当前拖拽的元素就无法drop;
function dragover(ev)
{
console.log(ev);
ev.preventDefault();
}
//对于拖拽事件最重要的一个事件属性就是dataTransfer;
function drag(ev)
{
console.log(ev);
ev.dataTransfer.setData("Text",ev.target.id);
}
function drop(ev)
{
console.log(ev);
var data=ev.dataTransfer.getData("Text");
ev.target.appendChild(document.getElementById(data));
}
</script>
</head>
<body>
<p>请把图片拖放到矩形中：</p>
<div id="div1" ondrop="drop(event)" ondragover="dragover(event)"></div>
<br />
<img id="drag1" src="http://images0.cnblogs.com/news/24442/201507/081152502219706.gif" draggable="true" ondragstart="drag(event)" / alt="jQuery时间轴插件使用详解_jquery" >
</body>
</html>
另外一个DEMO：
运行下面代码
<!DOCTYPE HTML>
<html>
<head>
<meta charset="utf-8"/>
<style type="text/css">
</style>
</head>
<body>
<p>What fruits do you like?</p>
<ol ondragstart="dragStartHandler(event)">
<li draggable="true" data-value="fruit-apple">Apples</li>
<li draggable="true" data-value="fruit-orange">Oranges</li>
<li draggable="true" data-value="fruit-pear">Pears</li>
</ol>
<script>
var internalDNDType = 'text/x-example'; // set this to something specific to your site
function dragStartHandler(event) {
if (event.target instanceof HTMLLIElement) {
// use the element's data-value="" attribute as the value to be moving:
event.dataTransfer.setData(internalDNDType, event.target.dataset.value);
event.dataTransfer.effectAllowed = 'move'; // only allow moves
} else {
event.preventDefault(); // don't allow selection to be dragged
}
}
</script>
<p>Drop your favorite fruits below:</p>
<ol ondrop="dropHandler(event)" ondragover="dragover(event)">
<!-- don't forget to change the "text/x-example" type to something
specific to your site -->
<li>drop</li>
</ol>
<script>
var internalDNDType = 'text/x-example'; // set this to something specific to your site
function dropHandler(event) {
var li = document.createElement('li');
var data = event.dataTransfer.getData(internalDNDType);
if (data == 'fruit-apple') {
li.textContent = 'Apples';
} else if (data == 'fruit-orange') {
li.textContent = 'Oranges';
} else if (data == 'fruit-pear') {
li.textContent = 'Pears';
} else {
li.textContent = 'Unknown Fruit';
}
event.target.appendChild(li);
};
function dragover(ev) {
ev.preventDefault();
};
</script>
</body>
</html>
HTML5的拖拽提供了 setDragImage ， effectAllowed ， setData.... 等很多便捷的方法给开发者, 通过FileReader读取File， 然后就可以用ajax与后台进行交互， 和前端DOM操作：
<!DOCTYPE HTML>
<html>
<head>
<meta charset="utf-8"/>
<style type="text/css">
</style>
</head>
<body>
<div id="div0" ondragover="dragover(event)" ondrop="drop(event)">
drop拖放文件进来
</div>
<script>
function dragover(ev) {
ev.preventDefault();
};
function drop(ev) {
var reader = new FileReader();
reader.onload = function ( ev ) {
var oDiv = document.createElement("div");
oDiv.innerHTML = ev.target.result;
document.body.appendChild( oDiv );
};
reader.readAsText( ev.dataTransfer.files[0] );
ev.preventDefault();
}
</script>
</body>
</html>
插件效果图：
最后完成的插件代码：
<script>
//模板引擎的代码
(function () {
//underscore抄的模板引擎;
var escaper = /\\|'|\r|\n|\t|\u2028|\u2029/g;
var escapes = {
"'": "'",
'\\': '\\',
'\r': 'r',
'\n': 'n',
'\t': 't',
'\u2028': 'u2028',
'\u2029': 'u2029'
};
$.templateSettings = {
evaluate : /<%([\s\S]+&#63;)%>/g,
interpolate : /<%=([\s\S]+&#63;)%>/g,
escape : /<%-([\s\S]+&#63;)%>/g
}
$.template = function(text, data, settings) {
var render;
settings = $.extend({}, settings, $.templateSettings);
// Combine delimiters into one regular expression via alternation.
var matcher = new RegExp([
(settings.escape || noMatch).source,
(settings.interpolate || noMatch).source,
(settings.evaluate || noMatch).source
].join('|') + '|$', 'g');
// Compile the template source, escaping string literals appropriately.
var index = 0;
var source = "__p+='";
text.replace(matcher, function(match, escape, interpolate, evaluate, offset) {
source += text.slice(index, offset)
.replace(escaper, function(match) { return '\\' + escapes[match]; });
if (escape) {
source += "'+\n((__t=(" + escape + "))==null&#63;'':_.escape(__t))+\n'";
}
if (interpolate) {
source += "'+\n((__t=(" + interpolate + "))==null&#63;'':__t)+\n'";
}
if (evaluate) {
source += "';\n" + evaluate + "\n__p+='";
}
index = offset + match.length;
return match;
});
source += "';\n";
// If a variable is not specified, place data values in local scope.
if (!settings.variable) source = 'with(obj||{}){\n' + source + '}\n';
source = "var __t,__p='',__j=Array.prototype.join," +
"print=function(){__p+=__j.call(arguments,'');};\n" +
source + "return __p;\n";
try {
render = new Function(settings.variable || 'obj', '_', source);
} catch (e) {
e.source = source;
throw e;
}
if (data) return render(data, _);
var template = function(data) {
return render.call(this, data);
};
// Provide the compiled function source as a convenience for precompilation.
template.source = 'function(' + (settings.variable || 'obj') + '){\n' + source + '}';
return template;
};
})();
(function( fn ) {
$( fn.call( $ ,$) );
})(function ($) {
$.timeLineSetting = {
offsetTop : 100
};
$.extend($.fn, {
timeLine : function() {
$.each(this, function() {
var _this = this,
eleDrag;
$(this).delegate(".time-line-ul>li", "click", function( ev ) {
$(".time-line-icon.active").removeClass("active");
$(this).find(".time-line-icon").addClass("active");
$("b").removeClass("show");
$(this).find("b").addClass("show");
$(_this).animate({scrollTop: this.offsetTop - $.timeLineSetting.offsetTop},300);
ev.preventDefault();
}).delegate(".time-line-ul>li","dragstart" , function(ev) {
//不允许img和a的拖拽;
if( ev.target&&ev.target.tagName.toLocaleLowerCase() === "img" || ev.target.tagName.toLocaleLowerCase() === "a") {
return false;
};
/*拖拽开始*/
//拖拽效果
ev.originalEvent.dataTransfer.effectAllowed = "move";
eleDrag = ev.originalEvent.target;
return true;
}).delegate(".time-line-ul>li","dragenter" , function(ev) {
return true;
}).delegate(".time-line-ul>li", "dragover" , function(ev) {
$(".time-line-ul>li.over").removeClass("over");
$(this).addClass("over");
$(".blank").remove();
var $blank = $("<li class='blank' draggable='true'></li>");
$(this).after( $blank );
/*拖拽元素在目标元素头上移动的时候*/
ev.preventDefault();
return true;
});
$(".time-line-ul").bind("drop" , function(ev) {
if(ev.target.tagName.toLocaleLowerCase() === "li") {
$(ev.target).after( eleDrag );
};
$(".blank").remove();
$(".time-line-ul>li.over").removeClass("over");
return false;
});
});
}
});
});
$(function() {
var compile= $.template( $("#li-tpl").html() || "");
//与客户端的交互事件;
var orginalData = {};
window.onWebMessage = function( msg ) {
msg = JSON.parse(msg);
switch( msg.type ) {
case "setItems" :
$(".time-line-ul").html( compile(msg.data) );
//结构化复制;
orginalData = JSON.parse(JSON.stringify(msg.data));
break;
case "setItem" :
orginalData.items&&orginalData.items.splice(msg.data[0],0,msg.data[1]);
$(".time-line-ul").html( compile(orginalData) );
break;
case "getItem" :
var result = [];
var lis = $(".time-line-ul li");
for(var i=0; i<lis.length; i++) {
result.push( {
index : i,
src : $(lis[i]).find("img").attr("src"),
name : $(lis[i]).find("span").text()
});
};
alert(JSON.stringify( result ));
break;
case "active" :
$(".time-line-icon.active").removeClass("active");
$(".time-line-ul>li").eq( msg.data).find(".time-line-icon").addClass("active")
break;
};
};
//启用插件;
$(".scroll-time-line").timeLine();
})
</script>
以上所述就是本文的全部内容了，希望大家能够喜欢。
Stellungnahme：
Der Inhalt dieses Artikels wird freiwillig von Internetnutzern beigesteuert und das Urheberrecht liegt beim ursprünglichen Autor. Diese Website übernimmt keine entsprechende rechtliche Verantwortung. Wenn Sie Inhalte finden, bei denen der Verdacht eines Plagiats oder einer Rechtsverletzung besteht, wenden Sie sich bitte an admin@php.cn
Vorheriger Artikel：用svg制作富有动态的tooltip_javascript技巧Nächster Artikel：jQuery实现定时读取分析xml文件的方法_jquery
